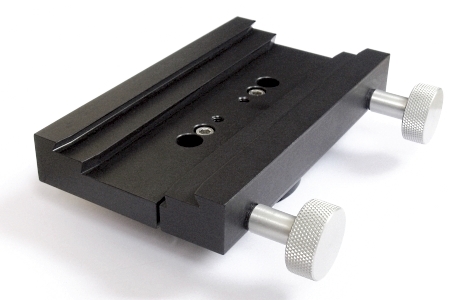

ADM Dual Saddle upgrade for HEQ5 and NEQ6 series mounts

ADM Dual Saddle upgrade for HEQ5 and NEQ6 series mounts
Our Price:  £119.00(Inc. 20% VAT)
Choose:

Model:  adm_eq6_saddle_adapter_losmandy_vixen-2


The original and BEST dual saddle.

Replaces the standard HEQ5 or EQ6 saddle with a dual-saddle device that enables both the popular Vixen (Skywatcher/Celestron) and Losmandy type dovetails to be mounted directly to the mount.

Manufactured from premium quality black-anodized 6061 aluminium and stainless steel.

The split clamp design provides an extremely solid locking surface with maximum contact along the entire length of the saddle. Stainless steel guide pins and spring-loaded design maintains the proper dovetail angles.



adm dual saddle detail



Fitting the saddle is a two-minute job: Remove the three black Allen screws just underneath the saddle, lift the original saddle off, put the new one on then re-fit and tighten the three screws - easy!

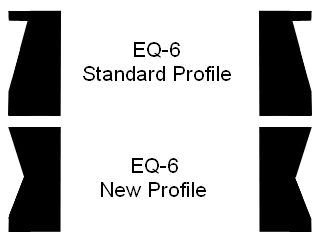

Choosing the correct puck for your EQ6 mount is easy: Remove the original saddle as per instructions above then check its puck against the picture below.

Price includes a pre-fitted CNC machined and anodised 'puck' for quick and easy connection to your mount.

Generally, Pre September 08 EQ6 mounts require the standard-type puck whereas Post September 08 EQ6 mounts require the new-type puck. Don't worry, if you select the wrong one we'll happily change it.



ADM saddle pucks

Write a Review and share your opinions!
Average Rating:  5 Stars5 Stars5 Stars5 Stars5 Stars

ADM Dual Saddle upgrade for HEQ5 and NEQ6 series mounts
ADM EQ6 saddle: What a difference!
  -  Mark
Rating (max 5):  55 Stars5 Stars5 Stars5 Stars5 Stars

I can't believe the difference this makes. It feels like the old saddle was just a bit of sticky tape in comparison. It's a beautiful piece of engineering and I can be certain that the weak link in my mount won't be there. Did he say GRIPS LIKE A VICE? Absoultely! No more of those nasty markings on the dovetail either. Definitely recommended.


ADM Dual Saddle upgrade for HEQ5 and NEQ6 series mounts
ADM duel saddle for EQ6
  -  Darren
Rating (max 5):  55 Stars5 Stars5 Stars5 Stars5 Stars

IT GRIPS LIKE A VICE!!!!!! The stainless steel guide pins allow you to undo one knob at a time fully, so you don't need to keep going back to turn each knob to a little to free your gear.
Well built, solid as a rock, looks good, GRIPS LIKE A VICE!!!!! oh i've already mentioned that, but it does. Holds all my gear with ease, it looks back at me and says is this it...is this all you've got........GRIPS LIKE A VICE.
