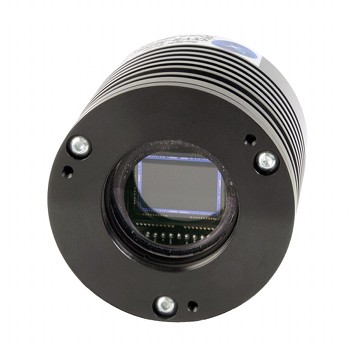

Starlight Xpress SXVR-M26C Colour CCD

Zoom

Our Price:  £2,495.00(Inc. 20% VAT) Model:  sxvr_m26c Brand:  Starlight Tweet

The SXVR-M26C is the latest new generation colour CCD Camera from Starlight Xpress.

Features

• Very large, high resolution 'SuperHAD' CCD chip with 10,202,400 x 6.05uM square pixels in a 23.4 x 15.6mm array.
• Single-shot colour using a Bayer matrix of R, G and B on-chip filters. No filter wheel required.
• High sensitivity, equivalent to 55% QE at peak of green filters.
• Exceptionally low dark signal - No dark frames necessary for most deep sky objects
• Effective anti-blooming with minimal effect on linearity and no lost active area
• High speed USB 2.0 interface - approx 10 second downloads
• Autoguider interface and output - compatible with optional dedicated external guide cameras
• Dual serial ports for accessory control - directly drive filter wheels, GOTO 'scopes etc.
• Single USB cable control for all features - less chance of cable tangle!
• Very low power consumption - less than 1 amp at 12v DC
• Compact and lightweight - only 75mm in diameter x 70mm long, less than 500 grams load on the telescope.

Specifications

CCD type: Sony ICX493AQA SuperHAD CCD with ultra low dark current, Bayer RGB matrix and vertical anti-blooming.

CCD Full resolution Pixel data: Pixel size: 6.05uM x 6.05uM, Image format: 3900 x 2616 pixels

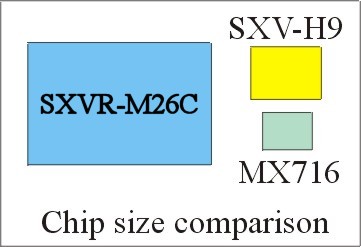

CCD Image area: 23.4mm (Horizontal) x 15.6mm (Vertical).

CCD quality: Grade 1 or better - No bad columns, no dead pixels, no more than 50 'hot' pixels (saturated in <10 seconds).

Spectral Response: QE max at 540nM (~55%), 50% roll-off at 400nM and 650nM.

Readout Noise: Less than 9 electrons RMS - typically ONLY 7 electrons!

Full-well capacity: Greater than 25,000 e- (unbinned)

Anti-blooming: Overload margin greater than 800x.

Dark current: Dark frame saturation time greater than 100 hours. Less than 0.02 electrons/second @ + 10C ambient.

Data format: 16 bits.

System gain: 0.3 electrons per ADU

Computer Interface: Built-in USB 2.0 compatible interface.

Image download time: Typically 10 seconds at full resolution.

Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 900mA max.

Cooling system: Regulated set-point cooling supply with two stage thermoelectric cooler to give a minimum CCD temperature of approximately -35C below ambient.

Size: 75 x 70mm black anodised aluminium barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane.

Weight: approx. 400g.
