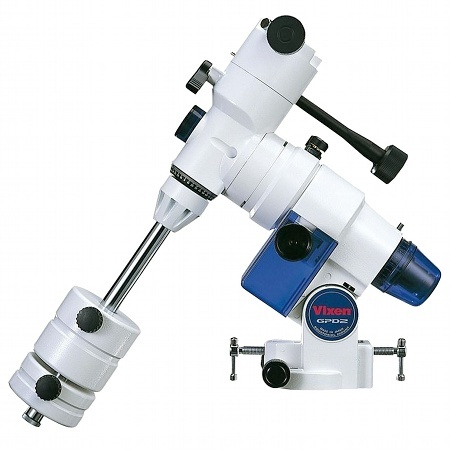

Vixen GPD2 GEM Mount

Our Price: Please Contact Us(Inc. 20% VAT)

Model: vixen_gpd2
Brand: Vixen

The Vixen GPD2 is the stronger and heftier of the GP mounts.

Solid steel RA and Declination axes and brass worm gears will handle years of heavy use.
To assure accurate tracking for astrophotography the worm gears are especially machined to a very high precision that minimizes periodic error.
Equipped with a polar axis scope with a built in illuminator.
Holds almost 50% more weight than the GP2.
Add the DD2 Motor Set for accurate Tracking.

Specifications:

R.A. Slow Motion Axis	144-tooth wheel gears whole circle movement
DEC Slow Motion Axis	144-tooth wheel gears whole circle movement
R.A. Graduations	10 min increments
DEC Graduation	2 degree increments
Polar Axis Scope	6x20mm, wide 8 degree field of view
Altitude Adjustment	0 to 62 degrees (2 degree increments)
Aximuth Adjustment	Double screw fine adjustment
Motor Drive	Optional, with STARBOOK-S or D2M motor drive set
Maximum Loading Weight	10 kg
Counterweight	1.9 kg (4.2 lb) and 3.7 kg (8.15 lbs)
Weight	8.5 kg/ 18.7 lbs (without counterweight)
