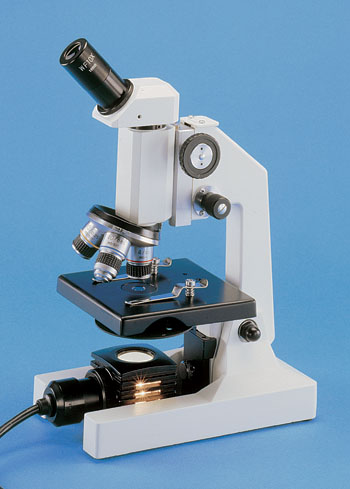

ATM-400L Educational Microscope

Zoom

Our Price:  £122.00(Inc. 20% VAT) Model:  atm-400lmicroscope Tweet

Purpose built teaching microscope of modern design & robust construction with 15w illumination. Ideal for GCSE biology studies. Excellent optical performance is provided by DIN standard optics. Anti-tamper safety features essential for school use include locked-on eyepiece and stage clips, slip-clutch on the coarse focus movement to prevent over-focusing and an internal focus-stop to prevent damage to glass microslides and objective lenses.

• 230v 6w substage illuminator
• Magnification x40, x100, x400, x640* (*x640 magnification achievable by using optional x16 flatfield eyepiece)
• DIN standard Parfocal Achromatic Objectives x4 (0.10), x10 (0.25), x40R (0.65) (R=retractable)
• x10 widefield eyepiece with pointer
• Stage Condenser (N.A. 0.65)
• Rotating 5-hole disc diaphragm
• Separate coarse & fine focusing controls
• Rack & Pinion focussing
• Monocular head rotateable 360 degrees & inclined 45 degrees for convenient viewing with stage horizontal
• Microscope limb can be inclined if required
• Triple Objective Turret
• Brass focussing slides
• Dimensions 220x120x305mm
• Supplied in polystyrene pack with dust cover
• Weight 2.9Kg
