About this product
Part Number: 1508039

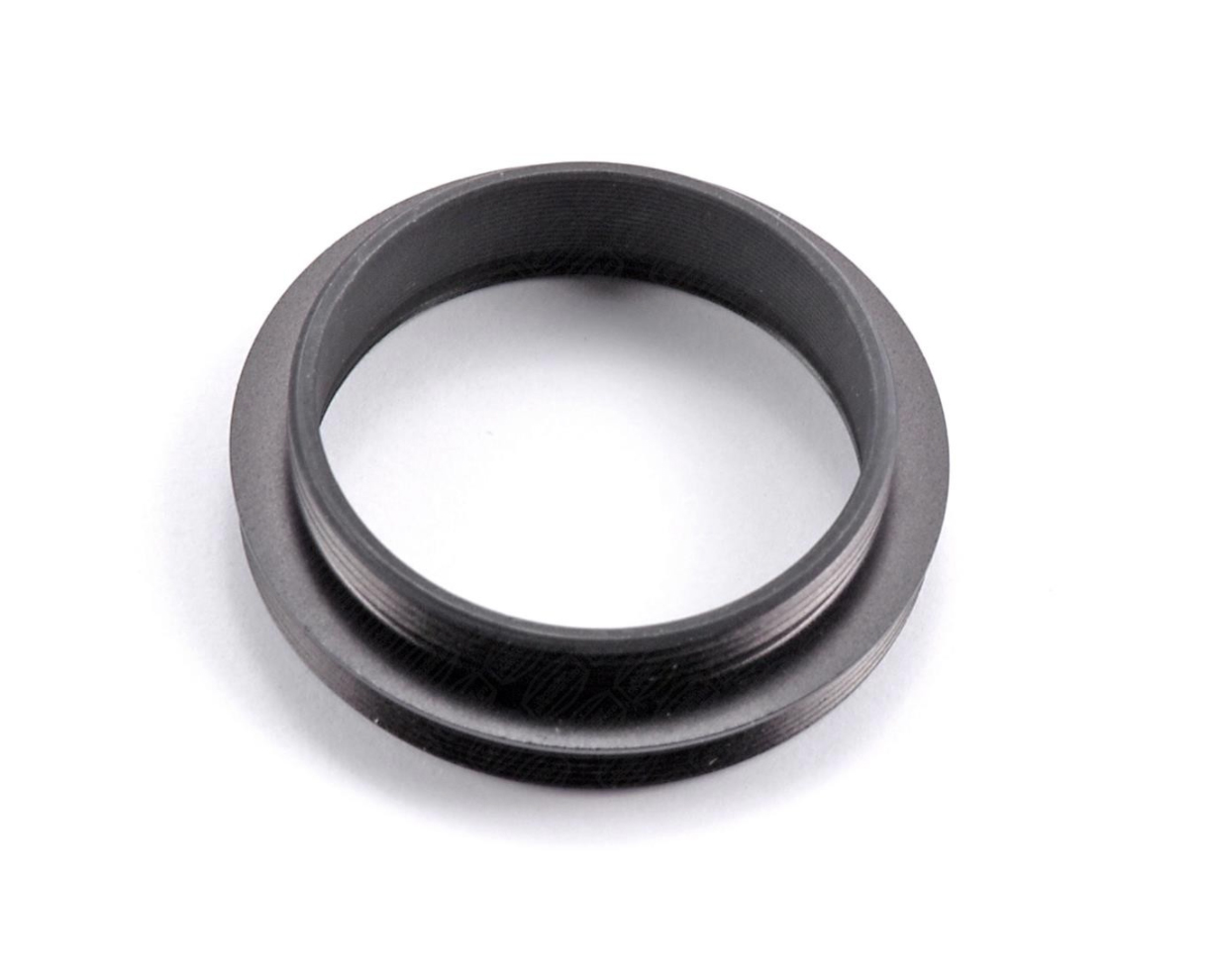

An adaptor for use with telescopes using 36.4mm thread (Vixen) with a T-2 external thread on the opposite side.
The adaptor takes up 0.5mm of back focus.
Telescope Thread: M36.4 Vixen Standard
Camera Side Thread: T2 / M42 x 0.75mm
|Average Rating (2 Reviews): |Perfect repalcement part.
17 March 2023 | Neal
I wanted a better eyepiece clamp for myScoptech f12.5 acromatic refractor, this size adapter is perfect for threading on before using a compression clamp. The original clamp uses a single clamping screw that can mark the lense body.
Baader M36.4 to T-2 Adapter Ideal for older Vixen OTA
01 March 2023 | William
This adapter has the "standard" Vixen 36.4mm male thread on the OTA side and a T2 or 42mm male thread on the other side. ( I combined this with a T2 Eyepiece holder.)
My old but very sharp Vixen 80M was originally made with the small 0.965 inch eyepieces, but I wanted to use it with modern 1.25 inch eyepieces.
This adapter made that easy to achieve.
Very well made as you would expect from Baader , and screws in easily.
Most 1.25 mirror diagonals and eyepieces work fine, though my erecting prism diagonal needed more infocus (prism has a longer folded light path.)
Going further to use 2inch diagonals and my Baader 2 inch Herschal wedge for solar use did mean having to shorten the scope tube a little but that was an easy fix,.
