Takahashi Adapter M72/M68 Zeiss
  Zoom

Takahashi Adapter M72/M68 Zeiss

£45.00✓ 2 year warranty

:

Out of stock due 15-20 working days

About this product

Model:  baader_tak_m72_adapter_2558230
Part Number:  2558230

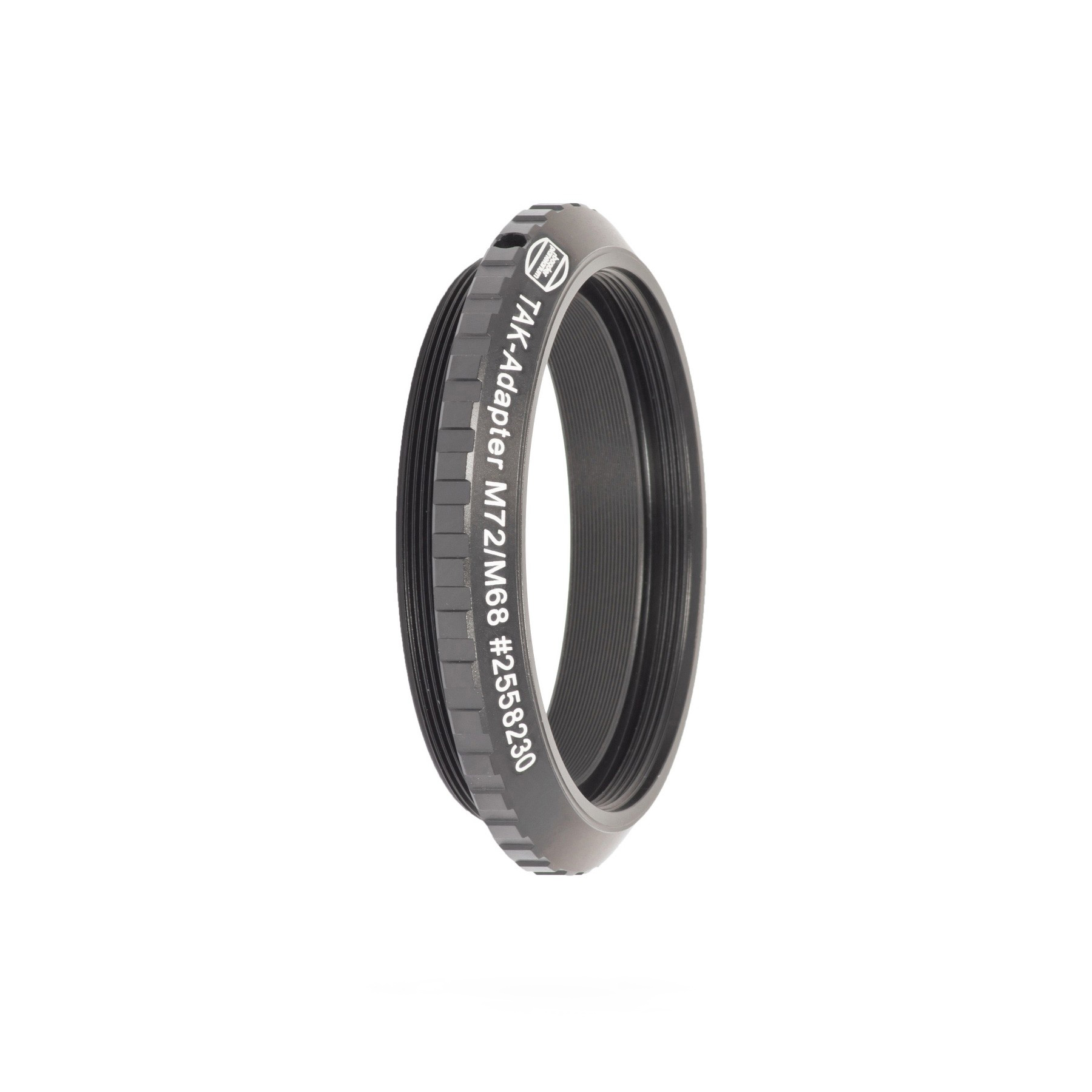

Baader Takahashi Adapter M72/M68 (Zeiss)

The TAK Adapter M72, in combination with the 2" Ultrashort eyepiece clamps (# 245 8196) results in an extremely short 2" eyepiece clamp for every Takahashi-Refractor (26mm optical path length in total). To connect onto all Takahashi Mewlon Reflectors, you need an additional auxiliary adapter (#2558231 - 33mm optical path length in total).

  • Combines Ultra Short 2 "terminal # 2458196, telescope with Carl Zeiss M68 threaded with Takahashi refractors

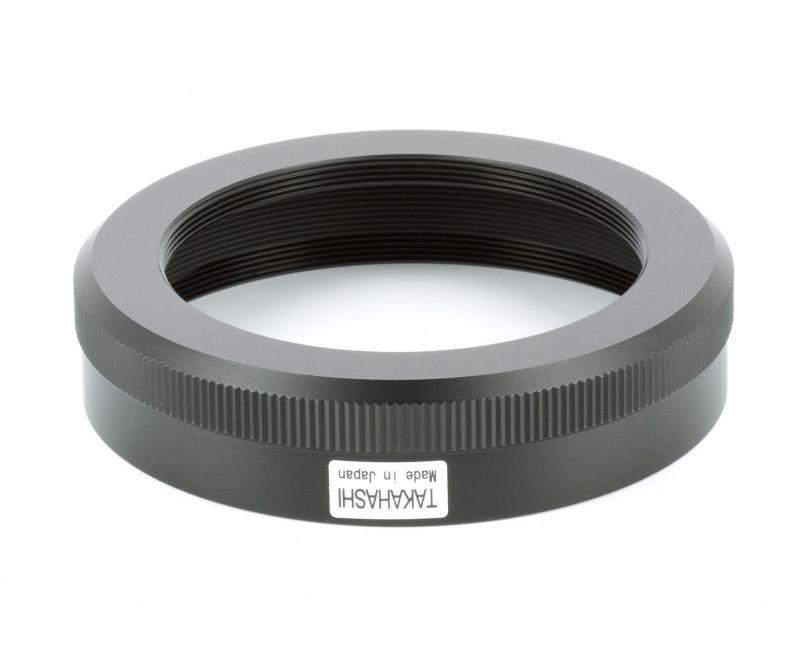

  • To connect Baader TAK adapter M72 / M68 to Takahashi Mewlon reflectors, you need the Takahashi Mewlon auxiliary adapter M71_i / M72_i (#2558231)

Specifications

MANUFACTURER Baader Planetarium
SKU (#) 2558230
EAN CODE 4047825008107
WEIGHT (KG) 0.075
OPTICAL LENGTH (MM) 10
INNER DIAMETER / CLEAR APERTURE (MM) 62
OUTER DIAMETER 85
OUTER CONNECTION (LENS SIDED) Thread, M72
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M68 x 1
COMPATIBLE BRANDS Baader Planetarium, Takahashi, Zeiss
TYPE OF ADAPTER Reducing piece
