BuckeyeStargazer Bracket for iOptron iPolar

BuckeyeStargazer Bracket for iOptron iPolar

  (1 Review)
✓ 2 year warranty


1x in stock shipped 1-2 working days

About this product

Model:  bes_ipolar_bracket
Part Number:  iPolar-Bracket

This bracket provides a mount-independent way to attach your iOptron iPolar to your telescope or mount for polar alignment.

For example, you can attach the camera directly to a Vixen bar on top of the scope, or in a finderscope shoe, etc.

The system consists of two parts:  a bracket for your iPolar and one of several different attachments you need to order the attachment separately here.

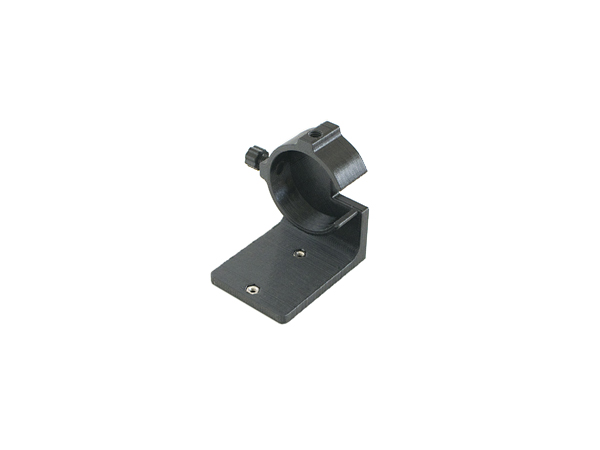

iPolar bracket.  The camera is held in place by a thumbscrew, which can be positioned on top or the side.  Accommodates iPolar's with different cable orientations

Attachments bolt onto the bracket and present several options:

L Saddle:                        Losmandy saddle that allows mounting to Losmandy/"D" rails
V Saddle:                        V-type saddle that allows mounting to a V-bar/rail
V Bar:                              V-type bar that slips into a V-type clamp
ADM MDS Saddle:          ADM MDS Saddle that clamps to a MDS style bar
Arca Swiss Saddle:         Arca-Swiss saddle that allows for mounting to an Arca-Swiss rail
Arca-Swiss Bar:              Arca Swiss Bar that slips into an Arca-Swiss clamp
Synta/Vixen Bar             That slips into a Synta finder base, 20mm tall
Synta/Vixen Bar             That slips into a Synta finder base, 50mm tall

Note that Attachments can be oriented either direction.

Colour: Black. 3D Printed in durable, temperature tolerant PETG filament.




Customer reviews

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
Ioptron mount Buckeye.
22 September 2022  |

A well made 3D printed mount with metal nuts built in making it easy to align with my mount
