ADM Dual Saddle with Slotted Hole for 6mm Socket Head
  Zoom
 ADM Dual Saddle with Slotted Hole for 6mm Socket HeadADM Dual Saddle with Slotted Hole for 6mm Socket Head

ADM Dual Saddle with Slotted Hole for 6mm Socket Head

£134.00✓ 2 year warranty

:

Out of stock due 15-20 working days
Share

About this product

Model:  adm_dual-sad_slt6
Part Number:  DUAL-SLT6

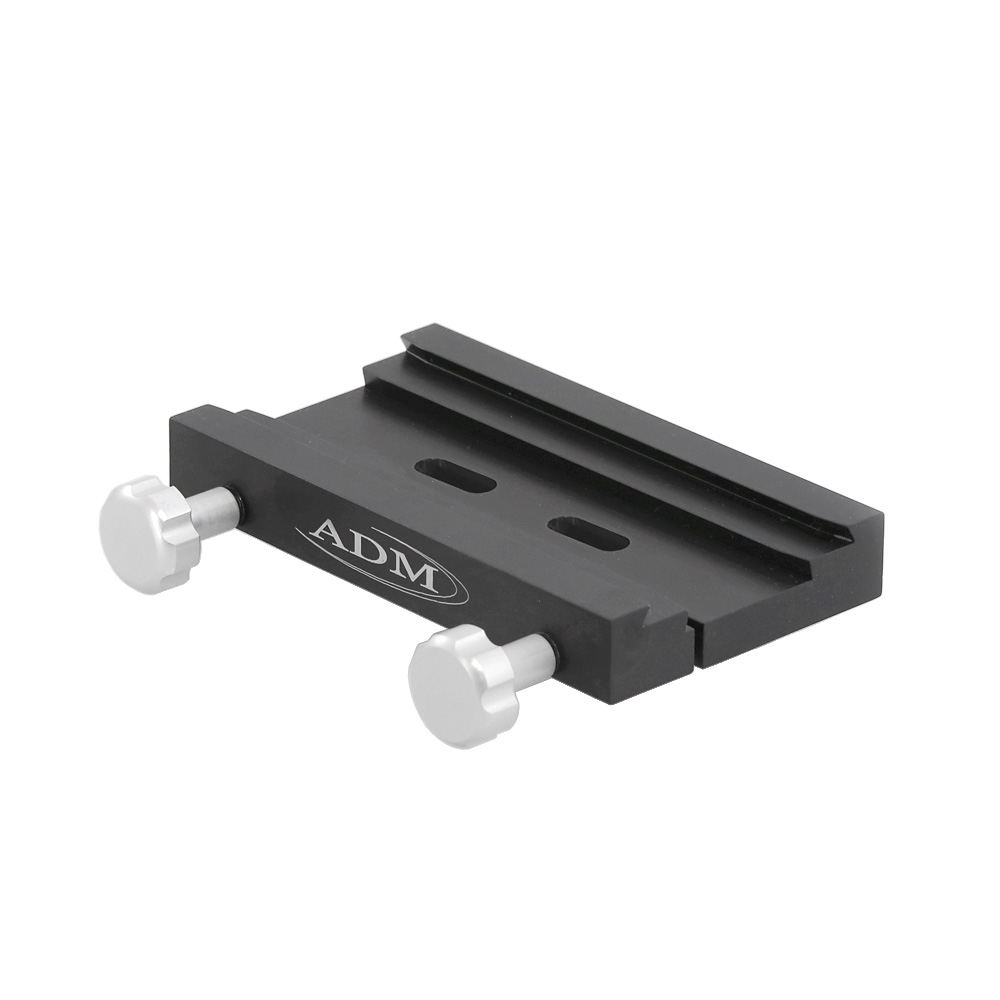

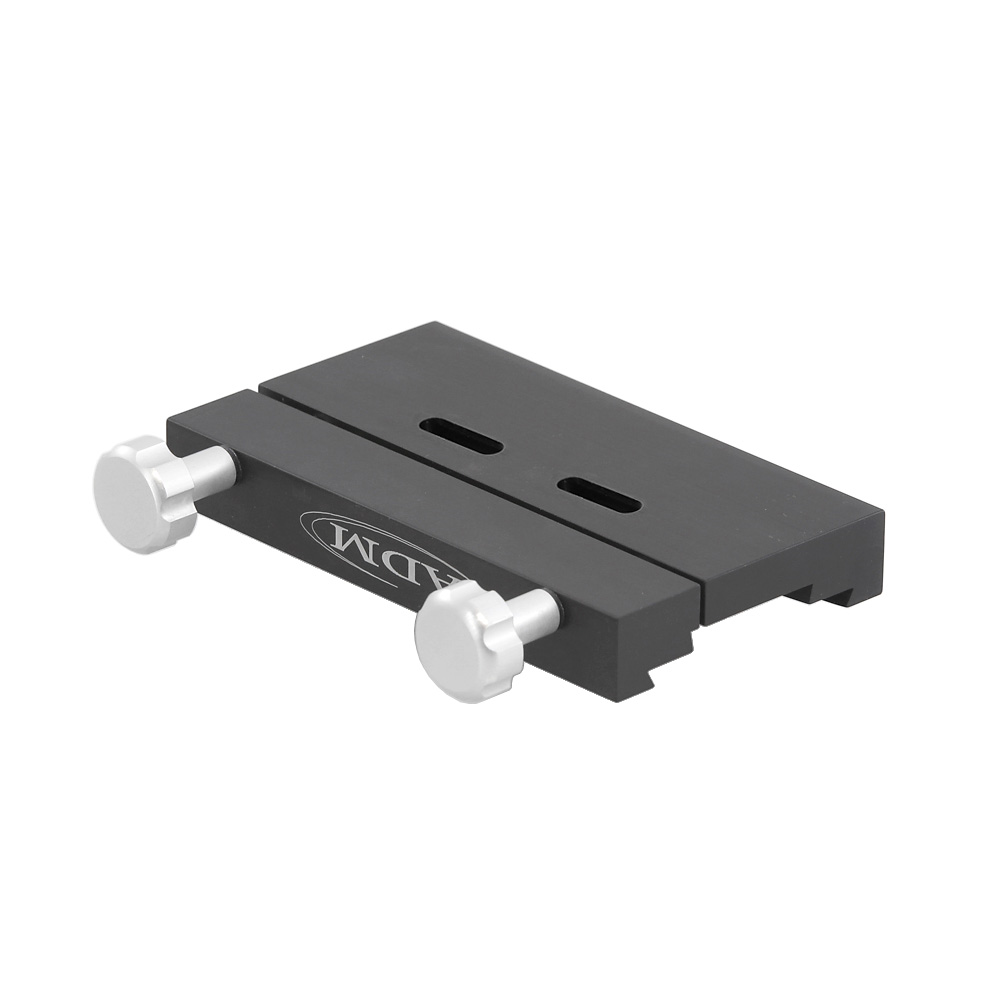

ADM Dual Saddle with Slotted Hole for 6mm Socket Head

This dual-saddle fits many ADM mount adapters but was designed initially to fit Stellarvue ALT/AZ mounts with 1.5″ hole spacing for a 1/4×20 bolt.

Accepts both D Series and V Series dovetail bars. The slotted holes will accommodate hole spacing from 1.5” to 3” centre to centre for a 1/4” socket head cap screw or a 6mm socket head cap screw.

The split clamp design grips the dovetail bar along the entire saddle surface so it will not dent or scratch the dovetail bar.

Features two large locking hand knobs for tool-free operation, spring-loaded jaws, and anodised aluminium and stainless steel construction.

Length: 7″

Width: 4″

Thickness: 0.75″

Weight: 26 oz.
