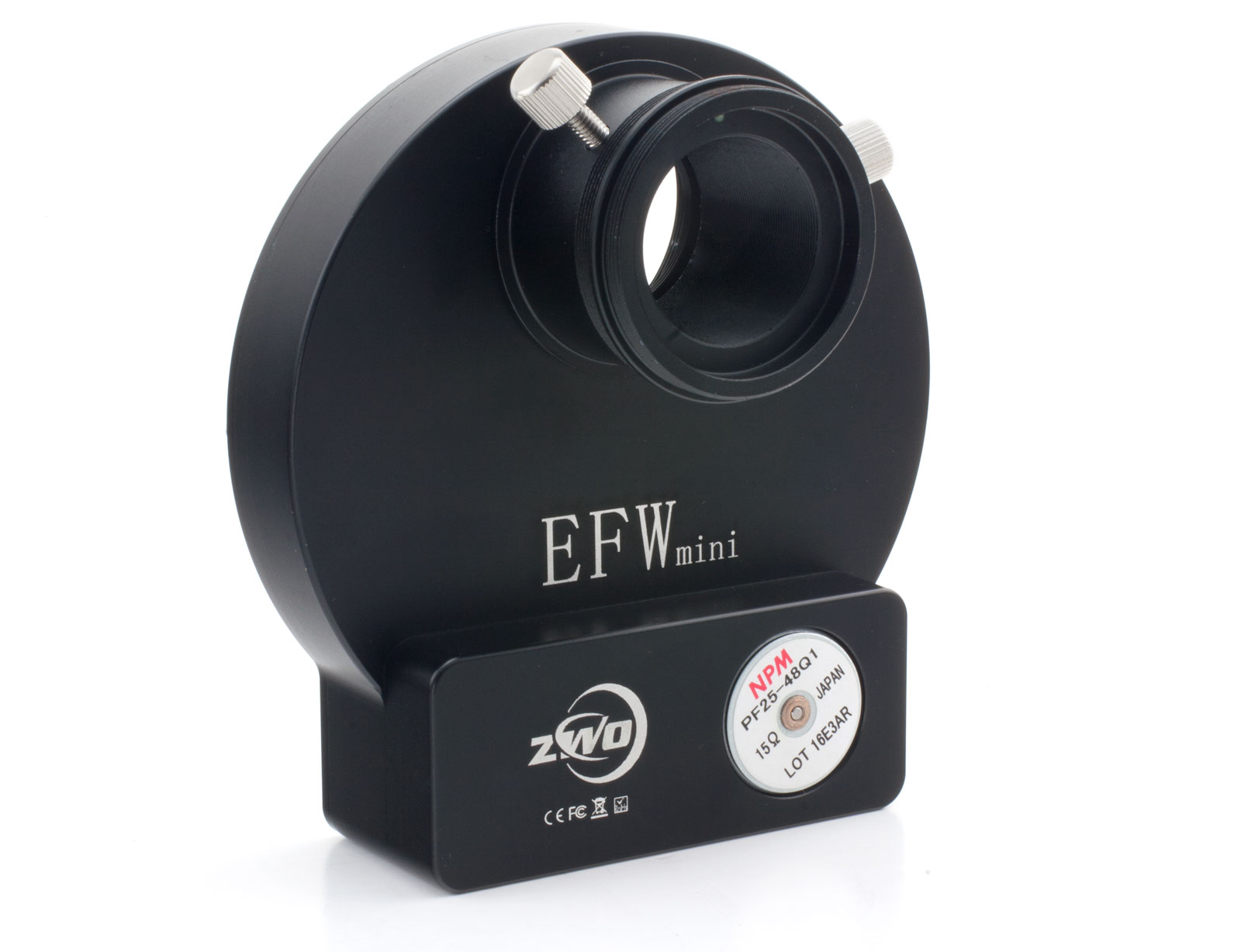

The smallest and most lightweight 1.25" electronic filter wheel available. Only 300g!

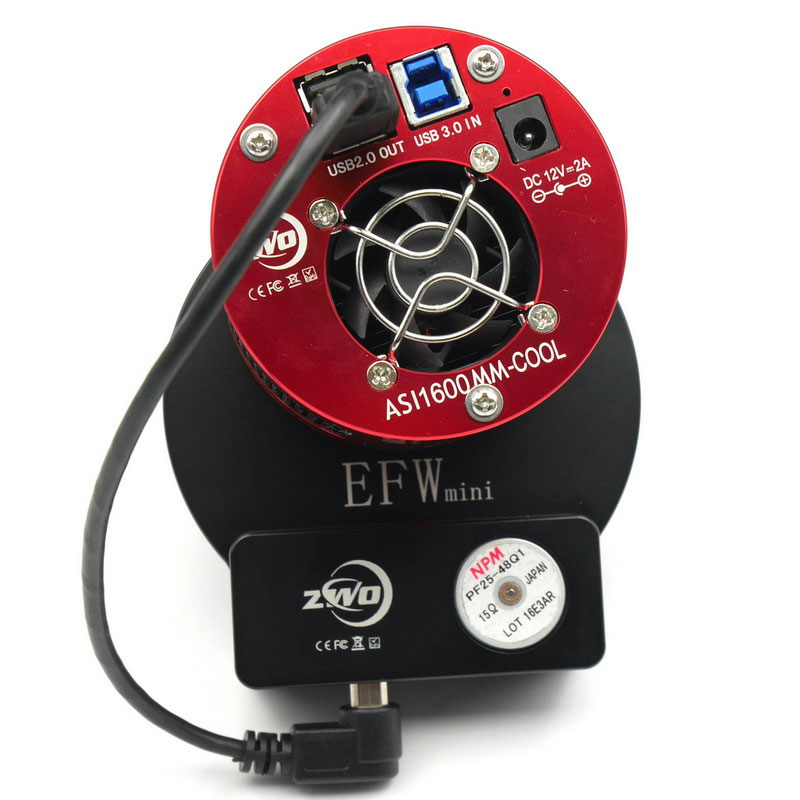

Filter to sensor distance when connected to the ASI1600 is around 10mm, you can use 1.25" filters without vignetting up to f/5 or 31mm filters up to f/2.
Includes M2 screws and washers required for fixing unmounted 31mm filters.
Average Rating (13 Reviews): | |
Excellent little filter wheel 02 February 2023 | Ryan
I'm absolutely so impressed with this filter wheel I used it with my redcat 51 and 533mc pro.
the eaf and asi air plus. I must admit I'm not the most technical person but I just plugged it in and it all fired up and worked pain free
I'm very happy and looking forward to setting up the scope and letting it run on different targets to get the most out of my rig.
17 March 2022 | Tim
Great service from FLO. I chose this based on previous reviews here. Using SharpCap I just plugin the USB cable, selected the hardware config and connected. The filter positions can be defined by name, and there are five buttons at the lower rhs of SharpCap for manual filter selection, or the sequencer can be used. Now waiting for the clouds to disperse.
16 September 2021 | Les
If like me you like to switch between objects, then this is a great addition to have, and as I am fortunate to have a permanent setup, this avoids the obvious swapping of filters as you change object, thus eliminating the possibility of dust getting into the setup.
I use OSC cameras, so with five slots, this allows me to move from Narrowband to a Moon filter!
Setup is very easy and works well with, ASCOM and PC and ASI AIR Pro ( note with the ASI air, lack of ability to rename the slots, so have a plan!)
01 September 2021 | Richard
I bought this to compliment my ASI533MC as I want to be able to swap between a UV/IR filter and the Optolong L-eXtreme filter without introducing dust into my system. The system is well sealed and does not offer any open spaces to allow dust in so long as the rest of the imaging train is affixed.

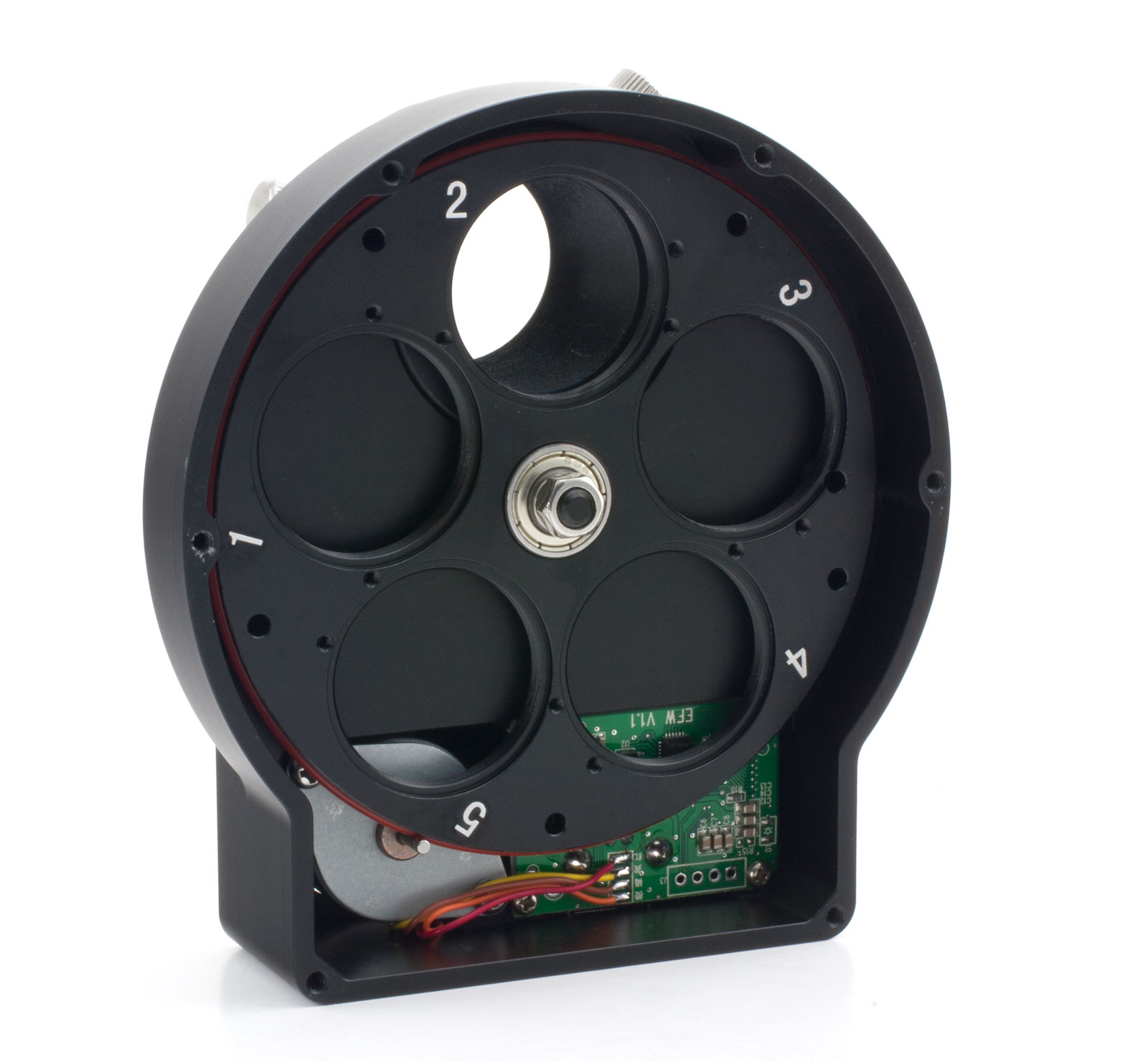

ZWO include a screwdriver so you don't need to use any other tools to open up the filter wheel. On the inside, there are numbers against each filter slot which corresponds with the index position within whatever software you use to drive the filter wheel. Once I installed my filters, I wrote down the filter position and filter type onto a sticky label and affixed to the outside of my filter wheel so I can remember which filter is where (more on this later). The 1.25" filters are a perfect size for the ASI533MC as the filter wheel is attached directly to the camera.
The system plays nicely with my ASI Air Pro as you would expect. At arms distance the filter wheel makes zero noise when indexing. Sadly, the ASI Air software doesn't allow you to freely name your filter (there's options for L, Dark, R, G, B, S, H, O etc) so right now the L-eXtreme is shown as "2" to indicate the index position number, hence why I put the sticky label on the filter wheel!
All in all, this filter wheel is well worth the money and I cannot see any downsides.
11 August 2021 | Lee
Solid, compact and very quiet in operation. Have used with Astronomik filters without issue.
Zwo Mini Electronic Filter wheel 08 November 2020 | Sven
Great product, absolutely silent and smooth operation, fair price and fast delivery by First light optics to germany. Many thanks!
13 July 2020 | Martyn
Bought this to use with Optolong and ZWO filters together with my ASI1294MC Pro .
Really excellent filter wheel and would highly recommend it.
07 June 2020 | Marek
It's hard to get something as good for this money. Very good build quality and works perfectly with my ASIAIR. Highly recommended.
25 May 2020 | Tom
Pretty solid piece of kit. Does exactly what it says on the tin. Price is a bonus. I’ve this attached to an ASI 1600MM and a ZWO OAG. All fits together nicely and worked straight out of the box.
Well made and good accessories 28 April 2020 | John
Very solid build quality and comes complete with various extras such as thread adaptors and washers/screws for unmounted filters etc. Even a screwdriver! Small and quite light. Fits nicely with my 1600mm cool. Usual great service from FLO. Very happy customer.
Read all 13 customer reviews...
