About this product
Part Number: 62761

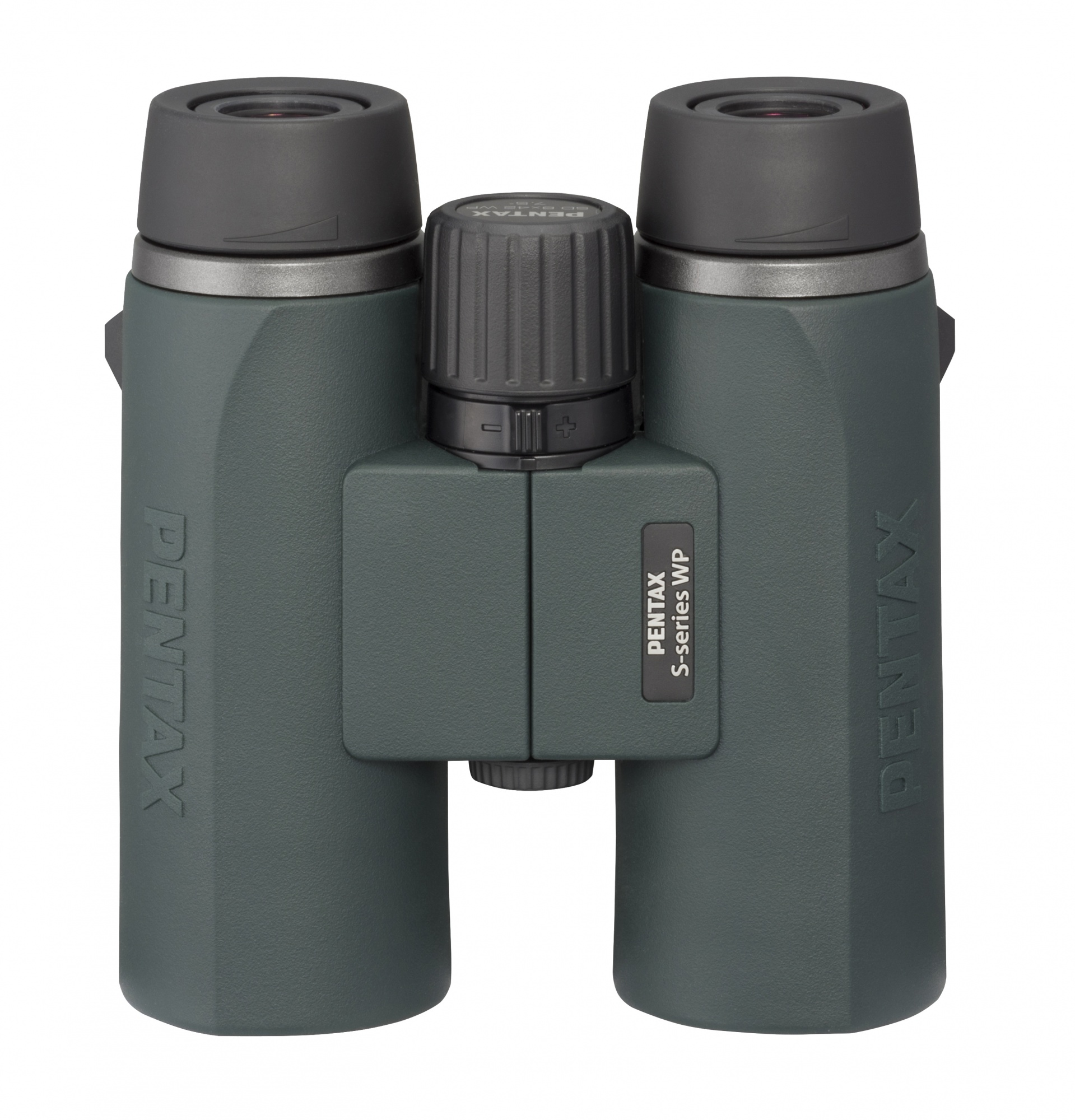

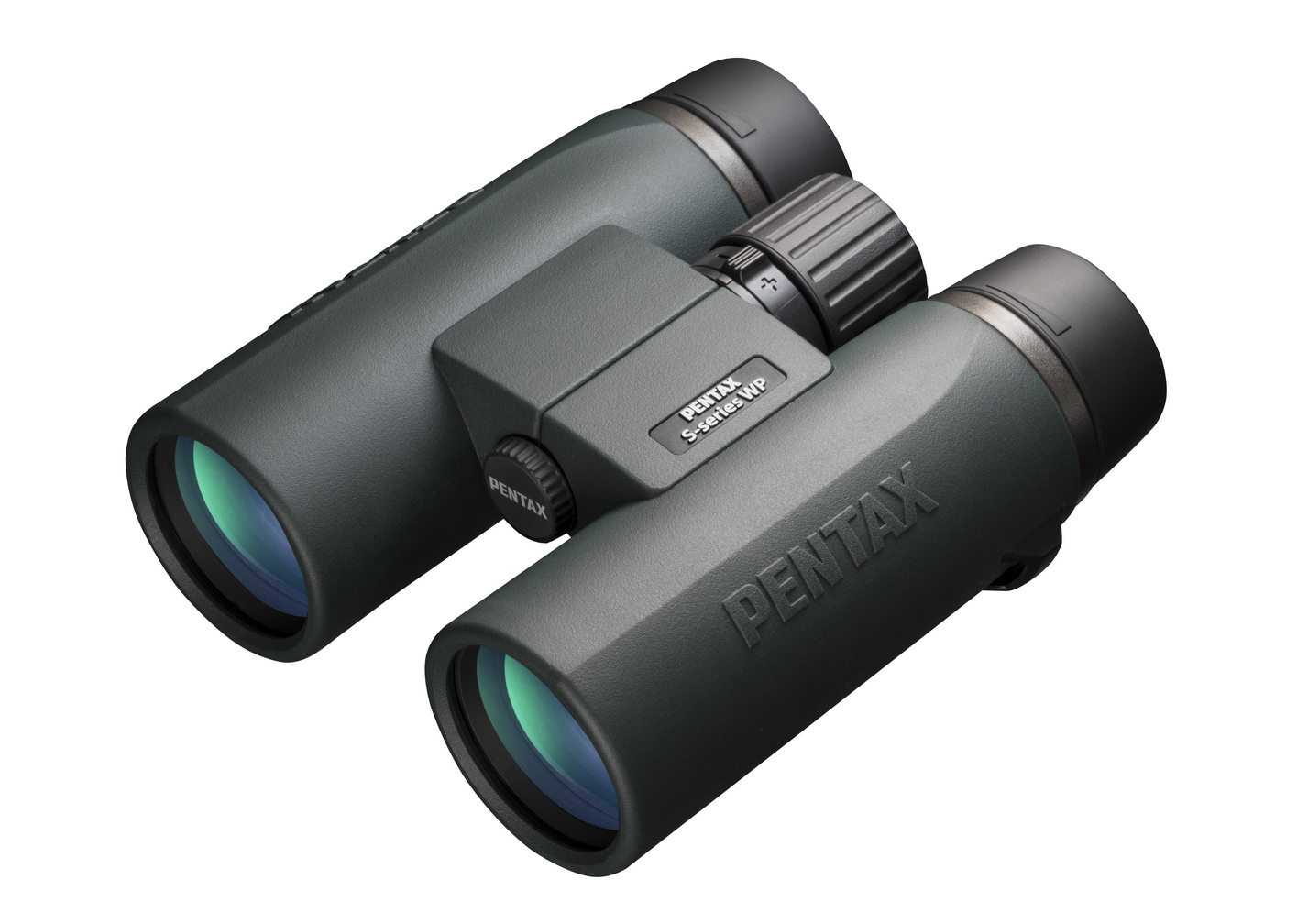

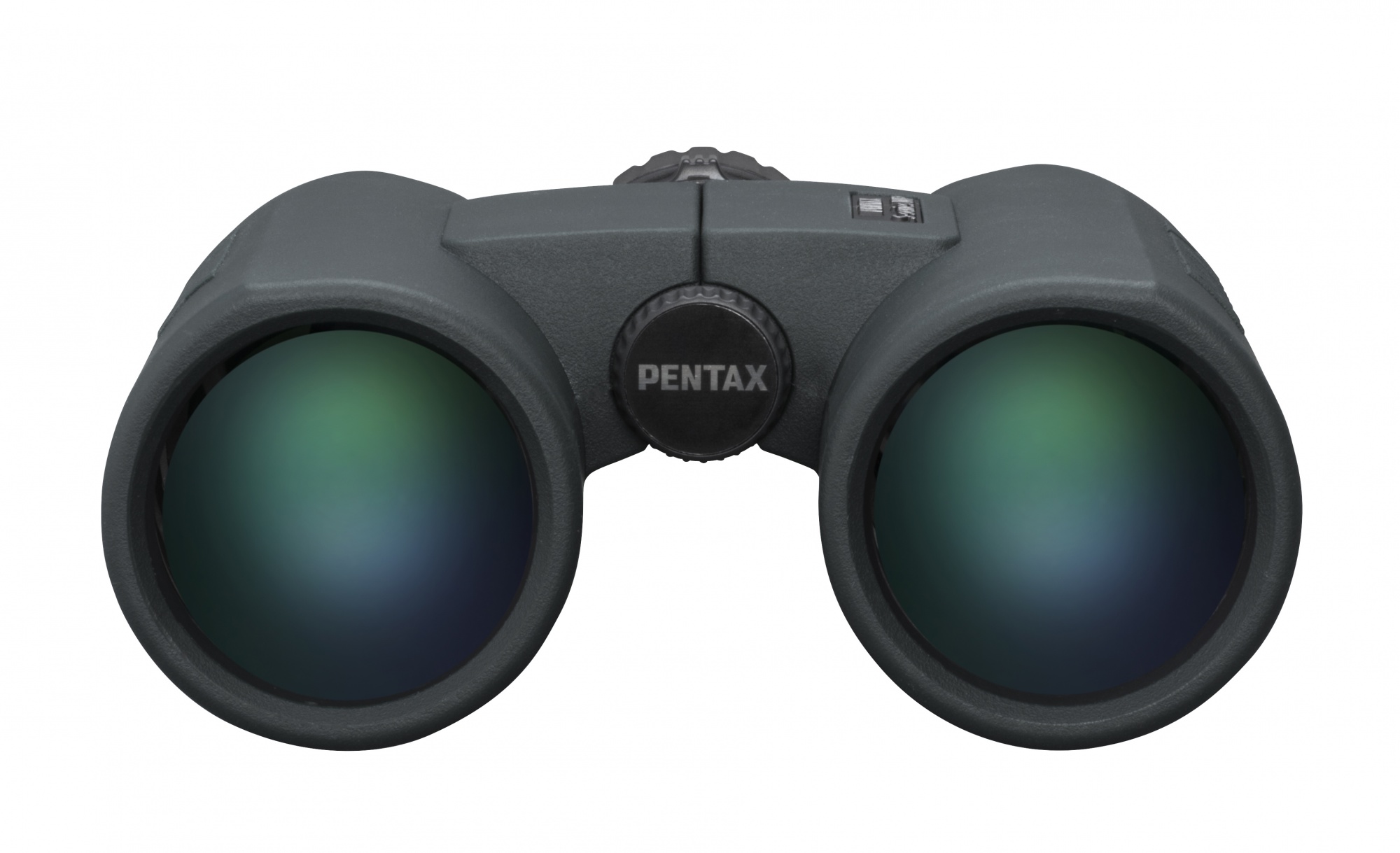

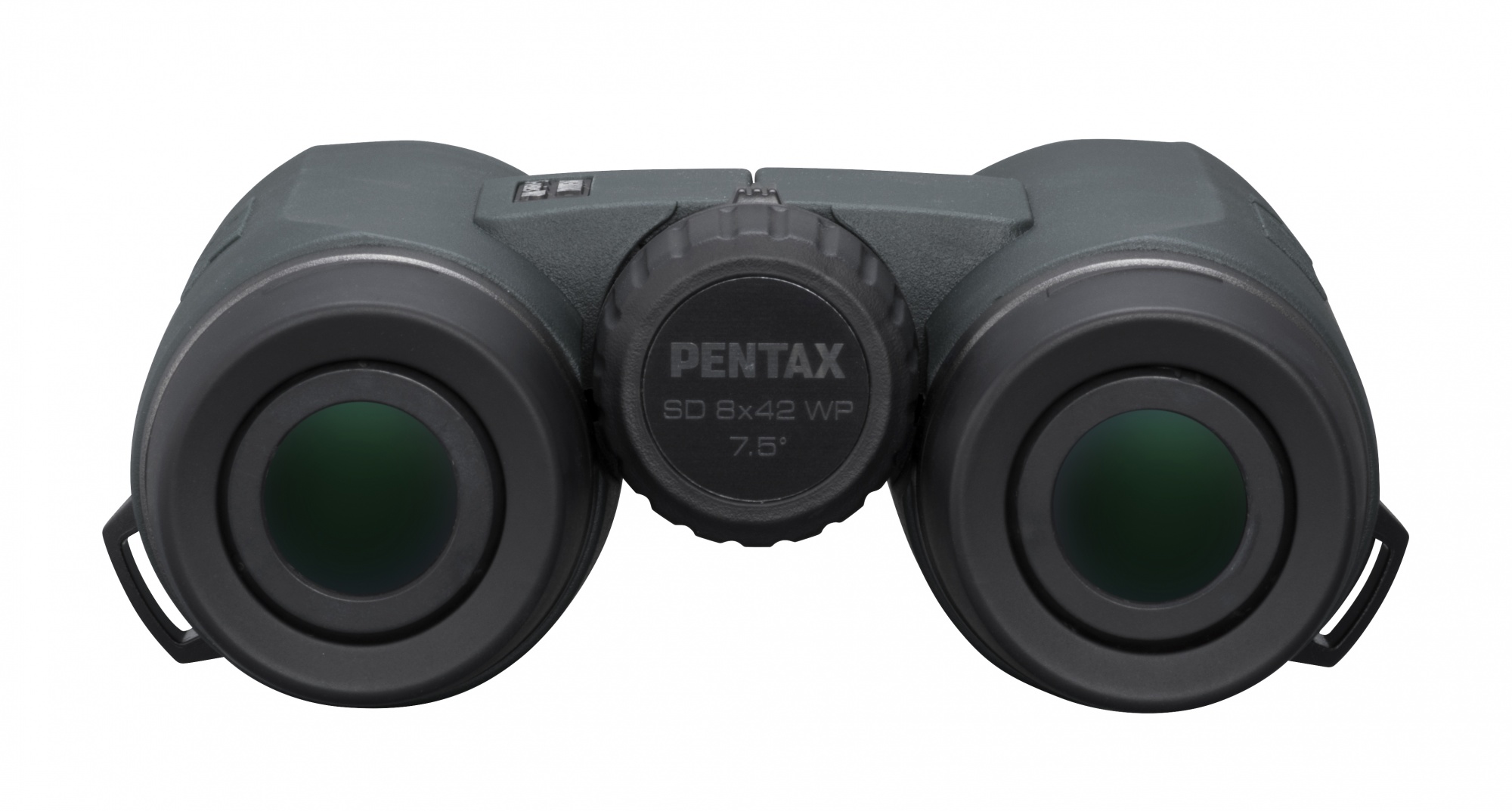

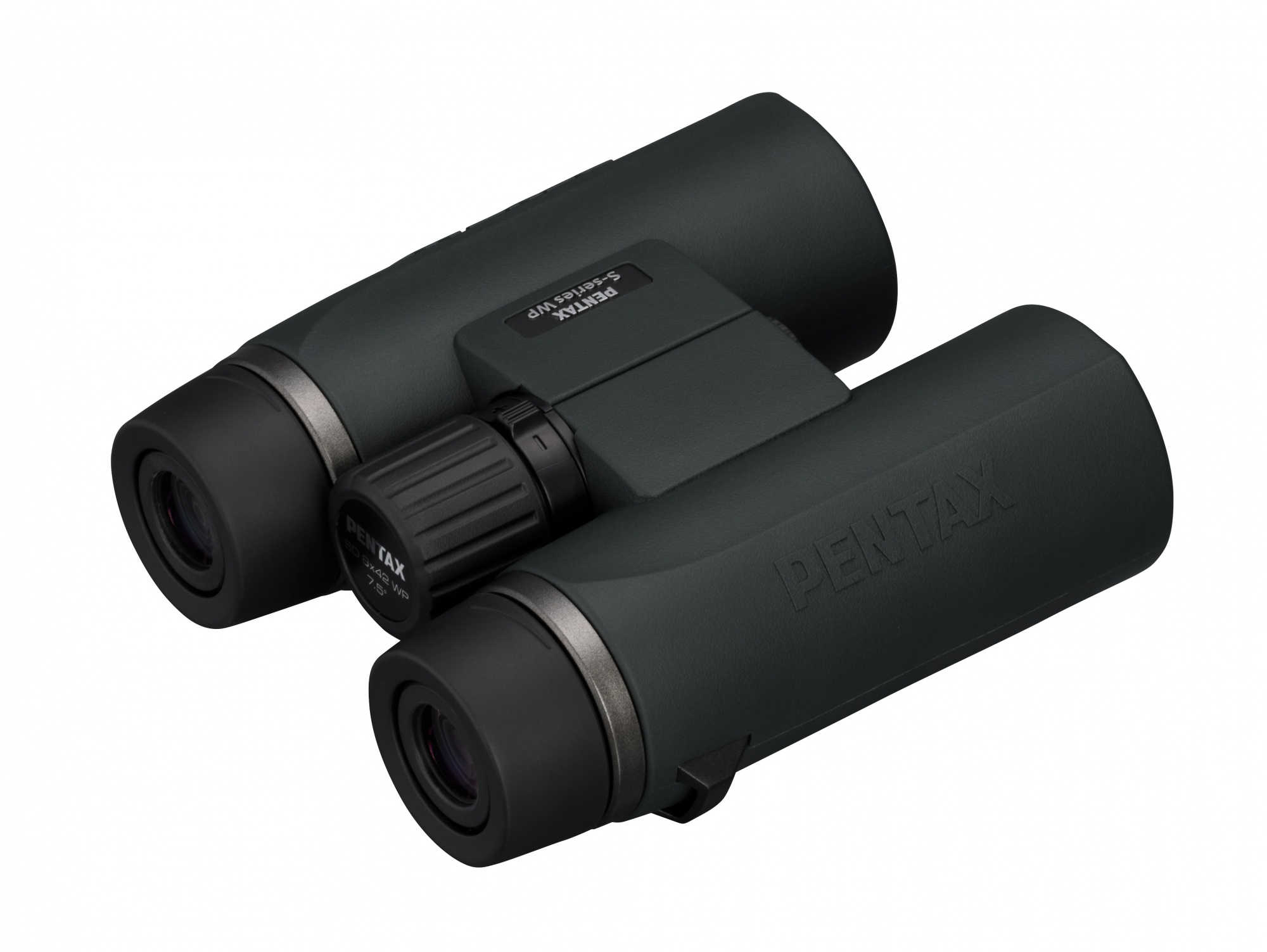

The Pentax S-series – Consists of both roof and porro prism models with objective lenses > 40mm so personal preferences are immediately defined. In addition to the newly developed light transmission coatings, waterproof porro prism models also boast the hydrophobic coating, thereby allowing for contrast-rich, bright viewing under rough outdoor conditions.
These binoculars meet the viewer’s traditional demand for 8x, 9x and 10x magnifications. It has all the quality features found in the entire roof prism range PENTAX has on offer: fully multi-coated lenses, inner focusing, water and dust proof, nitrogen-purged and phase correction coatings on the BaK4 prisms. The new Enhanced light transmission coating creates crystal sharp images.The polycarbonate housing makes the whole package a full-size light-weight. It also offers 4-stop, helicoid eyecups. When weight is a critical factor for you, then these binoculars are the perfect reason to upgrade to full size.
- New fully multi-coated optics
- New enhanced light transmission coatings
- Phase correction
- Protective lens coating
- Nitrogen purged
- Inner Focus Optics design
New Fully-multi-coated optics
Fully multi-coated lenses serve the essential purpose of maximising
the amount of light passing through a lens, thereby prevent flare and ghosting from interfering with your view. PENTAX applies multiple layers of coatings to every surface of every element and prism in the full Sport Optics line-up. These fully-multi-coated optics assure the maximum light transmission resulting in a clear, crisp view of the world.
New Enhanced Light Transmission Coatings
PENTAX binoculars take quality optics to the next level by applying a new, optimised film-deposition technology on lens and prism surfaces resulting in increased light transmission which creates bright images with accurate colour rendition
Protective Lens Coating
All optical surfaces are delicate and must be handled with care to prevent scratching. To add to the durability of the Z- and S-series Water Proof binoculars*, PENTAX has added a protective, nano technology coating that helps deflect water, oil, dust and dirt. This allows PENTAX binoculars to withstand the harshest viewing conditions.
Due to its outstanding refractive index, the BaK4 glass prism found in all PENTAX Sport Optics is highly acclaimed for its perfectly round exit pupil and clear, unvignetted image.
The complex optical design of roof prism binoculars provide durable, compact, yet lightweight design but require a higher level of optical perfection. A phase-correction coating is applied in the full range of roof prism binoculars to maximise image viewing quality.
PENTAX waterproof products are fully sealed and purged with laboratory grade nitrogen to provide a fog proof view in the harshest weather conditions. With a JIS Class 6 rating, PENTAX waterproof binoculars can even be submerged in up to 3 feet of water.
Inner Focus Optics Design
This sophisticated optical design is critical to low-maintenance and long life guarantee. Exposure to airbourne particles and moisture is avoided, thereby ensuring that no outside influences can penetrate the housing and disrupt functionality.
Nitrogen is a chemical element and a colourless, odourless and tasteless gas. It contains very little humidity and is therefore used to “purge” binoculars and spotting scopes of the high humidity air that is part of
our environment. Due to the low humidity factor, nitrogen prevents condensation from forming on the internal lenses of optical instruments during phases of rapid temperature change. Furthermore, because nitrogen is purged into the optical instrument at slightly above atmospheric pressure, dust and other miniscule particles are prevented from entering the housing.
Long eye relief design
The long eye relief offered in all PENTAX Sport Optics allows the viewer to see the entire field of view clearly and effortlessly. This is especially beneficial to eyeglass wearers, and allows viewing for extended periods of time without added eye strain.
Helicoid three-stop eyepiece rings that permit fine adjustment for maximum viewing comfort
Exterior rubber coating that provides the binoculars with superb resistance to shocks and impacts.
What's in the box
- SD WP Binoculars
- Objective Lens Caps
- Eyepiece Lens Caps
- Carrying Case
- Neck Strap
- Lens Cloth
- Instruction Manual
|Type||Full-size Roof||Full-size Roof|
|Objective Lens Diameter||42 mm||42 mm|
|Field of View at 1000m||131 m||105 m|
|Exit pupil aperture||5.2 mm||4.2 mm|
|Eye Relief||21 mm||18 mm|
|Eyecups||Multi-Stop Twist-Up||Multi-Stop Twist-Up|
|Height||52 mm||52 mm|
|Width||134 mm||134 mm|
|Depth||148 mm||144 mm|
|Weight||640 g||615 g|
|Water proof||Yes (JIS Class 6) – Nitrogen purged||Yes (JIS Class 6) – Nitrogen purged|
|Accessories||Objective and eyepiece caps, case, strap||Objective and eyepiece caps, case, strap|
|Prism coating||BaK4 with High Resolution Phase Correcting coating||BaK4 with High Resolution Phase Correcting coating|
|Lens coating||New fully multi-coated optics, New enhanced light transmission coatings, Protective lens coating||New fully multi-coated optics, New enhanced light transmission coatings, Protective lens coating|
|Close focus||2.5 m||2.5 m|
|Tripod Adaptor||With adapter TP-3 – PENTAX Code No. 69554||With adapter TP-3 – PENTAX Code No. 69554|
Please fill in the form below to ask a question or request a price match.
Q1. How much do these binoculars weigh?
The Pentax SD 8x42mm WP binoculars weigh approximately 640g / 22.58oz and the SD 10x42 WP binoculars weight 615g / 21.7oz.
