iOptron HAZ31 Alt-Az Strain Wave Mount

iOptron HAZ31 Alt-Az Strain Wave Mount

£1,949.00✓ 2 year warranty


Out of stock due 10-15 working days

About this product

Model:  iop_haz31
Part Number:  HZ312

iOptron HAZ 31 Alt-Az Strain Wave Mount

iOptron have introduced two exciting new Alt-Az strain wave mounts, the HAZ31 and HAZ46, which are welcome additions to the iOptron strain wave gear mount family!

This lightweight, compact, medium payload HAZ31 mount will deliver an astronomy experience like never before. With a mount head weighing 8.2 lbs, the HAZ31 has a payload capability of 31 lbs, without needing a cumbersome counterweight or shaft. The HAZ will support a large variety of instruments. That flexibility is necessary for outreach programs and satellite tracking. The multi-position saddle (can be placed on top or to the side) uniquely sets up the HAZ31 to accommodate binoculars. Just turn the mount on, and it will calibrate itself and GoTo the first target utilising our time-tested "Lever and Go" technology.

The HAZ31 delivers unparalleled weight to payload efficiency by utilising state-of-the-art strain wave gear technology for both RA and DEC movement. Its black anodised all-metal CNC machined body is a durable, rugged platform that will perform at the highest level for many years. Unique features such as an electronic friction break and power-down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

A computer can control a HAZ31 mount via ASCOM/Commander for a Windows PC or a third-party INDI driver for MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.


  • Advanced harmonic drive technology
  • Payload capacity of 14 kg (31 lbs) with a mount weight of 3.7 kg (8.2 lbs)
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • Go2Nova® hand controller with ~212,000 object database

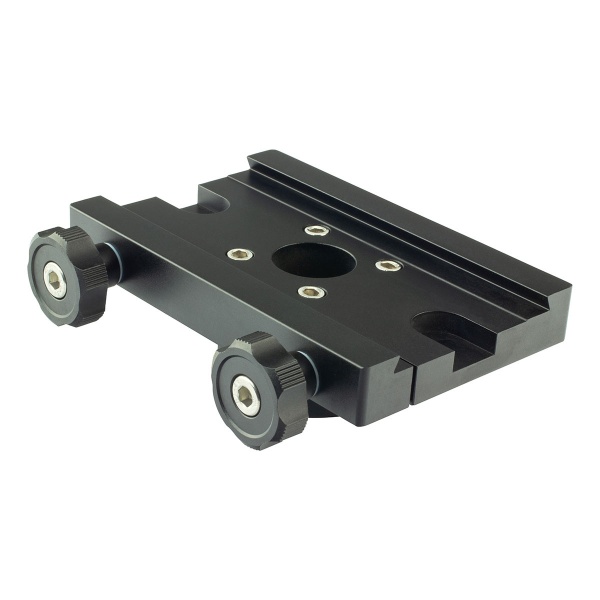

  • Dual saddle (Vixen and Losmandy-D styles)
  • Level and Go
  • Large Binocular Mounting
  • Satellite Tracking Ready (with third-party software)
  • Built-in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Soft carrying case
  • Two-year warranty

Go2Nova Hand Controller 8409

  • 212,000 object database & star identification
  • Large LCD screen with four lines and 21-character with backlit LED buttons
  • User-friendly interface
  • 9-speed setting for motor slew speed
  • Serial port for firmware upgrade and mount computer control



Mount Strainwave Altaz Mount
RA Gear System   Strainwave Gear
Dec Gear System Strainwave Gear
Ra/Dec Reduction Ratio 480:1 (SWG 120:1, Sync belt 4:1)
Payload 31 lbs (14 kg)
Mount Weight 8.2 lbs (3.7 kg) with dovetail saddle
Payload/Mount Weight 3.78
Drive Motor Stepper Motor
Structure Material All metal, CNC machined
Exterior Finish Anodised Black
Level Indicator Level Bubble
Control System GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Max Slew Speed 8º/sec
Power Consumption 0.6A(Tracking), 1A(GOTO)
Power DC12V-5A (5.5/2.5mm DC plug)
AC Adapter 100V ~ 240V (included, indoor use only)
Power Off Brake Electronic friction brake
Power Down Memory       Yes
Wi-Fi Built In
Communication Port Yes (Wi-Fi and USB, via HC)
Firmware Upgrade Yes
Dovetail Saddle Vixen and Losmandy

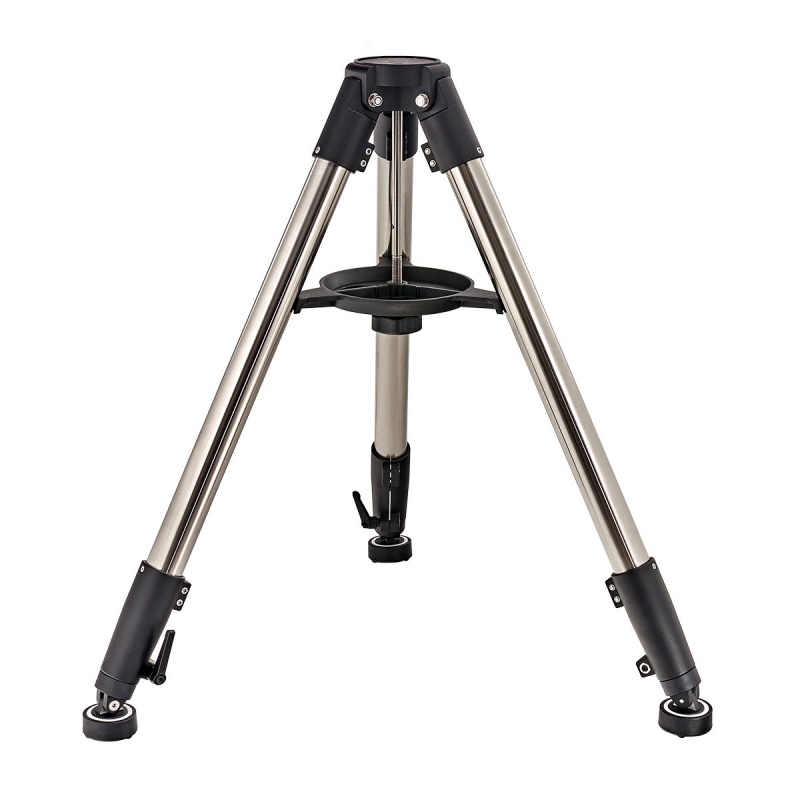

Tripod Optional
Operation Temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty 2 Years
