About this product
Part Number: 20031200a

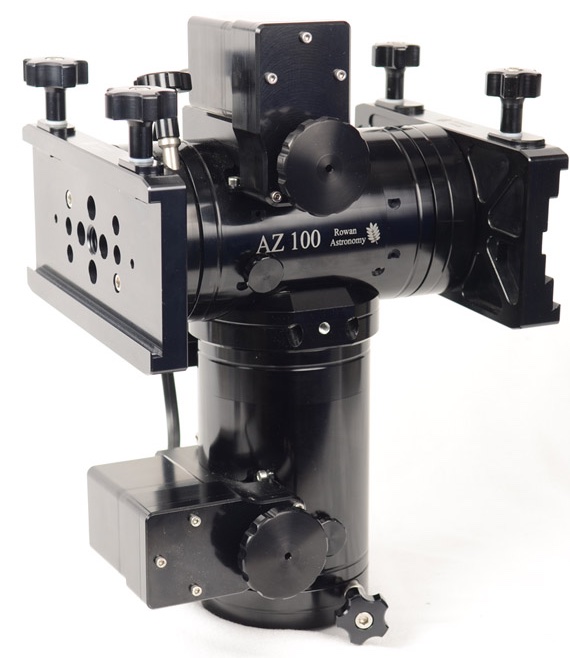

This is the mount other Alt-Az mounts want to be when they grow up
Designed and manufactured in the UK by Rowan Astronomy.
Machined to a very high standard from black anodised aluminium with stainless steel hardware. Specifications includes an 80.0 mm diameter 7075 aluminium wheel gear, a brass worm gear in adjustable worm block and high quality ball bearings used throughout. Load capacity is an impressive 15-20 kg each side.
Features included adjustable friction clutches on both axis and 360 degree slow-motion controls. Both slow motion controls remain in alignment with the observer at all times.
Can be fitted to any tripod designed for a Sky-Watcher NEQ6 mount, so long as you can remove the tripod's AZ pin.
You can purchase an AZ100 mount as:
- Mount only (without encoders).

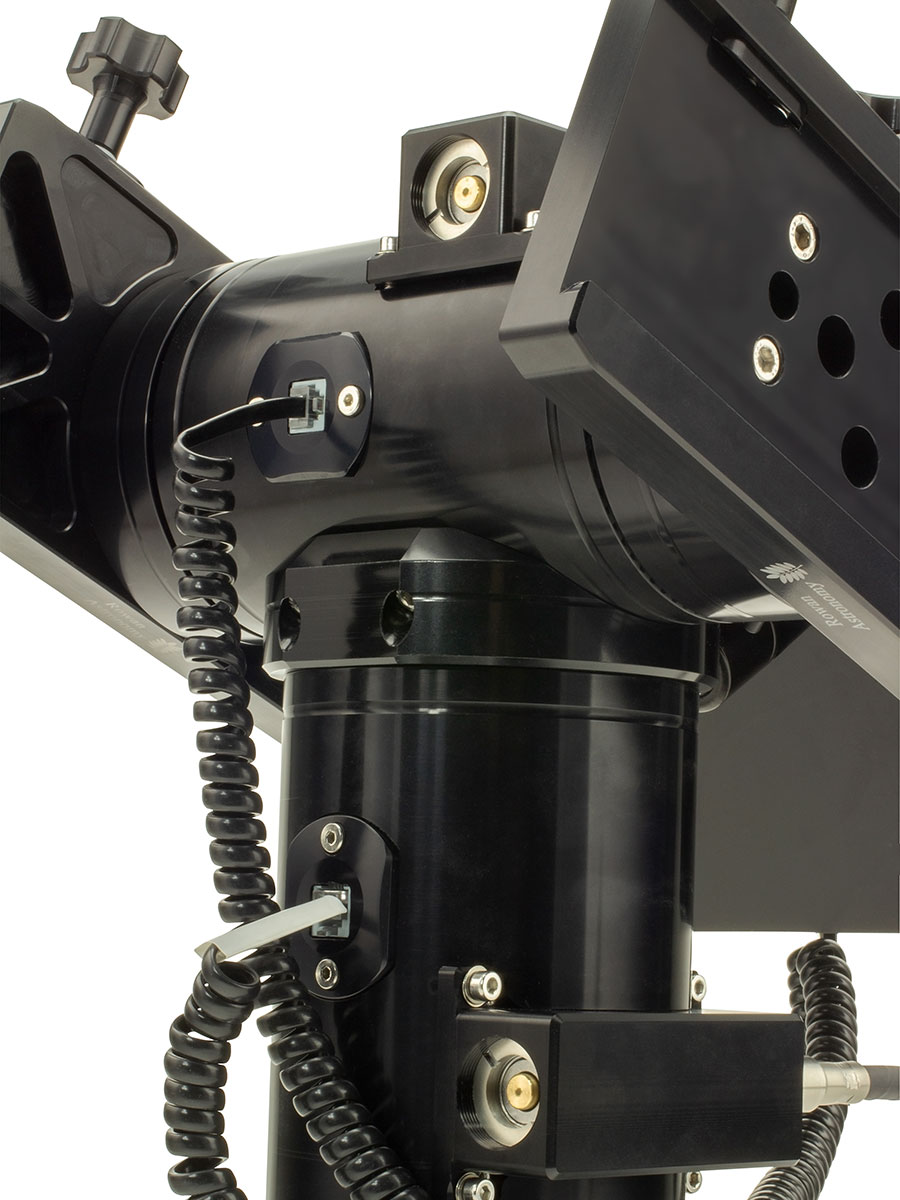

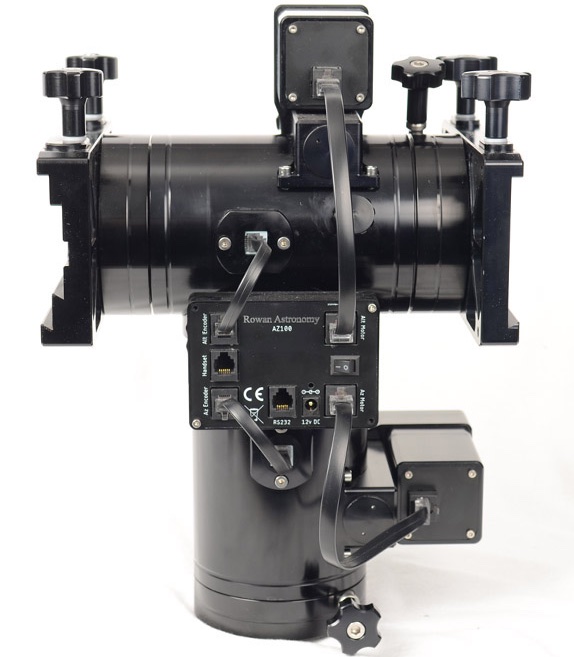

- Mount with pre-fitted high resolution encoders (152,000 counts / rev) to interface with DSC's (encoder leads remain in alignment and do not wrap around the azimuth axis).

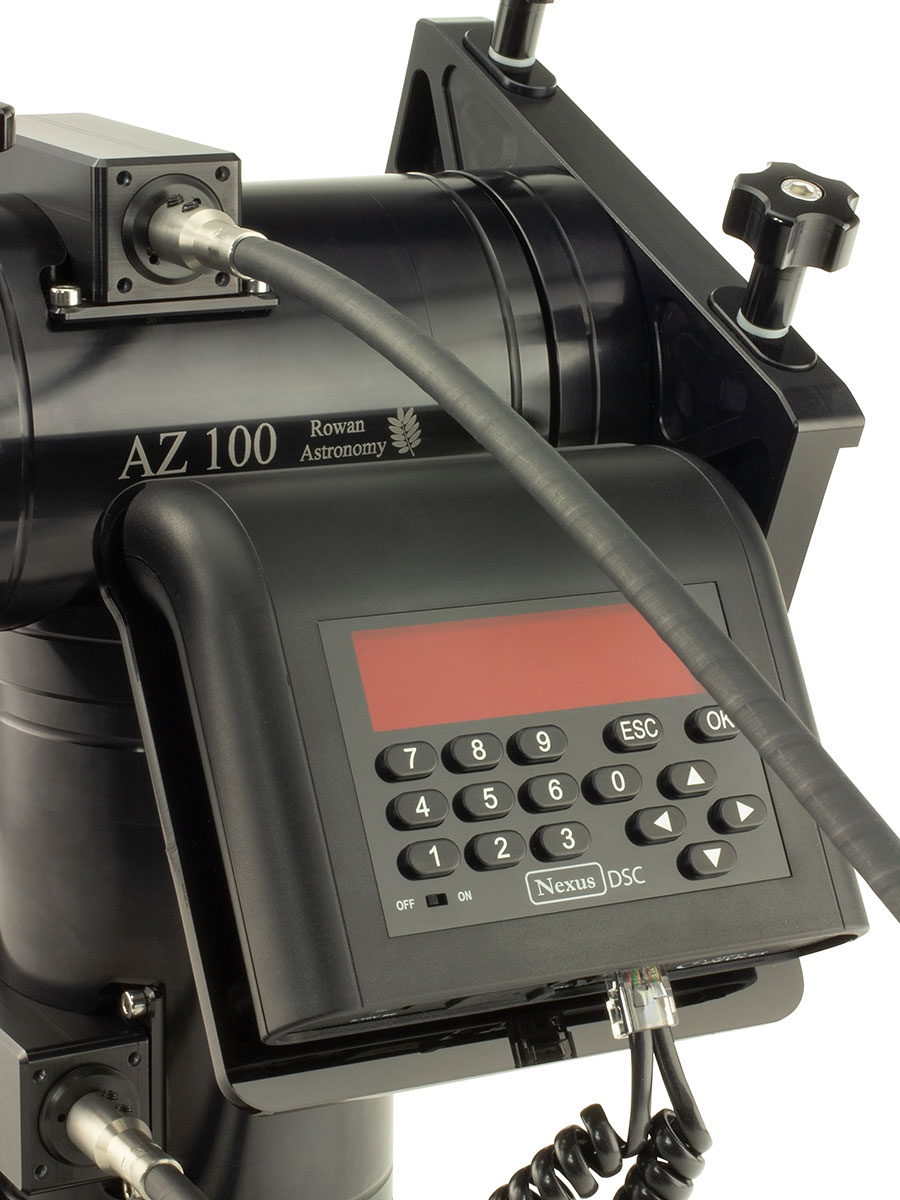

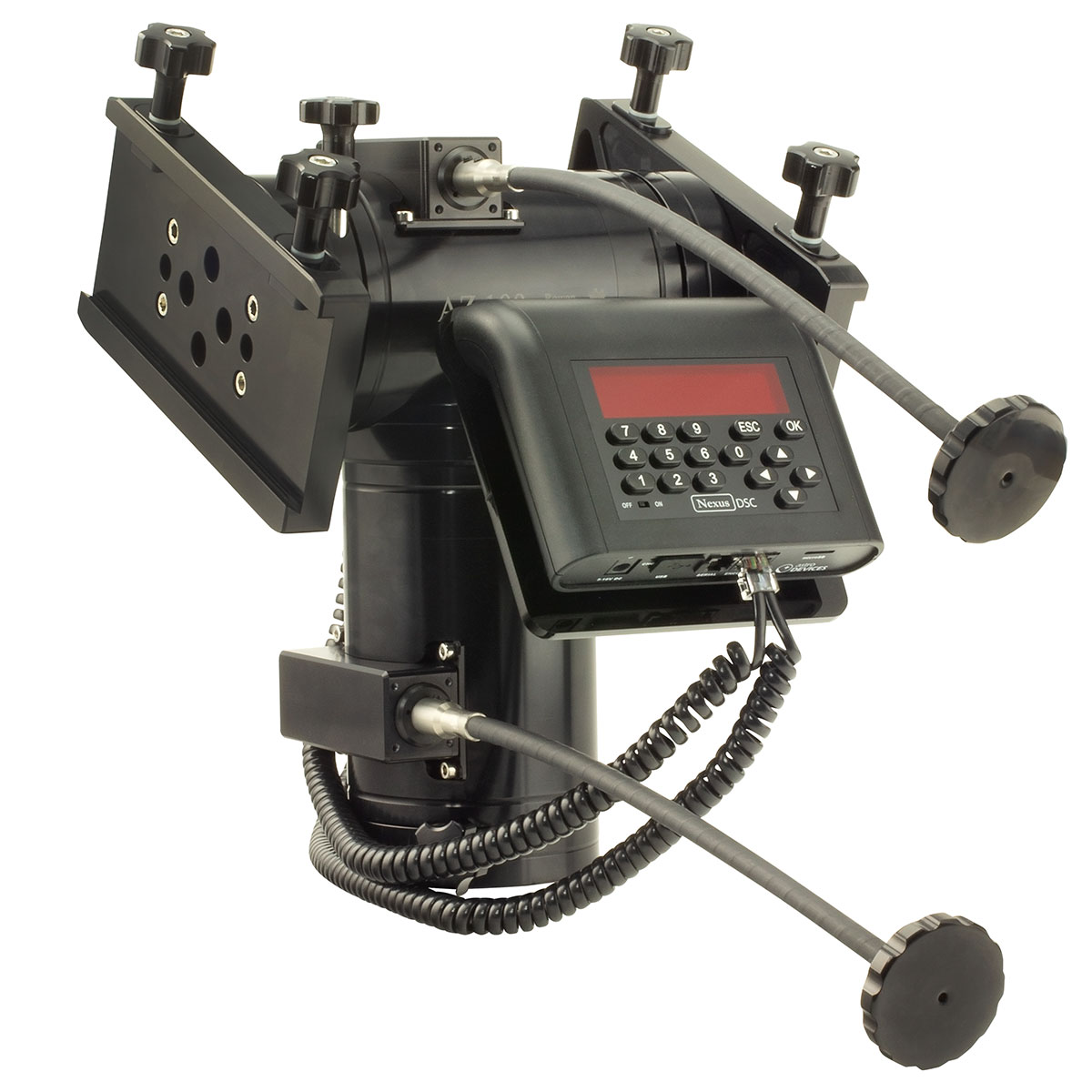

- Mount with pre-fitted high resolution encoders and a Nexus DSC controller. including WiFi
Note: The above options exclude saddles, counterweight shaft & counterweight.
A 25mm diameter stainless steel counter weight shaft with mounting flange and a stainless steel 4 kg counterweight (125mm diameter) are available separately.
Total weight of mount with saddles: 9Kg
|Average Rating (1 Review): |
Monday, 11 May 2020 | Neil
Extremely well made alt/az mount, the build quality is 2nd to none. I have a few alt/az mounts and this is easily the best of the bunch. I have it on the berlebach uni-28 and it is a perfect match. The nexus dsc system is so simple to use and very accurate, I would highly recommend getting the nexus with this mount.
