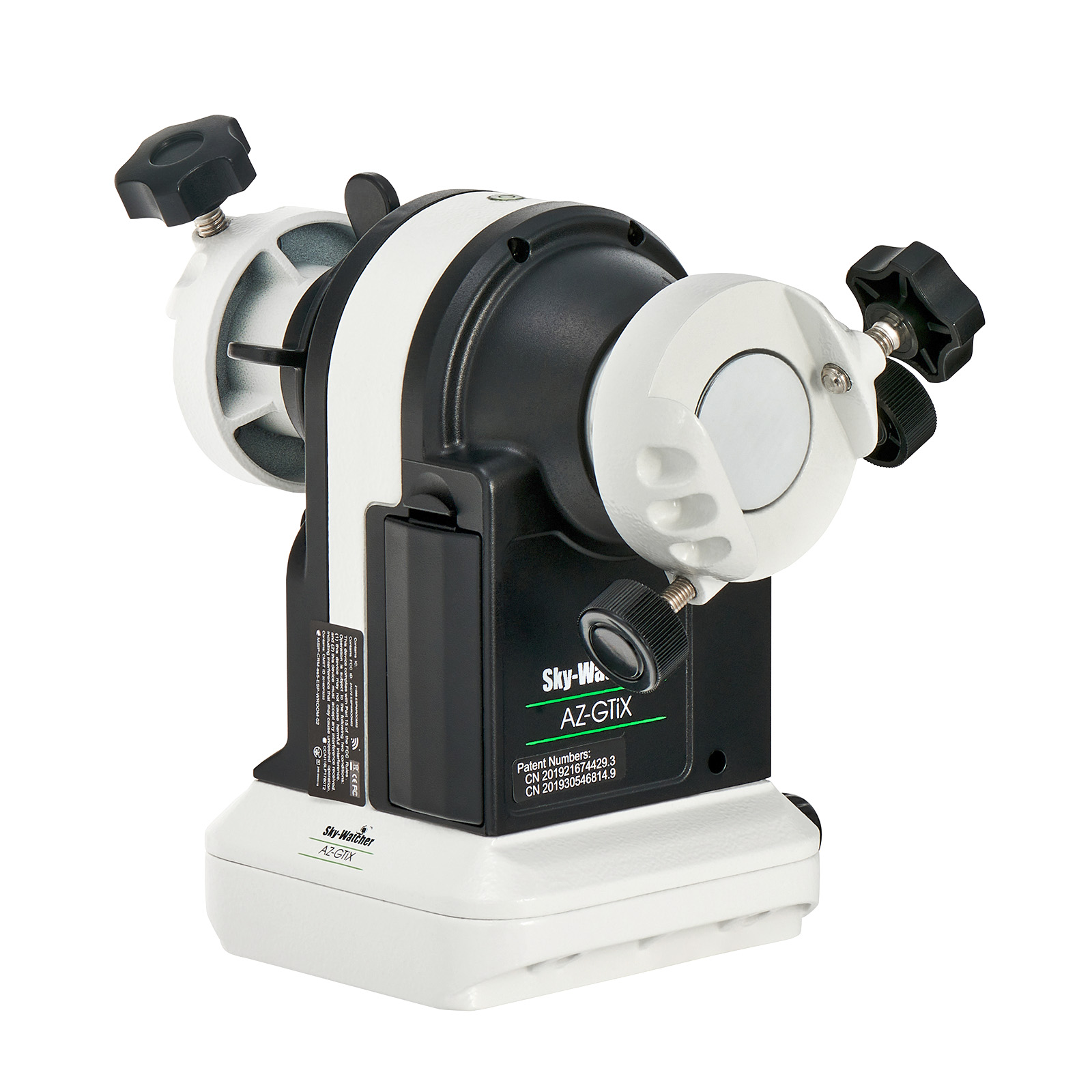

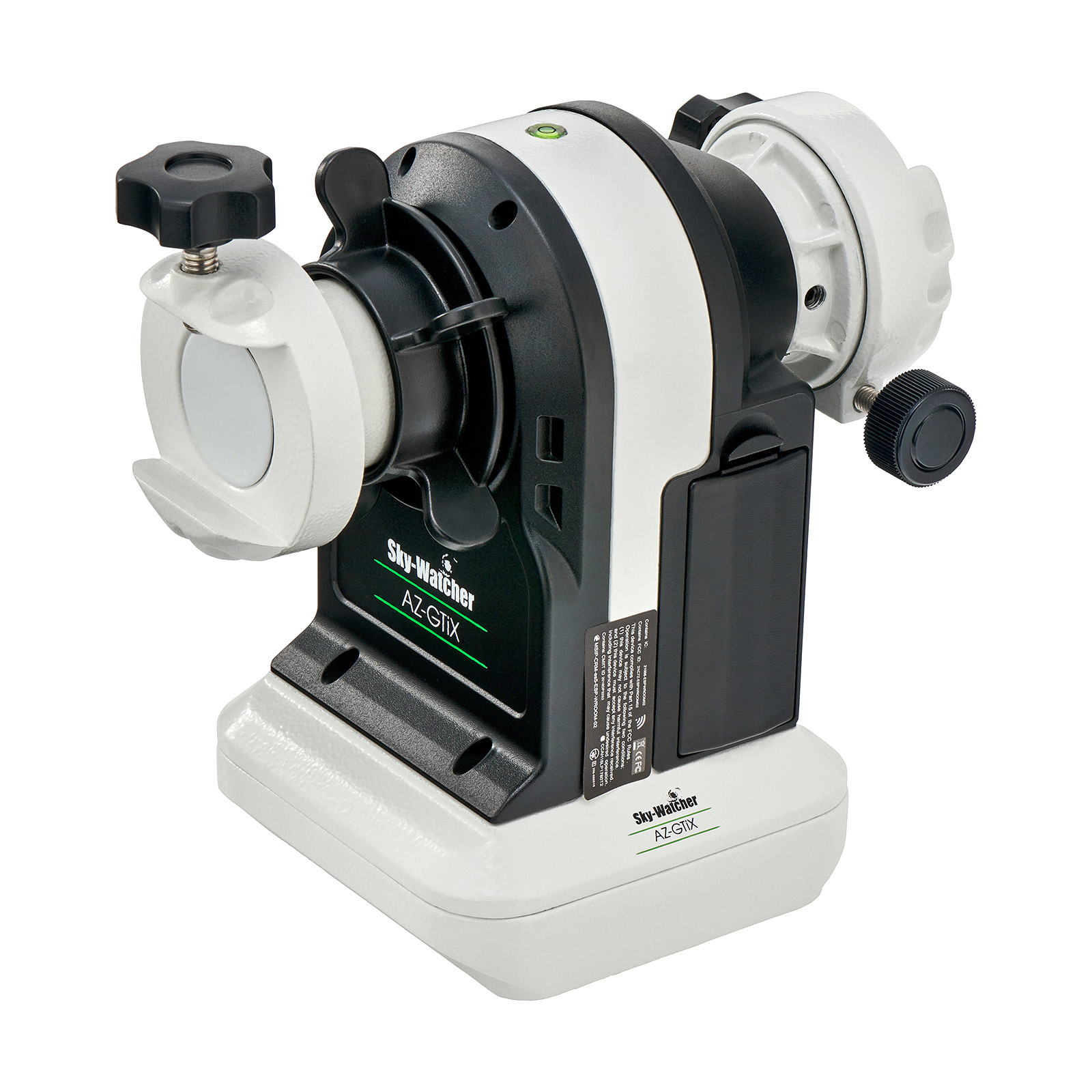

Sky-Watcher AZ-GTiX Dual Saddle Alt-Azimuth Astronomy Mount

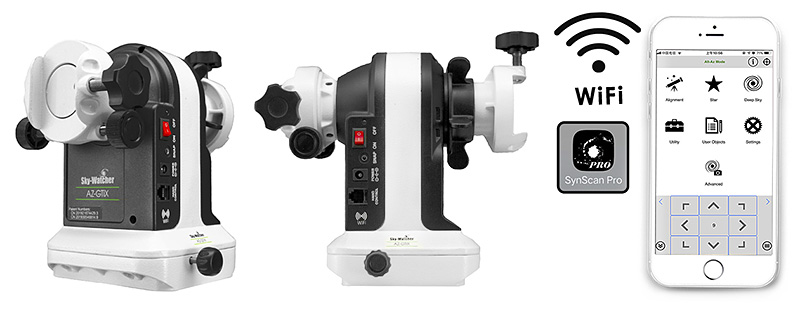

The highly portable Sky-Watcher AZ-GTiX Dual Saddle Alt-Azimuth Mount with integrated Wi-Fi will carry up to two telescopes and is controlled wirelessly via your Smartphone or Tablet using the free SynScan App for iOS or Android.

The AZ-GTiX creates its own Wi-Fi network so it can be used anywhere without reliance on other Wi-Fi networks.

After entering your coordinates into the App and following a simple alignment procedure, you can explore the universe using the App’s intuitive touchscreen menu.

The AZ-GTiX and SynScan App provides full computerised GO-TO control, enabling your telescope to be automatically slewed to any of the objects in the App’s extensive database of 10,000+ celestial objects.

It incorporates Sky-Watcher’s patented 'Freedom-Find' dual-encoder technology so it can be moved manually, in either axis, without the mount losing its positional information. This provides freedom, convenience and flexibility during observational sessions.

The mount is quiet in operation and has a payload capacity of up to 6 kg (using one saddle) or 10 kg (using both saddles).

Accepts telescopes with standard 45mm Dovetail Bars.

Weighs only 2kg, the AZ-GTiX is available as a mount head (for connection to a regular photo tripod via a standard 3/8" tripod bush) or with an optional Sky-Watcher stainless steel tripod with an accessory tray.

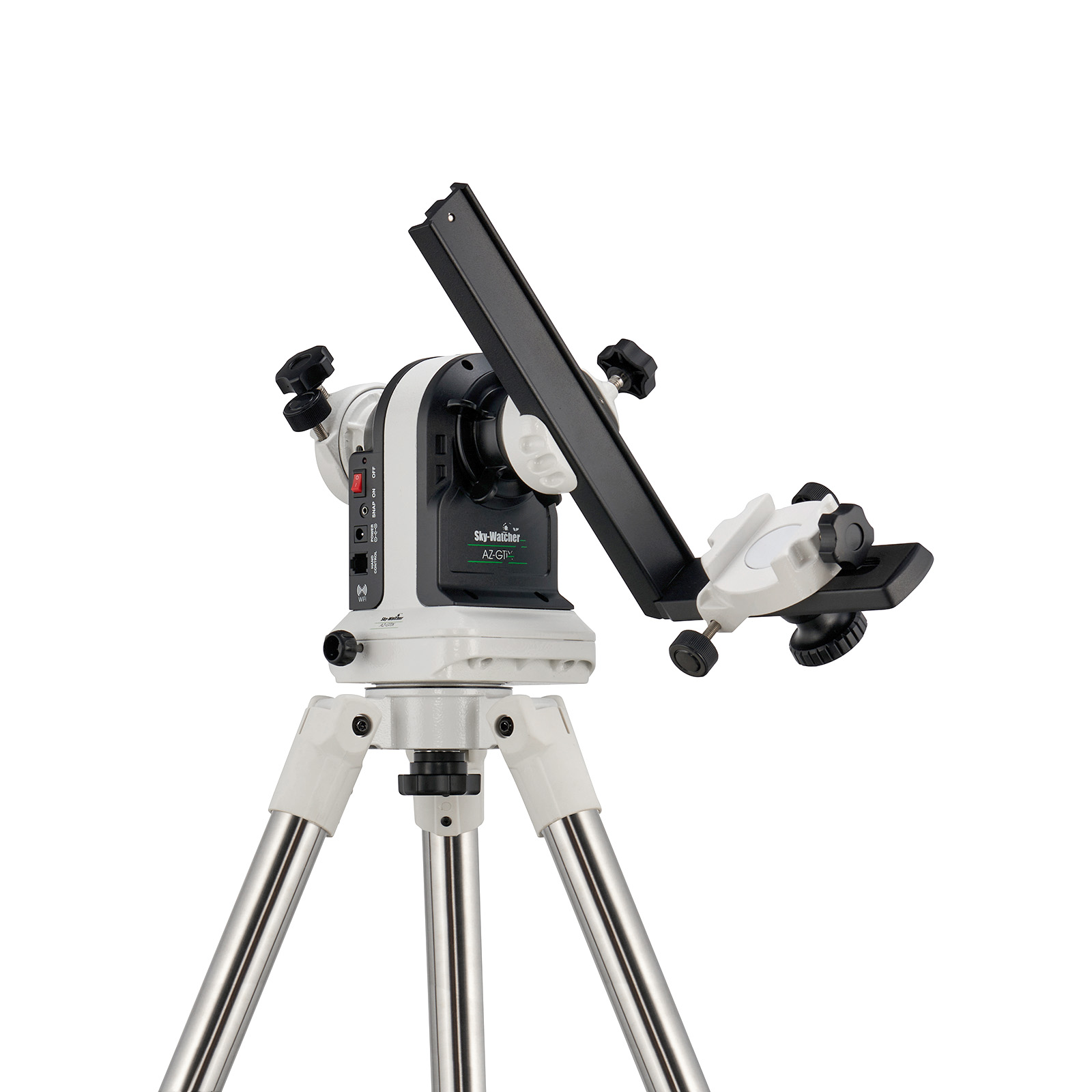

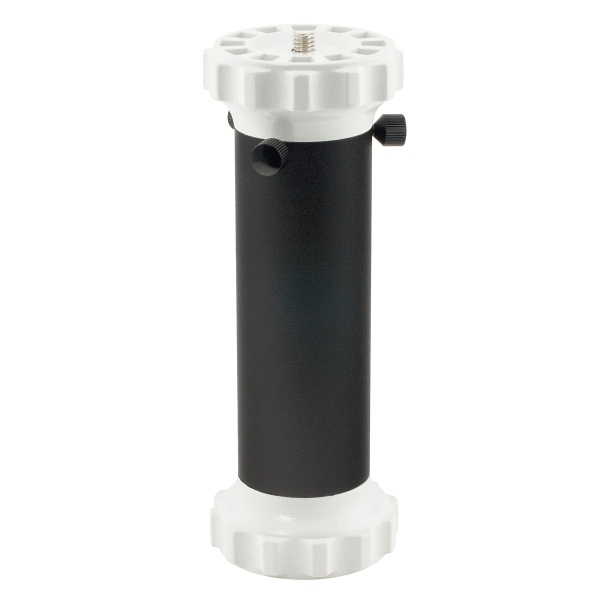

It is supplied with an L-Bracket, an additional saddle plate, and a 61mm extension pillar.

FEATURES

  • Control via Smartphone or tablet via the free SynScan app for iOS and Android mobile devices
  • It can also be controlled via Synscan Hand Controller (available separately)
  • SynScan app database has 10,000+ objects, including 10759 deep-sky-objects, including Messier, NGC, IC, Caldwell catalogues, named DSOs, named Stars: 305, Double Stars: 55, Solar system objects: 7 planets, Sun, Moon. (Unlimited objects when working with a 3rd party planetarium software).
  • SynScan App Alignment Method:  Brightest Star Alignment, North-Level Alignment
  • SynScan App's Other Features:  Tonight's Best Sky Tour, Point and Go with a mobile device, Identification of Celestial Objects, Remote control over the Internet, User defined objects, Pointing Accuracy Enhancement (PAE)
  • Pointing Accuracy: Up to 10 arc-minute (RMS)
  • Resolution: 2073600 Counts/Rev., 0.625 arc-second
  • Resolution of Aux. R.A./Dec. Axis Encoders: 1068 Counts/Rev., approx. 20 arc-minutes
  • Freedom-Find™ Dual-Encoder Technology
  • Tracking Rates: Sidereal, Lunar, Solar, Alignment-Free Solar Tracking
  • Slewing Speeds: 0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
  • Tracking Mode: Dual Axis Tracking
  • Motor: DC Servo Motor, Gear Ratio 6480
  • Payload Capacity: 10kg Total Payload, 6kg Total Side Payload
  • 45mm Sky-Watcher/Vixen-type dovetail saddles

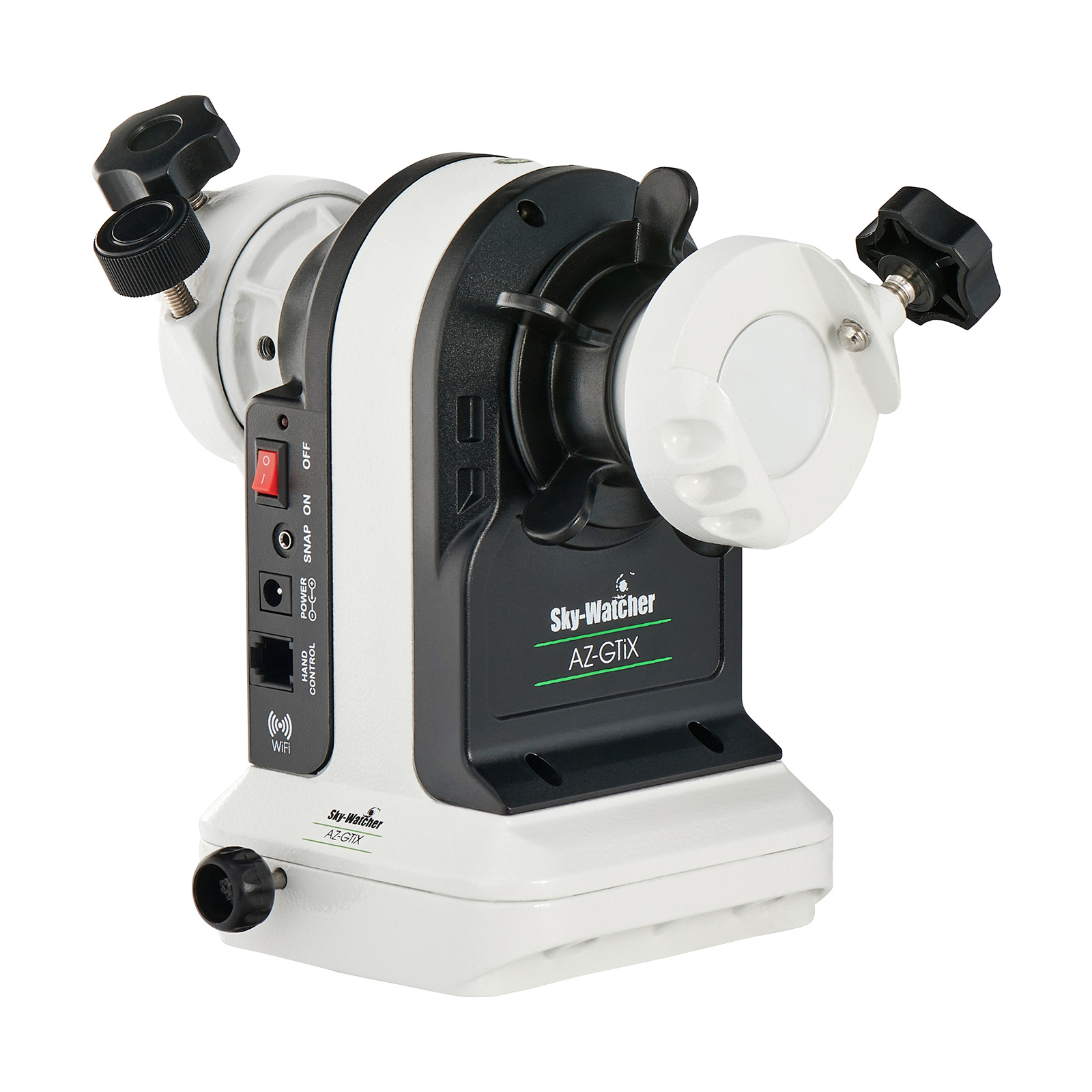

  • Interface: SynScan Hand Control Port, DSLR Shutter Release Port (optional cables available separately), Built-in Wi-Fi Module
  • Connectivity:  ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android ( SkySafari Plus/Pro, more are coming).
  • Network Protocol: UDP, Port 11880
  • 3/8" Tripod Bush

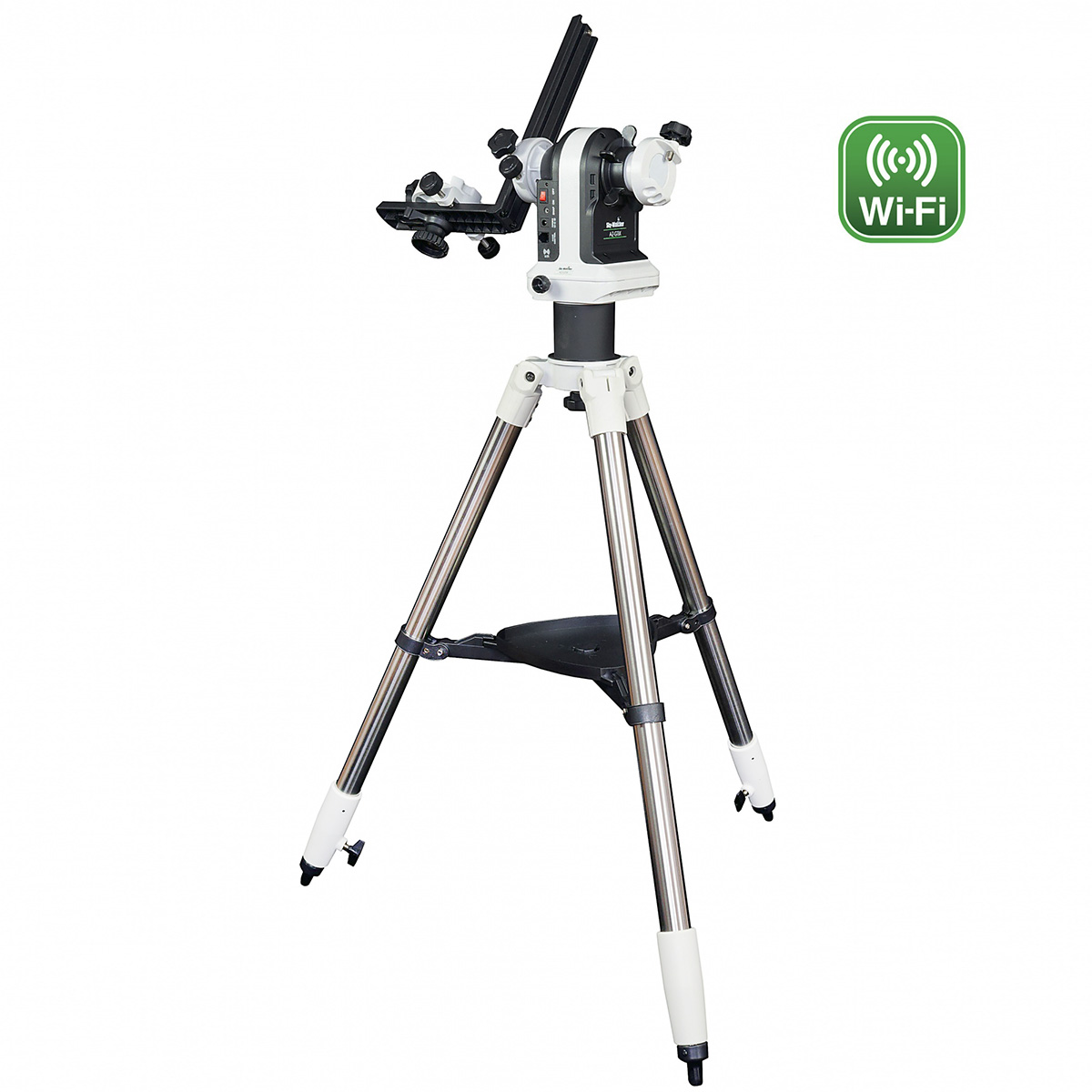

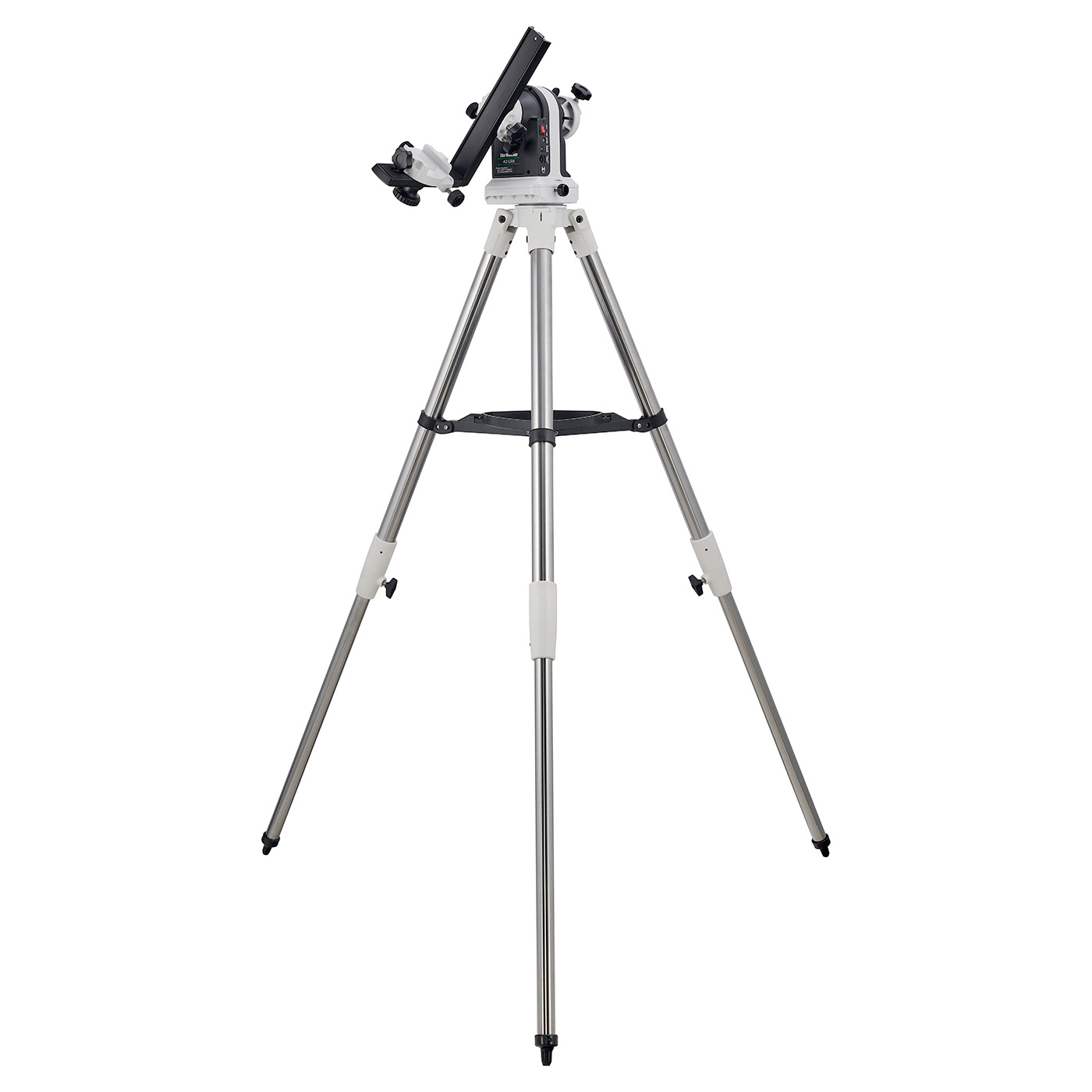

  • Optional Adjustable Stainless Steel Tripod with Accessory Tray
  • Height of Tripod/Mount (excl. OTA): 100cm - 139cm
  • Mount Head Weight: 2kg
  • Total Weight with Optional Tripod: 5.2kg
  • Power Requirement: 8 AA-size batteries or external power supply DC 7.5~14V, 1A, tip-positive (not supplied).
