Atik 383L Plus Mono

Atik 383L Plus Mono
£1,699.00
Model:

:

Available - Delivery 3-5 working days.

Model:  atik_383l_plus_mono
Brand:  Atik

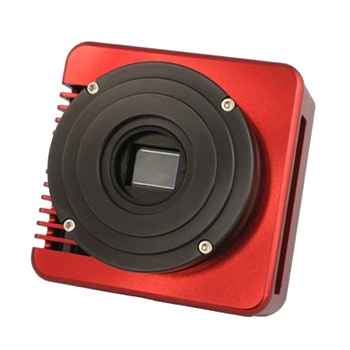

The Atik 383L+ is an 8.3 Megapixel pixel camera using the Kodak KAF 8300 CCD. A great deal has been written about this affordable CCD which has made multi-megapixel cooled cameras much more accessible. The combination of Atik's highly regarded 314 platform and Kodak’s KAF 8300 has also proved reliable and effective.



Features
  • 8.3 Million 5.4μm square pixels for high resolution imaging.
  • Ultra low read noise for great sensitivity.
  • Lightweight - no flexure of the telescope focuser tube.
  • Highly efficient set point cooling to 40 degrees max below ambient.
  • Renowned software for image acquisition and pre-processing.


Specifications:

Sensor Type:  CCD – Kodak KAF 8300 17.6mm x 13.52mm
Horizontal Resolution:  3362 pixels
Vertical Resolution:  2504 pixels
Pixel Size:  5.40 ìM x 5.40 ìM
ADC:  16 bit
Readout Noise:  Typical 7 e-
Interface:  USB 2.0 High Speed
Power:  12v DC
Maximum Exposure Length:  Unlimited
Cooling:  Thermoelectric with ÄT=-40°C max, set point controller
Weight:  500 gram



There are currently no specifications available for this product.

Atik 383L Plus Mono Questions & Answers

Please fill in the form below to ask a question.

Your Name: *
Your Email Address: *
Your Question: *
 *
Please add the two numbers

Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating (max 5):
Fantastic Imaging Camera!
Wednesday, 28 November 2012  |

I bought the Monochrome version since I wanted to get into narrowband imaging and at the same time, benefit from higher sensitivity and dynamic range. I bought Baader LRGB 2" filters with this camera.

My first impressions were that of amazement at how much better one can image using a dedicated CCD camera over a DSLR. The Artemis Capture software by ATIK is perfectly paired with this fantastic camera to deliver a very easy-to-use product that truly delivers in performance and enjoyment.

I've made test dark images at room temperature of 20C and at -15C cooled temperature and though at room temperature the noise level of a 5 minute exposure is impressively low (compared to any DSLR I've tested), at -15C there are only three or four hot pixels visible in the entire image (easily subtractable with a dark image). I took a single 5 minute exposure of Orion Nebula with this camera and the Hutech IDAS LPS 2" filter and was utterly astounded at the clarity of the image despite not having stacked numerous frames. The detail of Orion Nebula picked up on a 6" f/5 reflector was drastically, drastically improved over my full spectrum modified Canon EOS 1000D.

It was a pricey endeavour (getting into CCD imaging), but after a single image I simply cannot return to a DSLR for imaging. I whole-heartedly recommend this product for anyone looking for a large-sensor CCD imaging camera. Do strongly consider the Monochrome version if you want to get into narrowband imaging or you think you might want to in the future (or you simply want higher sensitivity and dynamic range).


Rating (max 5):
Excellent Camera when handled correctly
Wednesday, 4 July 2012  |

I've had one of these for a few months and despite the terrible weather I have been able to get a few shots in. It works very well, and is very well built.. very very well built.

There is one handling precaution I'd like to alert new users to.

DO NOT OPERATE OFF A TIRED BATTERY.

The camera works excellently above 12V, I run mine at 13.5V. If the camera is operated at below 12V then extreme noise will result and I believe this is the cause of some peoples complaints about noise with these. I have seen similar comments by other users stating above 12V all is good.

Bang for buck this is one of the best.
