Model: hyperion_zoomPart Number: 2454826

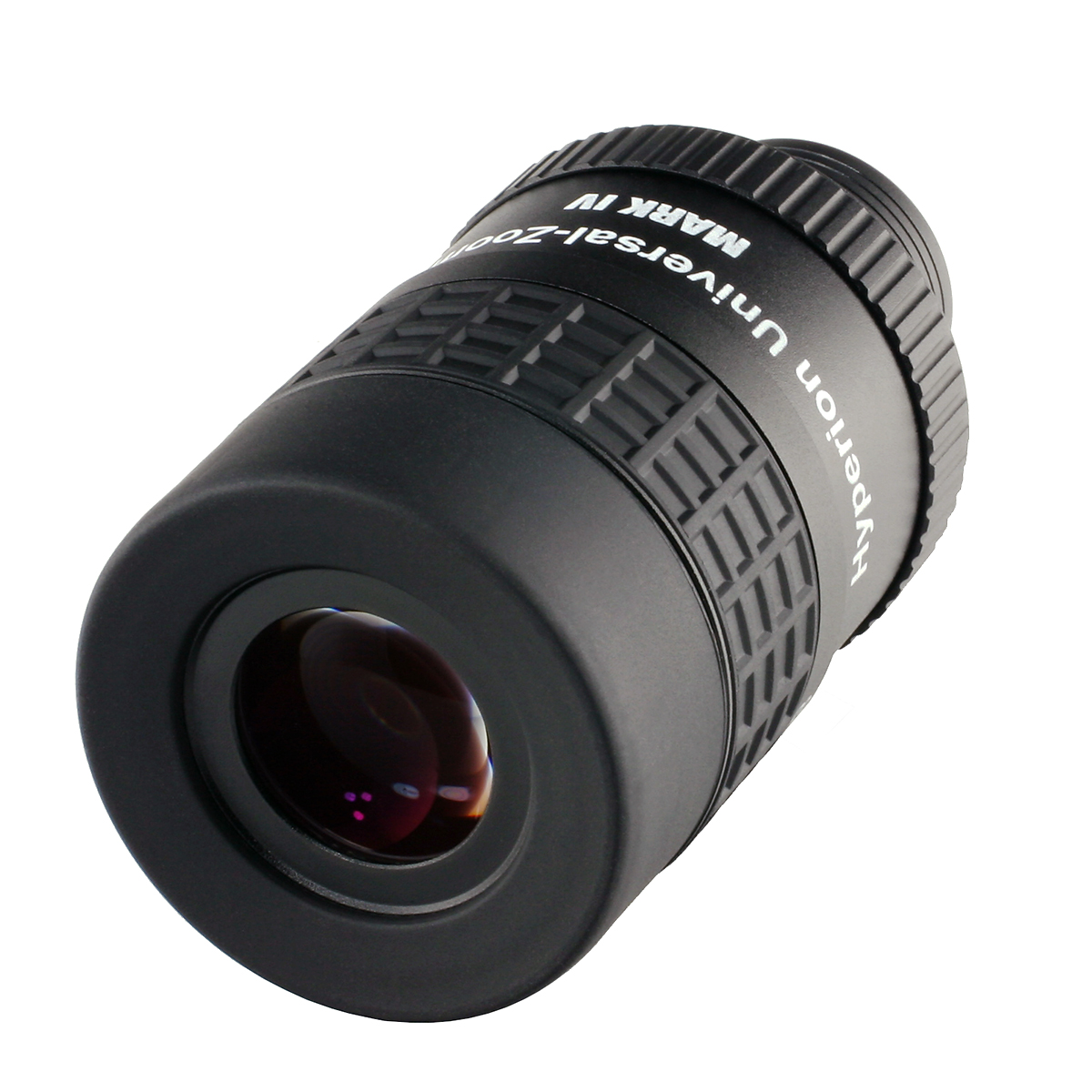

This 4th generation Baader Hyperion 8-24mm Click-stop Zoom is smaller (55mm wide) and lighter (290 grams) than its predecessor (the Mk-III model was 80 grams heavier). This makes it an especially good choice for use with binoviewers.
The click-stop mechanism has been improved - it has the usual 8, 12, 16, 20 and 24 mm indentations but the mechanism is softer and more reliable in very cold conditions.

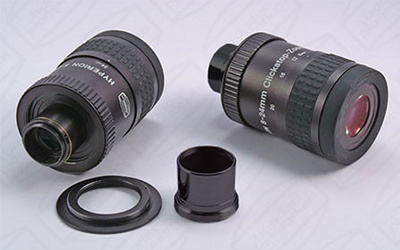

It has an additional four millimeter 'back-focus' so is more compatible with spotting scopes that accept 1.25" eyepieces. The longer back-focus, together with Baader's type A adapter ring, means it is more likely to achieve focus at infinity when used with a spotting scope and, when the 1.25 "nose-piece is removed, a 1 3/8" thread is revealed that enables the eyepiece to be screwed directly to Celestron Ultima spotters. A bayonet adapter is also available that enables the eyepiece to be used with Zeiss Diascope spotters.
The optical quality and specification is unchanged - it has the same wide 68 degrees FOV at 8mm and 50 degrees at 24mm and features Baader's 'Phantom Group' multi-coating on all air-to-glass surfaces.

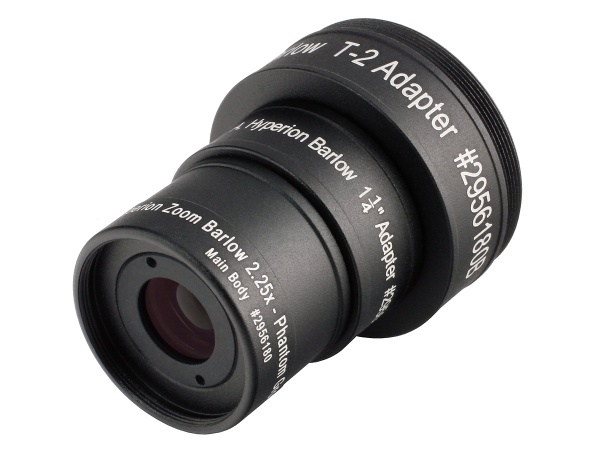

It also remains fully compatible with the Baader 2.25 x Hyperion Barlow (sold separately).
As with previous Baader Hyperion Zoom eyepieces, the Mark IV model features a M43 thread for easy connection to a DSLR or T2 accessory via an optional M43 / T2 adapter.

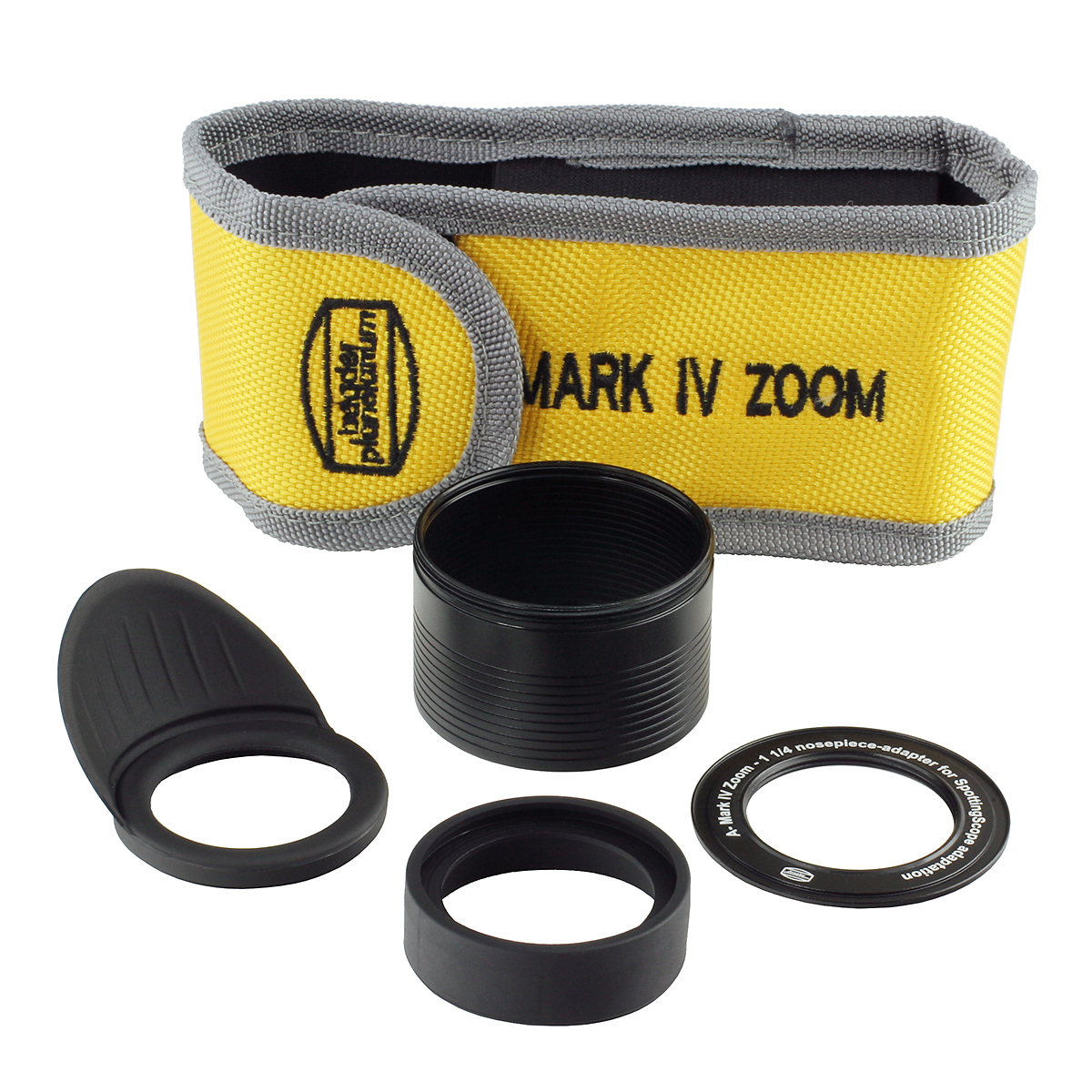

The eyepiece is supplied with 1.25 and 2" nose-pieces that feature Baader's patented 'Zero Tilt Safety Kerfs' for added peace of mind (less likely to fall out of the eyepiece holder). A yellow storage pouch is also included.
Seven element, multi-coated optics for remarkable sharpness, contrast and colour correction.
Smooth zoom action with click-stops at 8, 12, 16, 20 and 24mm.
Parfocal across the entire zoom range.
Wide 68 degrees FOV at 8mm, 50 degrees at 24mm.
12-15mm eye-relief and adjustable rubber eye-cup for comfortable viewing with or without spectacles.
Includes both 1.25” and 2" barrels - threaded for filters.
'Zero Tilt Safety Kerfs' for a secure fit in the eyepiece holder.
I did a fair bit of research before buying this eyepiece. It was clear that there are some compromises to be made with a zoom eyepiece and itís not cheap. In the end I took the plunge and Iím glad I did.Itís large but not overly so and is relatively light. That was important as I wanted to use it in my little Skywatcher ed72 as a grab and go set-up. At the other end of the scale, I also wanted to use it in my Revelation 16Ē dob so I wanted a lot! My conclusions;The quality of the view is very good and for mere mortals like myself, itís difficult to tell much of a difference when compared with more expensive eyepieces. The Achilles heel is the field of view at 24mm but although it is somewhat restricted it is easy to live with. What is impressive is how much the field opens at higher magnifications. On my dob I cranked it up to 8mm ( 225x) on M13 and the view was very impressive. Used with the Barlow lens on my little Skywatcher, it proved to be very flexible and gave equally good views. Being able to zoom-in to the right magnification was really useful.Why only 4 stars - well it isn't parfocal although only minor adjustments are needed through the range and the restricted view at 24mm stopped it being perfect. Most equipment reviews are subjective but I have to say I really like this eyepiece and would certainly recommend it.
EXCELLENT ITEM FAST DELIVERY
This eyepiece was bought as an upgrade to the standard ones that came with my 200p dobsonians and what a step up it is. The ease of not having to change eyepieces with fiddly thumb screws and cold hands is great. The wife wangle of 8-24 mm is enough to see those wide field DSOís and close ups of the planets/moon. Very well made and good sharp views
I had clear skies during the week and was able to see three galaxies and star clusters. I have a set of Celestron Epís and tried all of them for the best view. The one I preffered the most was the Baader by far. From 8mm to 24, flawless views on all magnifications. This EP is worth every penny. Highly recommend it.
I love everything about this eyepiece. The quality of the build, the engineering touches (quiet zoom, firm clickstops), the HUGE field of view, and sharpness right to the edges. 24mm is a bit strong for some viewing, so I would suggest also having an eyepiece in the 30-40mm range, but otherwise you would have a hard time wanting to use anything other than this one. And I would add that the team at First Light Optics are number one in price, shipping, and customer service. Buy without hesitation.
This lens is huge compared to a normal plossl, so be prepared!! The viewing though is great and being able to zoom from 24 - 8mm is an excellent feature, especially when aligning the scope and centering stars, enabling you to roughly center at 24 and then zoom in to 8mm to get it exact.The only problem I have found is with my 1.25 diagonal where the retaining screws tend to scratch the bottom of the eyepiece when fitting, so it is more at home in a 2" diagonal where the retaining screws do not interfere, (and looks more secure), as it dwarfs the 1.25 diagonal.Certainly beats having to juggle two or three separate eyepieces in the dark (you just know that sooner or later one will hit the ground!)
This zoom lens is not the cheapest around but does seem to be of the highest quality. I like the ability not to have to swap out various lenses (on a Celestron 6SE f/10 and a Skywatcher 250PX f/4.7).The flexibility and functionality of the Baader system also means I can easily mount a DSLR or webcam to the zoom lens. I love this kit so much I'm about to buy the Baader Barlow (have already bought a Baader Click-Lock 1.25-inch Eyepiece Adapter with T-2 Thread)
Both my 12" f/6 dobsonian and ED120 have this eyepiece in most of the time, and because it's so good optically I never feel the need to use a single focal length eyepiece within its range. However, the field stop is quite soft at it only has 50į at the 24mm setting. Another minor gripe is that the zoom ring is pretty stiff and the click-stops very subtle when zooming out. All-in-all, a good quality, versatile eyepiece for the money. Recommended for scopes f/5 or slower.
