About this product
Part Number: K1.25B-A

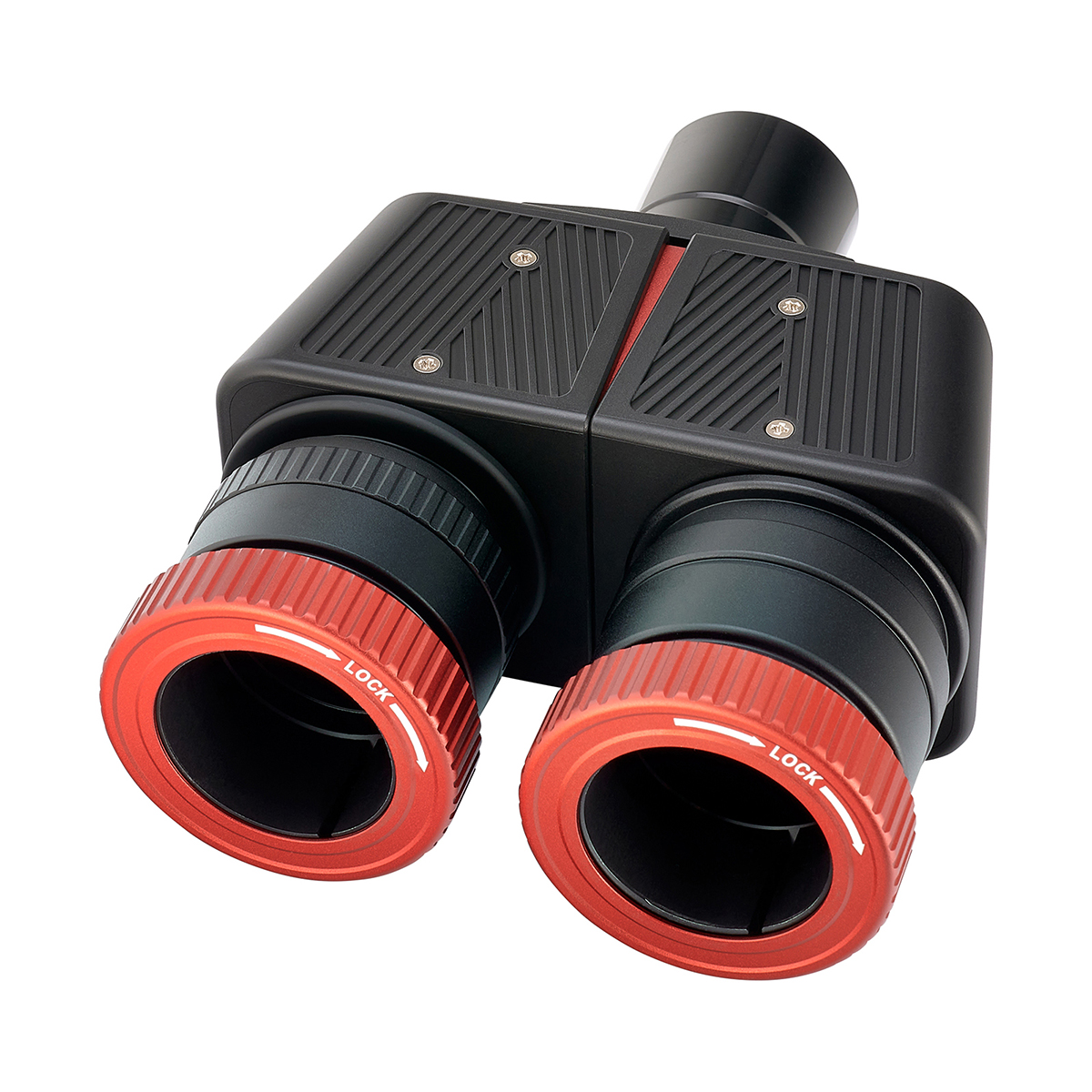

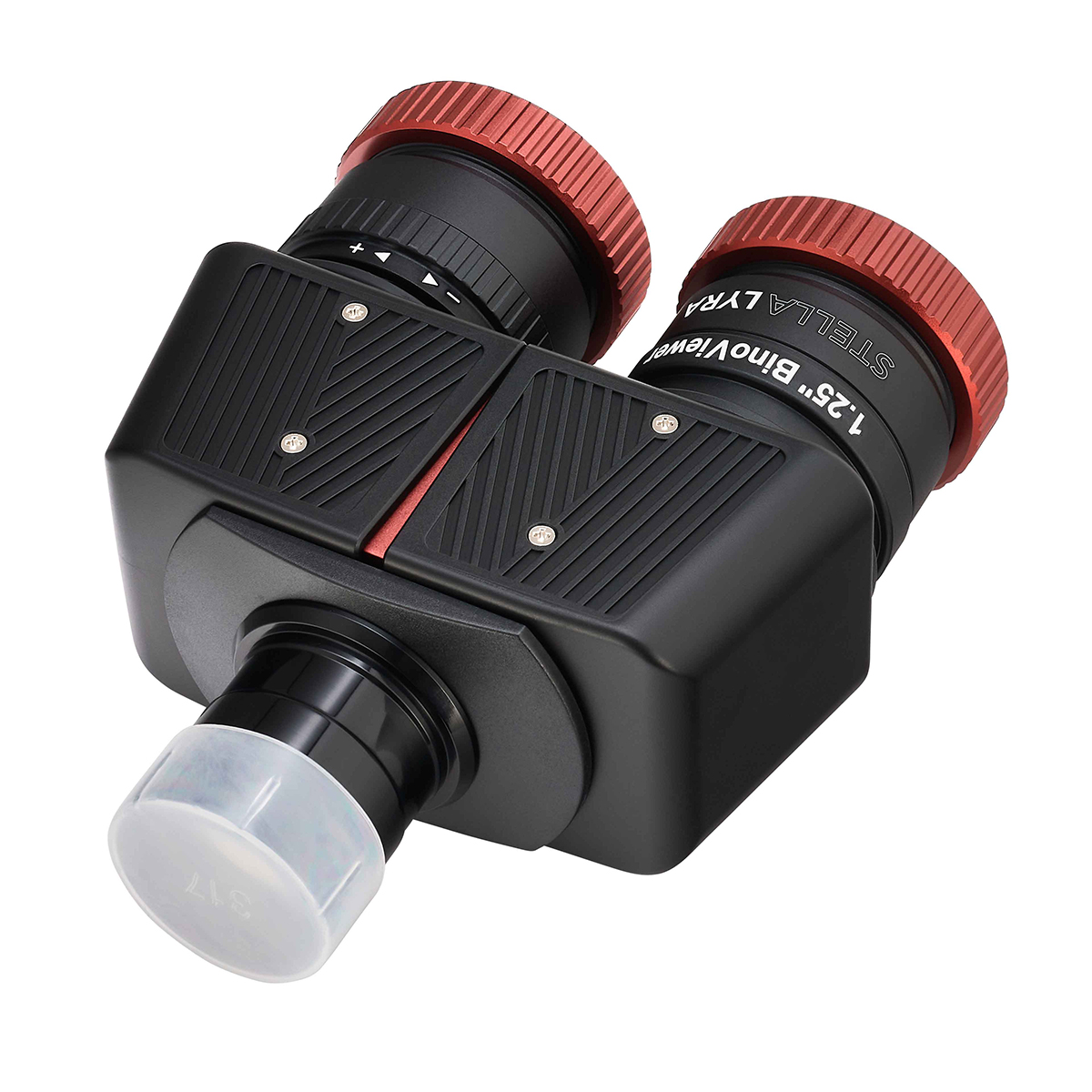

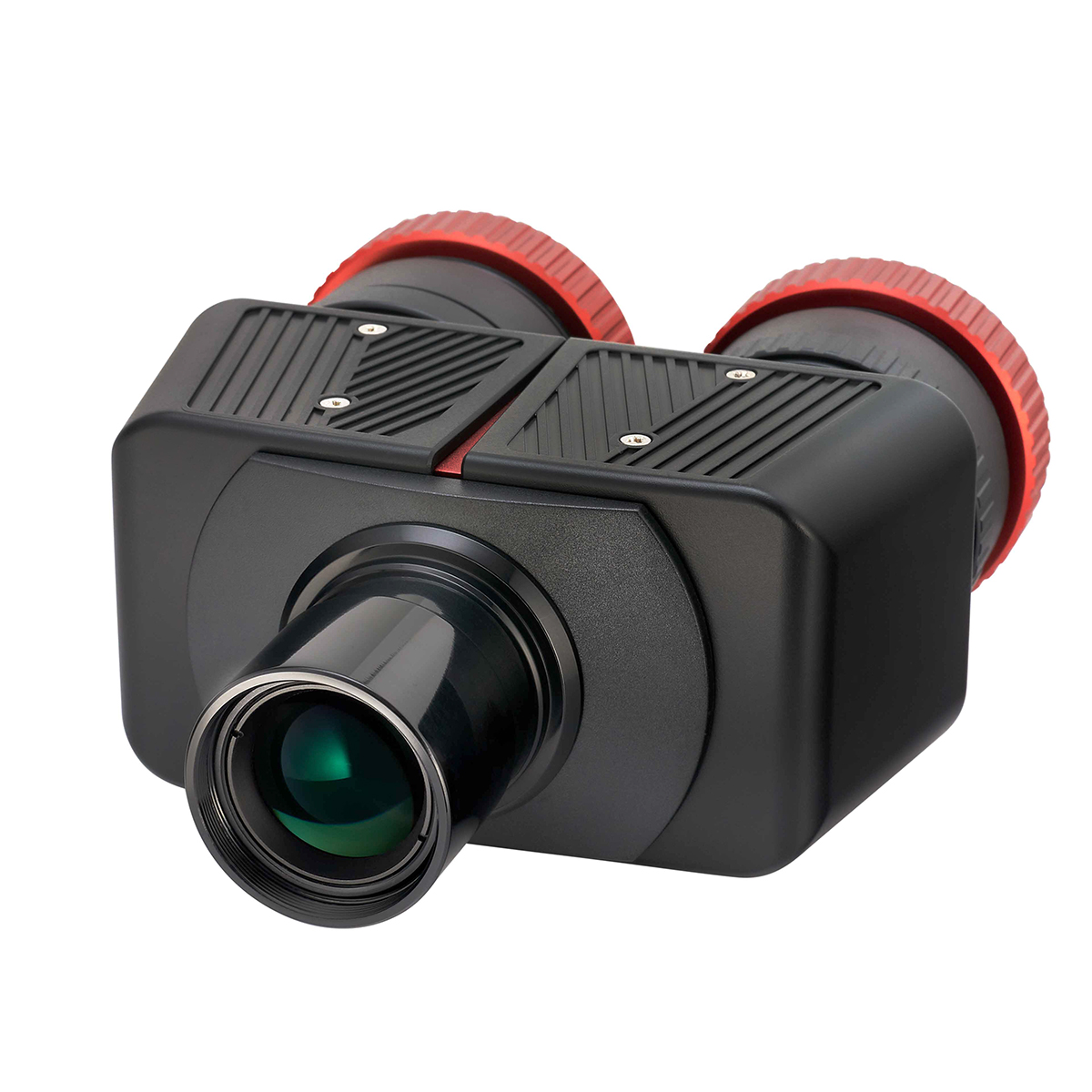

StellaLyra 1.25" Linear Erect Image Binoviewer
Perfect for immersive 3D views through any telescope!
This premium binoviewer has a convenient parfocal design that means, unlike most other binoviewers, it does not require additional in-focus distance.
So, if your eyepieces reach focus with your telescope then you will also be able to reach focus with the binoviewer in place.
Rather than using prisms like other binoviewers this uses a dielectric-coated, knife-edge beam splitting mirror. This reduces the effects of field curvature and other optical abberations and improves the contrast.
A linear sliding design enables you to easily change the interpupillary distance between approximately 58-74mm.
When used without a diagonal this binoviewer provides an erect image view so is a convenient choice for terrestrial observation too!
Designed and manufactured by Long Perng in Taiwan.
- Erect Image View - when used without a diagonal
- Dielectric-coated, knife-edge bean splitting mirror
- Parfocal Design - will work on almost all telescopes without the need for barlows or glass path correctors
- Unique Linear Slide Design - easily adjust interpupillary distance from around 58-74mm
- Adjustable Diopter - adjust focus on one side to ensure both sides are in focus together
- Lanthanum Lenses - ensure excellent colour and bright, contrasty views
- Internal 17mm Fieldstop
- Accepts 1.25" Eyepieces (not supplied)
- Twist-lock Eyepiece Holders for secure grip and quick easy swapovers
- Tapered Nosepiece to prevent accidental slippage threaded to accept 1.25" filters
- Supplied with a high quality, robust, waterproof storage case
- Approximately 130 x 105 x 50mm
- Weight: 720g / 1.6lb
|Average Rating (2 Reviews): |
03 October 2022 | Anton
First off, using my Coronardo PST I can reach focus with these Binoviews. As I purchased them primarily for this reason they are a great success. It took a few viewing sessions to get use to them but the improvement in viewing the Sun through them is amazing.
As always excellent advice and service from FLO.
First impressions, a little disappointing
04 August 2022 | Malcolm
To cut a long story short, I have the Williams Optics Binoviewers which give fantastic views in my Tak 100DC but they require a bit of faffing around. Merging the images can be a bit tricky, I need to use the GPC to get focus. The GPC threads will not work with the Tak diagonal. I can only use them without the GPC by unscrewing parts of the OTA. They simply will not come to focus when used with a Lunt 50. But, they do give fantastic views.
I thought these Linear Binoviewers might solve a lot of the problems so I gave them a go.
Merging the images is no problem, even using high power eyepieces.
They are very well made and feel very solid.
They work without the need for a GPC.
They come to focus with the Lunt 50, though only with certain eyepieces (so far Televue Plossl 15mm and BCO 10mm). And the images with the Lunt 50 are very good. I find it much easier observing with the Binoviewers than with mono.
The not so good:
The undercuts do not work with the Tak prism. This can be worked around.
Terrestrial viewing (for example dark tree twigs against a bright background) shows a fair amount of false colour. This was also evident in white light solar at the sun's limb. It was not visible when observing the moon in the late afternoon blue sky.
The view is simply not as sharp or contrasty as with the Williams Optics Binoviewers. This is why they are only getting 3 stars.
I've only been able to compare them with the WO, observing the sun in white light (3 sessions) and the moon against a bright blue late afternoon sky (1 session). So it's early days but in each session the WO outperformed the Stella Lyra.
I will keep them though as they are great with the Lunt.
