Catseye Telecat XL

Catseye Telecat XL
 Catseye Telecat XLCatseye Telecat XL


In stock - Shipped 1-2 working days.

Model:  catseye_telecat_xl
Part Number:  catseye_telecat_xl
Brand:  Catseye

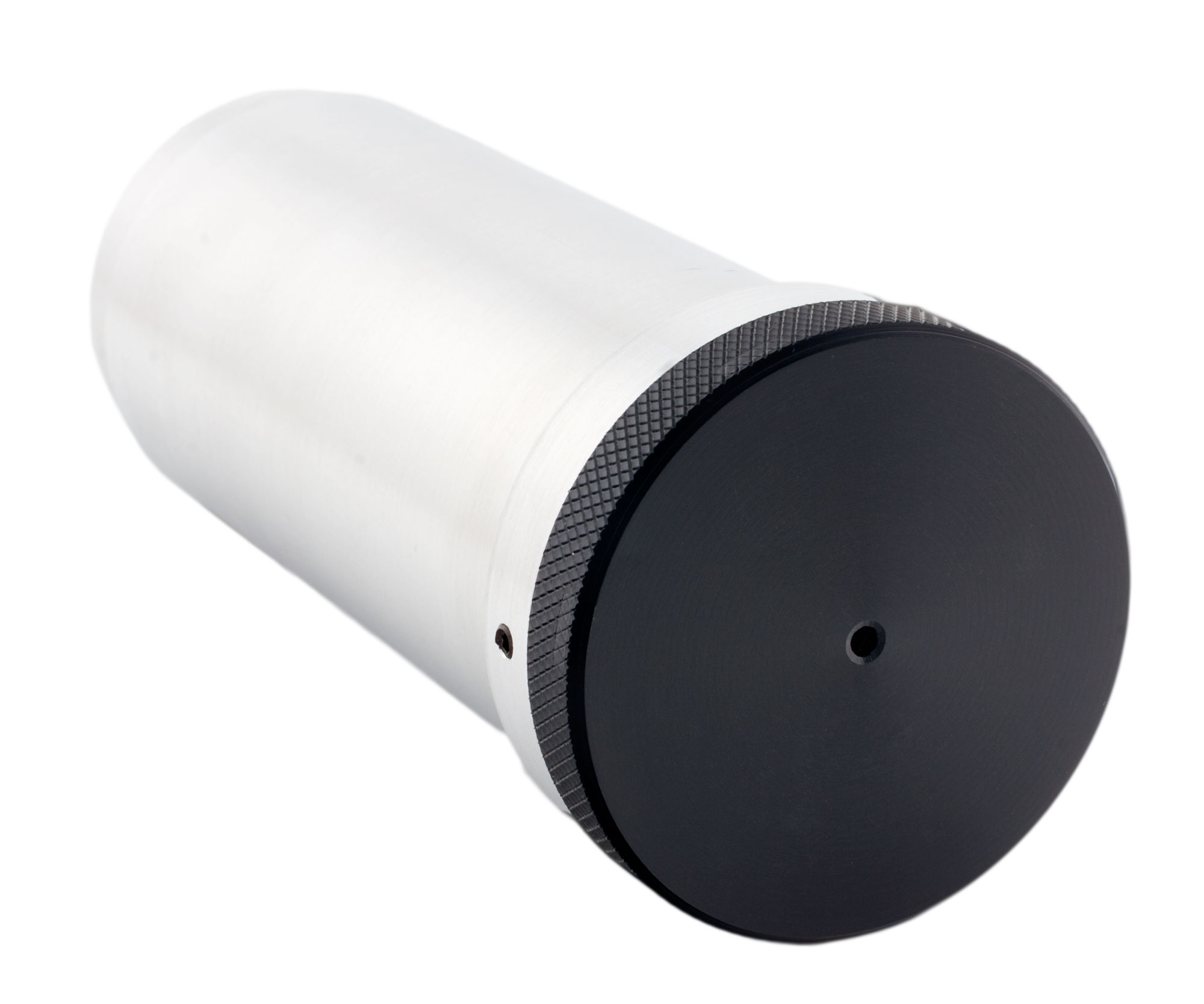

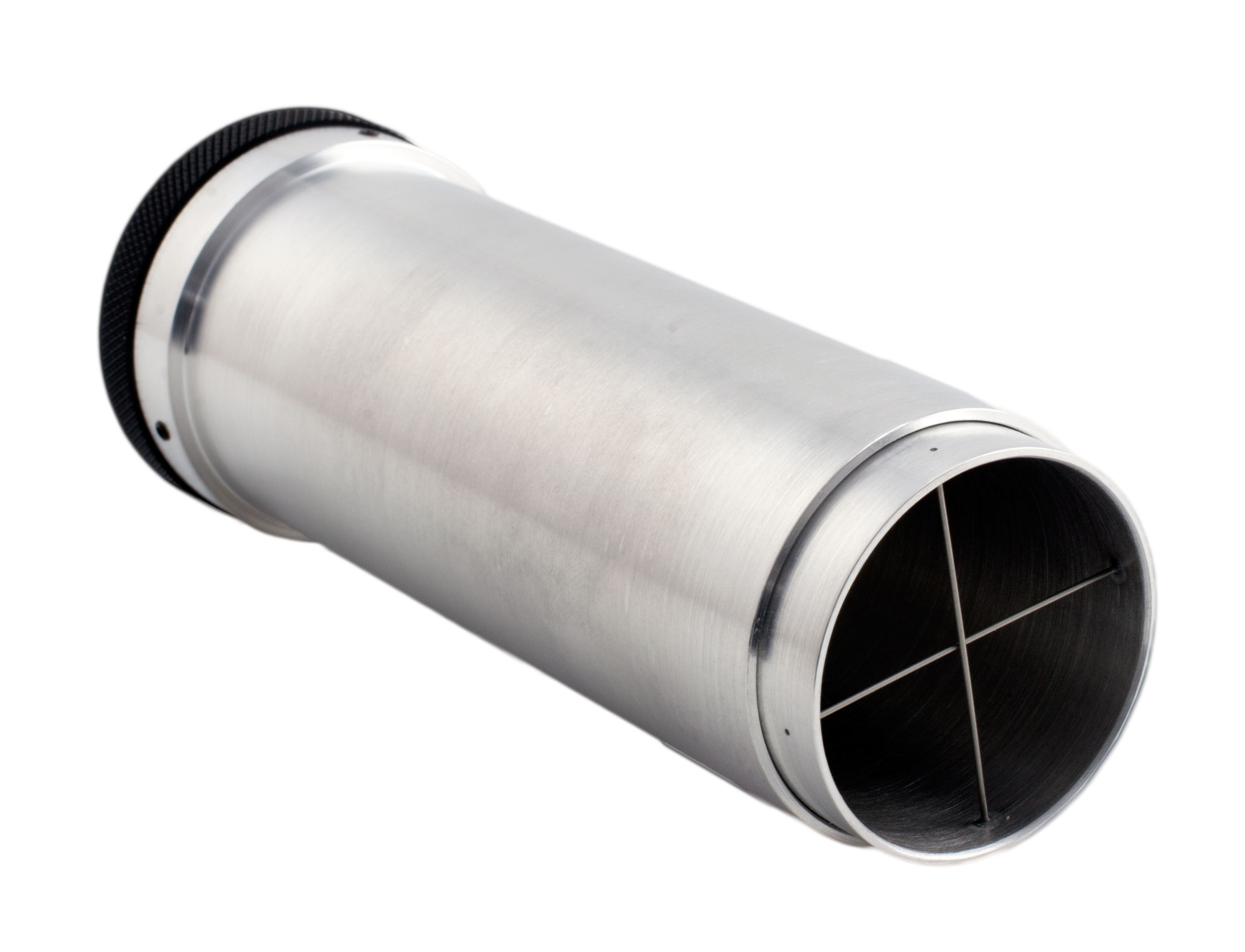

Catseye premium quality Telecat XL 2" sight tube suitable for f/3.5 - f/6.0 telescopes. Features the same features as the Teletube XL but with the addition of the Blackcat XL reflective ring enabling it to function both as a sight tube and as a Cheshire as well.


  • Large 1.759" Aperture.
  • Telescoping length adjustable from:
  • XL: f/3.5 to f/6.0
  • XLS: f/3.0 to f/5.0
  • Slide Position Locking Set Screws w/hex wrench.
  • Calibrated f/no. Ruler accessory marked in f/.1 increments.
  • Precision machined from T6061-T6 Aluminum & Black Delrin.

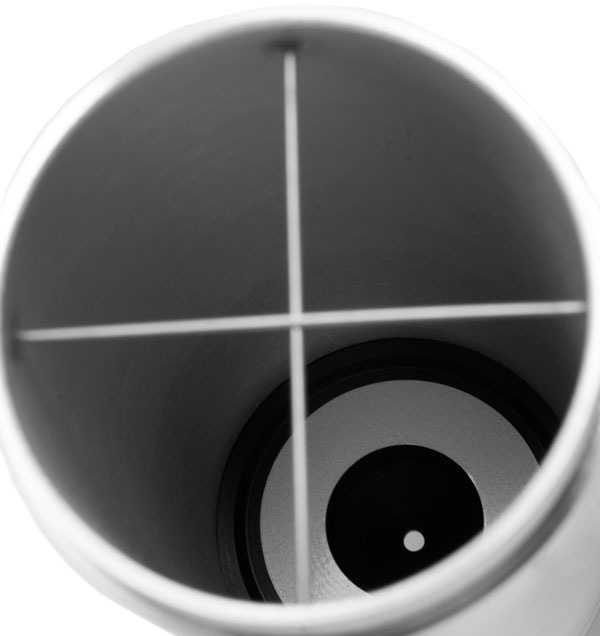

  • 90-degree Intersecting .029" diameter Stainless Steel cross-hairs.

Larger-aperture, low f-ratio Newtonian telescopes with larger diagonal mirrors are becoming the norm, and the need for a precision 2" Sight Tube for properly positioning the Secondary beneath the focuser is a given. The Catseye line of "telescoping" sight tubes feature tuneable "length" capability to obtain the optimum tube-opening/Secondary "gap" resolution for insuring symmetrical intercept of the Primary light cone for maximum FOV illumination and contrast while maintaining axial registration via flush shoulder contact with the focuser draw-tube lip.

For Newtonian's with f-ratio's under f/4.7, the shorter "XLS" model (f/3.0 to f/5.0) is recommended for "seeing" that generous "oversized" Secondary (typical of imaging astrographs).

There are currently no specifications available for this product.
