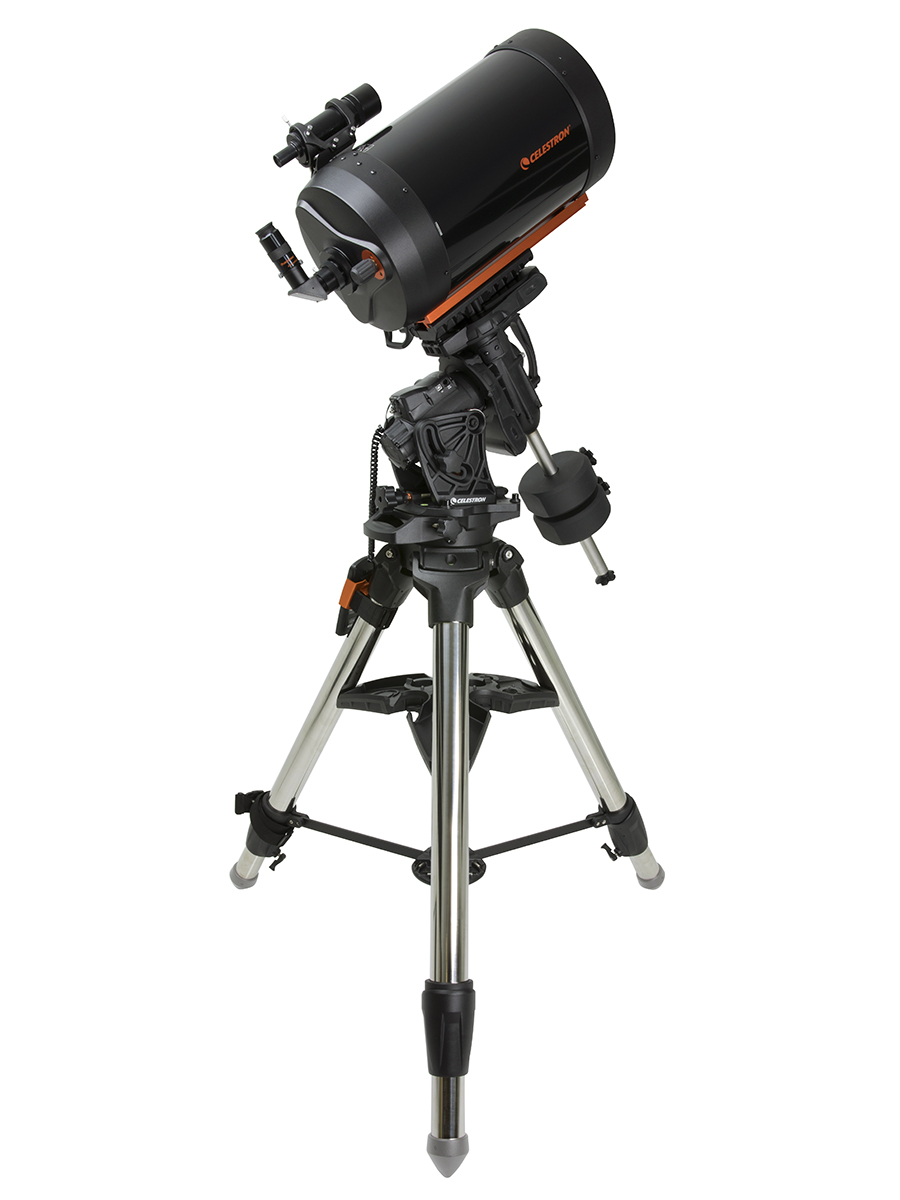

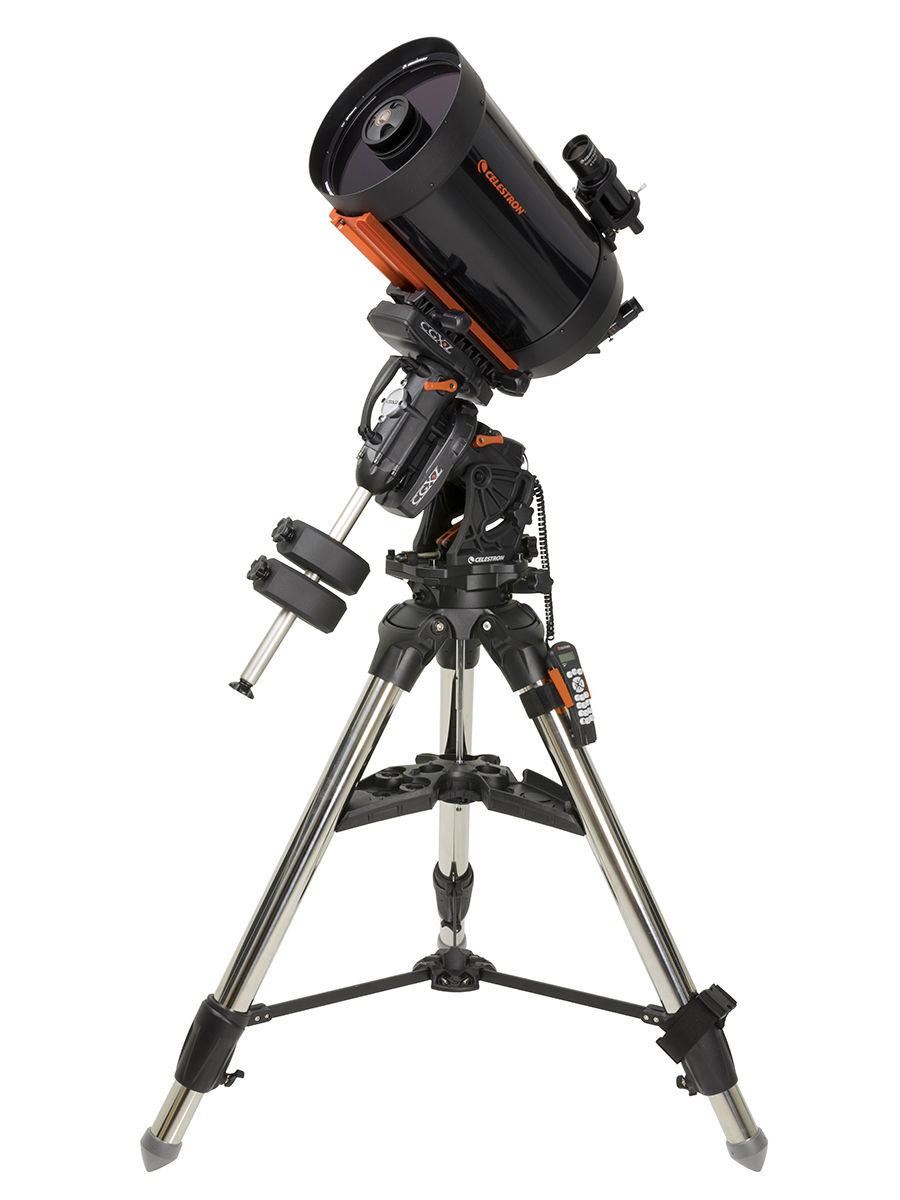

Celestron CGX-L Equatorial 11" (1100) SCT Telescope

Celestron CGX-L Equatorial 11'' (1100) SCT Telescope
 Celestron CGX-L Equatorial 11'' (1100) SCT TelescopeCelestron CGX-L Equatorial 11'' (1100) SCT Telescope
£5,695.00

:

Incoming - Shipped 1-2 working days.

Model:  cel_cgx-l_1100_sct_12071
Part Number:  12071
Brand:  Celestron

Celestron

Celestron 2 Year Warranty

Celestron products include a two year warranty except binoculars and spotting scopes which have limited lifetime warranties.


INCLUDED IN THE BOX

  • Telescope OTA
  • 9x50 Finderscope
  • 1.25" Star Diagonal
  • 40mm Eyepiece
  • CGX-L Equatorial Head
  • CGX-L Tripod
  • Accessory Tray
  • 2 x 22 lbs counterweight
  • NexStar+ Hand Control
  • DC Power Cable (Cigar Plug)
  • 8 mm Allen key (in rear carry handle)

The CGX 1100 Schmidt-Cassegrain Telescope features Celestron’s premium StarBright XLT coated optics and Celestron's flagship CGX-L computerised equatorial mount.

The 11" optical tube assembly weighs 27.5 lb so this telescope is still portable enough to be taken to dark skies. It delivers 89% more light gathering power than an 8" telescope and more than 40% more than the 9.25".

Capable of carrying  Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144 mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loads, longer 270 mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport.  COMPACT.  ERGONOMIC.  INNOVATIVE.

CGX-L Product Tour Video



GENERAL FEATURES

  • 11" Schmidt-Cassegrain (SCT) Optical Tube Assembly
  • CGX-L EQ Mount and Tripod
  • Aluminum Optical Tube
  • Celestron's premium StarBright XLT coatings
  • 2800 mm focal length (f/10)
  • 40 mm eyepiece included (70x)
  • Visual back allows for use with 1.25" accessories 9x50 finderscope to help accurately find objects
  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
  • Includes dovetail rail compatible with CGE mount

NEW CGX-L FEATURES

  • Increased 75 lb load capacity. Exceptional load capacity to weight ratio
  • Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
  • Larger 144 mm diameter worm wheels to better and more accurately drive heavier loads
  • Longer 270 mm dovetail saddle to better support larger optical tubes
  • Massive 70 mm stainless steel tripod legs with a wider stance for improved stability under heavy loads
  • New accessory tray holds three 1.25” and two 2” eyepieces with an upright stand for your smartphone or tablet
  • Heavy duty, 31.5 mm stainless steel counterweight shaft to support additional counterweights
  • Optional add-on polar axis finderscope custom designed for CGX and CGX-L
  • Supports WiFi and wireless operation accessories such as StarSense AutoAlign and SkyPortal WiFi Module (sold separately)

MOUNT FEATURES

  • Compact, lower profile equatorial head provides improved stability and portability. Sturdier and more rigid with quicker dampening time
  • Improved motors provide more torque, better slewing and tracking under heavy loads
  • Heavy duty belt-drive system minimizes backlash while providing smooth motor operation at full capacity
  • Clear windows built into motor covers so pulleys and belts can be monitored
  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation. Power input and lower accessory ports remain stationary while the mount slews to avoid snags
  • Internal hard stops for both axes prevent cable tension and tripod strike
  • Internal optical sensors on both axes for simple and safe remote operation
  • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
  • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
  • Includes Celestron's new PWI telescope control software, co-developed by PlaneWave Instruments. Software features multi-point mount modeling for extremely precise pointing accuracy
  • Software Polar Align: “All-Star Polar Alignment” allows quick and very precise polar alignment. Align on any bright named star without extra polar alignment accessories, apps, or other assistance
  • Adjustable EQ head position to optimize center of gravity over the tripod and fully utilize the increased 3°-65° latitude range
  • Dual-fit Vixen/CG-5 and Losmandy/CGE dovetail saddle
  • +20° of additional tracking past the meridian on either side
  • Redesigned tripod has a widened stance for added stability. The minimum tripod height has also been lowered per user feedback
  • Tripod legs can be collapsed with accessory tray installed for faster setup and transport

IMPROVED ERGONOMICS

  • Integrated handles for easy transport and portability
  • All-new ergonomically designed dovetail clamping knobs
  • Innovative and improved polar alignment adjustment system
  • All-new ergonomic adjustment knobs with reduced friction for smooth and easy positioning under full loads. Stationary latitude knob with a newly-designed linkage system greatly reduces the amount of friction when polar aligning the mount. Redesigned azimuth adjustment with low-friction Teflon bearings to make adjustments easy under full load. No more binding, rough adjustments!
  • Easy to read latitude scale

CGX-L MOUNT ELECTRONICS

  • NexStar+ hand control with USB port
  • USB 2.0 port used to connect directly to PC with PWI Software
  • 2 available autoguider ports for optimum cable management
  • PEC sensor and PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved)
  • On/Off rocker switch with red LED

Product Specifications

Optical Design Schmidt-Cassegrain
Aperture (mm) 279.4 mm (11 in)
Focal Length 2800 mm (110 in)
Focal Ratio 10
Focal Length of Eyepiece 1 (mm) 40 mm (1.57 in)
Magnification of Eyepiece 1 70x
Finderscope 9x50
Star Diagonal 1.25
Optical Tube Aluminum
Highest Useful Magnification 660x
Lowest Useful Magnification 40x
Limiting Stellar Magnitude 14.7
Resolution (Rayleigh) 0.5 arc seconds
Resolution (Dawes) 0.42 arc seconds
Light Gathering Power (Compared to human eye) 1593x
Secondary Mirror Obstruction 3.75 in (95 mm)
Secondary Mirror Obstruction by Diameter 34%
Secondary Mirror Obstruction by Diameter 12%
Optical Coatings StarBright XLT
Optical Tube Length 24 in (610 mm)
Optical Tube Weight 27.5lbs (12 kg)
Dovetail Compatibility CGE Mount
Mount German Equatorial
Instrument load capacity 75 lbs
Tripod height adjustment range 35.75” to 52.75”
Tripod leg diameter 2.75"
Latitude adjustment range 3º-65º
Tripod Weight 46.2 lbs
Total EQ Head Weight (with counterweight shaft) 52.6 lbs
Max Slew Speed 4º/second (3º/second is default)
Tracking Rates Sidereal, Solar and Lunar
Number of Auxiliary ports (for hand control and accessories) 4
Autoguide port Yes
USB Port Yes
Software PWI Telescope Control Software
