Celestron Ultima Duo Eyepieces

Celestron Ultima Duo Eyepieces


Unavailable - Please contact us.

Model:  celestron_ultima_duo_5mm
Part Number:  93440
Brand:  Celestron


Celestron 2 Year Warranty

Celestron products include a two year warranty except binoculars and spotting scopes which have limited lifetime warranties.

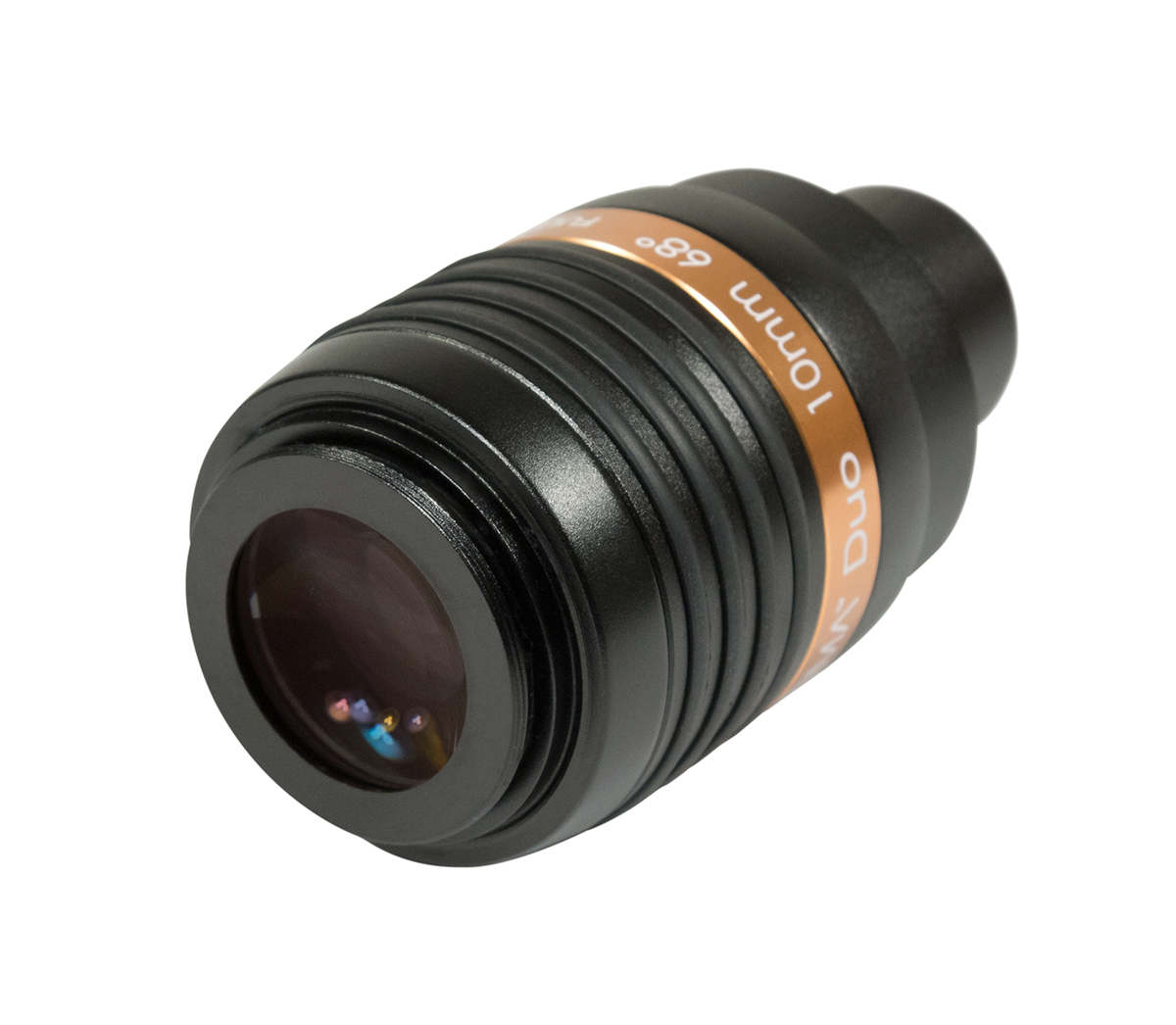

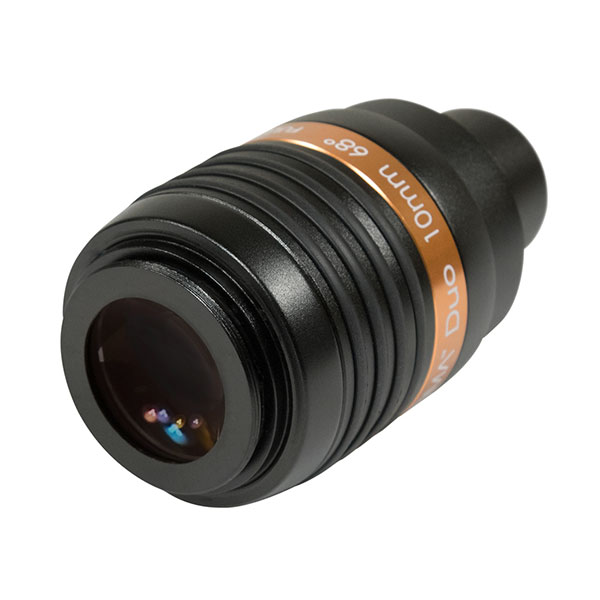

The new Celestron Ultima Duo eyepiece series are designed for both visual and afocal astrophotography (photography through the telescope eyepiece) and fit both 1.25" and 2" focusers.

Fully multi-coated optics, 8 elements in 5 groups, optimised for correction of chromatic aberration and field curvature. Internal baffling and blackened lens edges reduce internal reflections and maximise contrast.

Super-wide 68-degree apparent field of view, long 20mm eye relief and a fold down rubber eye guard make the Ultima Duo comfortable to use even when wearing glasses.

An integrated 42mm t-adaptor underneath the rubber eye guard enables easy attachment of cameras. The eyepiece barrel is also threaded for filters.

Get a new perspective on the Universe with Ultima Duo, Celestron's versatile new eyepieces that combine excellent optics with a built-in T-adapter for astroimaging.

Enjoy impressive views with a wide 68-degree apparent field of view. Celestron’s fully multi-coated optics increase light transmission and contrast, while blackened lens edges prevent internal reflections. The result is bright, pinpoint stars on a black field. A generous 20mm of eye relief and fold-down rubber eyeguard make Ultima Duo comfortable to use without removing eyeglasses.

Perfect for Imaging

If you’re interested in imaging through the eyepiece, Ultima Duo makes the process quick and easy. Unlike competitors’ eyepieces, you won’t need to spend money on expensive adapters for your camera. The industry-standard 42 mm T-threads are integrated for a direct, secure connection to your DSLR or astronomical CCD camera. Just remove the rubber eyeguard to expose Ultima Duo’s integral T-threads. Then attach your DSLR camera (with compatible T-ring) and you’re ready to capture crystal clear images! Ultima Duo is ideal for imaging bright solar system objects like the rings of Saturn, craters on the Moon, and Jupiter’s Great Red Spot.

Imaging the Moon and planets is even easier with our Smartphone Adapter for Ultima Duo. Unlike “universal” adapters, the Celestron Smartphone Adapter is custom-fit for the Ultima Duo eyepiece line. With this sturdy connection, your smartphone can capture crisp, sharp images of your favorite solar system objects.

Advanced planetary imagers can attach Celestron’s T-to-C Adapter and add a number of high-end imagers to Ultima Duo, including our Skyris and NexImage Burst cameras.

Smart Design for Use in the Field

Ultima Duo’s anodized aluminum body allows it to fit both 1.25” and 2” focusers, so you can use it with almost any telescope with no extra adapters required. A compact body style makes Ultima Duo an excellent choice for use with binoviewers.

The rubber grip rings provide good ergonomics so you can hold onto your eyepiece, even while wearing gloves. The aluminum barrel is threaded to accept 1.25” eyepiece filters and has a safety recess to prevent it from slipping out of the focuser. Each Ultima Duo eyepiece includes cover caps and a protective carry pouch.

This eyepiece is available in 6 focal lengths:

5 mm
8 mm
10 mm
13 mm
17 mm
21 mm

Eyepiece Field of View Simulator

Product Specifications

Height of eyepieces95 mm to 120 mm
Width of eyepieces60 mm
Adapter threads42 mm T-Threads under cup
Lens design8 element in 5 groups
Optical coatingsFully multi-coated
Apparent field of view68 degrees
Filter threadsFits Celestron 1.25" filters
