About this product

Model:  Celestron_CGEM_mount-1
Part Number:  91526

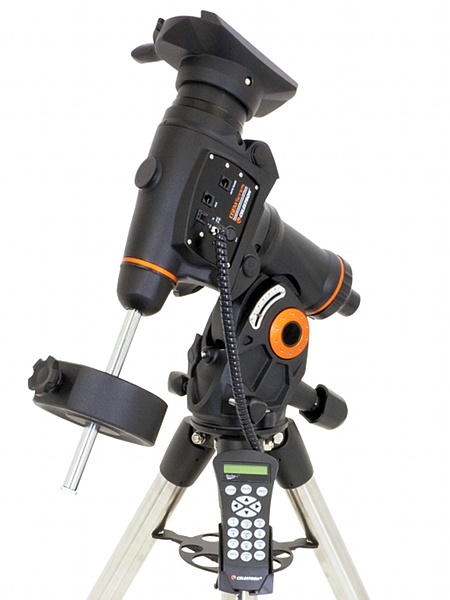

The Celestron CGEM mount is essentially the next step up from the ubiquitous Skywatcher NEQ6 PRO and sits neatly between the Celestron Advanced Series CG-5 and the CGE PRO.

Capable of carrying Celestron’s higher-end SCT optical tubes (up to 11") securely.

New innovative All-Star (patent pending) Polar alignment procedure. All-Star allows users to choose any bright star, while the software calculates and assists with polar alignment.  Another great feature that is sure to please astroimagers is the Permanent Periodic Error Correction (PEC) which will allows users to train out the worm gears periodic errors. The mount retains the PEC recordings.

The CGEM will track objects well past the Meridian (imaginary line passing from North to South) for uninterrupted imaging through the most ideal part of the sky. The CGEM mount has a robust database with over 40,000 objects, 400 user defined programmable objects and enhanced information on over 200 objects.

General Features
  • CGEM Computerized Equatorial Mount
  • Ultra sturdy 2" steel tripod with Accessory Tray
  • Payload Capacity of 40 lbs

Computerized Mount Features
  • 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
  • Proven NexStar computer control technology
  • Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
  • New "All-star" Polar alignment uses any bright star for a quick and accurate Polar alignment
  • Software Features include: Mount Calibration, Database Filter Limits, Hibernate, five Alignment Procedures, and user-defined slew limits
  • Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable star; solar systems; objects and asterisms
  • Permanent programmable periodic error correction (PEC) - corrects for periodic tracking errors inherent to all worm drives
  • Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable star; solar systems; objects and asterisms
  • Steel worm gear and 90mm pitch diameter brass worm wheel
  • Drive Motors - Low Cog DC Servo motor with integrated optical encoders offer smooth, quiet operation and long life. The motor armatures are skewed to minimize cogging which is required fro low speed tracking.
  • Internal Cable wiring for trouble-free setup and transportation
  • Designated six-pin RJ-12 modular jack, ST-4 compatible guide port
  • Autoguide port and auxiliary ports located on the electronic plate for long exposure astrophotography
  • Double line, 16-character Liquid Crystal Display Hand Control with backlit LED buttons for easy operation of goto features
  • RS-232 communication port on hand control to control the telescope via a personal computer
  • Includes NexRemote telescope control software, for advanced control of your telescope via computer
  • Precision machined 40mm diameter steel Polar shafts supported by multiple tapered roller bearings and ball bearings.
  • GPS-compatible with optional CN16 GPS Accessory
  • Secure power plug ensures that the Mount's power source is not accidentally disconnected

Mount : Computerized Equatorial
Tripod : Adjustable, Stainless Steel
CD ROM : NexRemote control software with RS232 cable
Power Supply : Car battery adapter
Tripod Weight : 17 lb (7.71 kg)
Mount Weight : 41 lb (18.6 kg)
Counterweights : 1 x 17 lb
Motor Drive : Low cog DC Servo motors with encoders, both axes
Computer Hand Control : Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons
Payload Capacity : 40 lb (18.14 kg)
Latitude Range : 15-70 degrees
Slew Speeds : Nine slew speeds
Tracking Rates : Sidereal, Solar and Lunar
Tracking Modes : EQ North and EQ South
Alignment Procedures : AutoAlign, 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
Software Precision : 24bit, 0.08 calculation
Database : 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Power Requirements : 12 VDC 3.2 Amp
GPS : Optional CN-16 GPS Accessory
Total Weight : 75 lb (34.02 kg)

Downloads / Manuals

The following manuals and downloads are available for this product:

Firmware Update - 11/12/13 - Click Here To Download
