Deep Sky Dad AF3 Autofocuser Kit for Daystar Solar Scout 60mm
  Zoom
Deep Sky Dad AF3 Autofocuser Kit for Daystar Solar Scout 60mmDeep Sky Dad AF3 Autofocuser Kit for Daystar Solar Scout 60mmDeep Sky Dad AF3 Autofocuser Kit for Daystar Solar Scout 60mmDeep Sky Dad AF3 Autofocuser Kit for Daystar Solar Scout 60mm

Deep Sky Dad AF3 Autofocuser Kit for Daystar Solar Scout 60mm

£235.00✓ 2 year warranty

:

2x in stock shipped 1-2 working days

About this product

Model:  deepskydad_af3_solar_scout
Part Number:  AF3SOLARSCOUT60

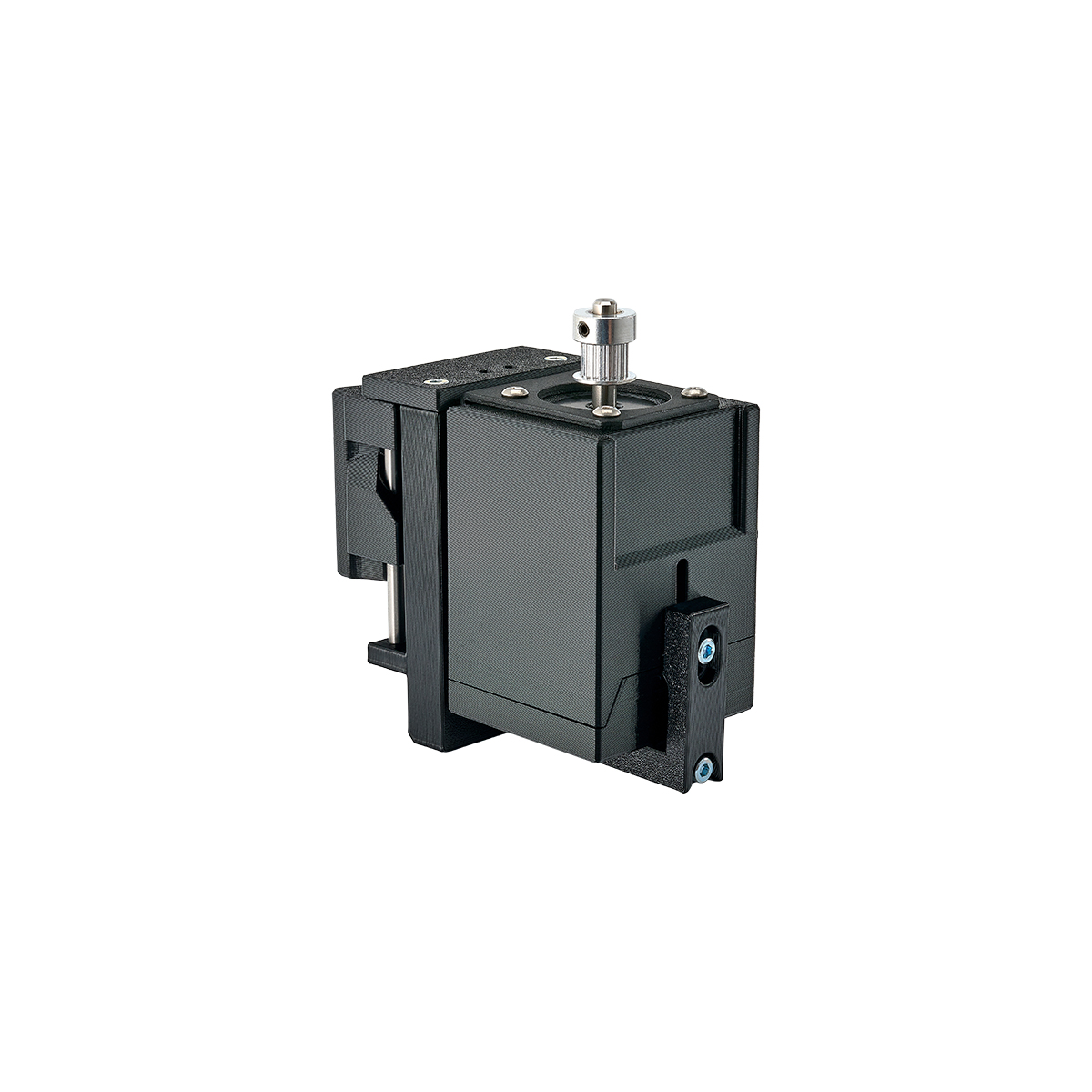

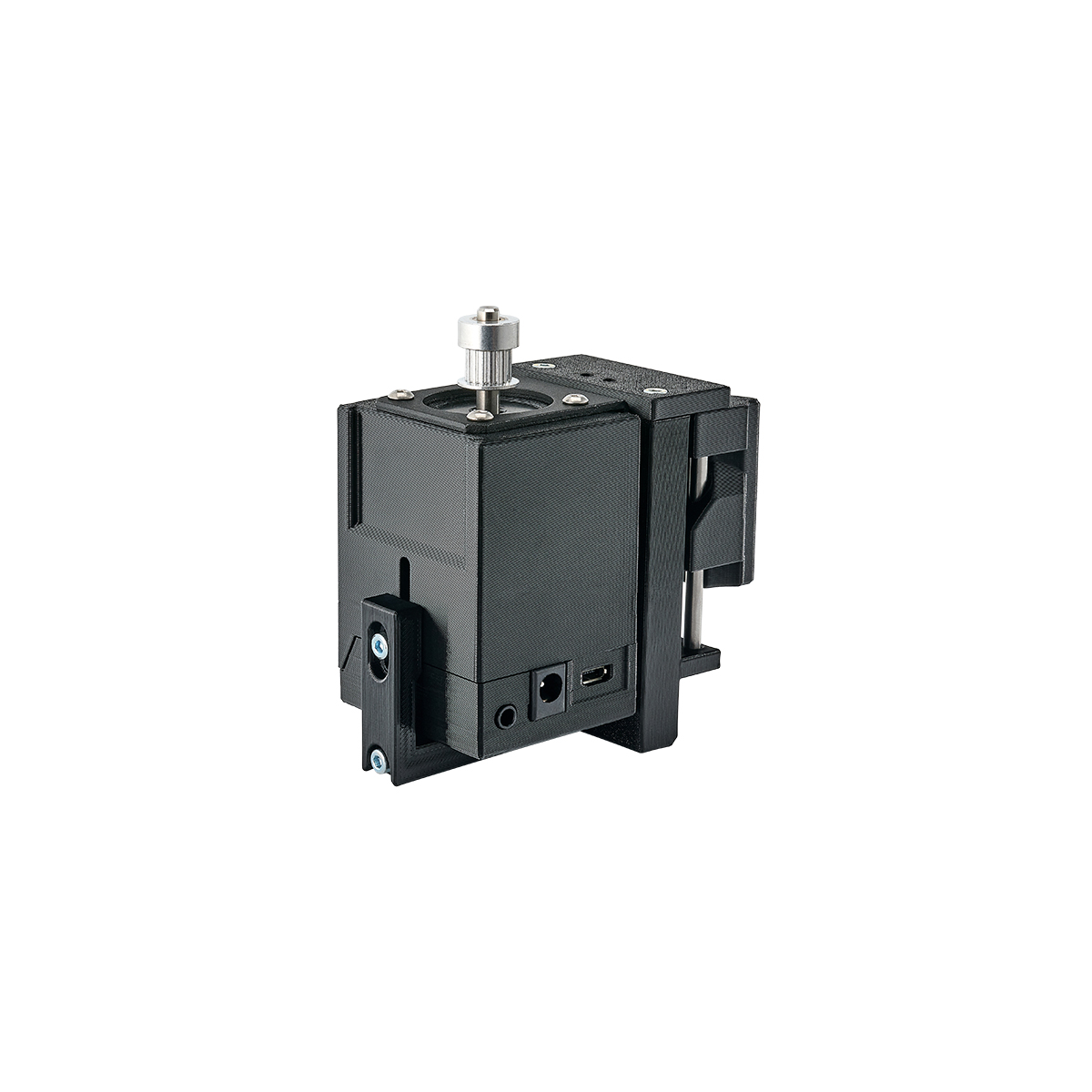

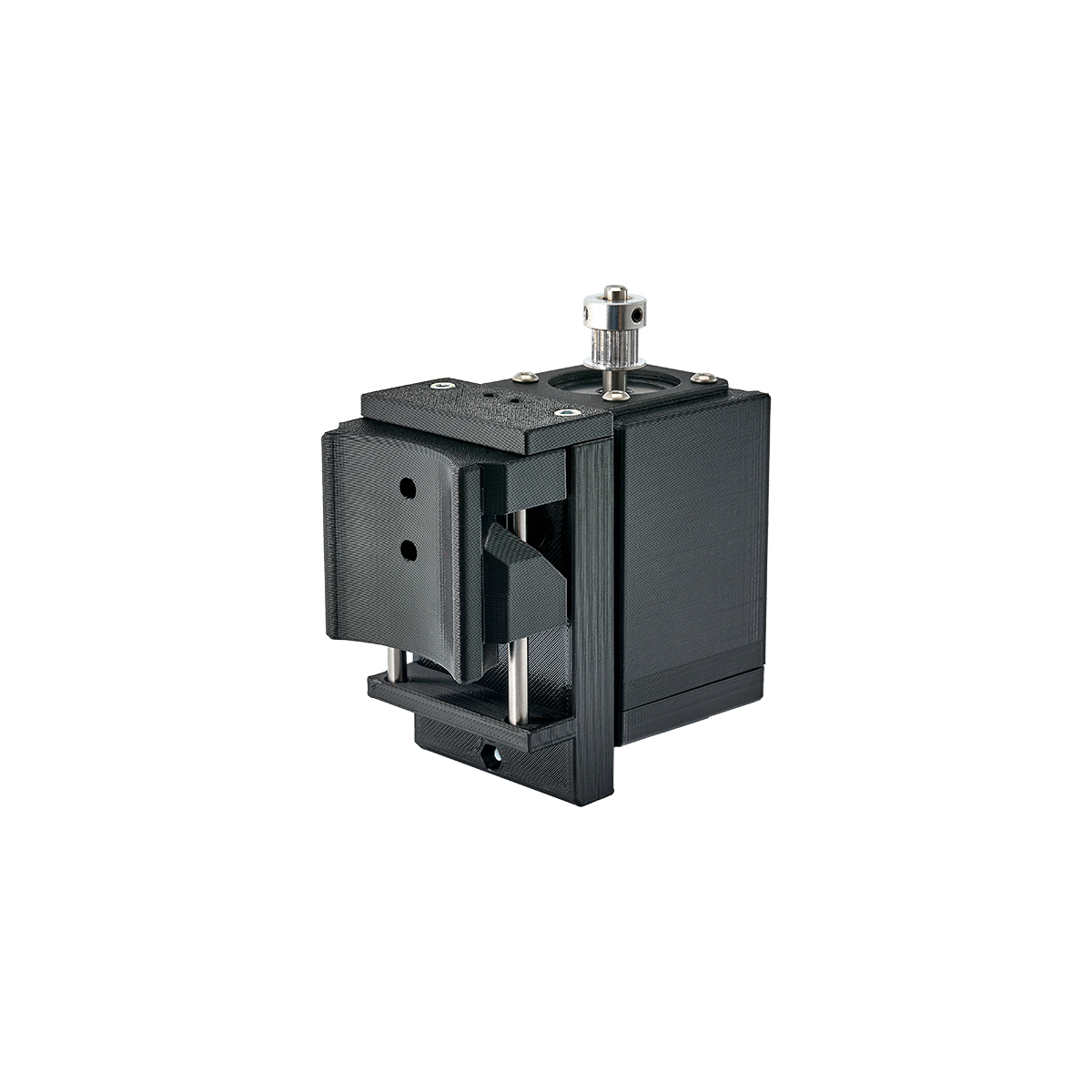

Introducing the Deep Sky Dad AF3 Auto Focuser kit for the Daystar Solar Scout 60mm Solar Telescope.

Daystar Solar Scout 60mm is a solar scope, equipped with Daystar Quark filter. Its helical focuser facilitates sharp images, but this can be tricky during daylight, hiding under a blanket.

Deep Sky Dad have introduced this AF3s autofocuser kit to make this task easier!

The autofocusing motor rests on the special trolley, connected to the rails. This keeps auto focuser pulley in line with lens focusing ring and enables a balanced, compact solution.

The AF3 boasts a stealth drive feature to minimise noise and vibration. In addition to the smoother motion it also provides more accurate movement with micro stepping down to 1/256. The enclosure was also optimised for easier assembly but has retained backwards compatibility with existing Astro Dad adapters.

The AF3 is ASCOM/INDI compatible.

Features

  • ASCOM/INDI Supported
  • INDIGO Supported
  • The SKy X Pro X2 Focuser Plugin
  • Custom Step Size
  • Speed/Current Control
  • Optional Hand Controller
  • Optional Temperature Probe
  • Settle Buffer Option
  • Compact Design (44.5mmx48.5mmx50.2mm)
  • Weight 170grams

Software Downloads

Power adapter: 12V - 14V MAX (1A min) with 5.5mm x 2.1mm plug (not included)

Connectivity (not included): Mini USB cable OR Micro USB cable (2020)

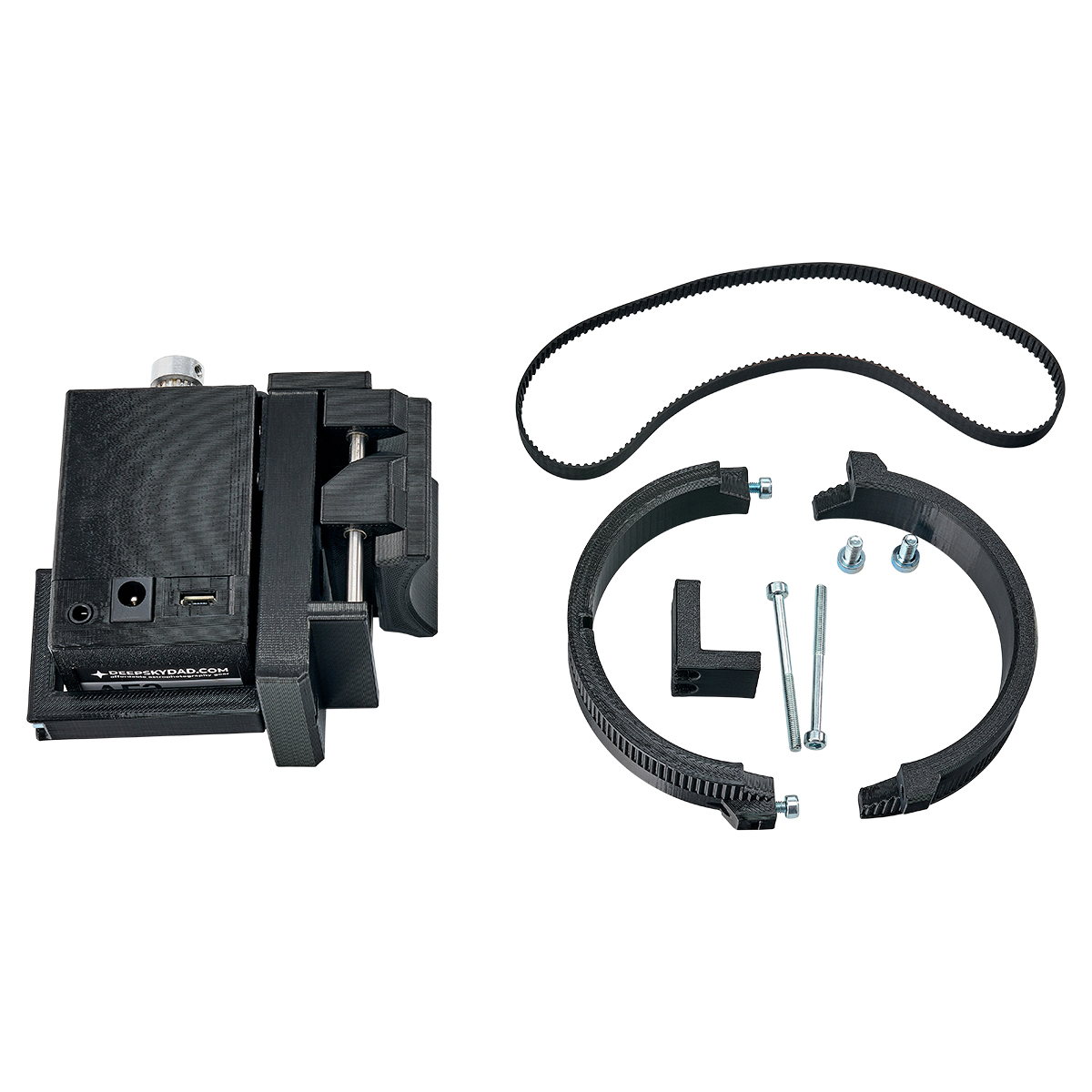

What's in the box

  • 1x AF3s unit
  • 1x 3D printed mounting plate
  • 1x 3D printed 16T MXL pulley
  • 1x 3D printed helical focuser MXL ring
  • 1x MXL timing belt
  • 8x 6mm M3 bolt (for mounting the motor to the plate/L bracket)
  • 2x 10mm M3 bolt (for ring)
  • 2x 16mm M6 bolt (for attaching mounting plate to the dovetail)
  • 1x 60mm M5 bolt (for attaching dovetail and extension block)
  • 1x ALU extension block
  • 1x 60mm M5 bolt (for attaching dovetail and extension block)
  • 1x ALU extension block
