Primaluce Lab 495mm PLUS Losmandy Dovetail with curved blocks for C9.25, C11, EdgeHD 925 and 1100 Telescopes
  Zoom

Primaluce Lab 495mm PLUS Losmandy Dovetail with curved blocks for C9.25, C11, EdgeHD 925 and 1100 Telescopes

£169.00✓ 2 year warranty

:

Usually shipped 2-4 working days.

About this product

Model:  pl_plllos495sag925
Part Number:  PLLLOS495SAG925

Premium quality 495mm PLUS Losmandy dovetail from Primaluce Lab with curved blocks suitable for Celestron C8, C9.25, C11, EdgeHD 800, 925, 1100 or Meade SC and ACF 8" telescopes.

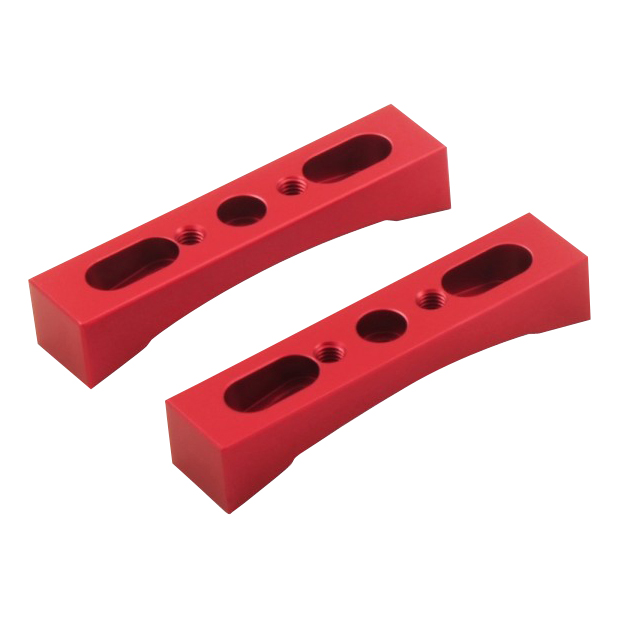

The PLUS curved blocks can be easily installed on Celestron C8, C9.25, C11, EdgeHD 800, 925, 1100 or Meade SC and ACF 8" telescopes. Simply remove the screws already on the telescope and fix the curved blocks (one in front, one in rear of the optical tube) and secure with the same screws. On the curved blocks you can then connect the 350mm or 495mm PLUS Losmandy dovetail bar using 2 M6 screws for each curved block (included in the box).



The Losmandy plate 495mm PLUS is part of our PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.

For this application, we designed many elements, including the Losmandy plate 495mm PLUS. Each component of the PLUS system is made of Aluminium blocks that are high precision CNC machined. The Aluminium is then sandblasted to achieve a very smooth surface finish and is anodised (hard anodised) to increase the hardness of the material and protect it from oxidation.

Thanks to the particular design, the Losmandy plate 495mm PLUS can be:

  1. positioned below the support rings to install the telescope on mounts with Losmandy plate
  2. installed above the support rings to increase the mechanical rigidity of the entire telescope (and allow you to attach other accessories such as dovetail clamps with guide rings to precisely adjust the position of the guide telescope).
  3. used as a basis to create a side-by-side plate (which allows you to install two telescopes in parallel on a mount with a single Losmandy plate) together with 2 dovetail clamps PLUS.

If you have other brands mechanical accessories, you can still use all the elements of the PLUS system. Indeed we have provided a series of central slots that allow, for example, to fix on this plate support or guide rings through a screw.
