About this product
Model: pll_pllpdvix350p
Part Number: PLLPDVIX350P

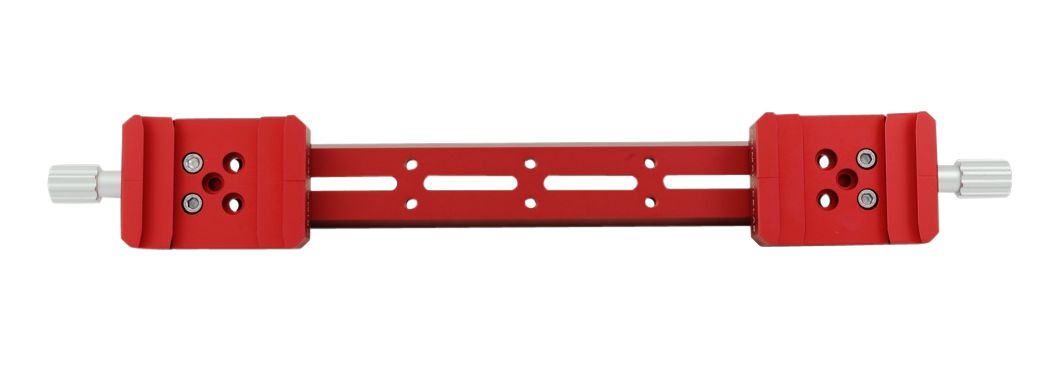

Premium quality 350mm PLUS Vixen dovetail side by side system with dual fit clamps from Primaluce Lab.
The Side by Side PLUS 350mm Vixen plate is part of our PLUS system (Prima Luce Universal System) that includes a large variety of other plates, support rings, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical support system, depending on the application you want to accomplish. Indeed, all the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.
For this application, we designed many elements, including the Vixen plate 350mm PLUS and dual Vixen and Losmandy-fit clamps. Each component of the PLUS system is made of Aluminium blocks that are high precision CNC machined. The Aluminium is then sandblasted to achieve a very smooth surface finish and is anodised (hard anodised) to increase the hardness of the material and protect it from oxidation
The side-by-side plates allow you to install two telescopes in parallel on the same mount and they are useful for both photographic and visual applications. This plate can be connected to any mount with a Vixen-style saddle mount and the two sides are spaced 310mm apart.

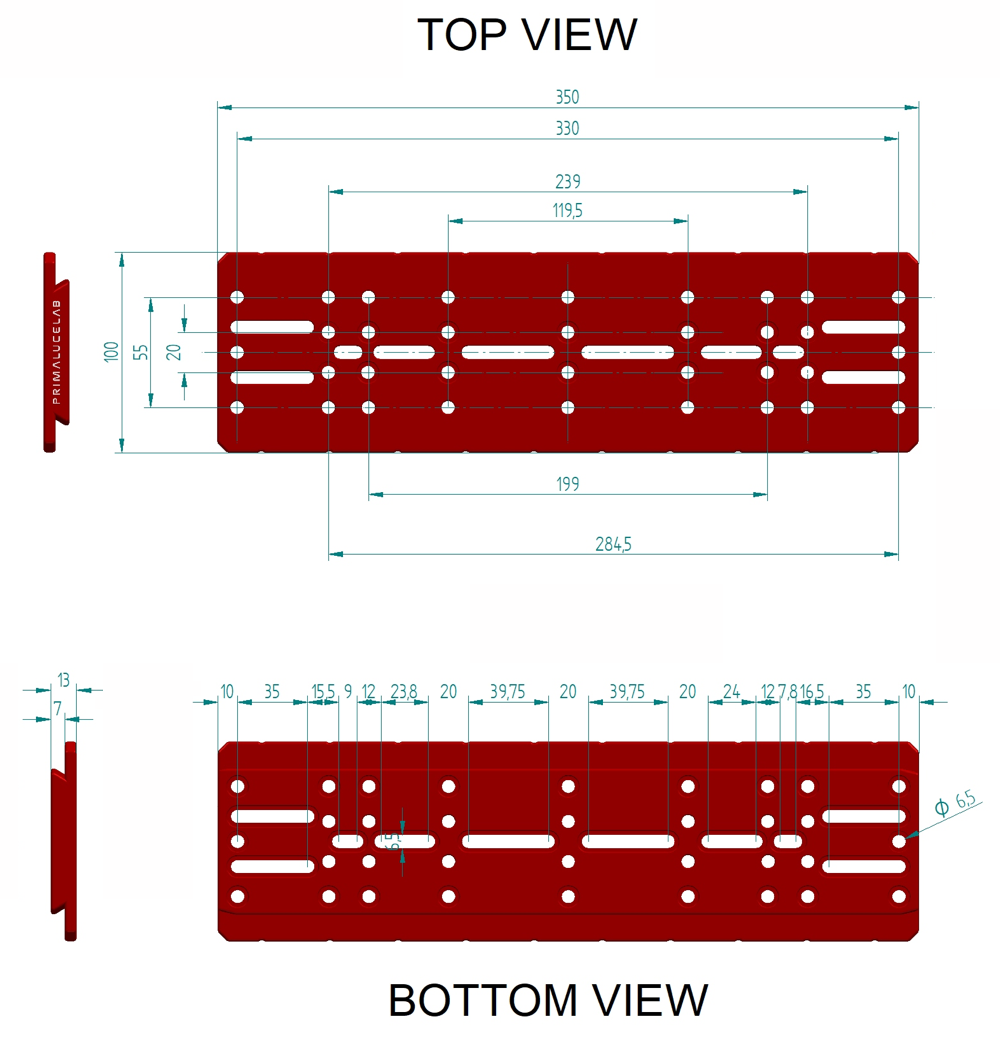

Bar Dimensions
