About this product
Part Number: 20323
A solid workhorse at a bargain price!
The NEW Sky-Watcher EQ8-R Pro is an evolutionary progression of the popular EQ8 Pro.
An extra heavy-duty, observatory class German Equatorial Mount with a payload capacity of up to 50kg.
Quiet in operation, the EQ8-R is supplied with the Synscan Go-To handset that can automatically find and track over 42,900 celestial objects from its extensive computer database.

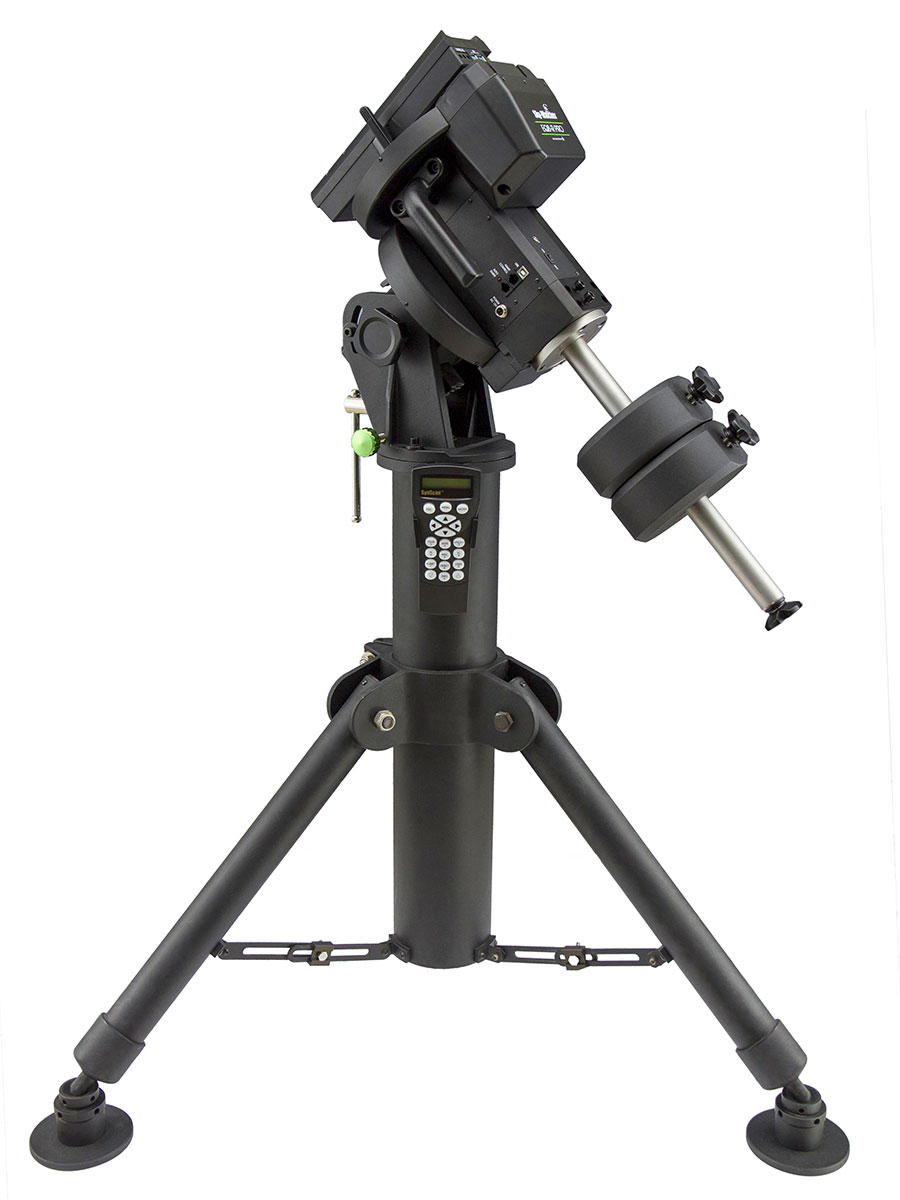

Available either complete with pier tripod or as the mount head only, to install onto a static pier.
Two 10kg counterweights and the Synscan computerised handset are supplied with both options.
The mount is also compatible with the optional Synscan Wi-Fi adaptor and Synscan Pro Apps which can control the mount wirelessly.
Improvements over the previous EQ8 model include:
- Cable management system for reduced tangling.
- Improved Connectivity.
- Improved installation position of motors for improved balance.
- Improved clutch mechanism provides more holding strength.
- Improved dovetail groove knob for added comfort and increased locking power.
- Belt drive on the RA and DEC axes for quiet slewing (previously only the RA axes was belt driven).
Note: Freedom-Find encoders are not present on the EQ8-R
Permanent Periodic Error Correction
The EQ8 mount is equipped with an index on its R.A. worm thus the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate), thus this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions,
Batch Exposures Function
The EQ8 mount is equipped with a SNAP port which can control the shutter release of a camera. Working with the SynScan hand control’s “Camera Control” function, a user can take batch exposures when doing astrophotography. Up to 8 groups of “Exposure-time & Frames” combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand control’s instruction manual.
The EQ8 mount is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed to the same home position after turning on the power. For detailed information, refer to the SynScan hand control’s instruction manual.
The diagram below will be useful to those wanting to mount an EQ8 head to an existing pier.
Note regarding delivery: Because the EQ8-R Pro is a large mount it is delivered separately on a pallet. Delivery requires 3-5x days (not the indicated 1-2x days). When it reaches your local depot the courier will contact you to arrange a delivery date.
|Payload Capacity (excl. counterweights)||50kg|
|Latitude Adjustment Range||10° to 65°|
|Azimuth Adjustment Range||+/- 10°|
|Mount Head Weight (excl. tripod)||25.8kg|
|Pier Tripod (optional)||29.4kg|
|Counterweights||2 x 10kg|
|Power Requirement||11 to 16 Volts DC (Higher voltage preferred), 55W|
|Motors||0.9° Hybrid Stepper Motor|
|Transmission||435:1 Worm Drive + 256 Micro-Step/0.9° Stepper Motor|
|Resolution||44,544,000 Counts/Rev, approx 0.03 Arc-Second|
|Maximum Slewing Speed||3.7° per Second|
|Tracking Rates||Sidereal, Solar and Lunar Rates|
|Auto-Guiding Speeds||0.125x, 0.25x, 0.5x, 0.75x & 1x|
|PPEC||200 Segments Permanent PEC |
|Polar Alignment||By software control or optional Polarscope|
|Hand Controller||Synscan with 42,900+ Object Database|
|Remote Control||Control also possible with Synscan Pro Application for Windows via USB, Synscan Pro App for iOS and Android with optional Wi-Fi Dongle|
|Additional Ports||4 x USB Ports and 3 x Power Outlets for Peripheral Devices|
|Connectivity||Paired RJ10, RJ12 and RJ45 modular jacks|
|DSLR Control||DSLR Snap Port / Batch Exposures Function|
|Home||Auto Home Function|
|Synscan Celestial Object Catalogue||Messier, NGC, IC, SAO, Caldwell, Double-Star, Variable Star, Named Star, Planets|
|Pointing Accuracy||Up to 5 arc-minutes (RMS)|
|Average Rating (2 Reviews): |
Tuesday, 2 November 2021 | Nigella
The mount head came in a sturdy flight case and we'll packed. It is a very substantial mount and took my 12inch f4 Newtonian with breeze. Only had this a few weeks and only just got around to place in my observatory. Purchased a power supply from Flo as well and performed a home sync which was successful on first attempt. Easy to use with Eqmod too. I have no hesitation of recommending this mount if you're looking for something beefy to take heavy or multiple telescope's. Flo was excellent as usual, many thanks.
Friday, 11 September 2020 | Vikrant
Hello, Just received this mount head. Looks very rigid.
Powered on the mount and run the mount with maximum speed using controller (more features alike auto home). It sounds pleasing (wider belts drives).
More tests are pending, while observations, but I think it is going to be wonderful with it.
