About this product
Part Number: 20324
Same as EQ8-R plus high-resolution Renishaw Encoder on R.A. Axis.

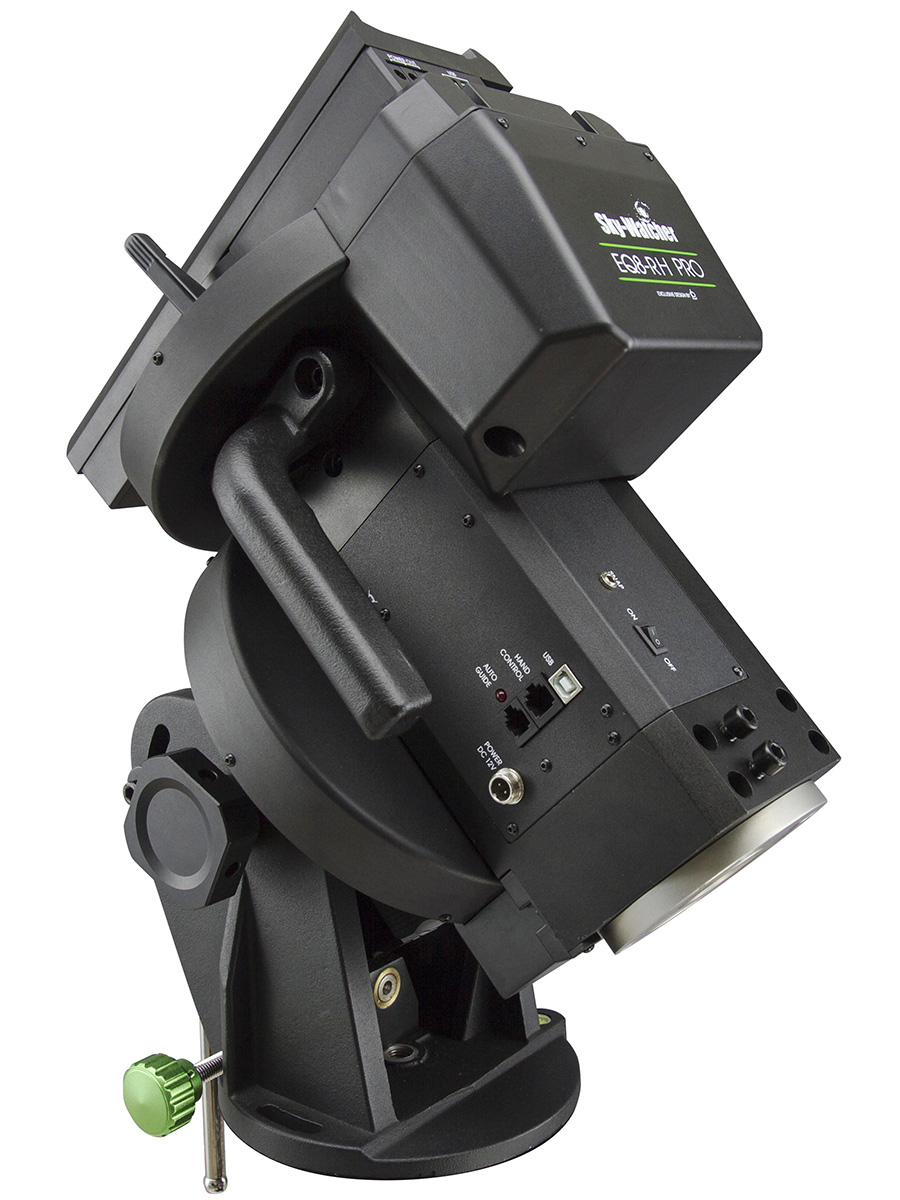

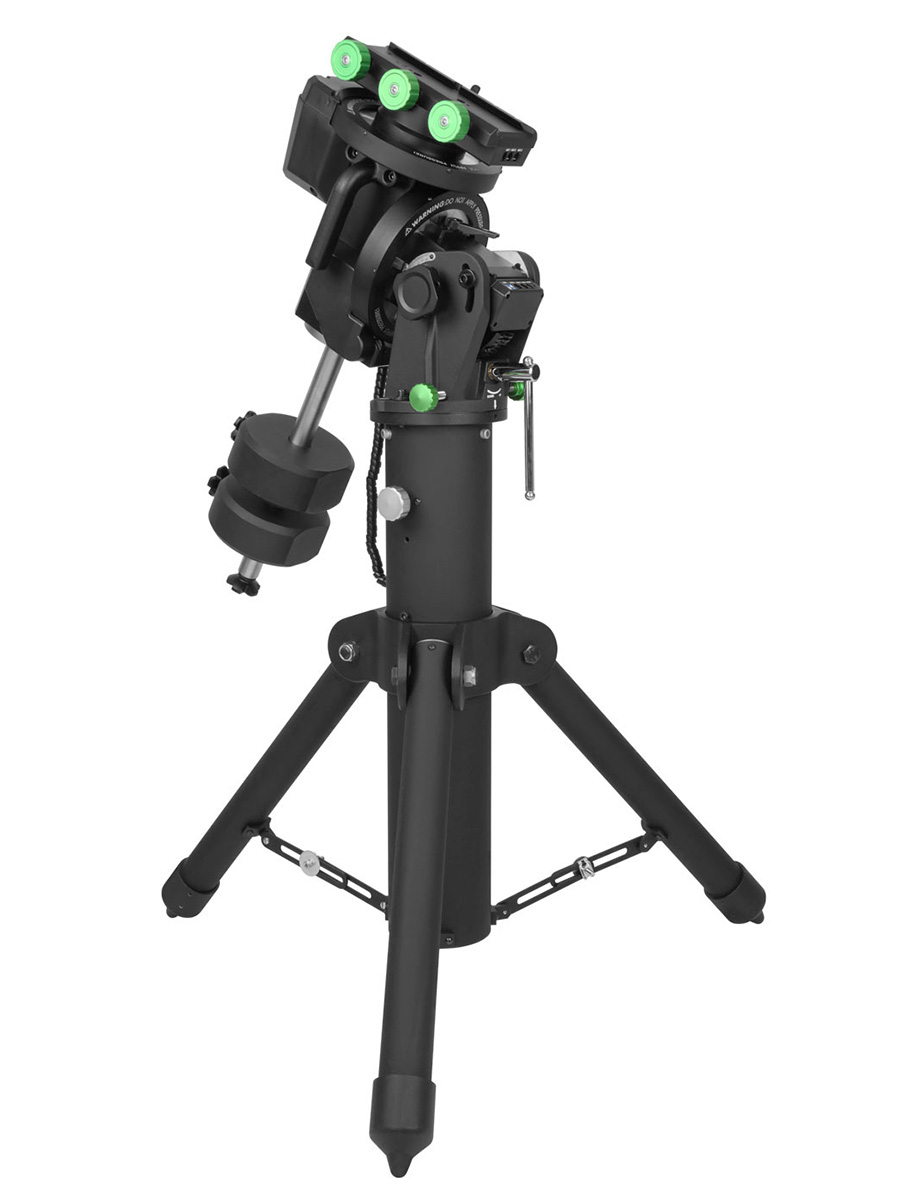

The NEW Sky-Watcher EQ8-R and EQ8-Rh Pro mounts are an evolutionary progression of their popular EQ8 Pro.
An extra heavy-duty, observatory class German Equatorial Mount with a payload capacity of up to 50kg.
Quiet in operation, the EQ8-Rh is supplied with a Synscan Go-To handset that can automatically find and track over 42,900 celestial objects from its extensive computer database.

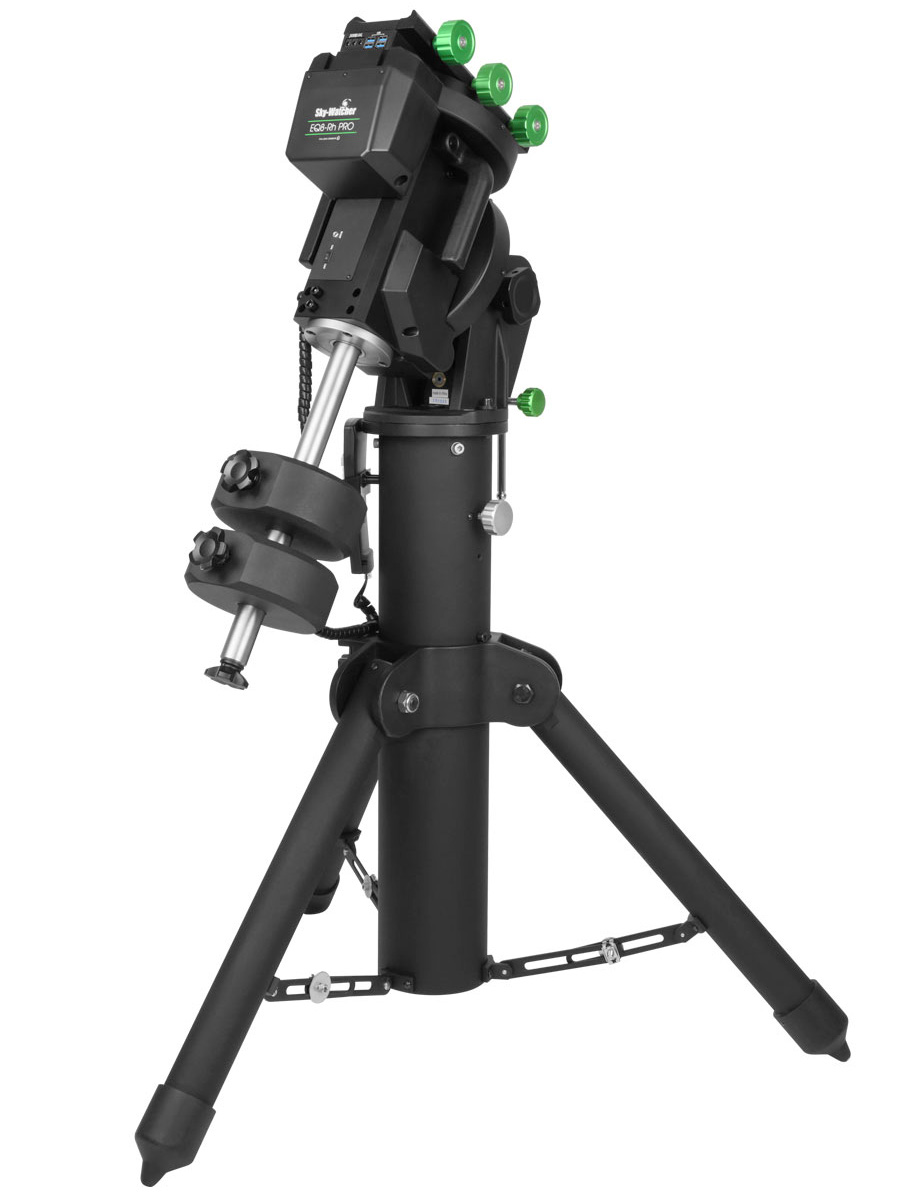

Available either complete with a pier tripod or as a mount head only for installation onto a static pier.
Two 10kg counterweights and the Synscan computerised handset are supplied with both options.
The mount is also compatible with the optional Synscan Wi-Fi adaptor and Synscan Pro Apps, for wireless control of the mount.
Improvements over the previous EQ8 model include:
- Cable management system for reduced tangling.
- Improved Connectivity.
- Improved installation position of motors for improved balance.
- The improved clutch mechanism provides more holding strength.
- Improved dovetail groove knob for added comfort and increased locking power.
- Belt drive on the RA and DEC axes for quiet slewing (previously, only the RA axes were belt driven).
NOTE: Freedom-Find encoders are not present on the EQ8-R or EQ8-Rh.
Permanent Periodic Error Correction
This mount is equipped with an index on its R.A. worm; thus, the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate); thus, this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions,
Batch Exposures Function
Features include a SNAP port that can control a camera's shutter release. SynScan hand control’s “Camera Control” function enables users to take batch exposures when doing astrophotography. Up to 8 groups of “Exposure-time & Frames” combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand control’s instruction manual.
It is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed to the same home position after turning on the power. For detailed information, refer to the SynScan hand control’s instruction manual.

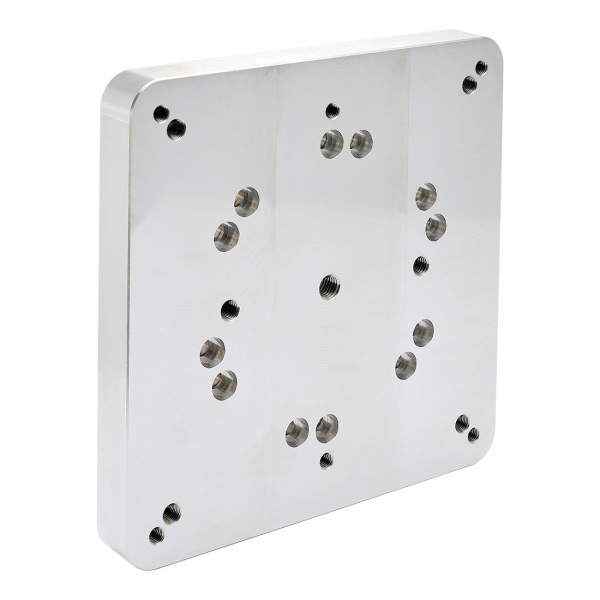

The diagram below will be useful to those wanting to mount an EQ8 series head to an existing pier.
Note regarding delivery: Because the EQ8-Rh Pro is a large mount, it is delivered separately on a pallet. Delivery requires 3-5x days (not the indicated 1-2x days). The courier will contact you when it reaches your local depot to arrange a delivery date.
|Payload Capacity (excl. counterweights) ||50kg |
|Latitude Adjustment Range ||10° to 65° |
|Azimuth Adjustment Range ||+/- 10° |
|Mount Head Weight (excl. tripod) ||25.8kg |
|Pier Tripod (optional) ||29.4kg |
|Counterweights ||2 x 10kg |
|Counterweight Rod ||2.6kg |
|Power Requirement ||11 to 16 Volts DC (Higher voltage preferred), 55W |
|Motors ||0.9° Hybrid Stepper Motor |
|Transmission ||435:1 Worm Drive + 256 Micro-Step/0.9° Stepper Motor |
|Resolution ||44,544,000 Counts/Rev, approx 0.03 Arc-Second |
|Maximum Slewing Speed ||3.7° per Second |
|Resolution of R.A. High Resolution Renishaw Encoder || |
11,840,000 Counts/Rev., approx. 0.11 arc-second
|Tracking Rates ||Sidereal, Solar and Lunar Rates |
|Auto-Guiding Speeds ||0.125x, 0.25x, 0.5x, 0.75x & 1x |
|PPEC ||200 Segments Permanent PEC |

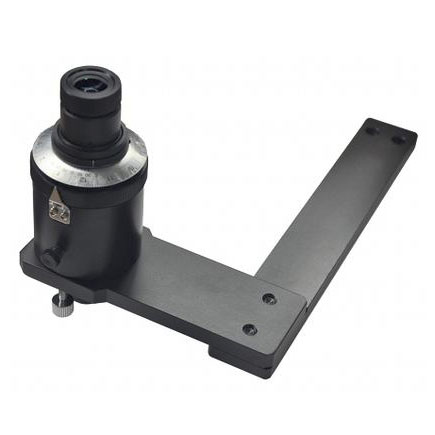

|Polar Alignment ||By software control or optional Polarscope |
|Hand Controller ||Synscan with 42,900+ Object Database |

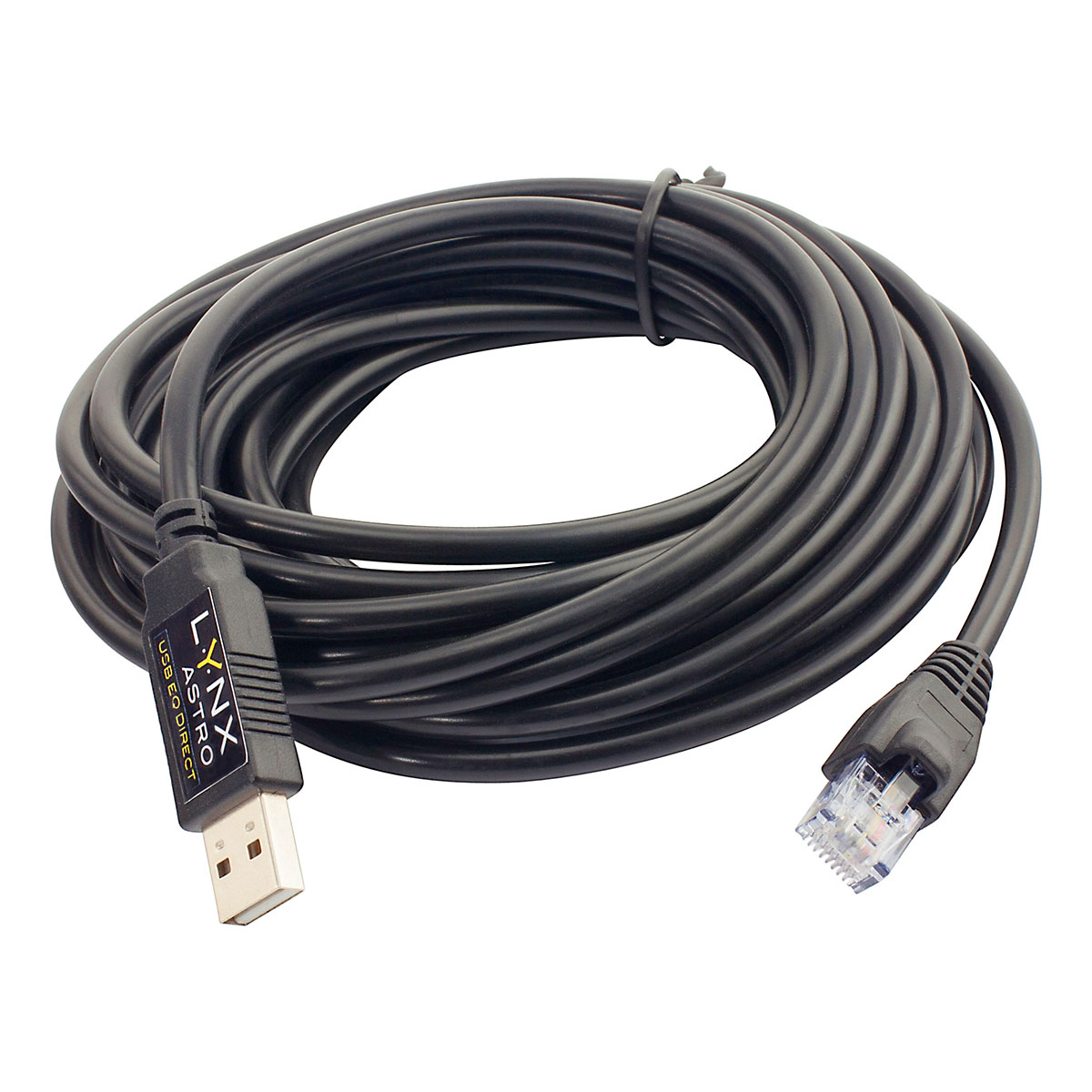

|Remote Control ||Control also possible with Synscan Pro Application for Windows via USB, Synscan Pro App for iOS and Android with optional Wi-Fi Dongle |
|Additional Ports ||4 x USB Ports and 3 x Power Outlets for Peripheral Devices |
|Connectivity ||Paired RJ10, RJ12 and RJ45 modular jacks |
|DSLR Control ||DSLR Snap Port / Batch Exposures Function |
|Home ||Auto Home Function |
|Synscan Celestial Object Catalogue ||Messier, NGC, IC, SAO, Caldwell, Double-Star, Variable Star, Named Star, Planets |
|Pointing Accuracy ||Up to 5 arc-minutes (RMS) |
