About this product

Model:  ioptron_hae29_ec
Part Number:  HE294A

Ioptron HAE29EC Strain Wave AZ/EQ Mounting.

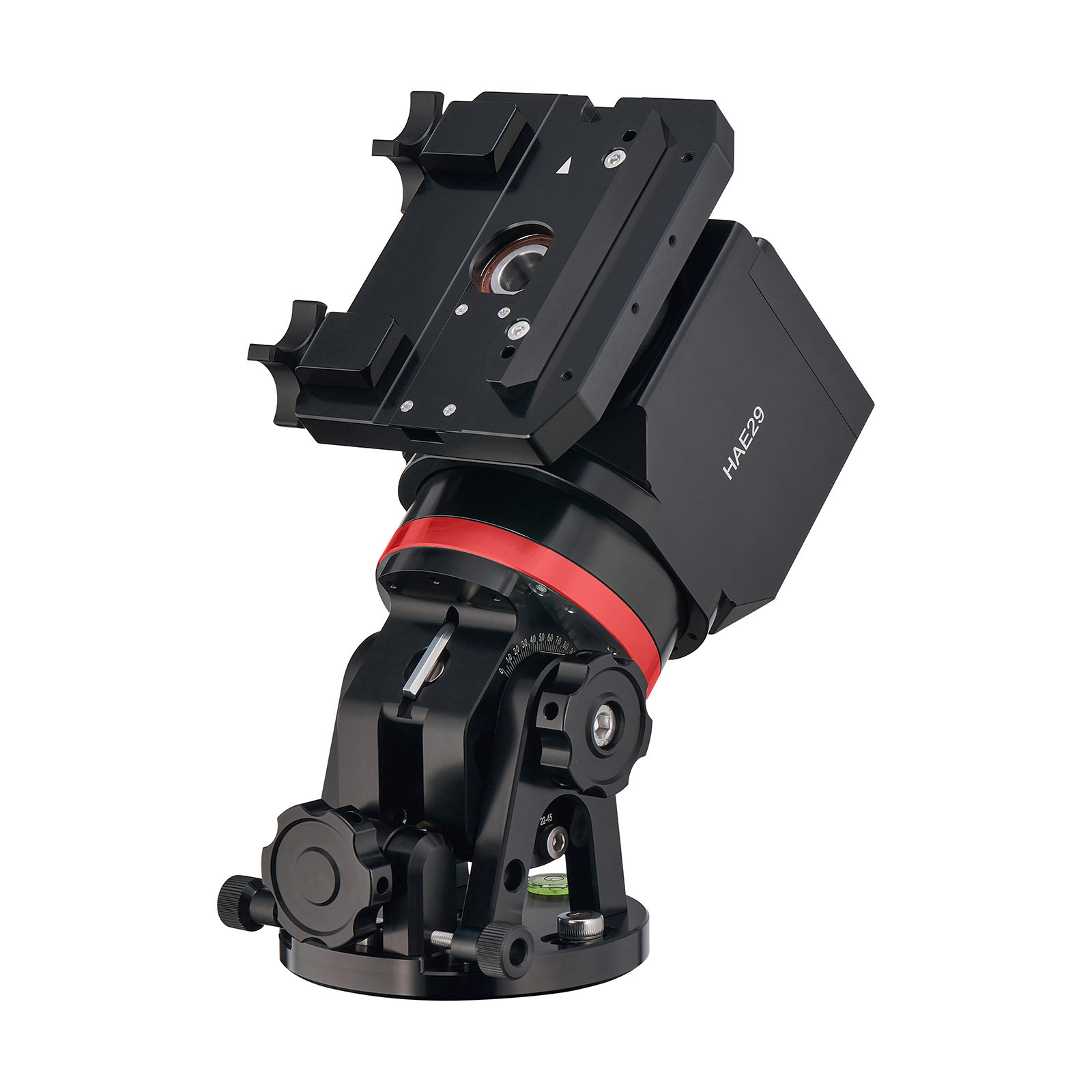

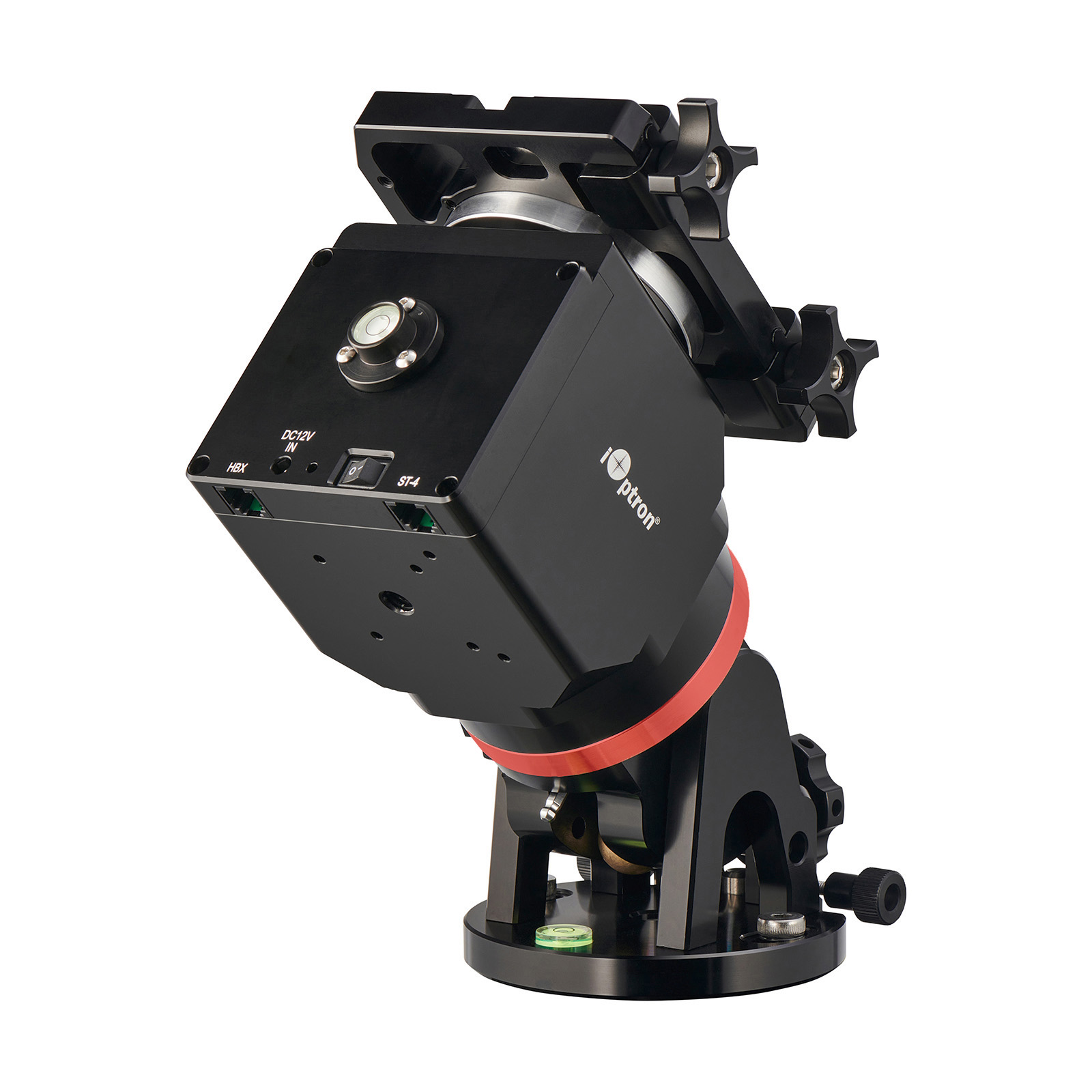

(The iPolar is not shown in photos but is included and fits neatly over the bubble level).

The HAE29EC features a high-precision RA axis encoder that delivers very high tracking accuracy, enough that many will choose to image without guiding.

This light weight, high payload mount delivers an astronomy experience like never before.

Imagine a mount head weighing less than 8 lbs, with a payload capability of 29.7 lbs, without needing a cumbersome counterweight or shaft. iOptron’s multi-decade experience creating precision mounts has made this possible.

Utilising state-of-the-art strain wave gear technology for both the RA and DEC axes, the HAE29 delivers unparalleled weight to payload efficiency.

Its black anodised all-metal CNC machined body provides a rugged platform that will perform at the highest level for many years.

Unique features such as an electronic friction break and power-down memory enable the mount to stop and resume a GoTo slew safely or continue tracking even after an abrupt power loss (no need to realign and start from the beginning).

The mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third-party INDI driver for MacOS software, a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari, or a Raspberry Pi device via INDI driver.


  • Advanced harmonic drive technology
  • Payload capacity of 13.5kg (29.7 lbs) with a mount weight of 3.6 kg (7.93 lbs)
  • iPolar Included
  • High Precision RA Encoder Included
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • Go2Nova® hand controller with ~212,000 object database
  • Dual saddle (Vixen and Losmandy-D styles)
  • Large Binocular Mounting
  • Satellite Tracking Ready (with third-party software)
  • Built-in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 auto-guiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Soft carrying case
  • Two-year warranty

Go2Nova Hand Controller 8409

  • 212,000 object database & star identification
  • Large LCD screen with four lines and 21-character with backlit LED buttons
  • User-friendly interface
  • 9-speed setting for motor slew speed
  • Serial port for firmware upgrade and mount computer control


Mount Strain Wave Altazimuth/Equatorial Mount
Ra Gear System Strain Wave Gear
Dec Gear System Strain Wave Gear
Ra Reduct Ratio 480:1 (SWG 120:1, Sync belt 4:1)
Payload wo C/W 29.7 lbs (13.5 kg)
Mount Weight 7.93 lbs (3.6 kg) with dovetail saddle
Payload/Mnt Weight 3.75
Payload with C/W 44 lbs (20kg)
Period 360 Seconds
Drive Motor Stepper Motor
Structure Material All metal, CNC machined
Exterior Finish Anodised Black
Latitude Adj Range 0º ~ 90º
Azimuth Adj Range ± 5º
Level Indicator Level Bubble
Control System GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Maximum Slew Speed 8º/sec
Power Consumption 0.6A(Tracking), 1A(GOTO)
Power DC12V-5A (5.5/2.5mm DC plug)
AC Adapter 100V ~ 240V (included, indoor use only)
Cable Management Ready for DIY
Power Off Brake Electronic friction brake
Power Down Memory      Yes
Wi-Fi Built In
Communication Port Yes (Wi-Fi and USB, via HC)
Autoguide Port Yes (ST-4 compatible)
Firmware Upgrade Yes
Dovetail Saddle Vixen & Losmandy
Tripod  Optional
Counterweight Shaft SS Φ20X200mm, M16 thread (Optional)
Counterweight 10 lbs (4.5kg)(Optional)
Operation Temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty 2 Years
