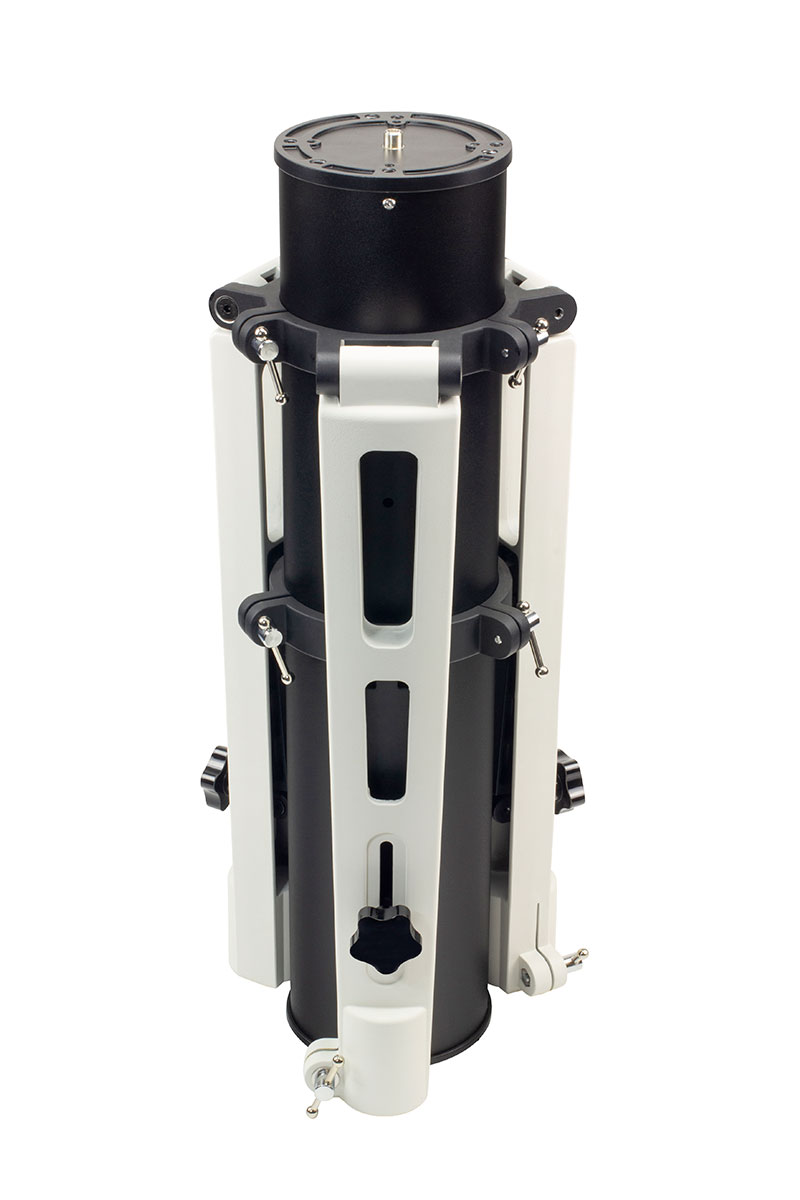

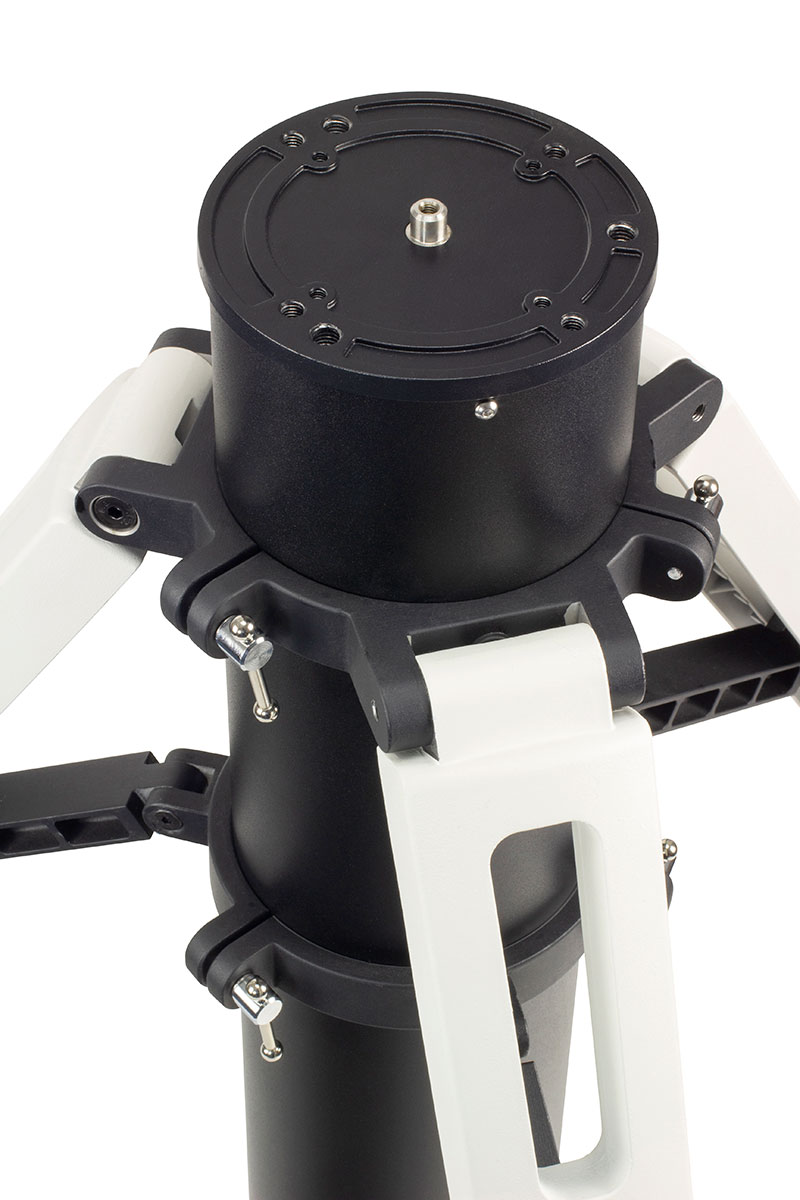

iOptron Tri-Pier Portable Pier Tripod with Rolling Case
  Zoom
iOptron Tri-Pier Portable Pier Tripod with Rolling CaseiOptron Tri-Pier Portable Pier Tripod with Rolling CaseiOptron Tri-Pier Portable Pier Tripod with Rolling Case
iOptron Tri-Pier Portable Pier Tripod with Rolling CaseiOptron Tri-Pier Portable Pier Tripod with Rolling Case

iOptron Tri-Pier Portable Pier Tripod with Rolling Case

£729.00✓ 2 year warranty

:

1x in stock shipped 1-2 working days

About this product

Model:  iop_tripier_white_8034_rc
Part Number:  8034-RC

Now with higher payload!

The iOptron Tri-Pier combines the strength and stability of a pier with the levelling flexibility of a tripod.

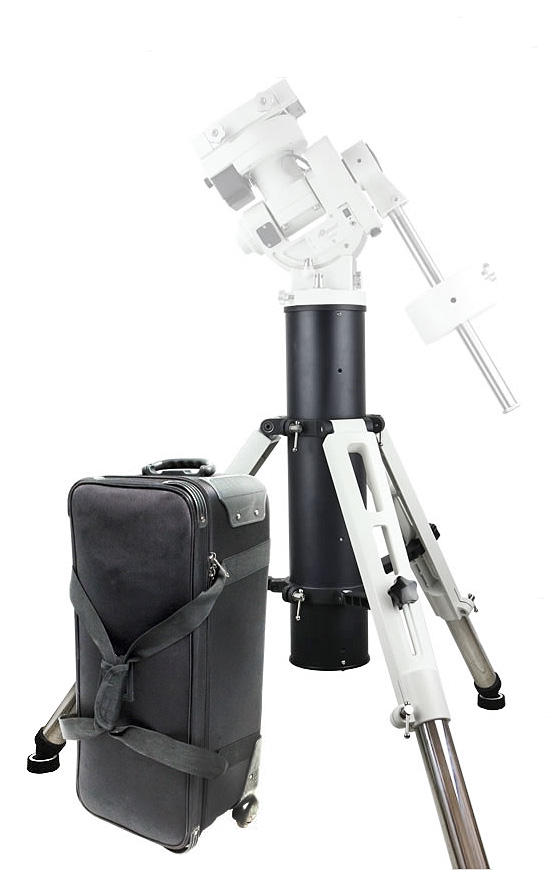

This option includes the Ioptron Rolling Case for the Tri-Pier

Aluminium pier and leg tops, stainless steel leg extensions (conveniently stored in pier body) and integral vibration suspension pads.

Suitable for use with the following iOptron mounts (some require an adapter).

  • CEM60/CEM70/CEM120
  • CEM40
  • GEM45/GEM45EC (may limit low latitude application 10 degrees north or less)
  • iEQ45/iEQ45 Pro
  • iEQ30/iEQ30 Pro (may limit low latitude application)
  • AZ Mount Pro/MiniTower/MiniTower II/MiniTower Pro (needs a center post and three leveling screws #8340-PIER)

The Tri-pier also fits other brand mounts with a suitable adapter.

FEATURES

  • Strength of a pier combined with flexibility of a tripod
  • Aluminium pier and leg tops

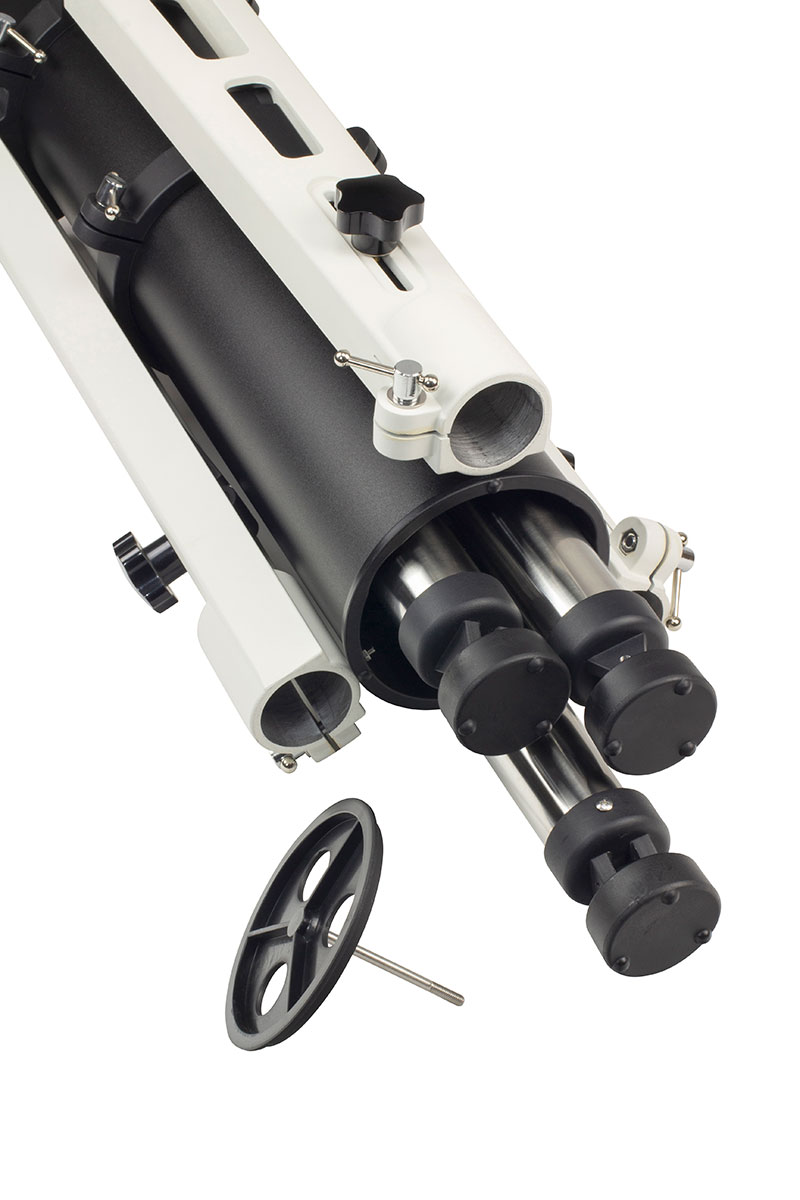

  • Stainless steel leg extensions (stored in pier body)
  • Integral vibration suspension pads



Specifications

Max Payload 220 lbs (100 kg)
Weight ~25.8 lbs (11.7 kg)
Pier Diameter 5.7" (144 mm) with 150mm top plate
Adjustable Height 31.5"-42.5" (800-1080 mm)
Uneven Ground Range 3.35" (85 mm)
Leg Maximum Spread Ø48.8" (Ø1240 mm)
Pier Dimension (folded) Ø12.8"x 26” (Ø325 x 660 mm)



Downloads / Manuals

Manual:

Assembly Instructions



Customer reviews

Be the first to Write a Review for this item!

FAQ

Please fill in the form below to ask a question.

*
*
*
*
Please add the two numbers

Q1. Does the CEM40 mount fit the iOptron tri-pier?

Yes - the CEM40 fits directly to the tri-pier, no additional adapters are required.

Related Products

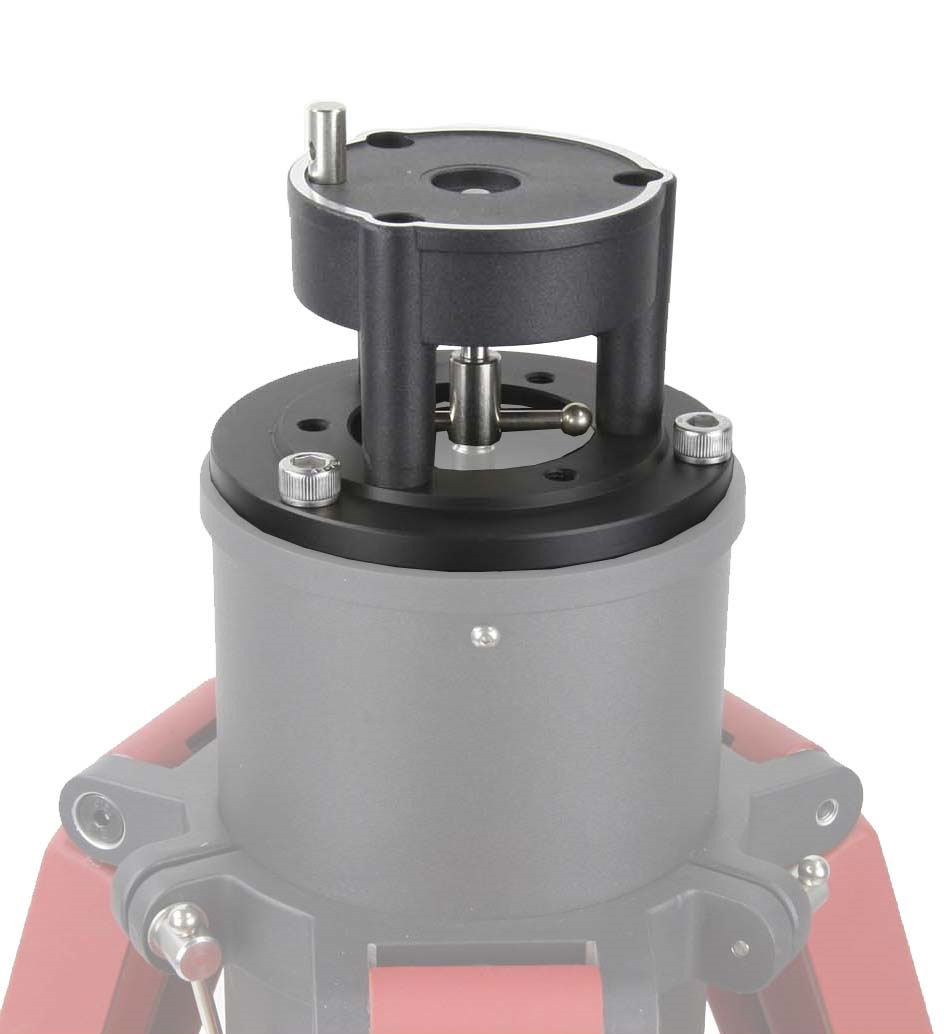

iOptron Tri-Pier Adapters
