iOptron CEM60-EC Center Balanced Equatorial GoTo Mount with RA Encoder
iOptron CEM60-EC Center Balanced Equatorial GoTo Mount with RA EncoderiOptron CEM60-EC Center Balanced Equatorial GoTo Mount with RA EncoderiOptron CEM60-EC Center Balanced Equatorial GoTo Mount with RA EncoderiOptron CEM60-EC Center Balanced Equatorial GoTo Mount with RA Encoder

iOptron CEM60-EC Center Balanced Equatorial GoTo Mount with RA Encoder

£2,599.00✓ 2 year warranty


In stock shipped 1-2 working days.
Request a Price Match

About this product

Model:  iop_cem60-ec_7201
Part Number:  7201

Latest model with increased payload and high precision RA encoder!

The new updated CEM60EC features an increased payload of 27kg / 60lbs! *

The mount's centre-balanced equatorial mount (CEM) puts the weight of the payload at the centre of gravity for greater natural stability. This enables the mount to be surprisingly light, compared to its payload. Polar aligning is also quick and accessible because the polar scope is not blocked by the declination shaft.

The CEM60EC is equipped with the iOptron's most advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 200,000 objects.

Other features include an adjustable counterweight bar, magnetically loaded gear system, gear switches on both R.A. and DEC axes, screw/worm type latitude adjuster and integral cable management system.

Note 1: If you buy the mount with an iPolar we will install it free of charge smiley

Note 2: Tripod/Pier not included.


  • New design, center-balanced equatorial mount (CEM) increases payload capacity and reduces mount weight
  • Suitable for both visual and Astro-photographers
  • Patent pending non-contact magnetically loaded gear system
  • Payload of 60 lbs (27.2 kg) with the mount-only weight of 27 lbs (12.3 kg) *
  • Gear switches on both R.A. and DEC axes for easy balancing when disengaged
  • Adjustable counterweight shaft for 0º latitude operation
  • Screw/worm type latitude adjuster for precision adjustments
  • Milling machine tooling vise type latitude bearing and locks system for rock solid positioning
  • User side azimuth fine adjusters for easy azimuth adjustment
  • Precision stepper motor with 0.06 arcsec accuracy for precise GOTO and accurate tracking
  • iOptron AccuAligningTM calibrated polar scope with dark-field illumination and easy polar alignment procedure for fast and accurate polar alignment
  • Polar alignment routine for those who can't see the Pole Star
  • Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built in heater
  • Realtime periodic error correction (RPEC)
  • Integrated ST-4 autoguiding port
  • Built-in 32-channel Global Positioning System (GPS)
  • Built-in or customized cable management system
  • Spring loaded Vixen/Losmandy dual saddle
  • 150mm base size to match optional 2 inch heavy-duty stainless steel tripod (8kg)
  • Includes Aluminium hard carrying case
  • Optional Tri-Pier (#8034), 42 inch pier (#8033) or 48 inch pier (#8030)
  • Optional 2-inch tripod available (#8021ACC)
  • Optional Mini Pier (#8032) for extending height also available
  • Optional PowerWeight rechargeable battery pack

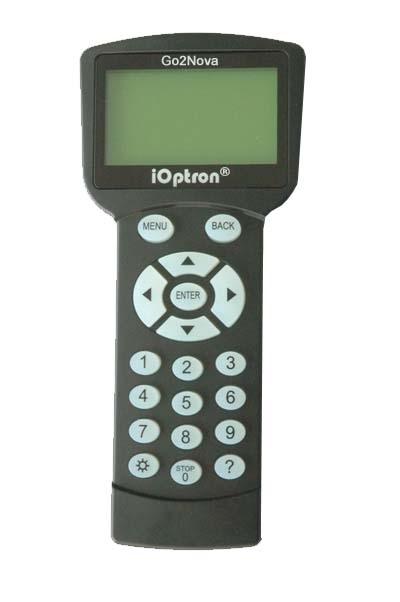

Go2Nova Hand Controller 8407

  • 200,000+ object database
  • 8 line, 21 character back lit large screen LCD
  • Low temperature operation as low as -20ºC
  • User friendly interface
  • 9 speed slew control with quiet mode
  • Large object database
  • Serial port for firmware upgrade

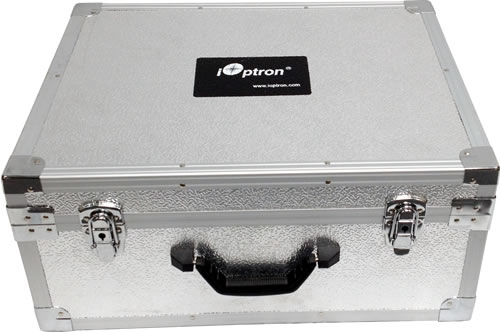

Includes Aluminium Hard Case

The Hard Case for the CEM60EC mount protects your mount whether you're heading out for a night of observation, or when you need to store it. The case features custom-fit foam padding to hold the mount in place and cushion it from impacts. The exterior has reinforced edges on the outside to help minimise denting and damage. There are dual trigger latches to secure the lid in place, and a carry handle.



What's in the box

  • Telescope mount – with GPS, and AccuAlignTM dark field illuminated Polar Scope
  • Hand controller (HC) – Go2Nova® #8407
  • Counterweight – 21 lbs X1 (9.5 kg)
  • Stainless steel counterweight shaft
  • HC controller cable
  • RS232‐RJ9 serial cable
  • Polar scope LED cable
  • AC adapter – 100‐240V
  • Hard case
  • Quick Start Guide
  • Tripod NOT included


Mount Center-balanced Equatorial Mount (CEM)
Payload 60 lb (27.2kg), exclude counterweight *
Mount weight 27 lb (12.3kg)
Payload/Mount weight ratio 2.22:1
Material All metal (except GPS cover)
Latitude adjustment range 0°~ 70°
Azimuth adjustment range ± 8°
Right Ascension worm wheel Φ146mm, 288 tooth Aluminium
Declination worm wheel Φ146mm, 288 tooth Aluminium
PEC Real Time PEC
PE < 0.5 arcsec rms for 5 min (< 0.3 arcsec for 2nd GEN)
Counterweight shaft Φ28x 450 mm Stainless Steel
Counterweight 21 lb (9.5 kg)
Mount base size Φ150 mm
Motor drive Stepper motor
Resolution 0.06 arc seconds
Slew speed 1×,2×,8×,16×,64×,128×,256×,512×,MAX(~3.75°/sec)
Power consumption 0.6A(Tracking),1.1A(GOTO)
Power requirement 12V DC 2A
AC adapter 100V ~ 240V (included)
Polar Scope AccuAlign TM dark field illuminated, 2 arc min
Level indicator Level bubble
Dovetail saddle 8” Losmandy/Vixen dual saddle
Hand Controller Go2Nova® 8407+ 359,000 objects database, star recognition
Meridian treatment Stop (0-15° pass), auto flip
GPS Internal 32-channel GPS
Autoguide port ST-4
Communication port Serial port
PC computer control Yes (ASCOM)
Cable management 4X USB, 2X DC12V (MAX 5A), 6P6C
Operation temperature -20°C ~ +45°C
Tripod Optional 2 "tripod Stainless Steel(8kg)/Pier (10kg)
Warranty Two year limited


* iOptron's quoted max' payload is a guide only. If you will be using the mount for astrophotography (or your telescope is unusually long or large) we recommend the quoted max' payload be reduced by 1/3rd.

Downloads / Manuals


Quick Start Guide
Instruction Manual


Download Latest Firmware

iOptron Telescope ASCOM Driver:

Install ASCOM Driver and Commander
