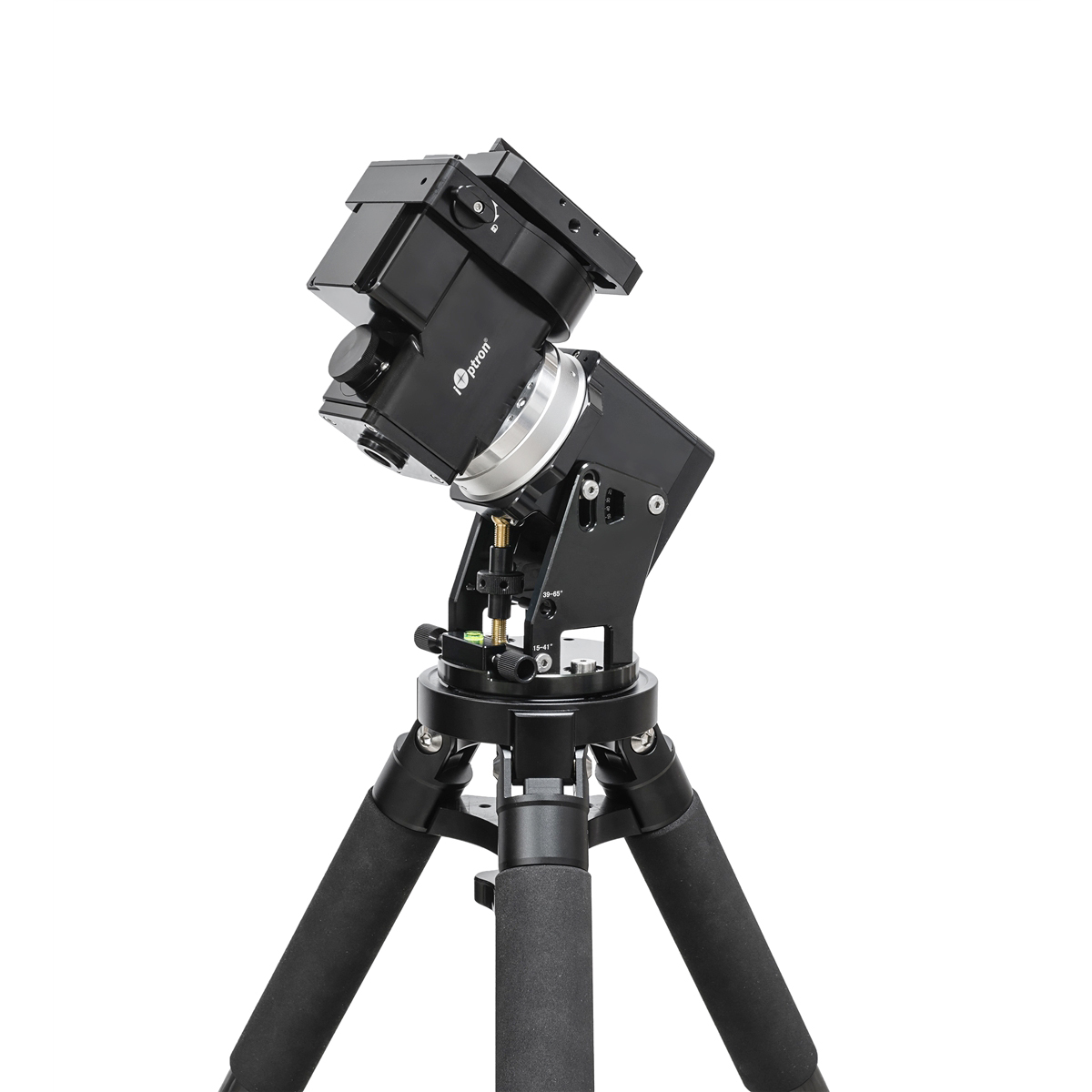

iOptron HEM27 Hybrid Harmonic Drive Equatorial GoTo Mount

Zoom

iOptron HEM27 Hybrid Harmonic Drive Equatorial GoTo Mount

£1,759.00✓ 2 year warranty

Product description
In the box
Specifications
Downloads
FAQ

Out of stock due 60-90 working days

Notify me when back in stock

Ask a Question Ask a Wishlist

Add To Wishlist

Send To Friend

Frequently bought with this product

iOptron Carbon Fibre Tripod

+ £275.00

About this product

Model: iop_hem27
Part Number: H272

New Hybrid Harmonic Drive Mount from iOptron

This portable, high-payload tiny titan will deliver an astronomy experience like never before. A mount head weighing in at 3.7kg / 8.15 lbs with a payload capability of 13.5kg / 29.74 lbs, without needing a cumbersome counterweight or shaft.

Utilising state-of-the-art harmonic drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodised all-metal CNC machined body is a sturdy, rugged platform that will perform at the highest level for many years.

Unique features such as an electronic friction break and power-down memory enable the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (no need to realign and restart).

The HEM27EC features a high-precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

IOptron's HEM27 FAQ page.

FEATURES

Advanced harmonic drive technology
Payload capacity of 13.5 kg (29.7 lbs) with a mount weight of 3.7 kg (8.15 lbs)
CNC machined and cast metal body
Unique friction brake to safely stop movement during a planned or unplanned power interruption
360-second gear period
Permanent periodic error correction (PPEC)
Go2Nova® hand controller with ~212,000 object database
Cable management system, no hanging exterior cables to moving parts
Dual saddle (Vixen and Losmandy-D styles)
Built-in zero position search and locator
Power down position and location memory
Integrated ST-4 autoguiding port
Built-in Wi-Fi (via hand controller)
USB port for firmware upgrade and computer control
Soft carrying case
Two-year warranty

Go2Nova Hand Controller 8409

212,000 object database & star identification
Large LCD screen with four lines and 21-character with backlit LED buttons
User-friendly interface
9-speed setting for motor slew speed
Serial port for firmware upgrade and mount computer control

What's in the box

Telescope mount
Hand controller (HC) – Go2Nova® 8409
Controller cable
AC adapter – 100‐240V
Soft carry case

Specifications

Mount	Hybrid Equatorial Mount
RA Gear system	StrainWave 17 (RA)/worm gear (DEC)
DEC Gear system	Backlash-free worm/belt system
RA reduction ratio	120
Payload w/o CW *	29.14 lbs (13.5kg)
Mount weight	7.49lbs (3.4kg) w/o dovetail saddle, 8.15 ls (3.7kg) with dovetail saddle
Payload/Mount weight	3.65
Period	360 second
Drive motor	Stepper motor
Structure Material	All metal, CNC machined
Exterior finish	Anodised black
PEC	Yes, Permanent PEC
Latitude adjustment range	15º ~ 65º
Azimuth adjustment range	± 5º
Polar Scope	No
Level indicator	Level bubble
Control system	GOTONOVA/Commander
Hand Controller	Go2Nova® 8409 with ~212,000 objects database
Tracking	Automatic
Maximum slew speed	6º/sec
Power consumption	0.5A(Tracking), 1A(GOTO)
Power Requirement	12V DC, 5A
AC adapter	100V ~ 240V (included, indoor use only)
Power off brake	Electronic friction brake
Power-down memory	Yes
Wi-Fi	Built-in
Communication port	Yes (Wi-Fi and USB)
Autoguide port	Yes (ST-4 compatible)
Firmware upgrade	Yes
Tripod	Optional
Operation temperature	-20ºC ~ 50ºC (hand controller -10ºC ~ 40ºC)
Warranty	Two year limited
