About this product
Part Number: NBZ-48

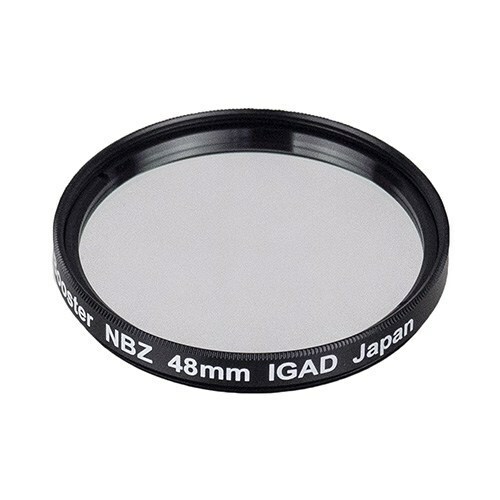

The Japanese-made IDAS NBZ Dual Band Filter is designed to enhance the contrast of Ha and OIII emission nebula.
While IDAS NBX filter performed well in fast optics at high transmission rates as advertised, unfortunately it suffered from halo issues around bright stars. So IDAS have decided to release a new dual narrowband filter called “NBZ”, which was newly designed from scratch to dramatically reduce internal reflections. And the production process was also modified to achieve this goal.
Everything else remains unchanged. The NBZ is still F2-capable with the same bandpass.
In addition to enhancing contrast IDAS NBZ Filters are designed to accommodate the spectral shift when used with fast optical systems.
This Dual Band Filter is ideal for One-Shot Colour CMOS/CCD Cameras as well as Mono Cameras.
- Ideal flat top bandpass
- Excellent in-band transmission
- Off-centre bandpass accommodates off-axis rays for fast optics (up to F2)
- Steep bandpass edges minimise internal reflections
- No IR blocker required
- Available in 48mm and 52mm sizes
- 2.5mm thickness (parfocal with other IDAS LPS filters)
- IDAS-proprietary IGAD/MBT/UFP quality
NBX filters are only available in 48mm (2") and 52mm threaded cells.

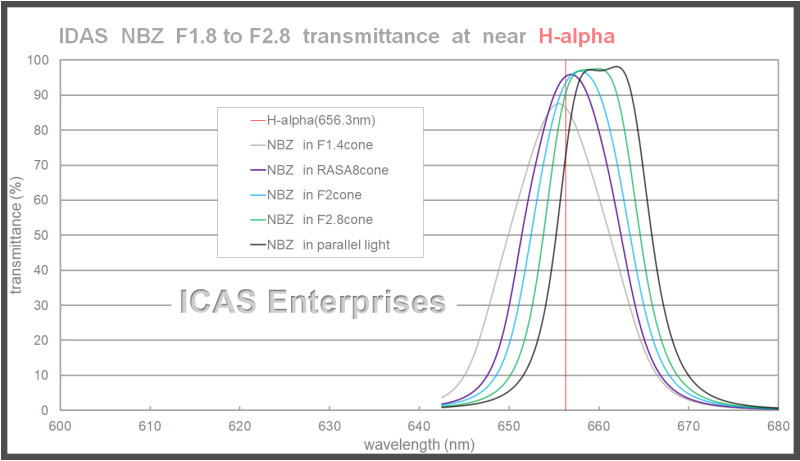

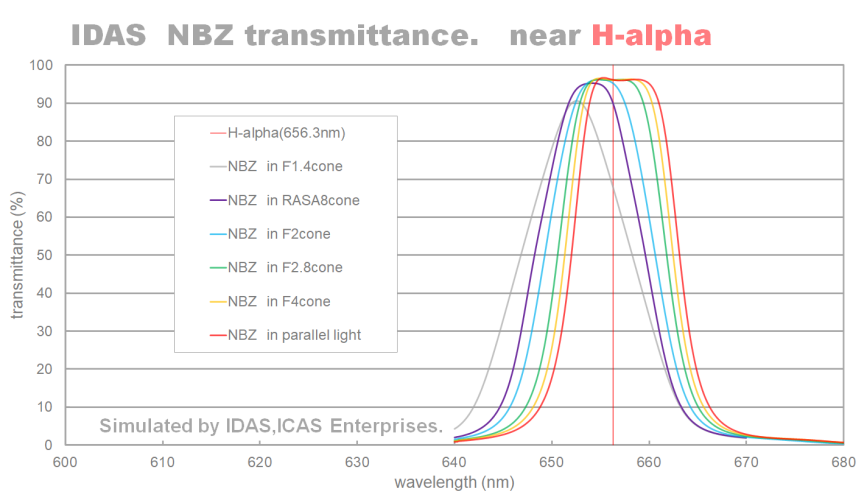

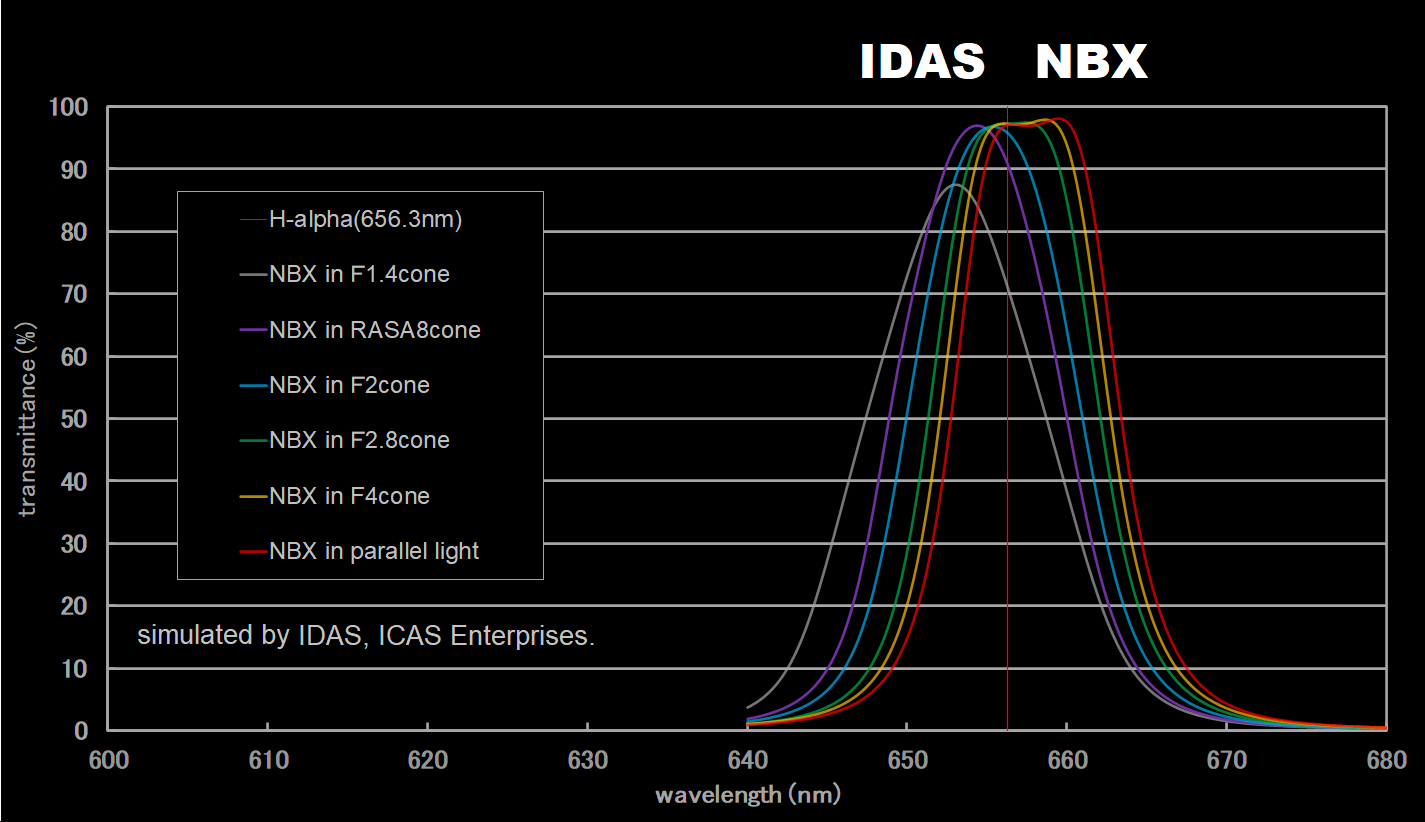

Detailed Plot of NBX Ha Bandpass

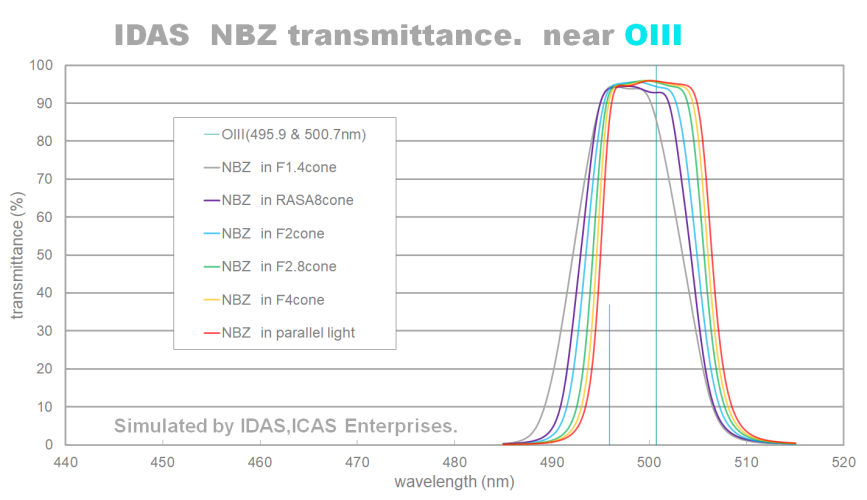

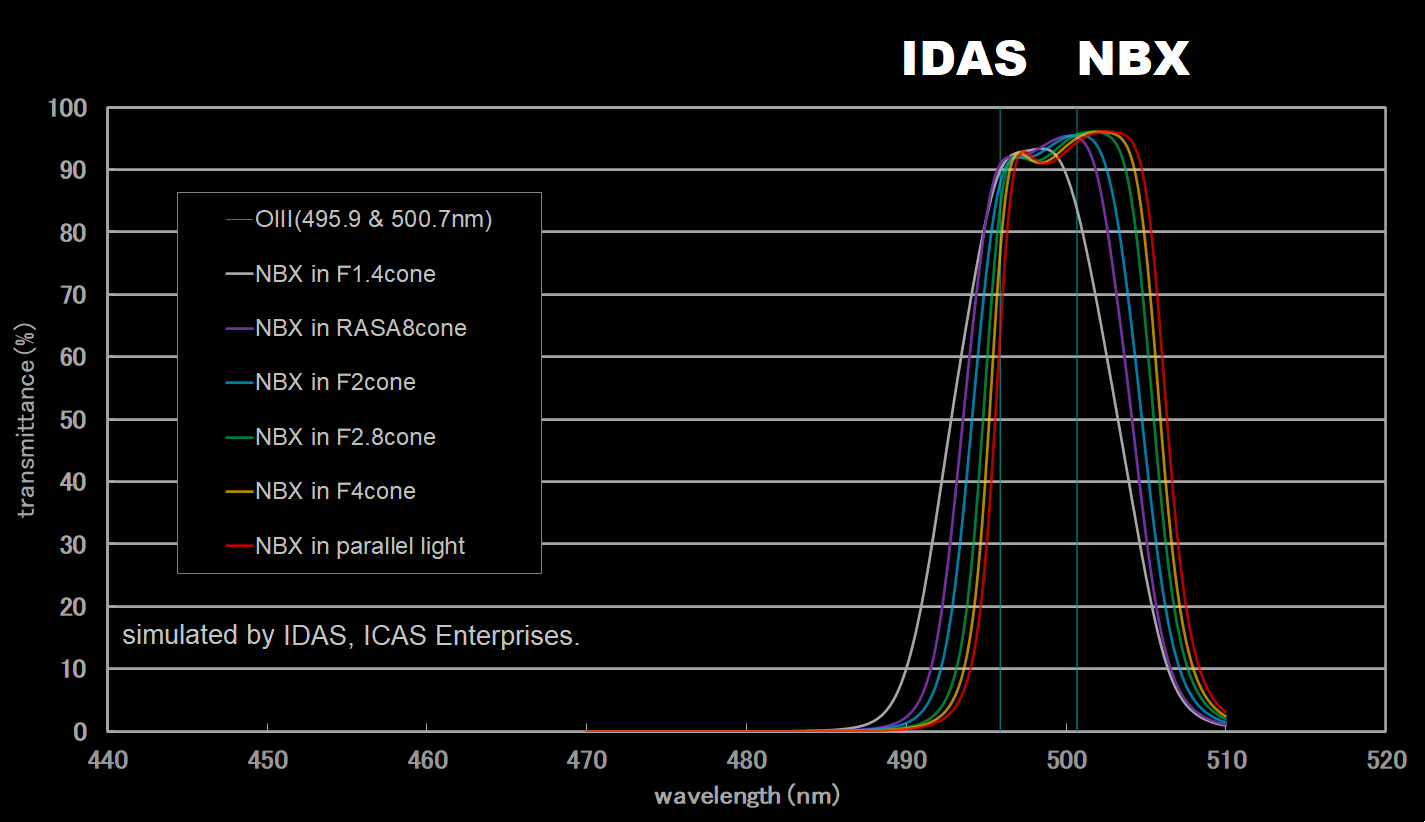

Detailed plot of NBX OIII bandpass
|Average Rating (1 Review): |
Tuesday, 23 March 2021 | Francis
Early days for me with this filter. Previously I have been using another IDAS filter with my RASA 8 (NB-1) but felt there was a shift in the response when using the NB-1 with the RASA, compared to my f7 APO refractor. However the NBZ filter doesn't show this shift with the RASA at f2. Colours are cleaner and more defined with the bonus that stars are tighter and show less bloating/halos. I've not had chance due to weather to give this filter a long workout but the initial results on nebulae like the Rosette and the Cone (at f2) have been extremely encouraging. Role on the summer nebulae.
