Meade 10" F10 LX200 ACF Optical Tube

£2,719.00✓ 2 year warranty


Unavailable please contact us

About this product

Model:  meade_10_f10_acf_ota
Part Number:  1010-60-01

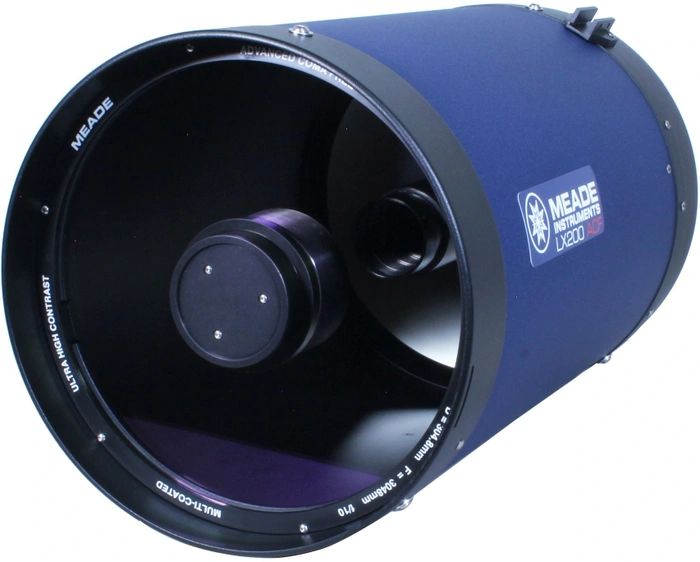

Meade 10" f/10 ACF UHTC Telescope OTA

This impressive LX200 catadioptric telescope features Meade's Advanced Coma-Free (ACF) optics with Ultra-High Transmission Coatings (UTHC), an oversized low-expansion borosilicate primary mirror and a Schott Borofloat glass corrector plate.

Meade exclusive ACF optics delivers aplanatic performance with a flatter field, reduced astigmatism and no diffractions spikes.

Other features include UHTC optical coatings for high contrast and maximum light transmission and a primary mirror locking mechanism (a locking located just above the telescopes main focus knob) that completely eliminates residual image shift due to mirror movement during.


  • 10" f/10 Advanced Coma Free Optics - 2500mm focal length
  • Ultra-High Transmission Coatings (UHTC)
  • Oversized Low-Expansion Borosilicate Primary Mirror
  • Primary Mirror Lock for increased image stability
  • Losmandy-Style dovetail
  • Weighs 12kg / 26lbs
  • Borosilicate Glass Corrector Plate

Product Videos


Series LX200 Telescopes
Clear Aperture 10" (254mm)
Optical Design Advanced Coma-Free (ACF)
Optical Coatings UHTC™
Focal Length 2500mm
Focal Ratio f/10
Focuser Mechanism Internal Single Speed Focuser
Mirror Lock Primary Mirror Lock
Assembled Product Weight 12 kg / 26 lbs
