About this product
Model: meade_lx85_6_f10_acf_ota
Part Number: 217024

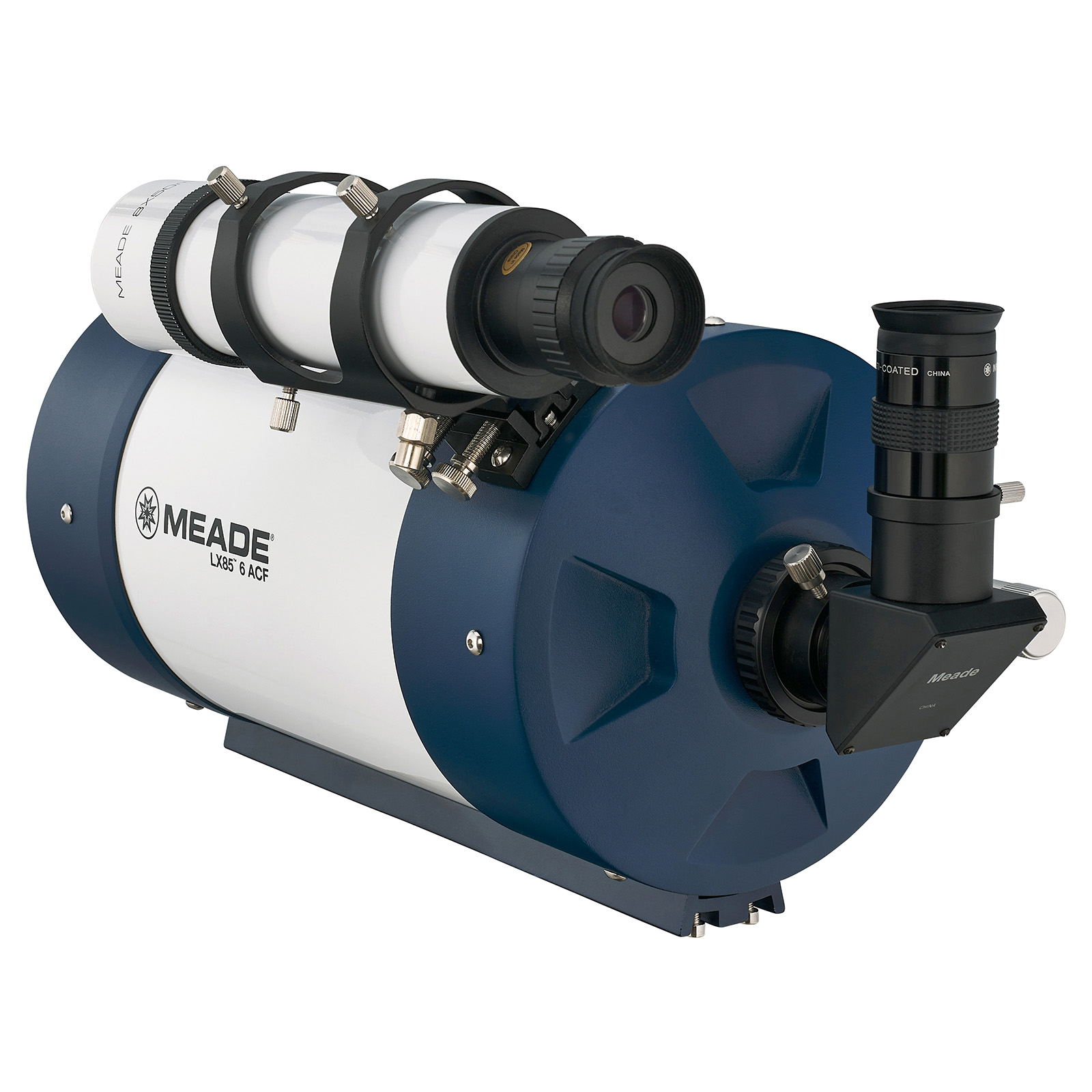

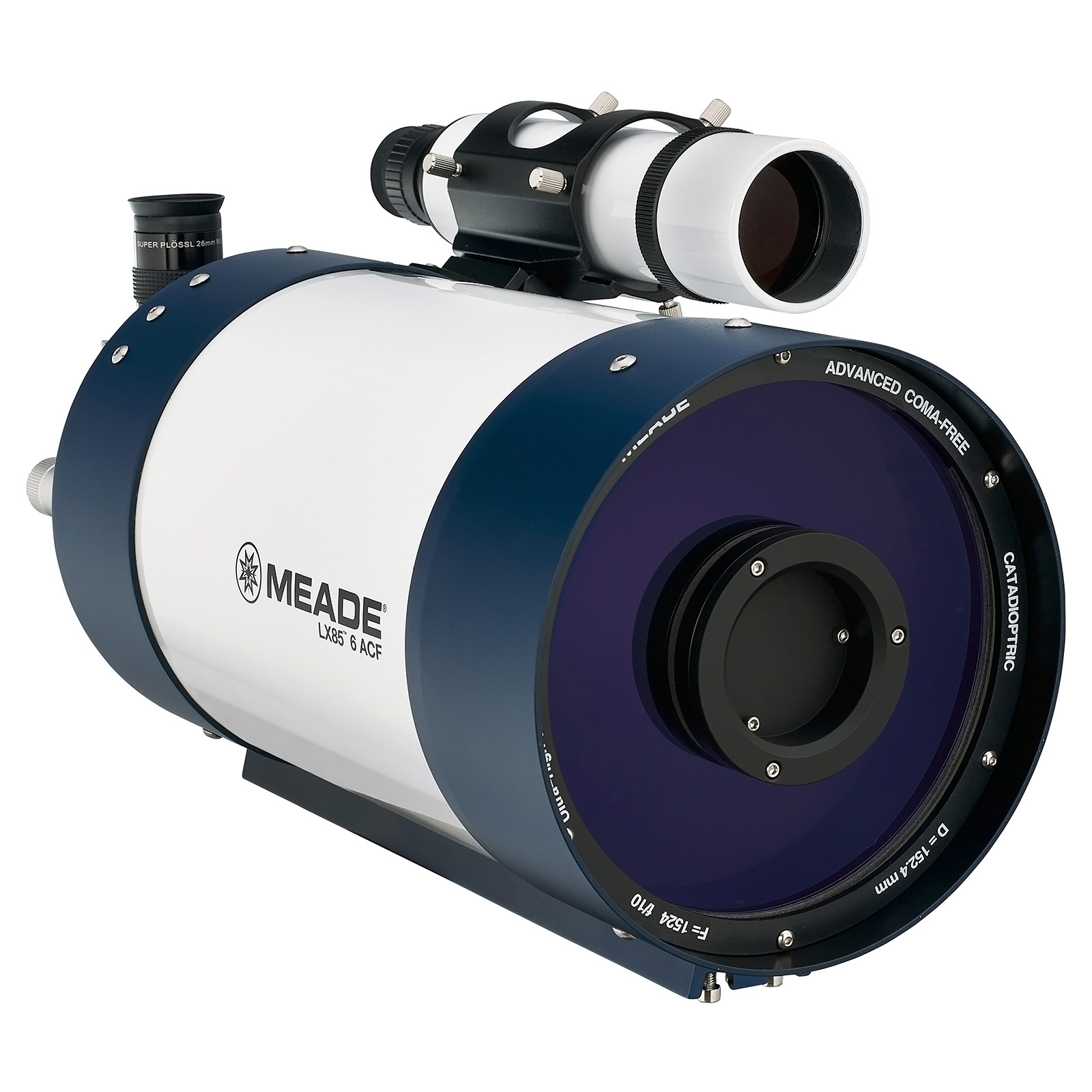

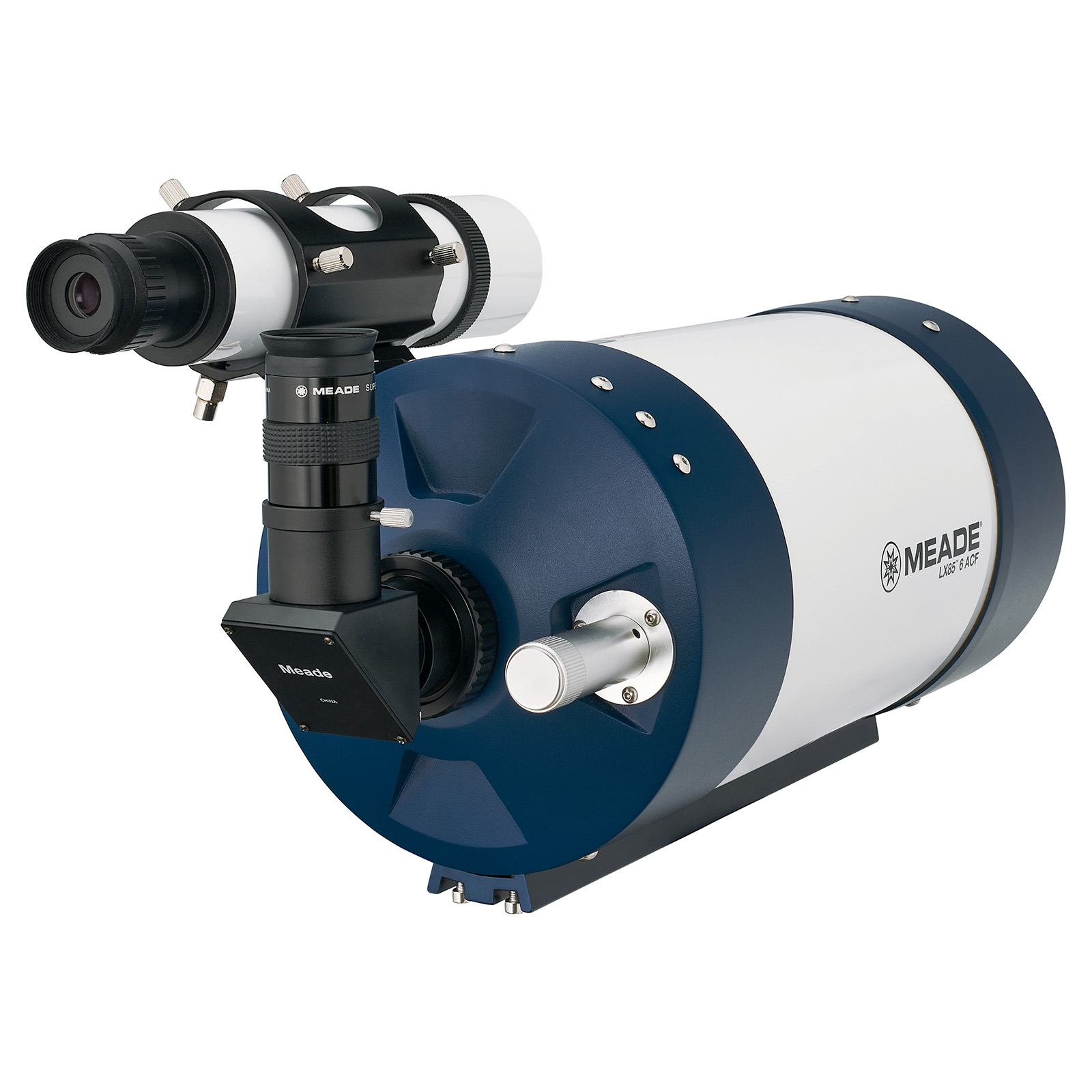

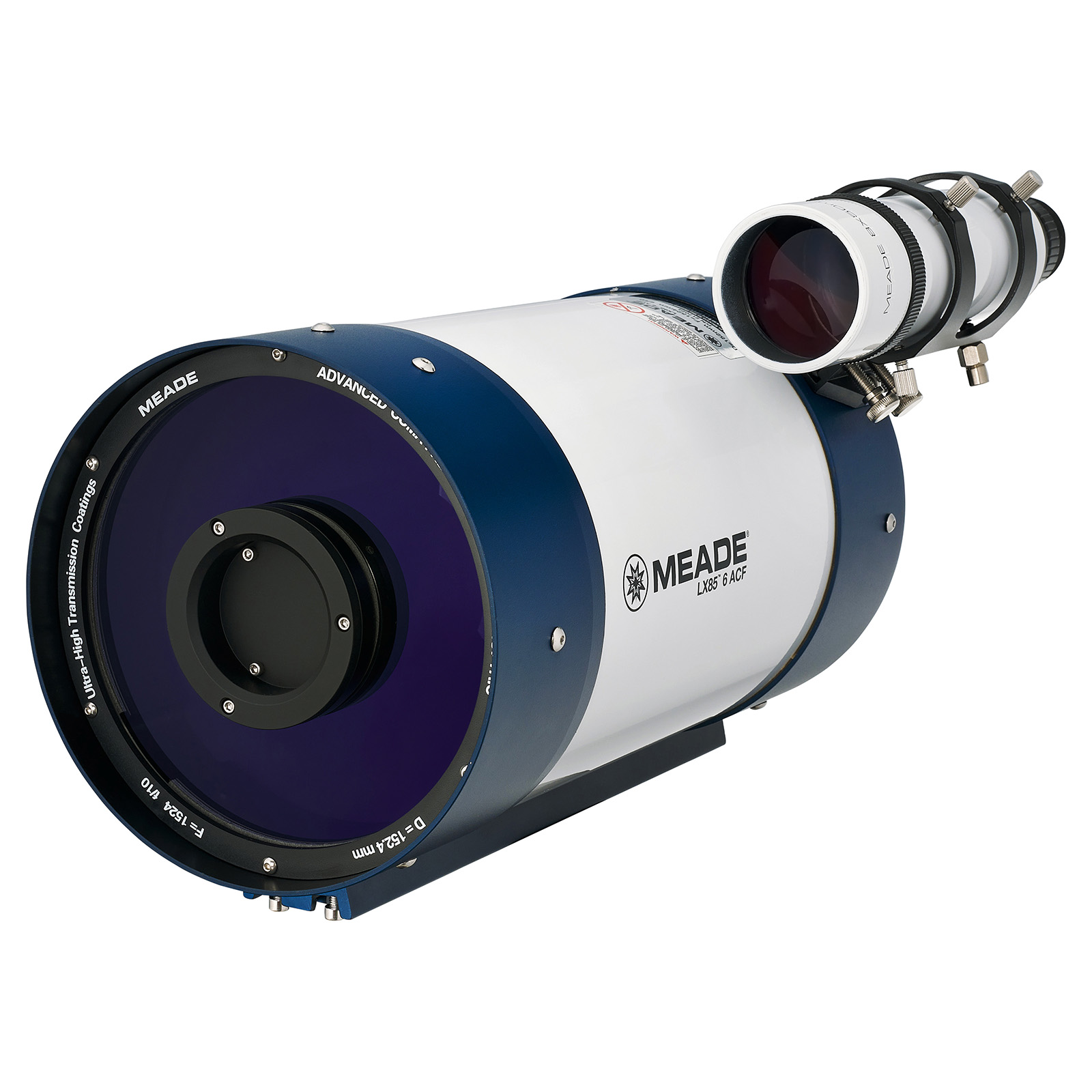

Meade LX85 6" f/10 ACF UHTC Telescope OTA
The Meade ACF series features an Advanced Coma-Free (ACF) optical design that delivers images coma-free with pinpoint stars and flatter image fields.
ACF also reduces astigmatism and eliminates diffraction spikes.
Other features include an internal single-speed focuser and Ultra High Transmission Coatings (UHTC) for high contrast and maximum light transmission.
Includes 9.7mm & 26mm 1.25" Plössl eyepieces, an optical 8x50 finderscope with crosshair and a 1.25" Star Diagonal.
It is fitted with a vixen-style dovetail, so is suitable for use with most astronomy mounts.
FEATURES
- 152mm (6") Advanced-Coma Free (ACF) optics
- UHTC optical coatings
- 1524mm Focal Length
- f/10 Focal Ratio
- 9.7mm & 26mm Plössl (1.25") Eyepieces Included
- 8x50 Optical Viewfinder with Crosshair
- Weight 4.3 kg / 9.15 lb (without accessories)
What's in the box
- 6" Telescope OTA
- 9.7mm 1.25" Plössl Eyepiece
- 26mm 1.25" Plössl Eyepiece
- 1.25" Diagonal
- 8x50 Finder
- Vixen-style Dovetail
Specifications
| Series | LX85 Telescopes |
| Clear Aperture | 6" (152.4mm) |
| Optical Design | Advanced Coma-Free (ACF) |
| Optical Coatings | UHTC™ |
| Focal Length | 1524mm |
| Focal Ratio | f/10 |
| Viewfinder | 8x50 Optical with Crosshair |
| Eyepiece(s) | 9.7mm & 26mm Super Plössl, 1.25" |
| Focuser Mechanism | Internal Single Speed Focuser |
| Diagonal | 1.25" 90-Degree Diagonal Mirror |
| Assembled Product Dimensions | 21.7cm x 42cm |
| Weight (without accessories) | 4.3 kg / 9.5 lbs |
Downloads / Manuals
The following manuals and downloads are available for this product:
Manual
Meade LX85 Manual
