About this product
Model: ast_clr_cat
Part Number: CLR-CAT
The Cooler CAT cooling nozzle will significantly accelerate the thermal stabilisation of the Schmidt-Cassegrain and Maksutov-Cassegrain mirror-lens telescopes.
The closed tubes of these scopes causes heat transfer problems. Owners of large models often have to wait up to several hours for the optics to fully cool. This time remains wasted for serious observations. After all, a telescope even with first-class optics can give distorted images due to heat flows inside the tube.

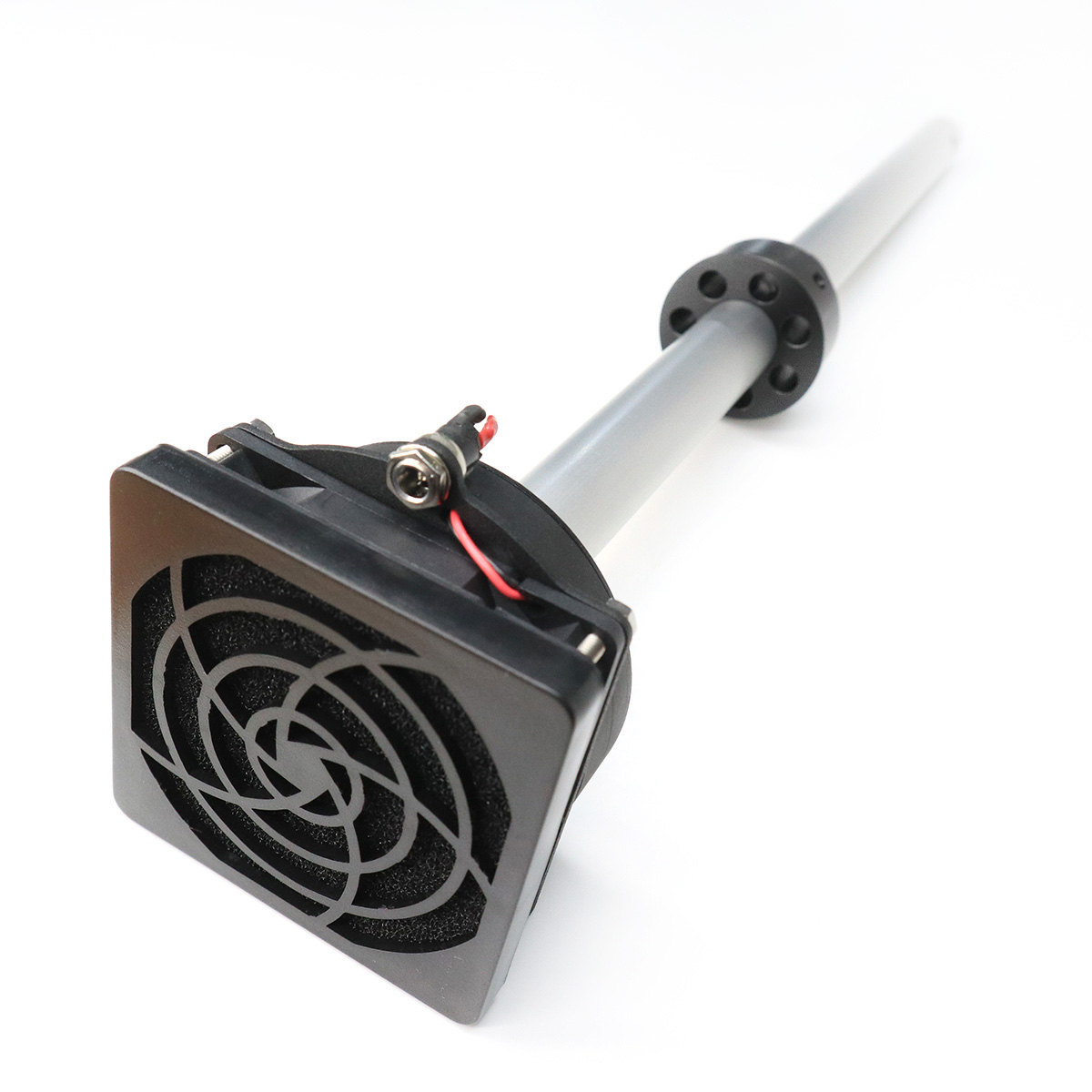

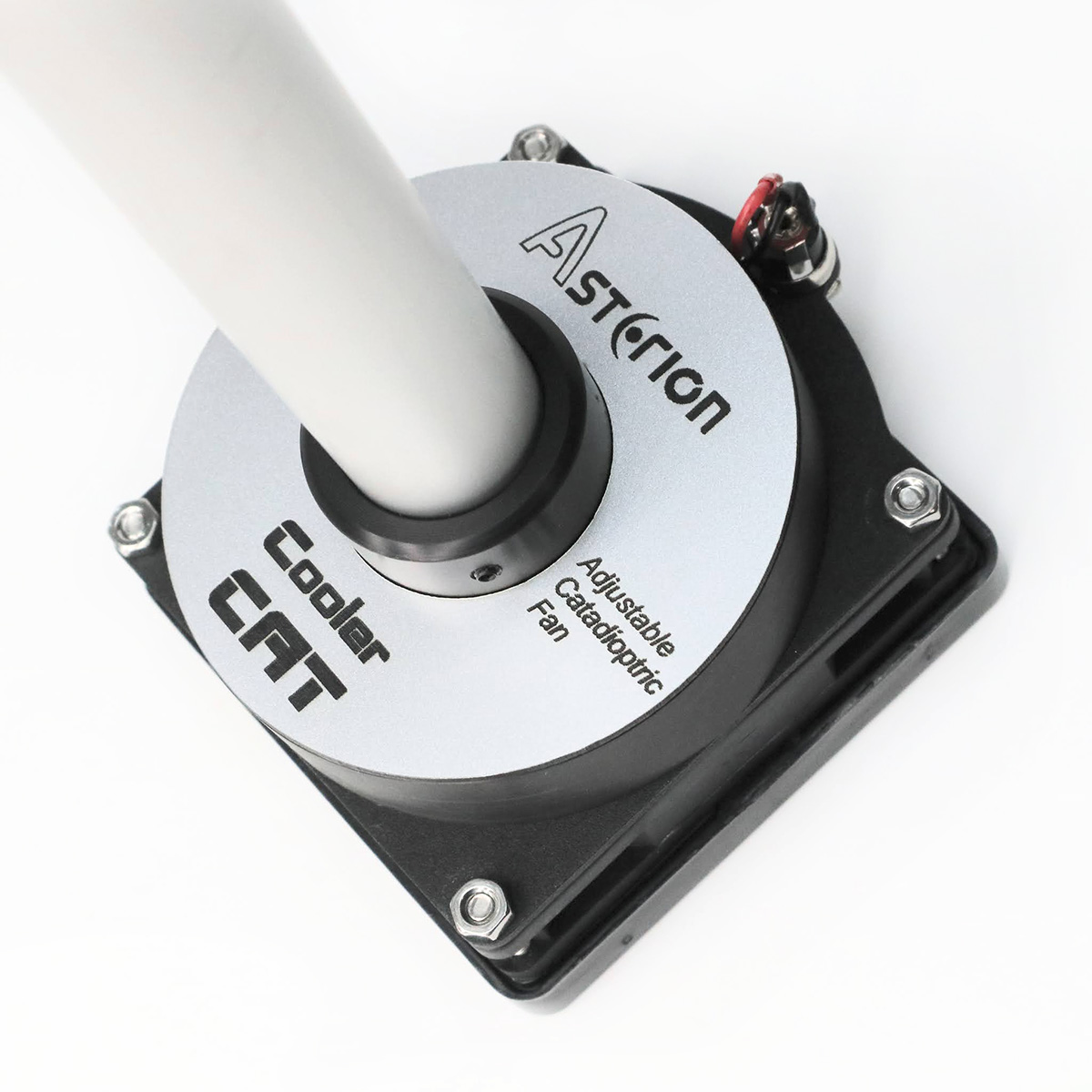

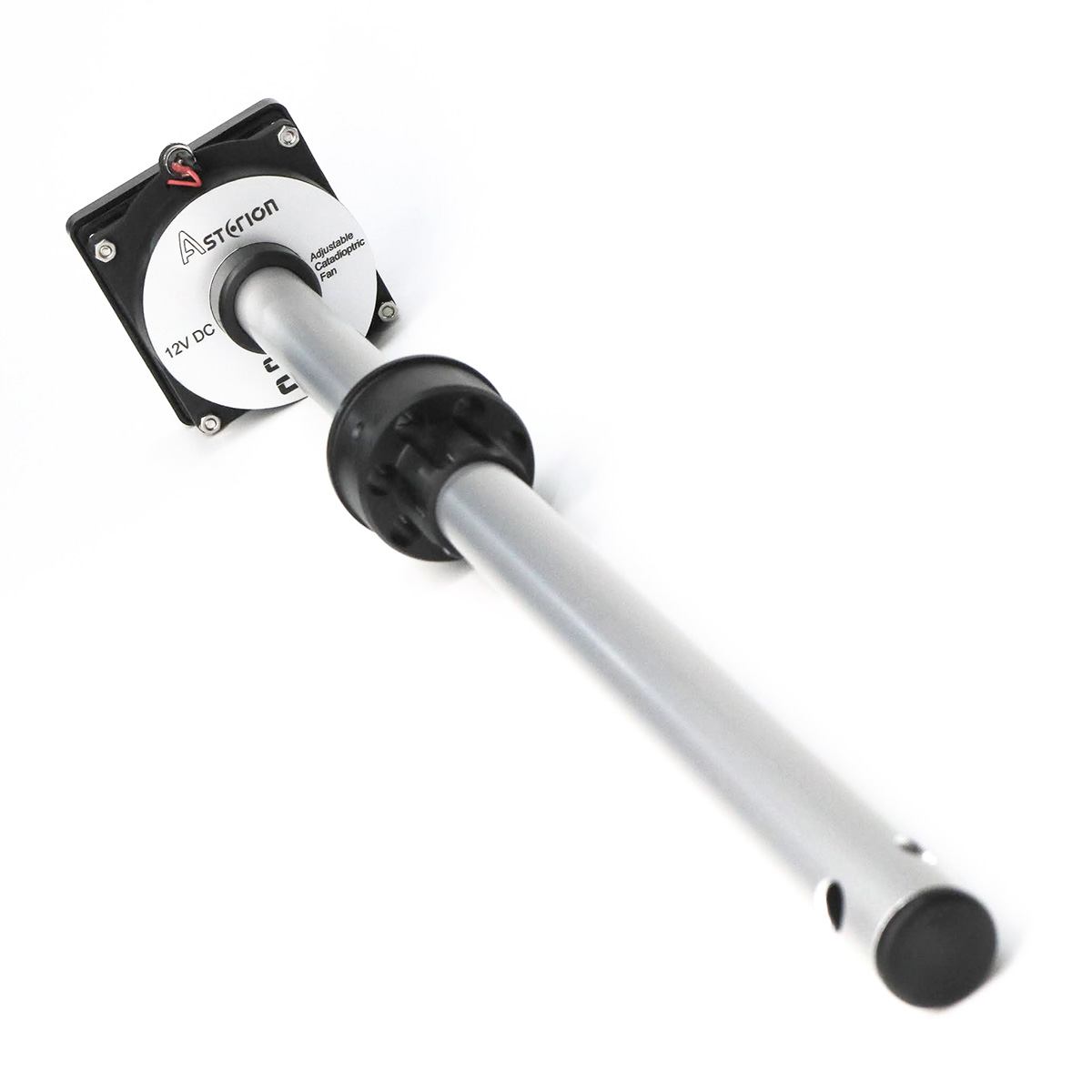

Cooler CAT is equipped with a fan that collects and focuses the airflow. Through a long tube, air from the outside enters the inside of the telescope and blows around the optical surfaces. This allows you to speed up heat transfer and reduce the cooling time of the optics by several times. The device is equipped with a double filter to prevent dust from entering the telescope while the fan is running. Warm air exits the tube under pressure through special holes in the telescope adapter.

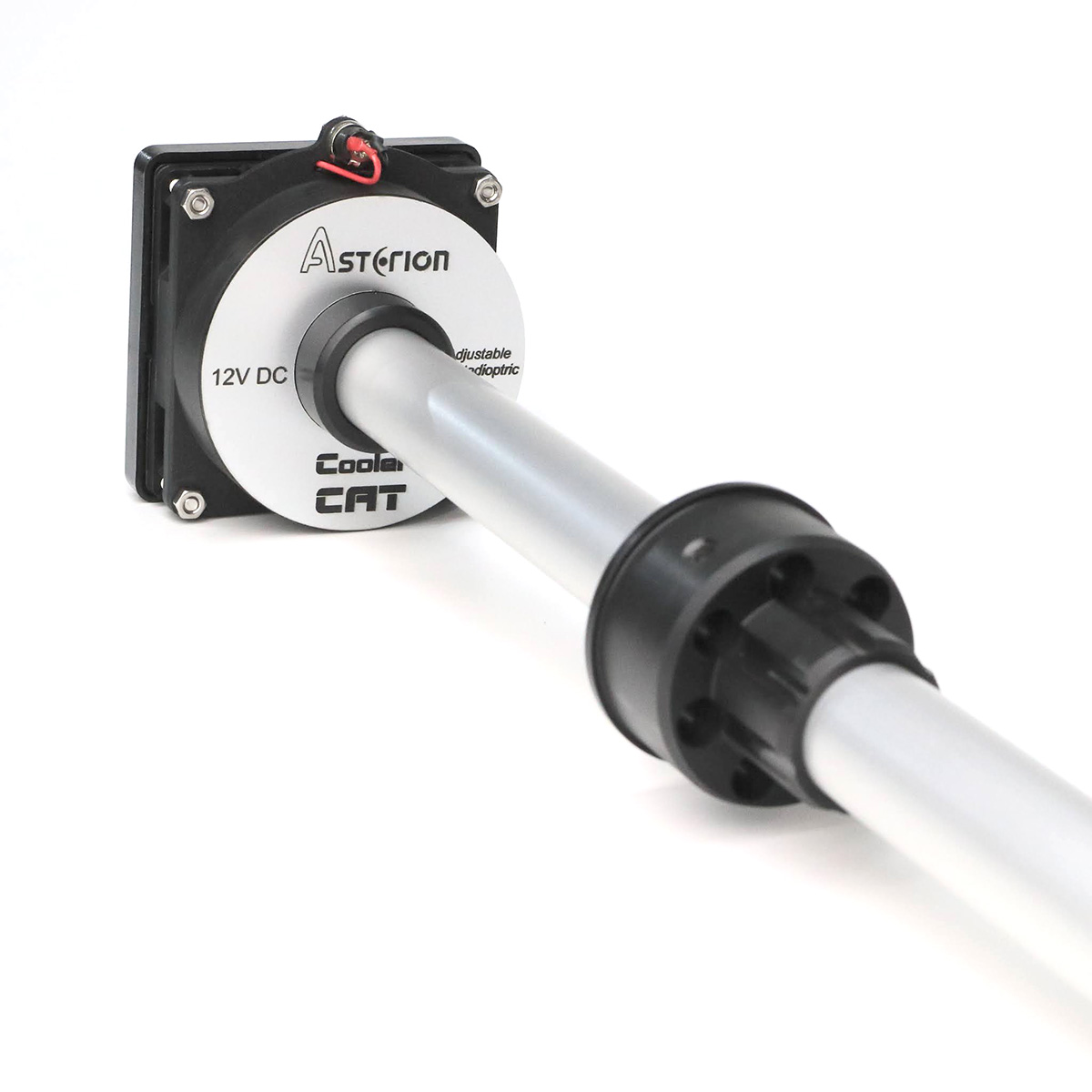

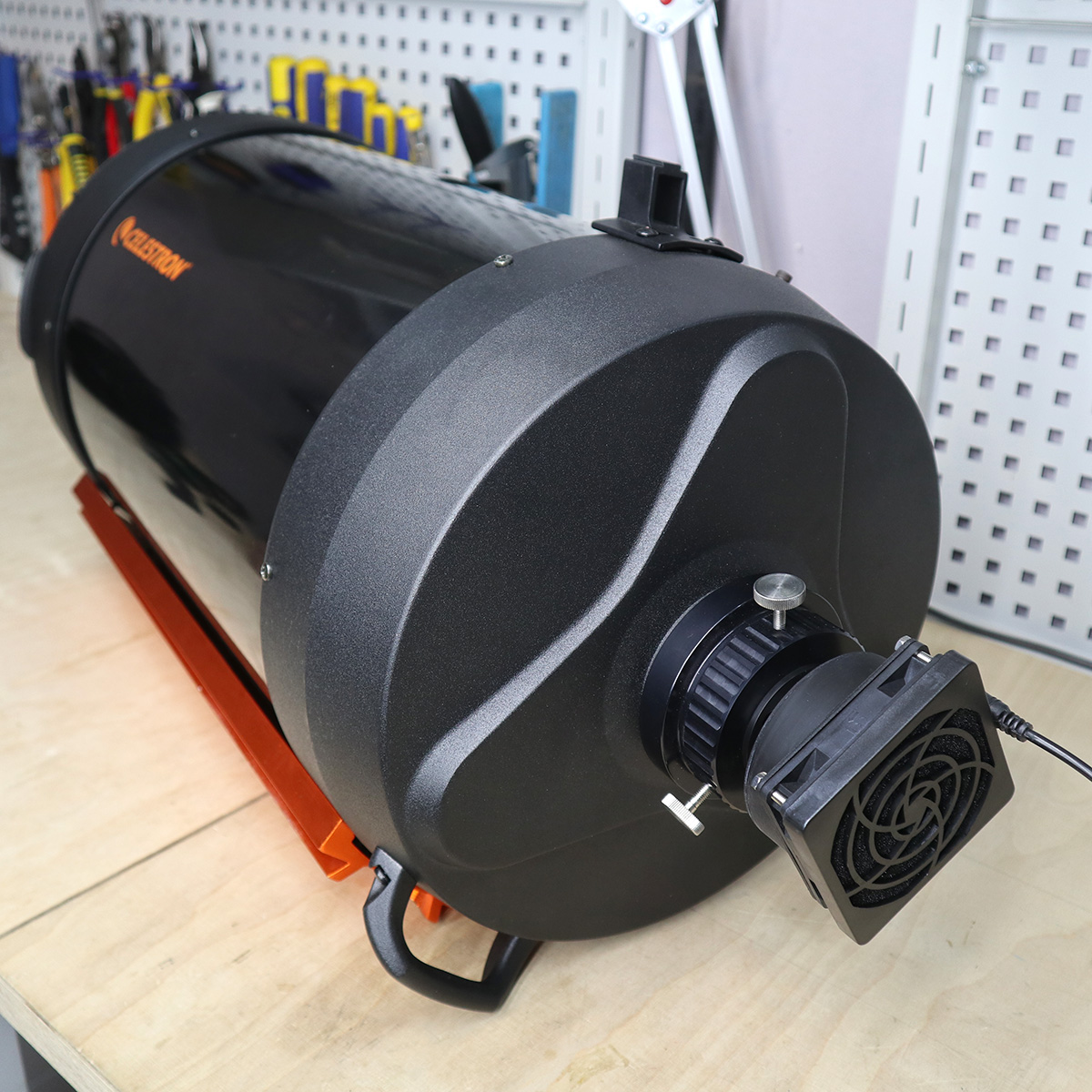

Cooler CAT has an ingenious 1.25/2" moveable adapter design that allows it to be used with all catadioptric telescopes from 8" to 16" in diameter. Before first use, you only need to adjust the adapter on the tube to your telescope tube. After that, the adapter is fixed and retains its position in the future. Using active cooling significantly increases the efficiency of the telescope and allows for a short time to prepare the optics for serious observations.
Specifications:
Power supply: 12V, 1A (2.1x5.5mm jack)
Fitting adapter for installation: 1.25"/2"
Tube diameter: 25mm
The minimum inner diameter of the main mirror hood: 27mm
Package dimensions: 67х16х10cm
Weight: 0.8kg
Please note NO power supply is included with Asterion products
What's in the box
- Cooler CAT cooling nozzle
- Allen key
- User's manual
- Packaging
Customer reviews
| Average Rating (2 Reviews): | |
Asteroid Cooler Cat For SCT 23 August 2022 | Robert
One used the cooler once so far but it worked great. I’m in Los Angeles and FLO was great, shipped quickly from UK DHL and got the cooler in just a few days and at a very low cost. Would definitely buy from FLO again, in fact told one of my friends who immediately order the cooler as well.
19 May 2022 | James
The fan is good and appropriately powered, and the filter is good, but for a C14 with a Crayford on the back the cooler arm is just too short and doesn't emerge from the baffle tube, so the whole baffle tube becomes an inlet for cooler air, but I'm unsure how the warm air escapes, so I suspect it is not cooling my C14 as effectively as it would cool a smaller SCT. I might try and modify the cooler arm to see if I can get the top to emerge outside of the baffle tube. But a good idea, just not perfect for a C14 with a Crayford on the back.
