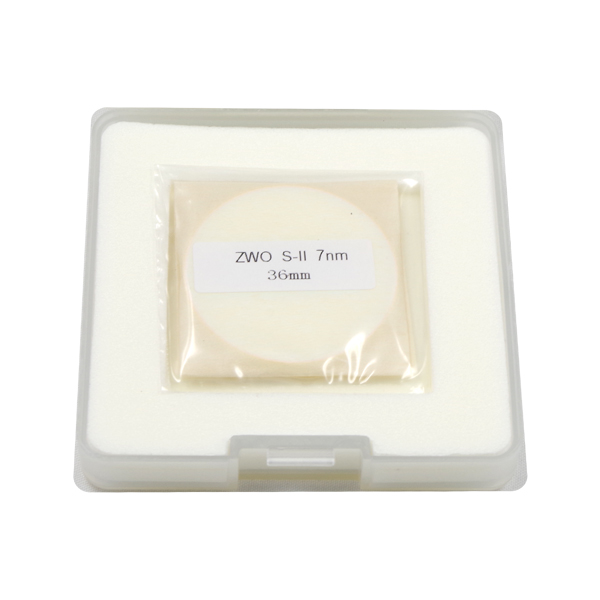

ZWO 36mm SII 7nm Unmounted Narrowband Filter

ZWO 36mm SII 7nm Unmounted Narrowband Filter


Incoming - Shipped 7-10 working days.

Model:  zwo_sii_36-7nm
Part Number:  ZWO-SII7nmD36
Brand:  ZWO


New & Improved with higher light transmission and less reflection (reduced halos around bright stars).

The ZWO narrowband S-II filter passes light at 672nm wavelength with a bandpass of 7nm.

Use with H-alpha and OIII narrowband filters (SHO Set) for astrophotography.

Also suitable for visual observation of most emission nebulae, planetary nebulae and supernova remnants.


  • FWHM: 7 ±0.5nm
  • Glass Thickness 2.0+/-0.03 mm (1.25”/31mm/36mm)
  • Fine optically polished glass ensures accurate 1/4 wavefront over both surfaces
  • About 90% transmission at SII line 672nm
  • Infrared wavelength 700-1100nm cut-off
  • <0.1% transmission of off-band, OD3 (Optical Density)

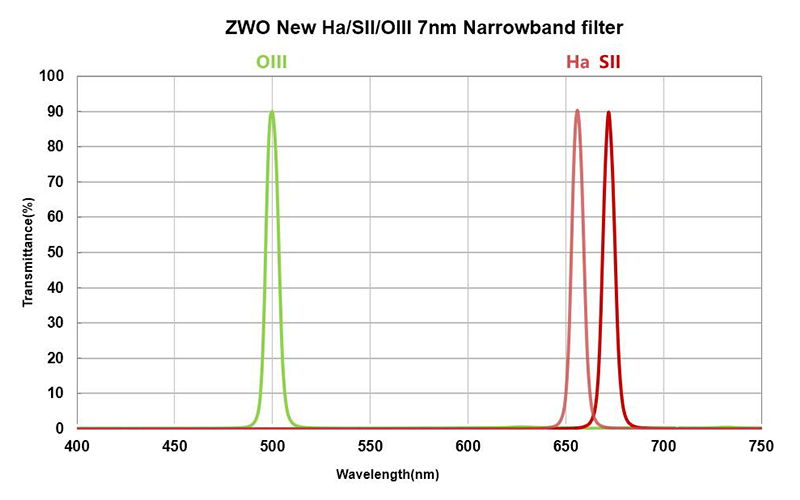

Transmission Curve

There are currently no specifications available for this product.
