About this product
Part Number: 12090
Compact portable 6" Schmidt-Cassegrain with StarBright XLT coatings on a computerised GoTo mount with integrated lithium-ion battery for 10 hours continuous use.

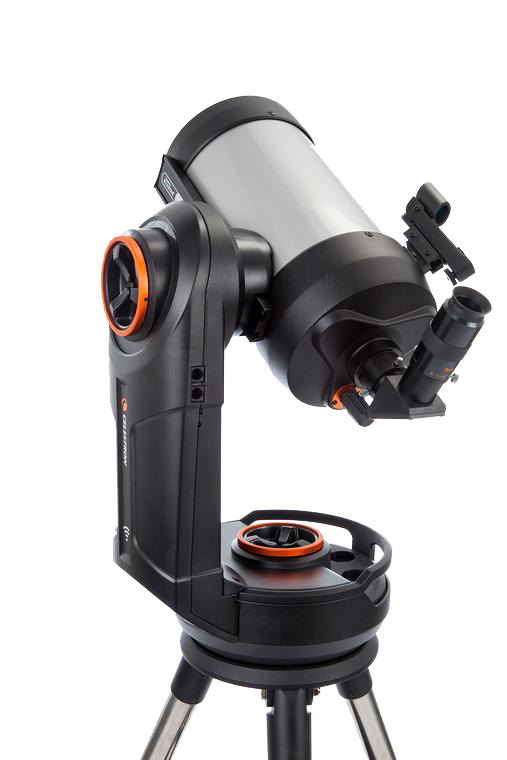

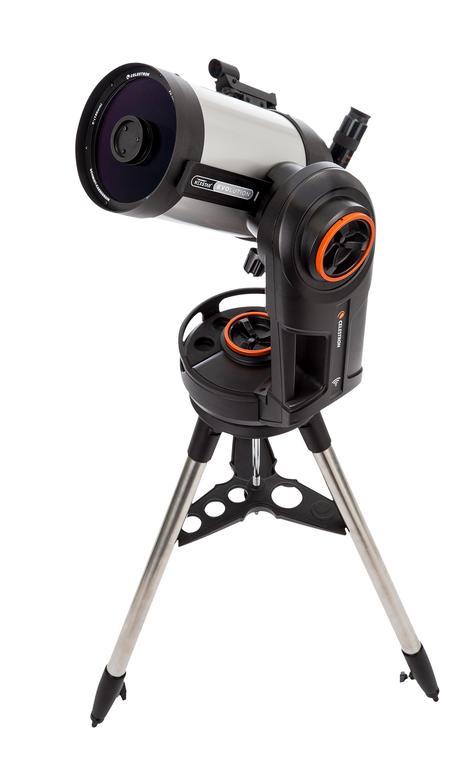

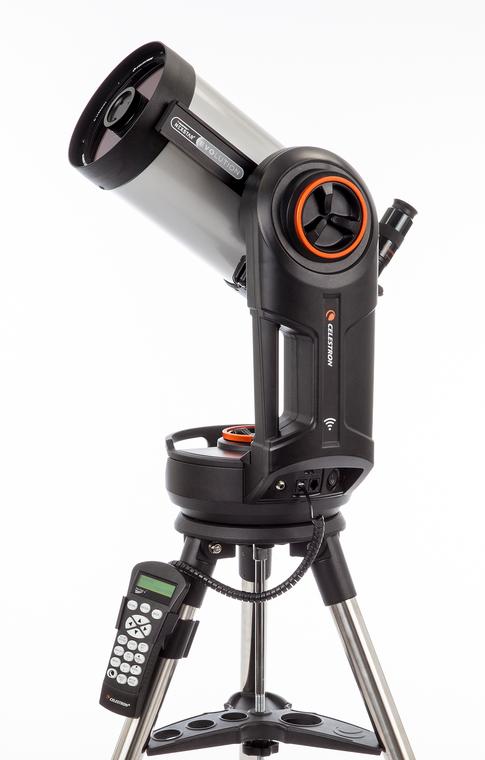

Celestron’s signature telescopes reach a new level with NexStar Evolution 6, the first Schmidt-Cassegrain telescope with integrated WiFi. Leave your hand control behind and slew to all the best celestial objects with a tap of your smartphone or tablet. Connect your device to NexStar Evolution’s built-in wireless network, and explore the universe with the Celestron mobile app for iOS and Android.
Use the planetarium interface to view the night sky in real time or display a list of celestial objects currently visible based on your time and location. Our proprietary SkyAlign alignment procedure is built right into the Celestron mobile app, so you’re ready to observe within minutes.
The most user-friendly telescope ever
Celestron engineers designed NexStar Evolution based on years of customer feedback. It offers many thoughtful design features that combine to provide you the best possible experience out under the stars.
Forget about batteries or an external power supply. For the first time ever on a consumer telescope, NexStar Evolution includes its own built-in lithium-ion battery. You’ll be able to enjoy stargazing marathons up to 10 hours on a single charge. You can even use NexStar Evolution’s USB charge port to top off the other devices in your life that need to stay powered on during an observing session.
Setting up your NexStar Evolution is quick and painless with large, ergonomic handles. The steel tripod features leg etchings to help you achieve a level, uniform height for your telescope. Manual clutches in both altitude and azimuth offer greater flexibility to manually point the telescope when powered off. Store up to 7 eyepieces in 2 accessory trays, one with an adjustable red LED illuminator.
Superior tracking fit for astroimaging

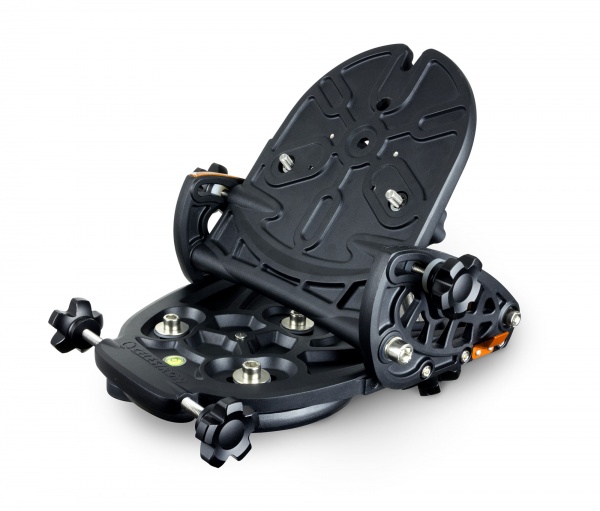

If you’re interested in astroimaging, the 6-inch NexStar Evolution is an excellent, affordable way to get started. It’s the only fork-mounted telescope in its price range that offers worm gears, along with improved motors. NexStar Evolution’s tracking accuracy is so impressive, you can capture images of deep-sky objects like the Orion Nebula by simply attaching your DSLR camera. As you progress in the hobby of astroimaging, you can add our Pro HD Wedge to achieve longer exposures for more detailed astrophotos.
Of course, the Schmidt-Cassegrain optical system offers bright, sharp views with StarBright® XLT optical coatings—a great choice for visual observers and budding astroimagers alike.
NexStar Evolution includes a StarPointer finderscope, two 1.25” Plossl eyepieces, a 1.25” star diagonal, AC adapter, and optional hand control.
Telescope Field of View Simulator
What's in the box
- Telescope OTA
- Telescope Mount
- StarPointer Finderscope
- 2 x 1.25" Plossl Eyepieces
- 1.25" Star Diagonal
- AC Adapter
- Optional hand controller
|Focal Length||1500 mm|
|Focal Length of Eyepiece 1||40 mm|
|Focal Length of Eyepiece 2||13mm|
|Magnification of Eyepiece 1||38x|
|Magnification of Eyepiece 2||115x|
|Mount Type||Single Fork Arm Altazimuth|
|Power Requirements||Internal battery included|
|HIghest Useful Magnification||354x|
|Lowest Useful Magnification||21x|
|Limiting Stellar Magnitude||13.4|
|Resolution (Rayleigh)||0.93 arc seconds|
|Resolution (Dawes)||0.77 arc seconds|
|Light Gathering Power (Compared to human eye)||459x|
|Secondary Mirror Obstruction||2.2 in|
|Secondary Mirror Obstruction by Area||14%|
|Secondary Mirror Obstruction by Diameter||37%|
|Optical Coatings||StarBright XLT|
|Optical Tube Length||16 in|
|Total Telescope Kit Weight||35.4 lbs|
|Max Slew Speed||4 degrees per second|
|Tracking Rates||Sidereal, Lunar, Solar|
|Alignment Procedures||SkyAlign, 3-Star Align, Solar System Align|
|Communication Ports||1 hand control and 3 aux ports for optional accessories|
|Evo App Database||Over 120,000 including 220 of the best deep sky and solar system objects|
|USB Charge Port||Yes|
Downloads / Manuals
The following manuals and downloads are available for this product:
Celestron NexStar Evolution Manual (PDF)
|Average Rating (1 Review): |Expensive for what it his..
Monday, 13 August 2018 | Paul
I have had loads scopes..dobs, evostars, nexstars se, newts...thought ide give this a go, tbh the wifi lets it down, used the celestron Sky portal 5 on the android galaxy tab, it was useless..old version disconnecting, buttons backwards, time altering it self. Sky portal 6 on I pad better, I ended slacking the clutches and useing manual in end. Optics are quite good, Saturn quite crisp and bright, Mars no detail but lot of heat coming off earth, did star test it optics slightly out. Left well alone.The 30mm EP quite nice..but stars distorted on edge of feild. Celestron nearly got it right..lithium battery..clutches can slacken to use manual..but the wifi lets it down relieing on Sky portal old version, dint bother with hand set, has you spend too long messing with input data, I returned it to flo who refunded me, good service from them, fast delivery.
Please fill in the form below to ask a question or request a price match.
Q1. Does the new Evolution series feature Celestron's polar align feature? ?
The polar align feature is built in to the included NexStar+ hand controller. The app will have this feature in a later update (estimated Summer 2014). The polar alignment feature is only used when the telescope is mounted on the optional wedge.
Q2. What is the life expectancy of the built in battery?
Celestron have used long life lithium iron phosphate batteries with numerous advantages over traditional lithium cobalt oxide designs, and even more against standard lead acid designs. The built in battery is rated to sustain two thousand charge cycles and has a life expectancy of 10 years! This greatly exceeds the battery longevity of most consumer products. So, while the battery is user-replaceable, batteries should not normally need to be replaced if reasonable care is given to keep them charged. Note that unlike lead acid batteries, the lithium iron phosphate batteries don't have charge memory and can be drained 100% without damage. Just be sure to keep the battery charged every 3 to 6 months, and expect the battery to last many years.
Q3. Can the battery be replaced?
Yes - Celestron have confirmed that the battery can be replaced by the user but please see the question above for more information about the life expectancy of the battery.
