Pegasus Astro Scops OAG
  Zoom

Pegasus Astro Scops OAG

£495.00✓ 2 year warranty

:

2x in stock shipped 1-2 working days

About this product

Model:  peg_scopsoag
Part Number:  PEG-SCOPSOAG

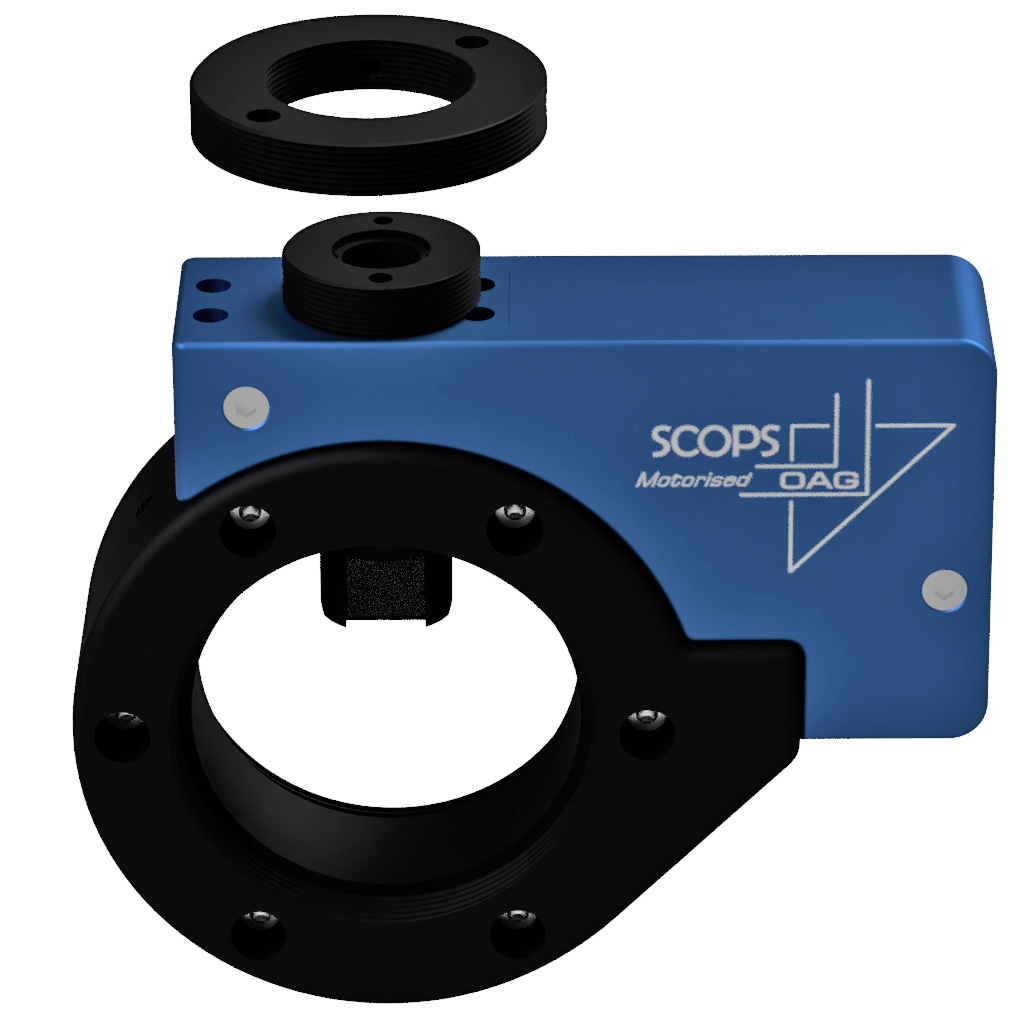

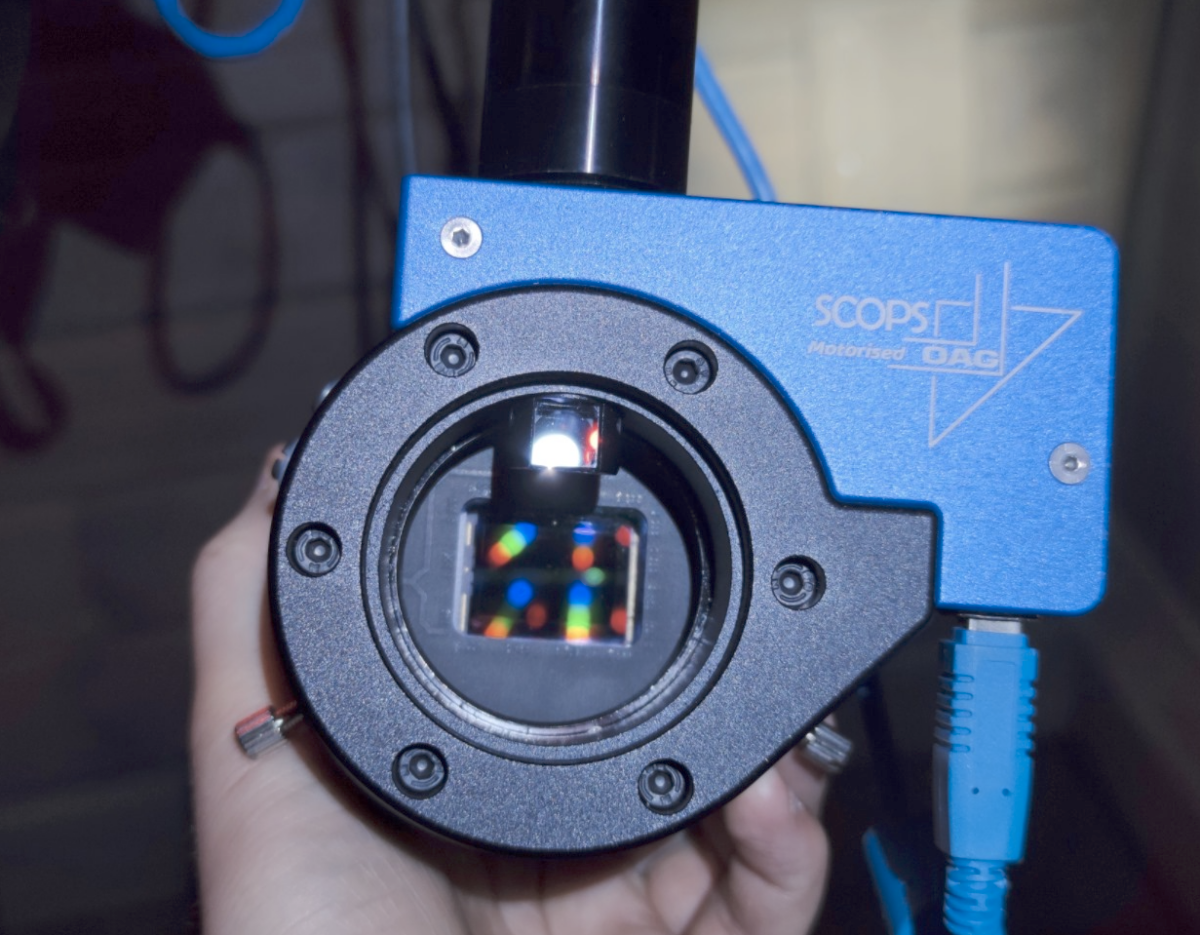

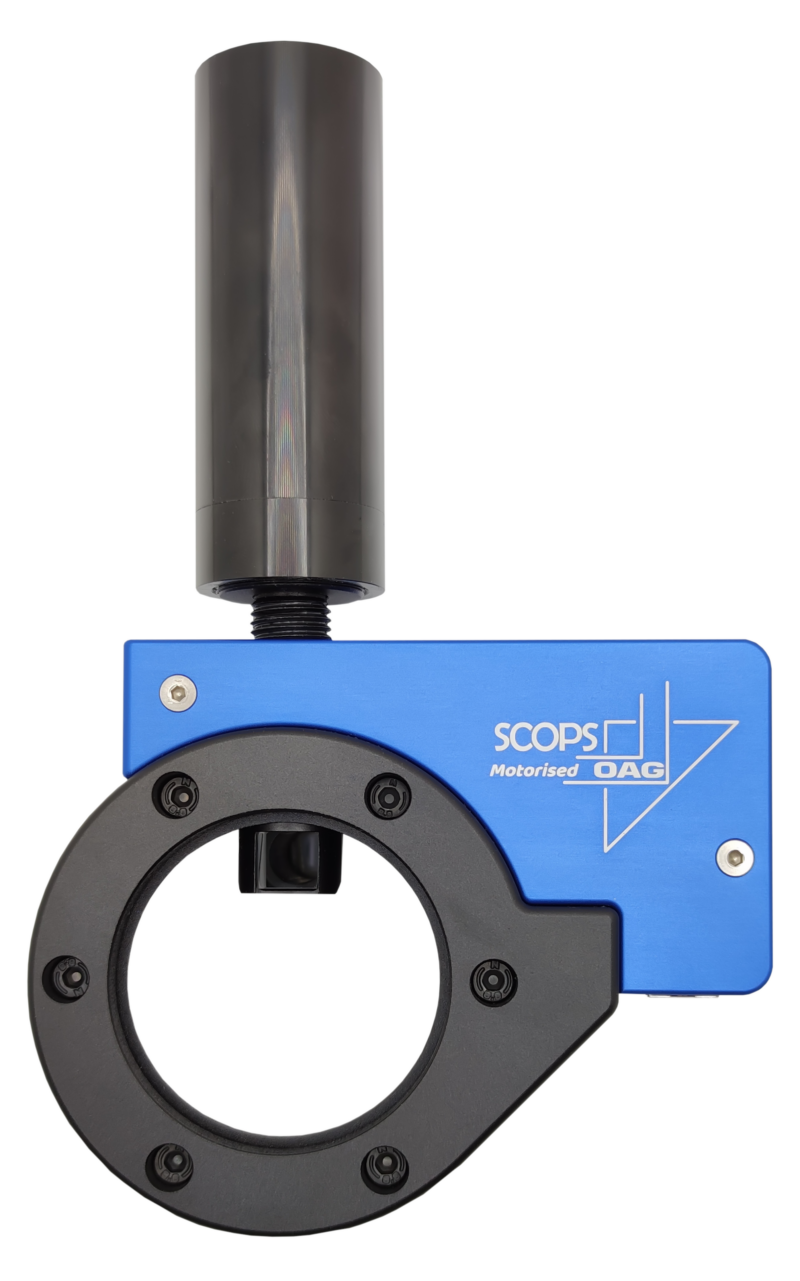

Pegasus Astro Scops OAG

Scops OAG is a motorised Off Axis Guider. Specialized for remote operation, allows you to adjust guide camera focus with great precision.  Easy to be operated via ASCOM focus drivers or standalone software is going to make your life easier to guide your eq mount.

FEATURES

  • One Cable Operation - Power and Control via USB
  • Adjustable Prism Height
  • Large 10x10mm Fully Multicoated, Anti-Reflection Mirror
  • Stepper Motor Ensure Precise Focus
  • Capable of Holding Heavy Loads
  • Accepts M42 & C Threaded Guide Cameras
  • 50mm Clear Aperture
  • 31.4mm Thick

Stepper Motor ensures focus precision


A stepper motor ensures absolute position of the focus point.

Profile each filter that might have a different focus position and just click the filter in the supplied software to precisely set the OAG to the stored position.

Robust design for heavy load of equipment

OAG thickness is 31.4mm capable to support heavy imaging equipment.

OAG has a 50 mm of clear aperture. Accepts M54 threaded adapters on both sides.

Falcon Rotator Combination

Scops OAG has 6 screw holes that allows it to get combined with the Falcon Rotator (without extra adapters).

Camera Connection – Accepts M42 & C thread cameras

Scops OAG accepts M42 and all new C-threaded guiding cameras. Both of these adapters (M42 / C) are included in the box.

What's in the box

  • Scops OAG
  • M54 Male to 2" Nosepiece
  • M54 Male to M48 Male Adapter
  • M42 Male to CS Adapter
  • 6x M3x8mm Screws
  • 1.8m USB2 Cable

Downloads / Manuals

The following manuals and downloads are available for this product:

Manuals



Quick Installation Guide

Scops OAG in front of Falcon Rotator installation guide

Mechanical Drawing



Software

Unity Platform
