Celestron C9.25 XLT Optical Tube Assembly - CG5 / Vixen / Skywatcher

Celestron C9.25 XLT Optical Tube Assembly - CG5 / Vixen / Skywatcher
 Celestron C9.25 XLT Optical Tube Assembly - CG5 / Vixen / SkywatcherCelestron C9.25 XLT Optical Tube Assembly - CG5 / Vixen / Skywatcher


Incoming - Shipped 1-2 working days.

Model:  c9.25xltota-1
Part Number:  91025-XLT
Brand:  Celestron


Celestron 2 Year Warranty

Celestron products include a two year warranty except binoculars and spotting scopes which have limited lifetime warranties.

Generally accepted as the jewel in Celestron's crown.

The 9 1/4" was specifically designed for visual infinity focus when using 2" eyepieces and has an optimized baffle system to benefit astrophotography by minimizing vignetting at the edge of the field of view. Its longer primary focal length and lower magnification secondary mirror contribute to a flatter field of view at the focal plane and helps to further reduce optical aberrations.

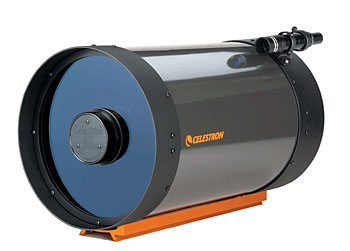

Latest specification including Fastar/Hyperstar Compatibility (photo shows older model)

This C9 1/4 optical system also includes StarBright® XLT coatings.

This version of the OTA is supplied with the CGX / Vixen / Sky-Watcher style dovetail.

General Features:

  • 9.25" Schmidt-Cassegrain Optical Tube Assembly

  • Aluminum Optical Tube

  • Celestron's premium StarBright XLT coatings

  • 2350 mm focal length (f/10)

  • 25 mm eyepiece included (94x)

  • Visual back allows for use with 1.25" accessories

  • 6x30 finderscope to help accurately find objects

  • Star diagonal provides more comfortable viewing position when observing objects that are high in the sky



Optical Design  : Schmidt-Cassegrain
Aperture  : 234.95 mm (9.25 in)
Focal Length  : 2350 mm (92.52 in)
Focal Ratio  : 10
Finderscope  : 6x30
Optical Tube  : Aluminum
Eyepiece 1  : 25 mm (0.98 in)
Magnification 1  : 94 x
Star Diagonal  : 1.25
Optical Coatings  : StarBright / XLT
Secondary Mirror Obstruction  : 3.35 in (85.09 mm)
Secondary Mirror Obstruction by Area  : 13.1 %
Secondary Mirror Obstruction by Diameter  : 36.2 %
Optical Tube Length  : 22 in (558.8 mm)
Optical Tube Weight  : 20 lb (9.07 kg)

There are currently no specifications available for this product.

Celestron C9.25 XLT Optical Tube Assembly - CG5 / Vixen / Skywatcher Questions & Answers

Please fill in the form below to ask a question.

Your Name: *
Your Email Address: *
Your Question: *
Please add the two numbers

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
Celestron C9.25 XLT
Sunday, 5 April 2015  |

I was not sure if I would by the C9.25 XLT telescope, I was thinking of getting a 6 inch refractor for planetary imaging, but when I saw a friends images from a C9.25, I soon changed my mind, its a superb telescope for visual as well as imaging, pinpoint sharp images of Jupiter, and the Moon amazing, the telescope is well worth the money you are paying.
