Sunobserver eADC electronic Atmospheric Dispersion Corrector
  Zoom
Sunobserver eADC electronic Atmospheric Dispersion CorrectorSunobserver eADC electronic Atmospheric Dispersion CorrectorSunobserver eADC electronic Atmospheric Dispersion Corrector

Sunobserver eADC electronic Atmospheric Dispersion Corrector

£495.00✓ 2 year warranty

:

Out of stock due 10-15 working days

About this product

Model:  sunobserver_eadc
Part Number:  X-EADC

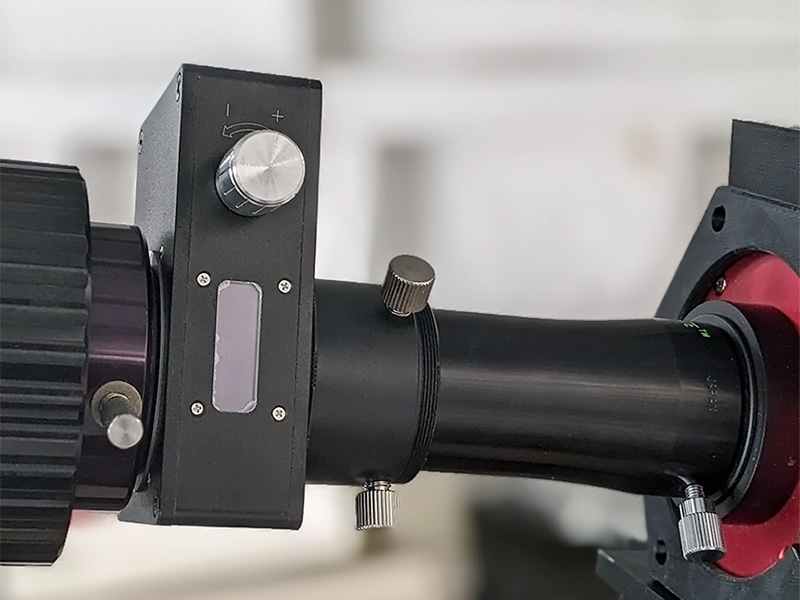

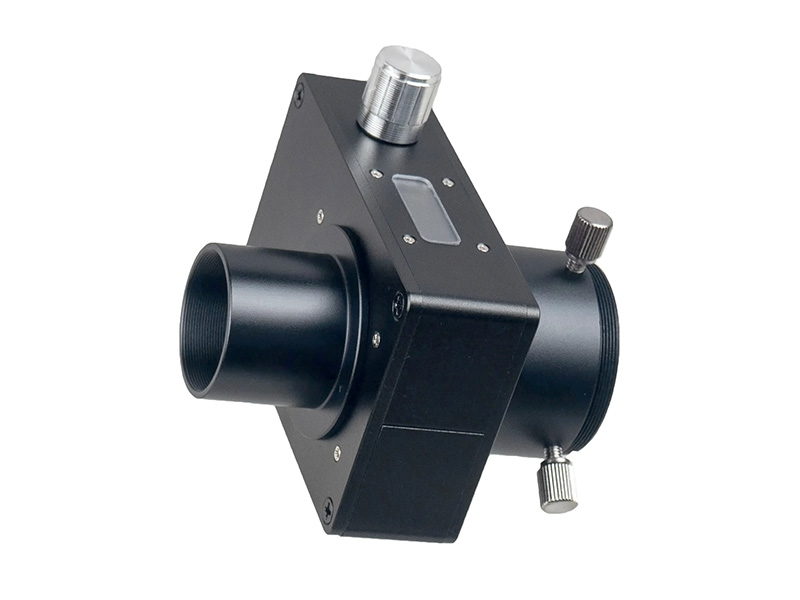

Sunobserver eADC electronic Atmospheric Dispersion Corrector

This is the first electronic ADC that works both as standalone unit and via PC control/operation.

The eADC developed by Sunobserver measures the altitude of the eADC then calculates the current dispersion compensation through user settings.

After calibration there is no need to calibrate again when the target altitudes angle has changed.

When the Equatorial mounting rotates, the eADC automatically adjusts without requiring manual intervention.

The instrument automatically retrieves its position when the equatorial mount crosses the  meridian and performs a meridian flip.

The eADC can be used offline or online. The settings of the aADC can be changed through the control software and parameter changes can be made via the adjustment knob.

Specifications

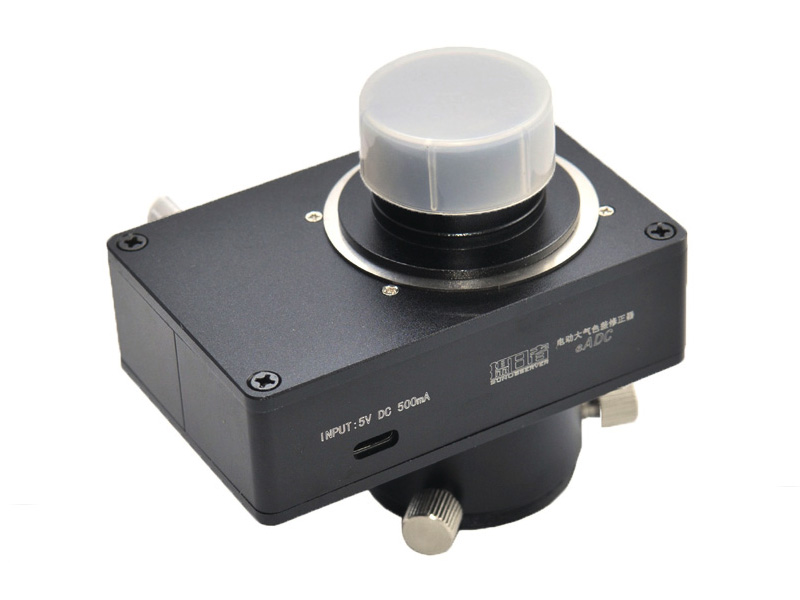

Supply Voltage: 5v dc

Current Consumption: 400Ma Max

Optical Aperture: 22mm

Weight: 267g

Dimensions mm: 59.0 x 89.6 x 80.4

1.25" Eyepiece Adaptor Camera Side

1.25" Push Fit Adaptor Telescope Side

Operation Manual Download

Driver Download

Control Software Download
