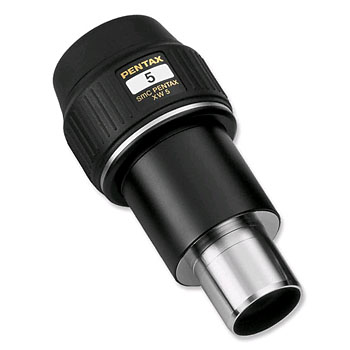

Pentax XW 5mm 70 Eyepiece
  Zoom

Pentax XW 5mm 70 Eyepiece

£279.00✓ 2 year warranty



2x in stock shipped 1-2 working days

About this product

Model:  PentaxXW5
Part Number:  70512

This short focal length eyepiece is particularly popular as it delivers more-or-less the maximum useful magnification from an 8-inch or 10-inch f/10 Schmidt-Cassegrain telescope.

Features

  • High-refraction, low-dispersion Lanthanum glass.

  • Pentax Super Multi-Coatings (SMC) on all air/glass surfaces.

  • Edge-blackened optics and optimised baffles minimise internal reflections.

  • Optically corrected for use with focal ratios as fast as f/4.

  • 20mm eye-relief and twist-up rubber-rimmed eyecups - perfect for spectacle wearers.

  • Chromed barrels threaded to accept filters.

  • Weatherproof to JIS Class 4 standards.


Lens Structure: 8 elements, 5 groups
Focal Length: 5mm
Apparent Field of View: 70 degrees
Eye Relief: 20mm
Attachment Diameter: 1.25" (31.7mm)
Filter Diameter: 28.6mm
Field Stop Diameter: 6.2mm
Eyepiece Ring: Helicoid type
Height & Width: 5.0" x 2.4"
Weight: 14.0 oz. (395g)

Customer reviews

Be the first to Write a Review for this item!

FAQ

Please fill in the form below to ask a question.

*
*
*

Related Products
Pentax XW 16.5mm 85 2'' Eyepiece
£469.00
Pentax XW 23mm 85 2'' Eyepiece
£469.00
Pentax XW 30-R 70 2'' Eyepiece
£379.00
Pentax XW 40-R 70 2'' Eyepiece
£379.00

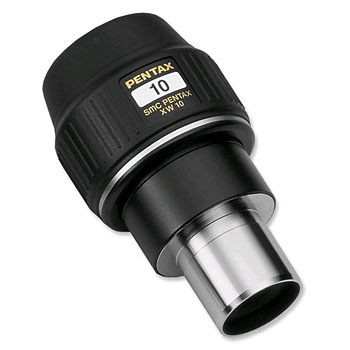

Pentax XW 10mm 70 Eyepiece
