Astrodon Photometrics Johnson-Cousins Filters

£218.00✓ 2 year warranty








:

Out of stock due 10-15 working days

About this product

Model:  ad_johson_cousins_uv_1.25
Part Number:  UV*_27R

Astrodon Photometrics UV, B, V, Rc, Ic filters are 100%-coated for long-term durability and consistency of research.  UV, B, V, Rc, Ic filters have been the standard for photometric measurements for decades.  They have evolved over time as technology changed.  H. Johnson in the 1950s and A.W.J. Cousins in the 1970s designed these filters for photomultiplier tubes (PMT).  M. Bessell in the early 1990s selected coloured glasses to match the Johnson/Cousins designs for CCD cameras of the time.   However, Bessell’s designs were based upon coloured glasses available at the time.  Some of those glasses (e.g. Schott KG-4 used in conjunction with Schott RG-9 to make the “I” photometric filter have been discontinued. Lastly, PMTs of the time limited light past 900 nm, whereas modern CCDs are sensitive to 1100 nm.  Thus, to truly match the Johnson/Cousins Ic filter, a dielectric coating must be used to block light past 900 nm for CCD systems. This cannot be achieved with coloured glasses. We use Ic and Rc (c = Cousins) to designate that Astrodon match  the Johnson/Cousins designs with our coated filters, as closely as possible.

Astrodon Photometrics UV, B, V, Rc, Ic:

  • Achieve the highest transmission possible for fainter objects
  • Use hard-oxide durable coatings (no V filter fogging) for durability
  • Include A/R coating and construction that minimises halos around stars
  • Do not depend upon coloured glasses being discontinued
  • Includes Ic filter (which must use a 900 nm cut-off coating)
  • Proud supplier to Las Cumbres Observatory Global Telescopes, AAVSO, Caltech/Palomar, NASA, MIT, Harvard, Apache Point, U. Valencia, and research organisations worldwide
  • Proudly made in the U.S.A.

Internal absorption of light in coloured glasses used to make traditional filters limits the final throughput.  For example, the traditional UV filter made with coloured glasses typically does not transmit more than 60-70% at the peak.  The Rs filter, 70 -80%. Astrodon Photometrics 100%-coated filters exceed 95% (see actual scans below).

Schott BG-39 glass (with Schott GG-495 glass) used in the traditional photometric V filter may degrade and become cloudy due to surface crystallisation from exposure to humidity.  It needs to be covered by a clear glass to protect any exposed surface, making the filter thicker.

With the advent of high performance, hard and durable dielectric coatings, both high transmission in excess of 95% and durability can be achieved.  Filters last longer and transmit more light.  Durability is critical for long-term, consistent research.

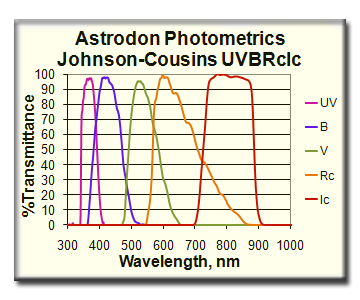

Astrodon Photometrics UV, B, V, Rc, Ic filters adhere to the Johnson/Cousins/Bessel designs as closely as possible.  The following is a spectral compilation of actual scans of the Astrodon Photometrics UV, B, V, Rc, Ic filter set. ​

Specifications

  • Spectral profiles designed after UV, B, V, Rc, Ic Johnson/Cousins
  • Improved B filter (B***) extending blocking >1100 nm and eliminating small light leaks that affected measurements of reddest stars in our initial filters
  • 100% coated – no colored glass
  • Peak transmission guaranteed > 90%
  • <0.01%T(ave) typical out-of-band 300 – 1100 nm; additionally =<0.1% Tabs for B***
  • Striae-free, single fused silica substrates
  • 1/4-wave propagated wavefront prior to coating
  • <0.5 arcminute substrate parallelism
  • 3.000 +/-0.025 mm substrate thickness
  • Parfocal with all Astrodon filters
  • Edge-blackened
  • 1.25″ mounted, 49.7 mm dia. and square unmounted
  • Other sizes available on a custom basis for filters as large as 150 mm
  • Proudly made in the U.S.A.
