Atik/QSI LRGB Filter Set - Special Bundle Offer (only available when purchased with a QSI Cooled Mono Camera)
  Zoom

Atik/QSI LRGB Filter Set - Special Bundle Offer (only available when purchased with a QSI Cooled Mono Camera)

£119.00✓ 2 year warranty




Unavailable please contact us
Share

Special Bundle Price - when purchased with an Atik mono camera

About this product

Model:  qsi_lrgb_1.25
Part Number:  ATK0162P

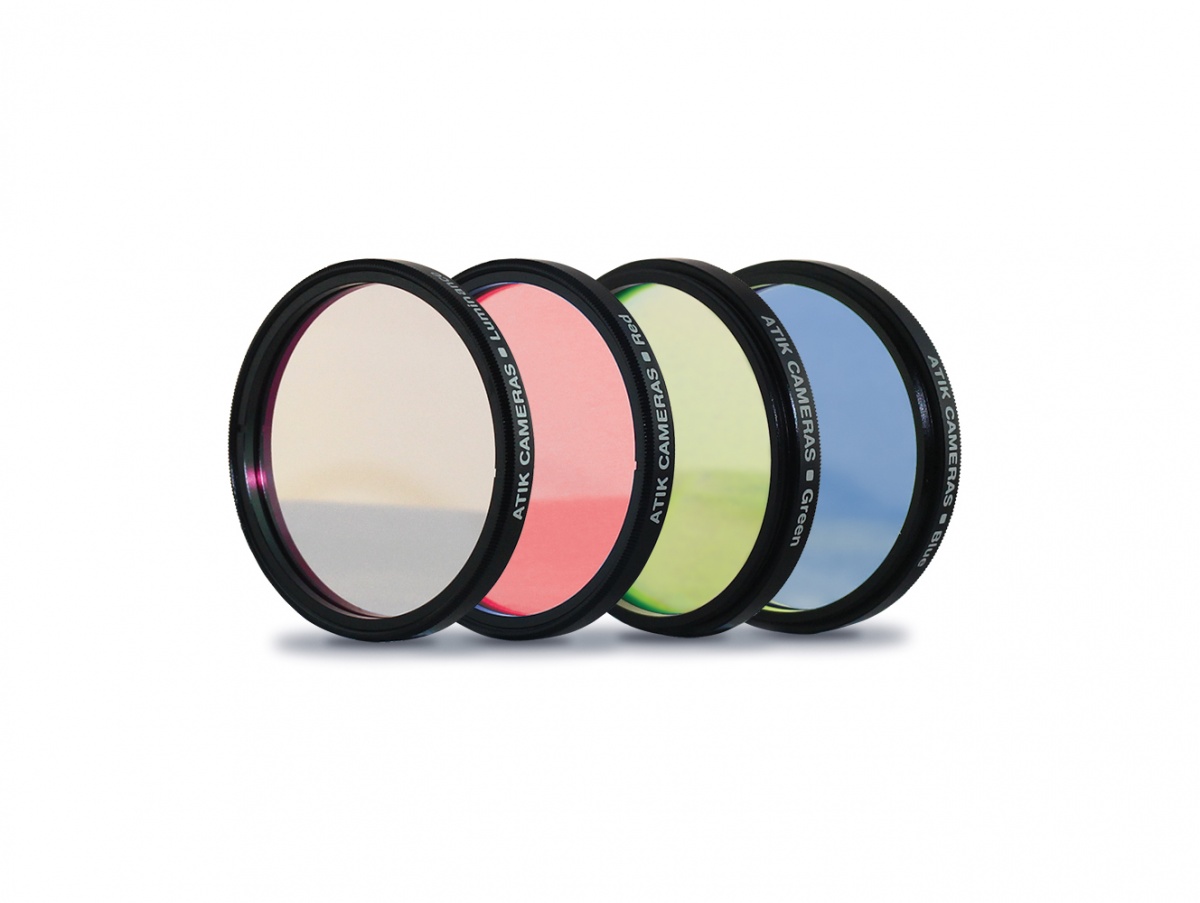

The LRGB filter set consists of Luminance, Red, Green and blue filters, that have been designed for CCD cameras to image deep sky objects, galaxies and stars in their natural colour.

If a natural colour representation is what you want from you deep-sky imaging, an LRGB filter set should be your first choice. With OIII emission overlapping on the blue and green filters to allow high efficiency and natural colour imaging of all deep-sky objects. The gap between green and red filters serves to block out the light pollution line at 589nm and improves the colour of your images.

FEATURES

  • Transmission: Average 95%
  • Size: 1.25”, 36mm or 2”
  • Coating Wavelength: 300-1050nm
  • Transmitted Wavefront RMS: λ/4
  • Parallelism (arcsec): 30s

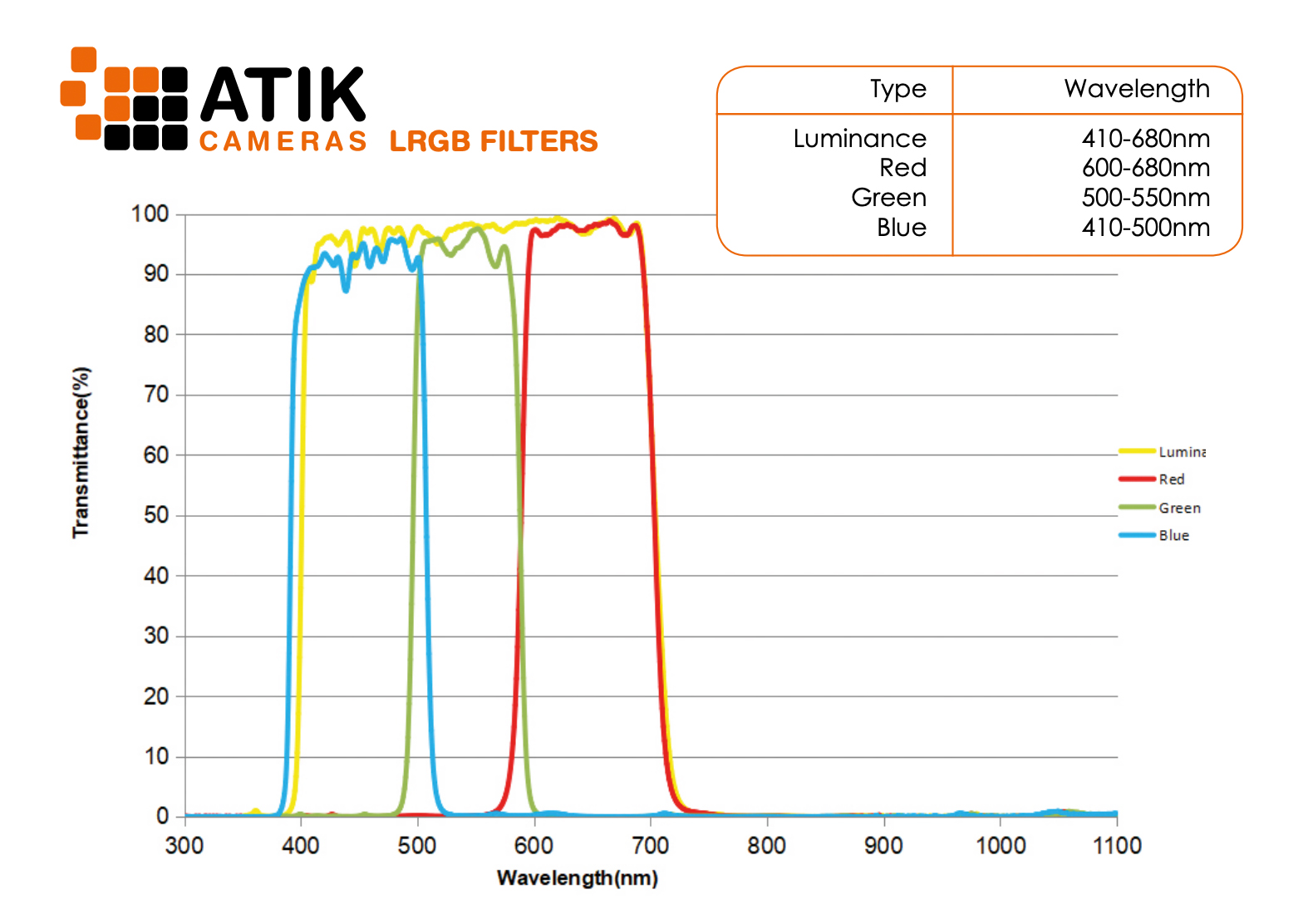

Transmission Chart

Specifications

Filter Transmission range Transmission in Band Transmission out of band
Luminance 410-680nm Average >95%, Minimum >90% Maximum <1% Average <0.5%
Red 600-680nm Average >95%, Minimum >90% Maximum <1% Average <0.5%
Green 500-550nm Average >95%, Minimum >90% Maximum <1% Average <0.5%
Blue 410-500nm Average >95%, Minimum >90% Maximum <1% Average <0.5%
