Optolong LRGB Deep Sky Imaging Filters
  Zoom

Optolong LRGB Deep Sky Imaging Filters

£179.00✓ 2 year warranty
Choose:


:

In stock shipped 1-2 working days.
Request a Price Match

Special Bundle Price - Save 10%!

Buy a Optolong LRGB and SHO filter set together to save 10%

Simply add both filter sets to your basket to automatically receive the discount.

About this product

Model:  opt_lrgb_1.25

Latest Version - Improved colour balance, higher contrast and coating enhancements.

The LRGB filter set is designed for maximum contrast and with extremely high gradients for clear differentiation of colours. The LRGB filter set divides the spectrum into its components red, green, blue and luminance.

OIII emission overlaps on blue and green filters with maximum transmission to allow high efficiency and natural colour imaging. Gap between green and red filters serves to block out the primary Sodium light pollution line at 589nm and improves colour balance and separation.

Warning - Optolong filters are not designed to be used for solar observation. Do not look at the sun through this filter as it will cause permanent eye damage.

FEATURES

  • 95% transmission at passband / Precision off-band blocking
  • Infrared wavelength 700-1100nm blocked
  • Suitable for use with mono CCD and CMOS cameras
  • Useful for deep sky and planetary RGB imaging
  • 1.25" / 2" mounted or 31mm / 36mm unmounted sizes.
  • Supplied in a protective plastic case with EVA foam lining
  • 2mm Thick Schott Glass
  • Fine-optically polished on both sides - ensures accurate λ/4 wavefront and <30 seconds parallelism over the both surfaces

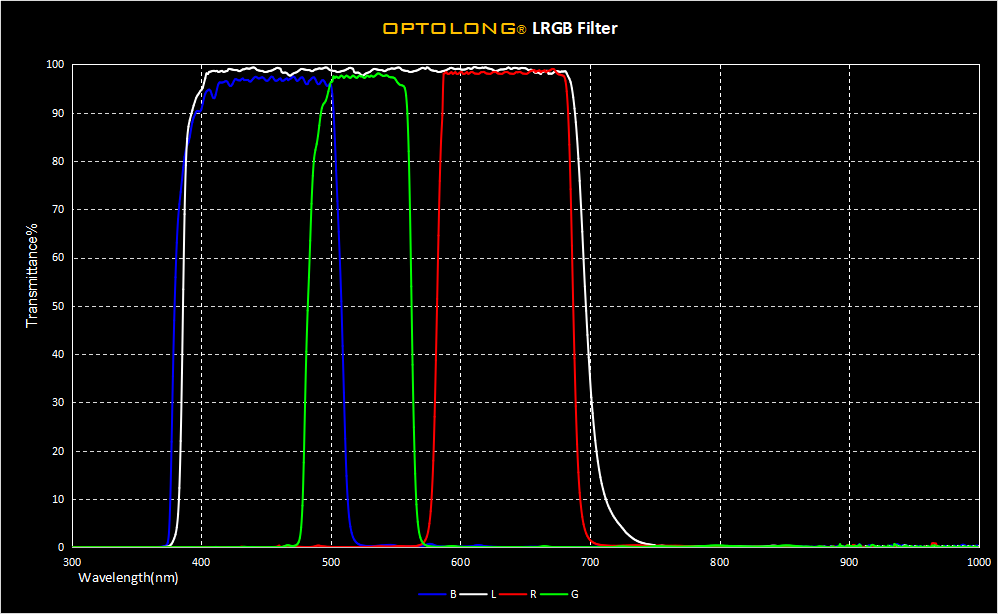

Transmission Chart

The Major Emission Lines of Nebulae: H-α (656.3nm), H-β (486.1nm), OIII (495.9nm) and OIII (500.7nm)

The Major Emission Lines of Artificial Light Pollution: Hg / Mercury (435.8nm, 546.1nm, 577nm and 578.1nm), Na / Sodium (598nm, 589.6nm, 615.4nm and 616.1nm)

Technical Data

  • Schott substrate material
  • Thickness 2.0 mm
  • Surface Quality: 60/40 (Refer to MIL-O-13830)
  • Fine-optically polished to ensure accurate 1/4 wavefront and <30 seconds parallelism over the both surfaces
  • 95% transmission at passband
  • Infrared wavelength 700-1100nm cut-off

  • Precision off-band blocking

Coating Parameter

  • Multi-layers anti-reflection coating
  • Non-cementing optical substrate coating
  • Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL (central wavelength) no deviation affected by temperature change
  • Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band

Filter Cell

  • Ultra-thin filter cell minimise vignetting by maximise possible clear aperture (clear aperture is 26mm for 1.25”; 45mm for 2”)
  • Aerometal Material | Precise CNC Machining | Sand Blasting Process | Black Anodised Finish | Extinction Treatment to Prevent Reflection | Laser Engraving No Fading

Sample Images

NGC2170 Optolong LRGB ©Jerry Huang

M82 Optolong LRGB + H-Alpha 7nm ©Jerry Huang
