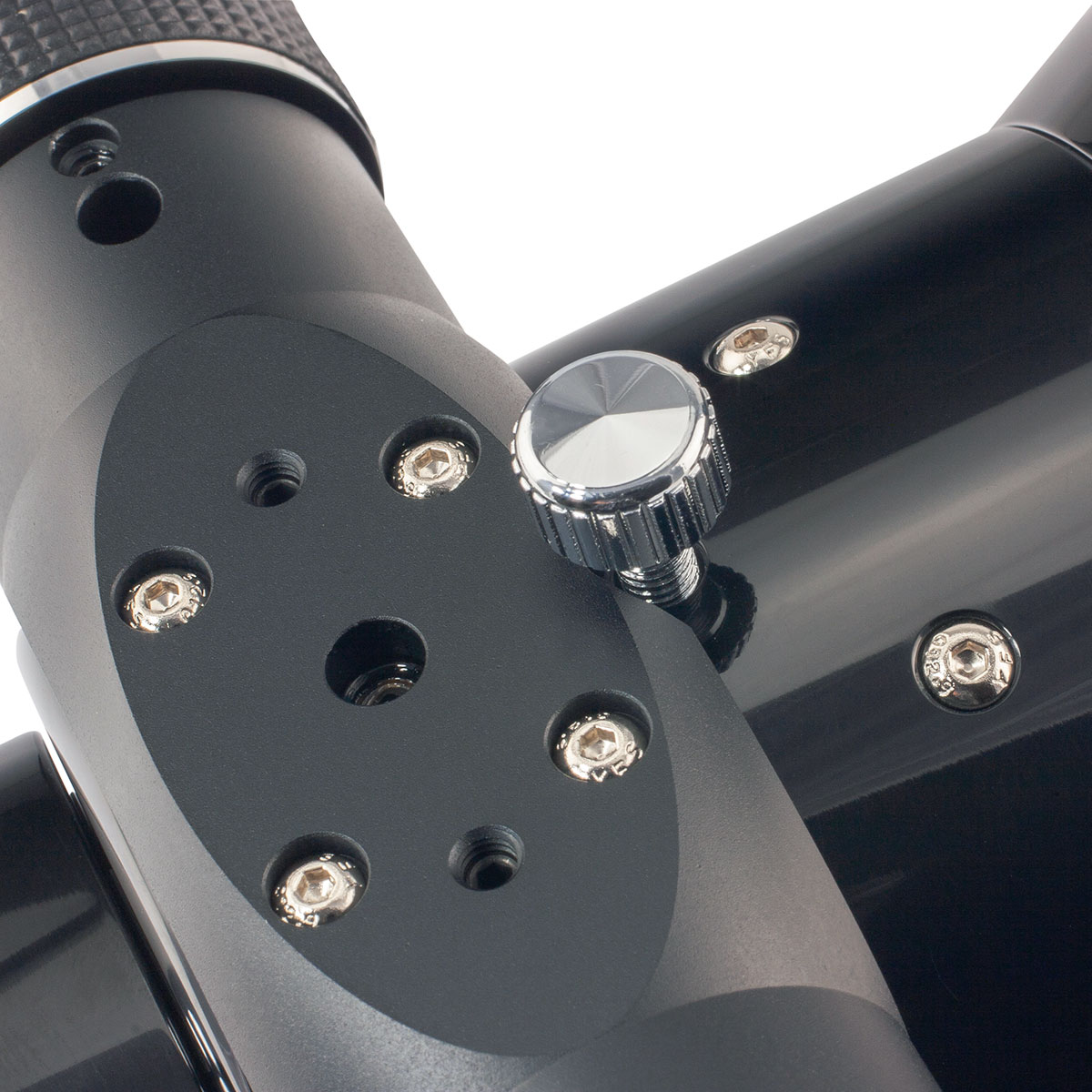

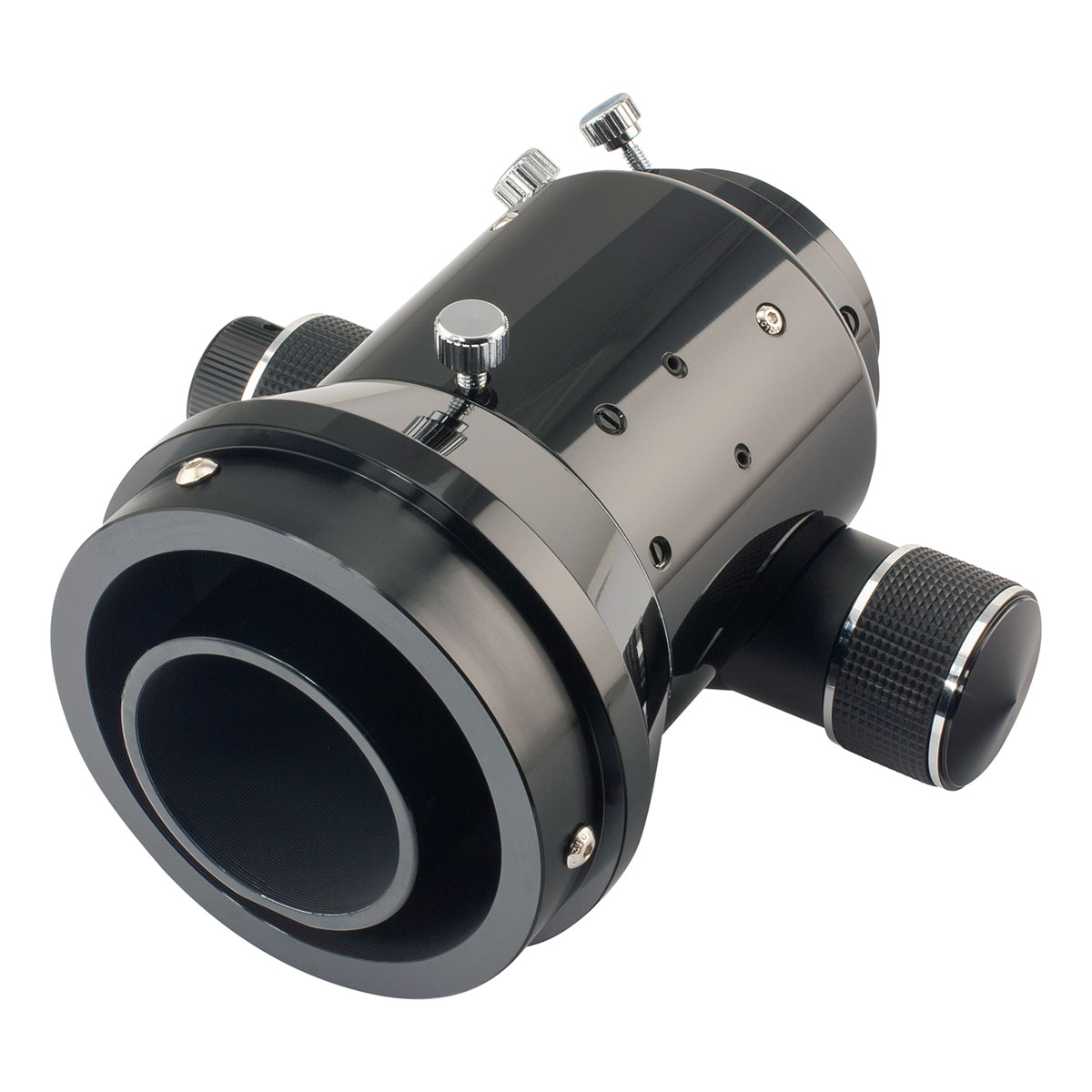

CNC machined 10:1 dual-speed Crayford focuser designed as a direct replacement / upgrade for the standard focuser supplied with Sky-Watcher Evostar 102/120/150, Startravel 102/120/150 and Evostar 80ED/100ED/120ED refractors.
Will accept both 1.25" and 2" eyepieces.
Features adjustable tension, locking clamp and indexed drawtube.
|Average Rating (21 Reviews): |A Really Wonderful Upgade -
Monday, 22 March 2021 | Mark
Overall: I really recommended this focuser! This upgrade took away the distraction of not getting a good focus, or my having to focus on gaining good focus instead of paying attention to the object. This was an issue for those high magnification targets that go flying by in the eyepiece. Now, those situations are few, and even if I am not sure if I have captured the focus perfectly, the fine tune option quickly lets me confirm -without losing the object in a blur. The old focuser was a bit heavy-handed that way -no “play” to fine tune.
1. Two main great advantages for me in upgrading my StarTravel 120 /600 focuser to this Crayford dual-speed focuser.
a. better focusing: (more forgiving)
When achieving focus with large knobs there is a longer moment of focus -a slight movement past focus with the large knobs results in less degradation of the focus (as was the case with the original focuser). The fine tuning focuser knob makes it is easy to bring the object to maximum focus.
b: 360 degree rotating focuser:
When using my EQ mount this is almost essential (Otherwise I can get into viewing situations where I have to loosen the OTA rings and rotate the OTA to get the eyepiece in an easily-accessible position).
Also, this makes using the AltAz mount easier, too. Just being more adjustable is better.
c. Less important but nice bonus results:
- New focuser is smoother, and has less wiggle/looseness in the focuser tube.
- It uses compression rings vice screws to lock in eyepieces and even the 2" to 1.25" adapter.
-I have read that some models (one mentioned was the Orion version of the 120/600) take this upgrade without issue -a smooth fit / exchange out of the box.
- For me it was not so quick.
My model of 120mm/600mm achromatic reflector is the Sky Watcher, StarTravel.
Mine has rear ((white) OTA coupler (for the focuser) that is that is 96.8mm interior diameter.
The new focuser has an exterior diameter of 97mm. So, I had to buff down about 0.1mm layer of paint where the two came together, plus about 0.1mm of collar. I did that.
- It took about an hour to do it, but I took a number of days to look into how others had done this.
Not quite a beginner's task, but straightforward, pretty basic, and quick.
After reassembly, testing, and now use. . .I am so so glad I did it!
It works better, the advantages make it more fun to use, and everything feels like it works a bit better!
I would recommend this upgrade. It was not essential, but after doing it, I am spoiled by the better performance!
Leap and bounds ahead of stock focuser.
Tuesday, 16 March 2021 | Paul
This is a beautifully made item finished in a lovely shiny deep black, similar to the old equinox 80 scope. The focuser is very smooth and and has a graduation scale to help you remember where focus was between sessions. The body is rotatable making camera positioning easy. Eyepieces and cameras are held firmly with no wobble. There is no finder shoe but the threaded holes are there to fit your own.
I had no problems carefully removing the old focuser and the new one went in without issue, Allen key screws are provided to replace the stock cross head ones on refitting. I noticed there has been a price increase, I was lucky and got this one at the old price but at the current price it is still good value for money.
Excellent service from FLO, packaging superb. Clouds included in the deal.
Clear skies forecast for my area tonight so looking forward to getting out there!
Excellent Upgrade Focuser
Saturday, 14 November 2020 | Allan
First class upgrade for my 102mm Sky Watcher refractor telescope. I wanted the fine adjustment that this focuser provides for pin point stars and moon details. The stock focuser was fine, only it took a lot of fiddling to get it right.
The upgrade 2" Crayford has the smooth action, very positive feel on the knobs and is just brilliant all round. Fitting the focuser is easy and all holes line up perfectly. Get one, you will not regret it!
Shows signs of it being used.
Tuesday, 22 September 2020 | Mark
I haven't fitted this yet only looked at it. the worse is a shinning line in the inner light baffle about 10mm long. (hope it does not cause a light flare)
the large ring which fits into the back of the telescope has some scratches on the front of the ring , no large cap which I have seen in a you tube video.
The Nylon grub screws one or two shows signs of badly use of a screw driver on them, which is puzzling as they are if anything two easy to turn with a proper fitting screwdriver.
I rotated the with just a wera long flat blade bit 6mm.
This is being sold as brand new and I would describe it as shop soiled at best. The focusing rail shows signs of use/wear.
I have already sent a Baader sky surfer V back because of red dot is damaged and signs of use. They have received but have not acknowledge.
Sorry to hear of your dissapointment. The focuser was not secondhand or shop soiled (it was supplied to you in a new unopened box and we don't have a shop) but clearly the fit and finsih is not acceptable. Please email us to arrange collection/replacement.
Regarding your other returned item, we advised you earlier this month Baader no longer have stock (Covid-19) so it will be some time before we can dispatch a replacement. We also offered a refund.
Some nice stock R&P upgrade!
Tuesday, 1 September 2020 | Alex
I bought this Crayford as a replacement of my Celestron C6R 150/1200mm stock R&P. The focuser has fitted in to C6R opening no problem, all three screw holes are at exact match. After final assembly I've tested full in/out collimation and it is spot on, which is a pleasant surprise in comparison to stock R&P. Even unlocked, the focuser holds a heavy Nikon D800 no problem while pointing at Polaris (tension would need to be adjusted out of the box probably) Finder shoe 2x holes are there also.
Now a bit of a negative side. My version has arrived with a seriously stuck grub screw on a single speed handle side, leaving no option to fit in a focusing motor easily. A workaround is as follows - a shaft and a single speed handle can be removed altogether by unscrewing a grub screw from a double speed side. Then a replacement 4mmx100mm stainless steel shaft to be accuired (plenty of a modelling shafts available everywhere). That allows to fit in a standard Skywatcher motor, although some drill work would be needed to fit a motor plate.
There is also a small catch with a focuser rotation - if using a heavy finder make sure to lock a focuser rotation control srew or it could rotate by itself when you don't need it
I would put an overall rating as 4 stars - very solid, but could be slightly better. Can't go wrong for the price though.
Very Smooth focuser without tilting.
Wednesday, 26 August 2020 | Dong
Great for My Omegon 102mm ED triplet.
After removing the flange adapter, it was attached to the telescope side.
Much smoother than the original focuser.
Great to use~!
Sunday, 9 August 2020 | Art
Upgraded the stock focuser on my 100ED Evostar. Big improvement for visual use. Holds the finder much better(with a two screw bracket), and I can finally use my heaviest eyepieces (APM 100's) looking at the zenith. Did require some adjustment out of the box, but it was easy to do.
Tuesday, 14 July 2020 | Chris
Easy installation. sturdy yet smooth.
Upgrade on Starquest 102r
Wednesday, 8 July 2020 | Joël
Significant difference between the stock focuser! This focuser is smooth and acquire focus is no more difficult.... Fits perfectly on the Skywatcher Starquest 102.
Great replacement focuser for ED80
Monday, 25 May 2020 | Stephen
The focuser is excellent build quality with smooth action and fitted straight in to ED80 by simply removing three small screws from scope. Screw holes in this focused aligned precisely. My only gripe is that I had wanted to fit my Sesto Senso autofocuser unit in place of the knurled focused knobs but the grub screw on the microfocuser knob fits none of my Allen keys that I use on other focusers aon other scopes...seems to be somewhere between 0.5mm and 1mm.
