Model:  baader_2459310
Part Number:  2459310

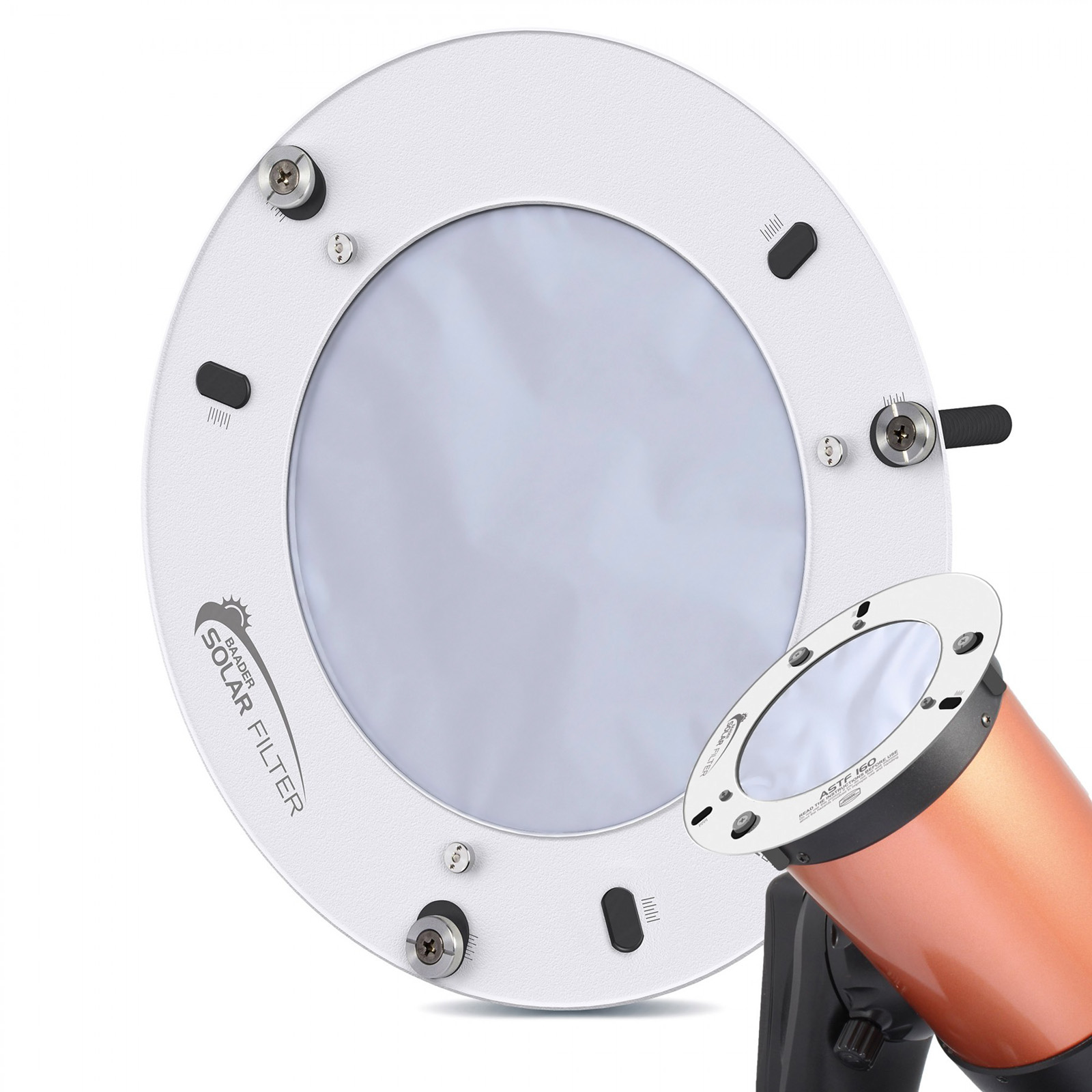

Baader Solar Filter – the Standard

Mounted Filters with Baader AstroSolar Safety Film OD 5.0

After 15 years of offering AstroSolar film sheets as DIY-product, this system of Baader Solar Filters™ is designed to retain the true optical quality of the diffraction limited AstroSolar Safety Film.

Baader Solar Filters provide a professional and secure solution to observe and image the Sun using AstroSolar® Safety Film OD 5.0. Many ready made filters do stretch the filter material like a drumhead in order to make it look like a piece of glass – this absolutely does destroy the image quality, rendering the film useless for high magnification work. AstroSolar must be mounted entirely stress free in order to perform like a high precision planeoptical window. It sounds like a contradiction with traditional perception of quality, but AstroSolar must show slight ripples! Only when the film is being put under stress by an improper cell mount it performs just like any single side coated glass-filter made of untreated float glass.

• Safe for solar observation and photography with all high-end telescopes and extreme tele-lenses. Suitable for highest magnifications and detailed observation of individual sunspots
• AstroSolar Safety Film OD 5.0, mounted stress free in temperature compensated cell
• No astigmatism during winter observation or with temperature changes in summer

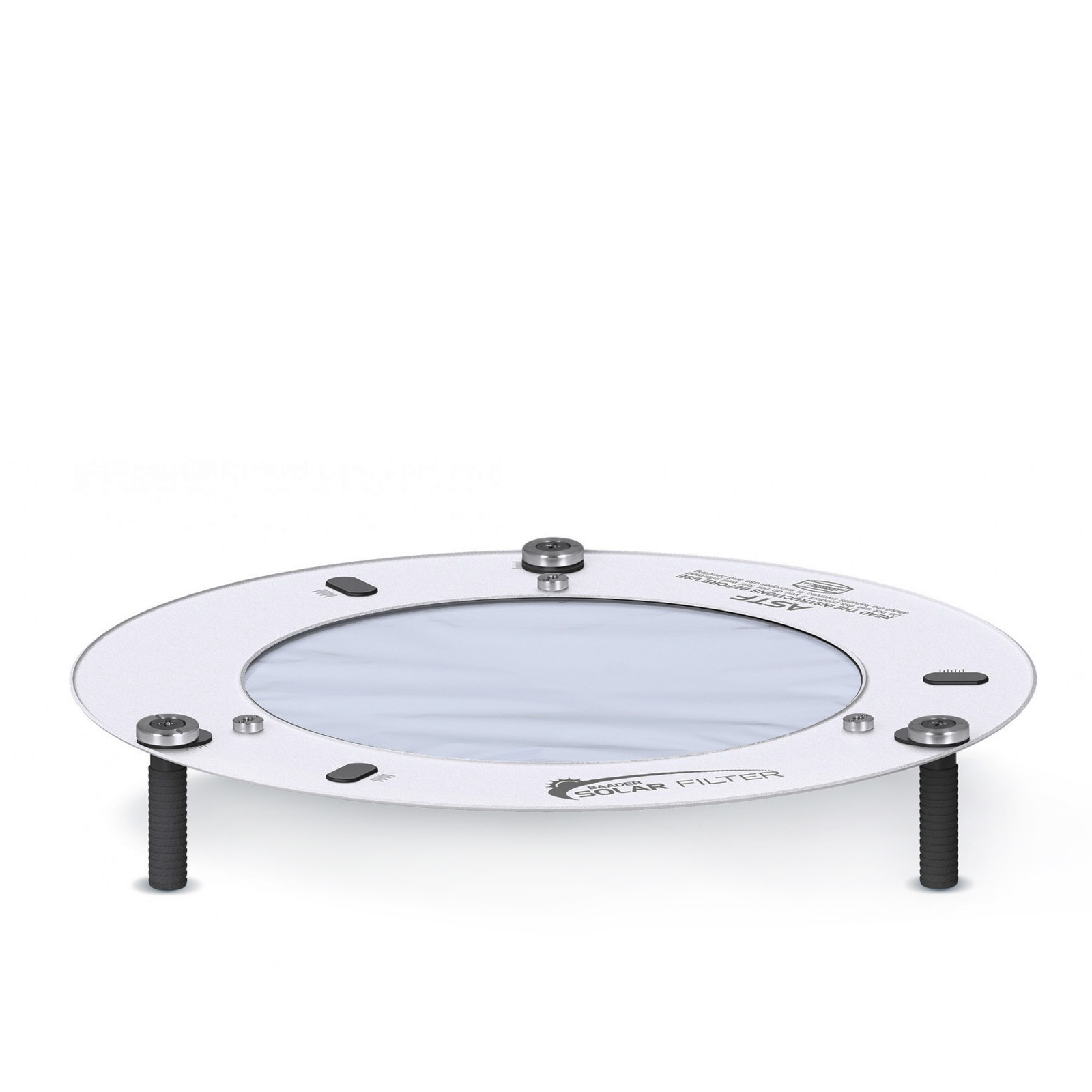

• Scope of supply: ASTF Filter with apertures from 80 to 180mm (200 – 280mm not yet available) come with two sets of centering bolts in 38mm length. 3 bolts with 10mm diameter and 3 bolts with 20mm diameter, adjustable to the tube diameter of your telescope or dew cap. In addition three safety straps with glue-pads and three rubber plugs to cover the holes that are not used, mounting instructions.
