About this product
This new Modular Filter Slider.
This new modular system enables customisation through interlocking modular top and bottom plates, making it more adaptable to various optical systems and adding better protection against light leaks.
New Modular Filter Slider Features

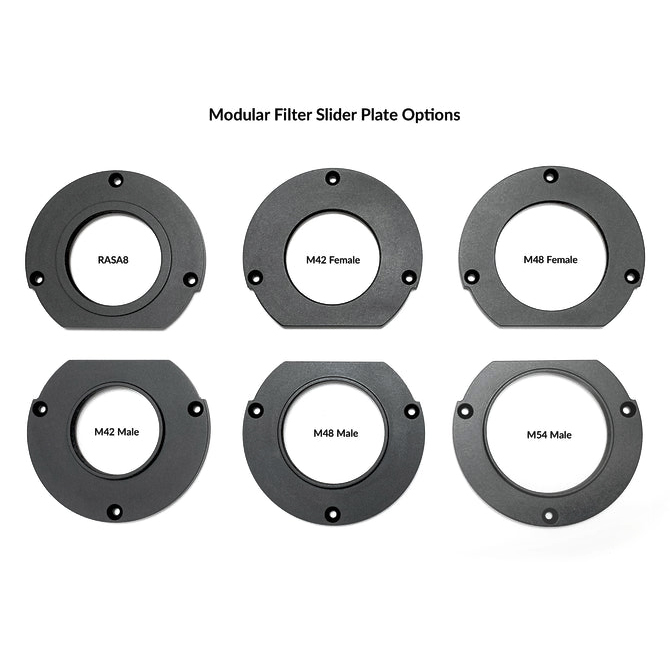

- Easily interchangeable top and bottom plates for maximum flexibility. Plate options include male M42, male M48, male M54, female M42, and female M48.
- New and improved filter drawers and interlocking threaded plates improve light leak prevention
- All threaded plates use common, standardised threads.
- All Filter Drawers now include removable knobs.
Modular Filter Slider height: 17.5mm
Modular Filter Slider diameter: 78.5mm or 3.09"
M42 Male/Female threads: 42mm x 0.75
M48 Male/Female Threads: 48mm x 0.75
M54 Male threads: 54mm x 0.75
You can choose from the following Adaptor combinations.
Top Plate Camera Facing Bottom Plate Scope Facing
M42 Male M42 Male
M42 Female (adds 1mm) M42 female
M48 Male M48 Male
M48 Male M48 Female
M54 Male M54 Male
Important notes about The Original Starizona Filter Sliders:
Original Filter Slider Filter Holders and Top Plates are NOT compatible with the New Modular Filter Slider. Likewise, the new Modular Filter Drawers, Top Plates, and Bottom Plates do not work with the Original Starizona Filter Slider.

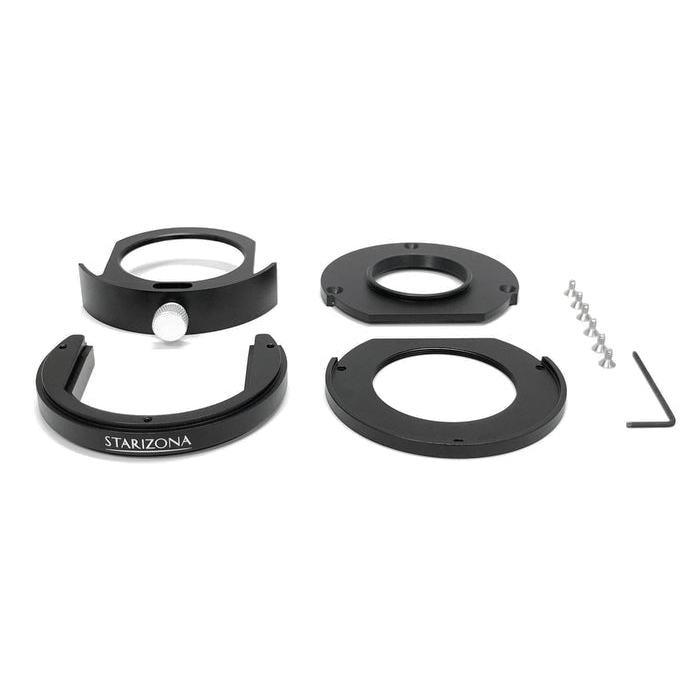

What's in the box
- The Modular Filter Slider Body
- 1x Top Threaded Plate
- 1x Bottom Threaded Plate
- 1x Filter Drawer w/ Knob
- 6x Screws to attach the Top and Bottom Plates
- 1x Allen wrench
