FeatherTouch 3" R&P Focuser FTF3015BA

FeatherTouch 3'' R&P Focuser FTF3015BA
£599.00

:

Incoming - Shipped 30-40 working days.

Model:  ft-feathertouch-ftf3015B-A
Part Number:  FTF3015B-A
Brand:  Starlight Instruments

Starlight Instruments

When only the very best will do!

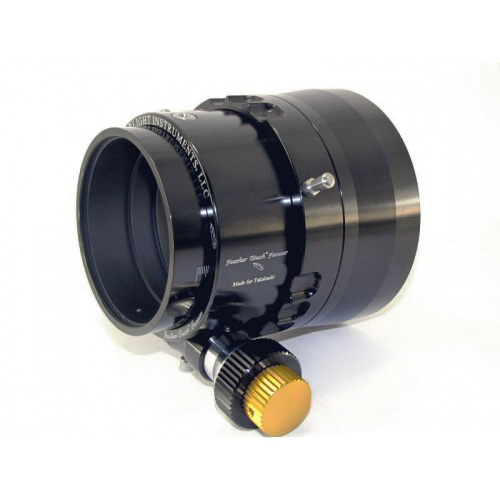

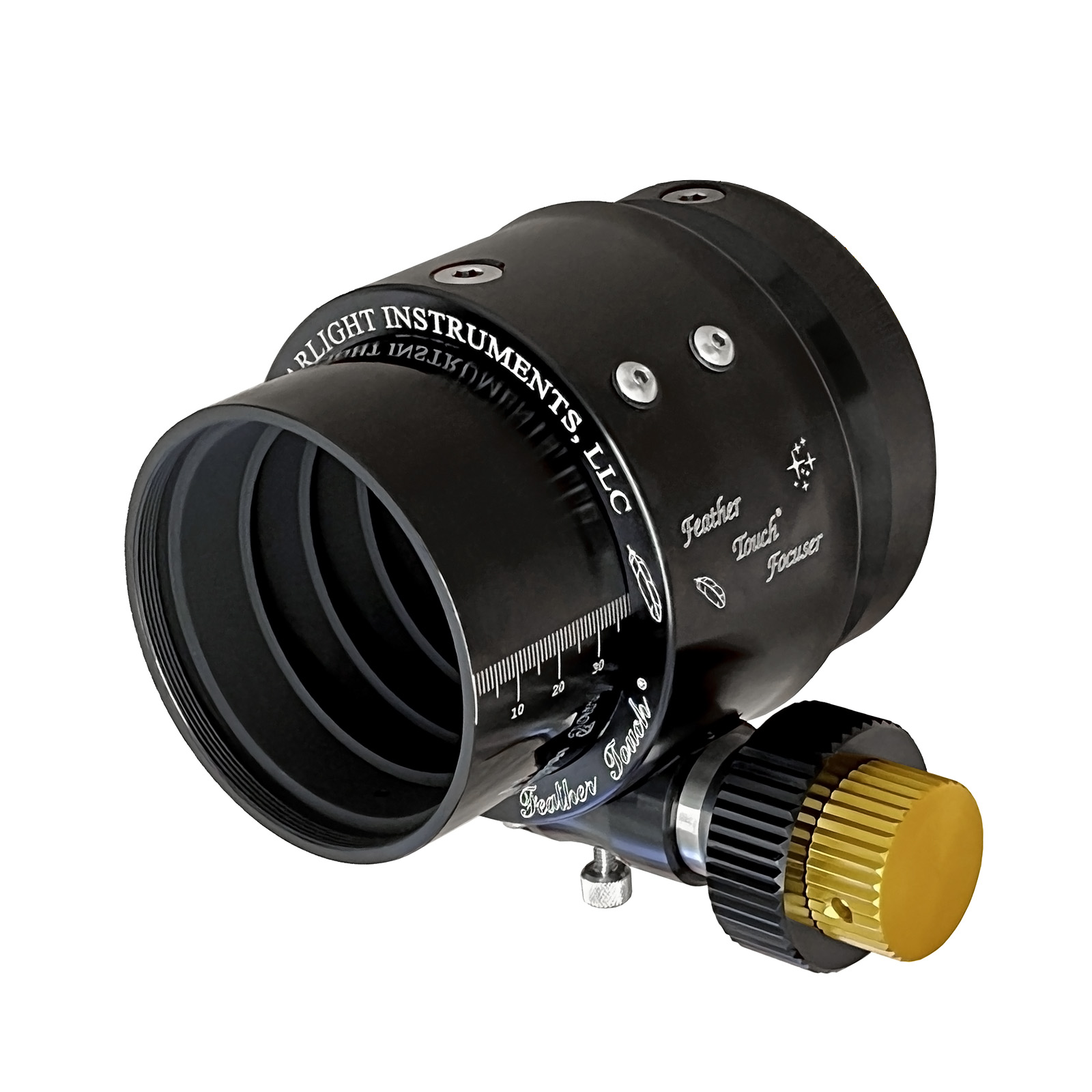

Starlight Instruments Feathertouch 3" diameter dual-speed rack-and-pinion focuser with 1.5" drawtube travel and 2" pushifit eyepiece/accessory holder with compression-ring and three lock-screws (shown in photo).

Please select mounting adapter to suit your refractor telescope.

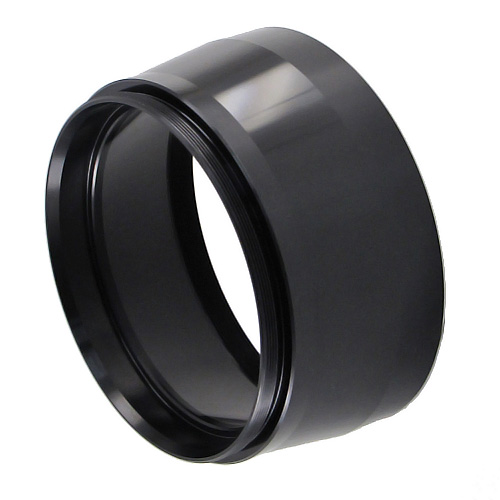

The A30-1901-1 TFPE coupled 'Standard' tube adapter (shown in photo & below) with M109 x 1mm male thread is included with all variations and enables 360-degree focuser rotation.

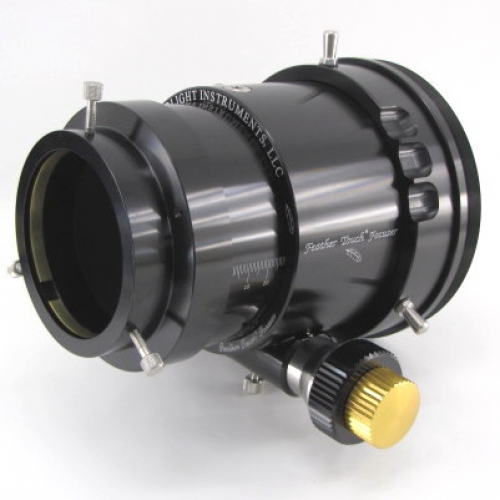

Please note: images / 360º Show the 3.5" Draw tube version.





360° Product Tour

FEATURES

  • Precision Rack & Pinion focus mechanism for maximum load bearing capacity
  • Integral TFPE coupled collar
  • 2" adapter with brass non-marring compression ring
  • Two focus knobs provide coarse focus and fine focus with a reduction ratio of 10-to-1 for unrivalled accuracy and repeatability.
  • Starlight Instrument's focuser brake system.
  • Designed and manufactured to the highest standard to ensure long life and no-fuss operation.



Specification

Draw Tube Thread  M75X1 Female Thread
Draw Tube Travel  1.5" (38.10 mm)
Lifting Capacity  13-15 lb.
Thread on entry (OTA/front) side of drawtube  M109x1 Male Thread
Reduction Ratio  10:1
Finderscope hole thread dimension  8-32
Draw Tube Drive Mechanism  Rack & Pinion
Racked In from Mounting Face  93.3 mm (3.67")
Racked Out from Mounting Face  136.35 mm (5.368")
Focuser weight  1.8 kg (4 lb.)

There are currently no specifications available for this product.
