StellaLyra 12" f/8 M-LRS Ritchey-Chrétien Telescope OTA

£2,999.00✓ 2 year warranty

:

1x in stock shipped 1-2 working days

About this product

Model:  stellalyra_12_rc

Incredible value 12" f/8 M-LRS Ritchey-Chrétien

An excellent choice for imaging smaller galaxy and nebulae targets.

The RC optical design delivers images free of coma, spherical and chromatic aberrations so is an excellent choice for colour or monochrome imaging.

A fixed position primary mirror eliminates image shift that normally occurs when focusing some other telescope designs. It also features a dual speed 3.25" linear bearing focuser.

Three CNC-machined spacer rings are included that provide flex-free focus extension when required.

Interior knife edge baffles reduce stray light for maximum contrast.

Fitted with a Losmandy-style dovetail mounting plate on the base and a handy Losmandy-style dovetail mounting plate on top for piggy-backing over accessories.

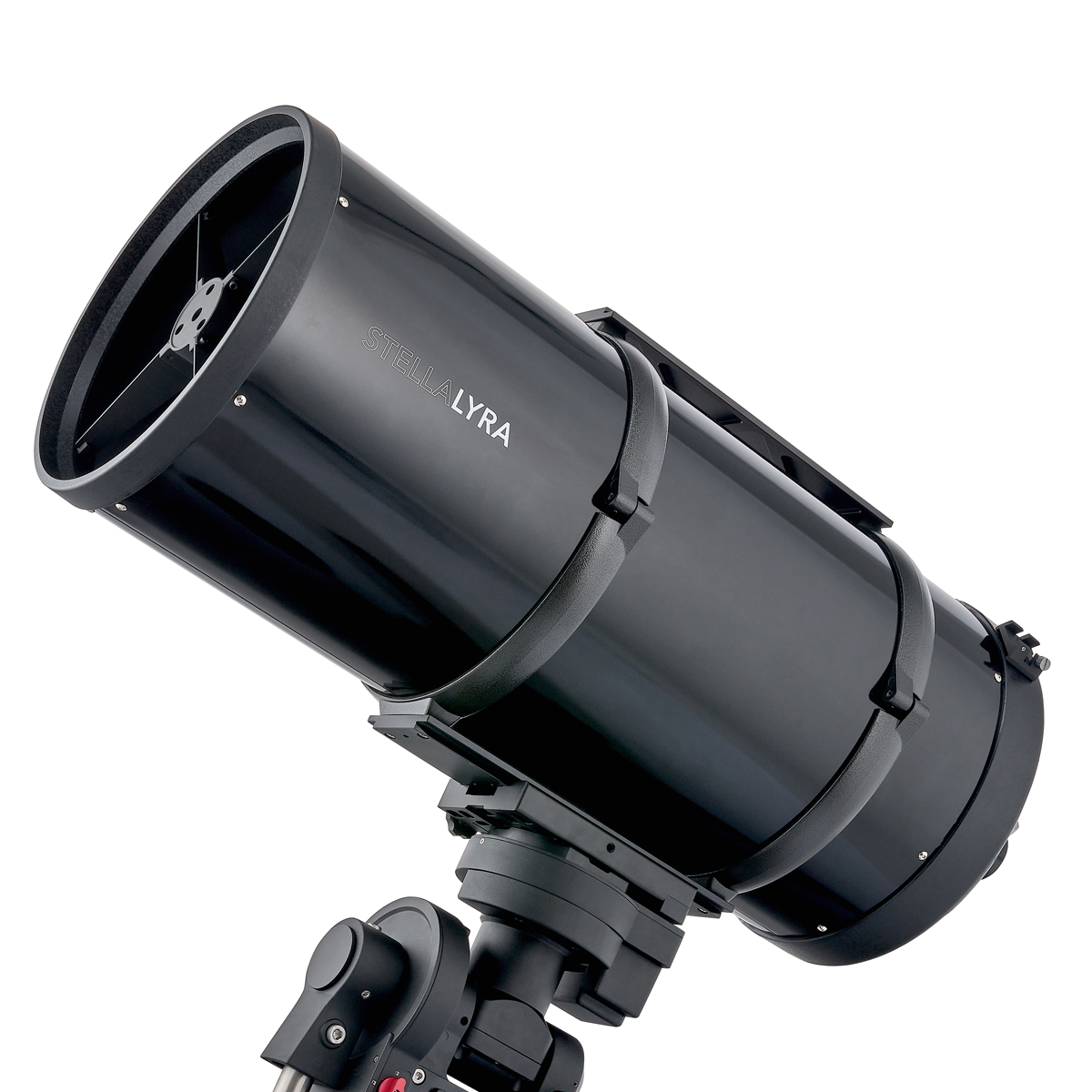

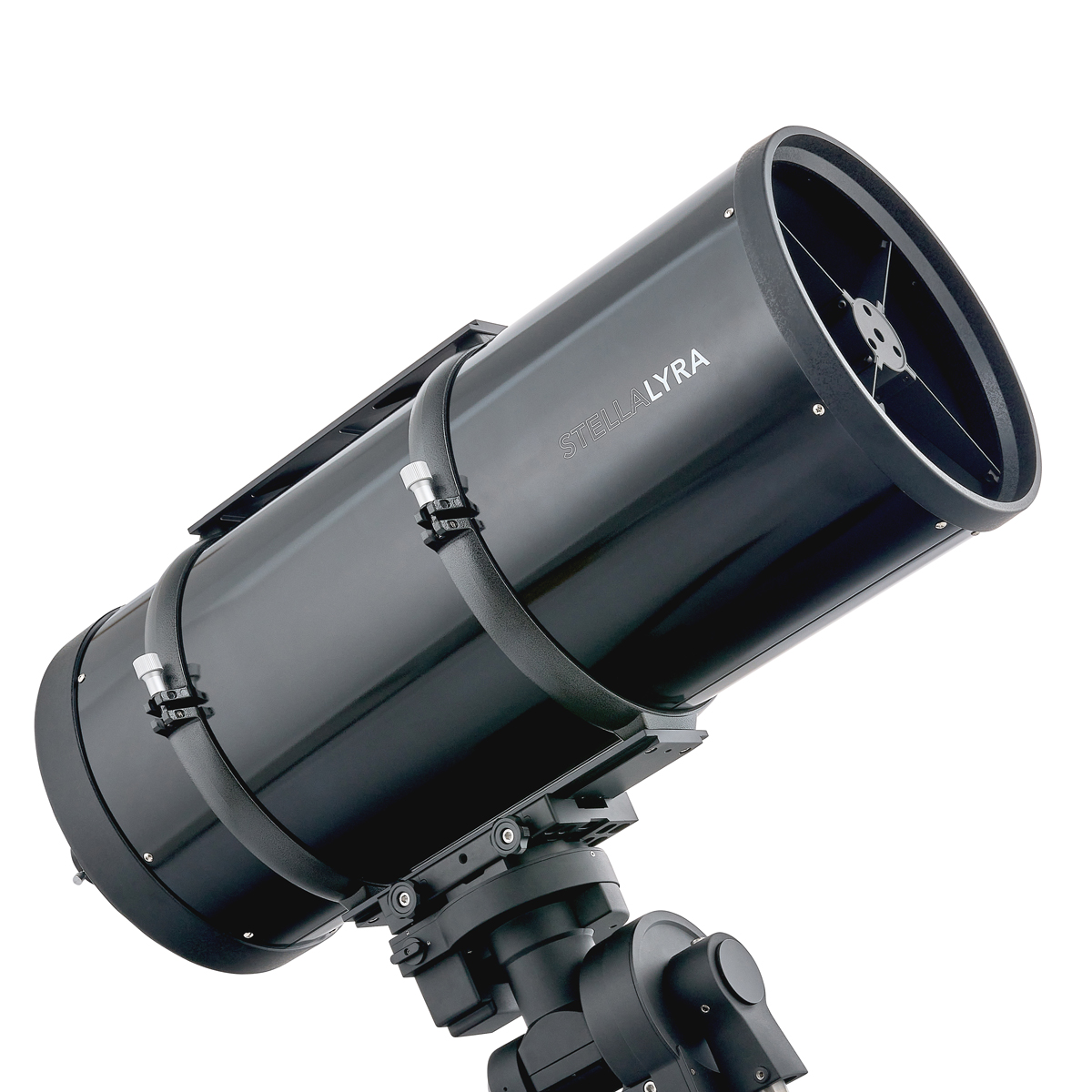

iOptron CEM120 mount pictured not included smiley

FEATURES

  • Coma free, chromatic aberration-free, spherical aberration-free optics
  • 300mm (11.81") optical aperture
  • 2400mm focal length
  • f/8 focal ratio
  • Fixed primary
  • Quartz primary and secondary mirrors
  • Primary mirror: Hyperbolic primary mirror with enhanced Al coating to 95% reflectivity
  • Secondary mirror: Hyperbolic with enhanced Al coating to 95% reflectivity
  • Multiple knife-edge baffle system

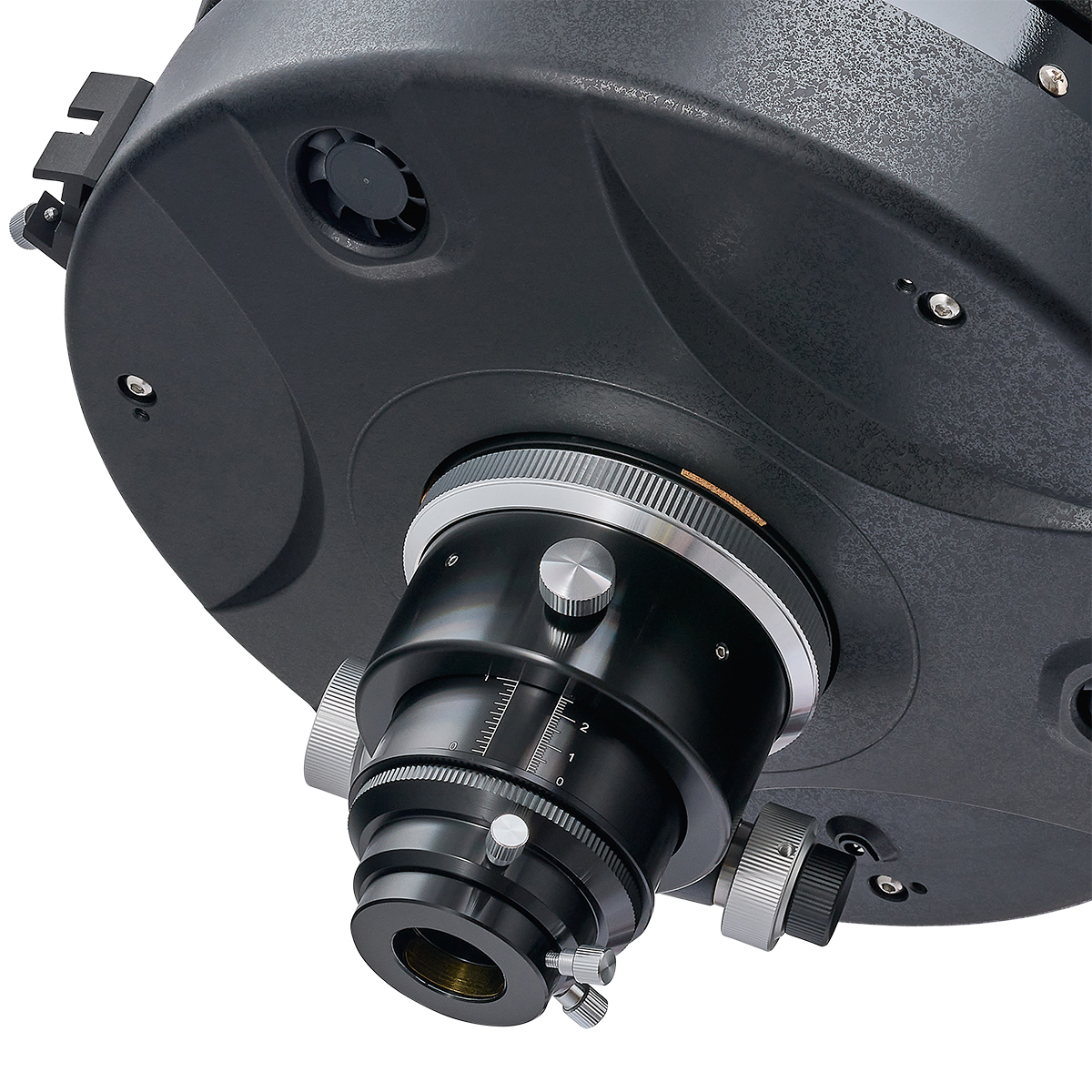

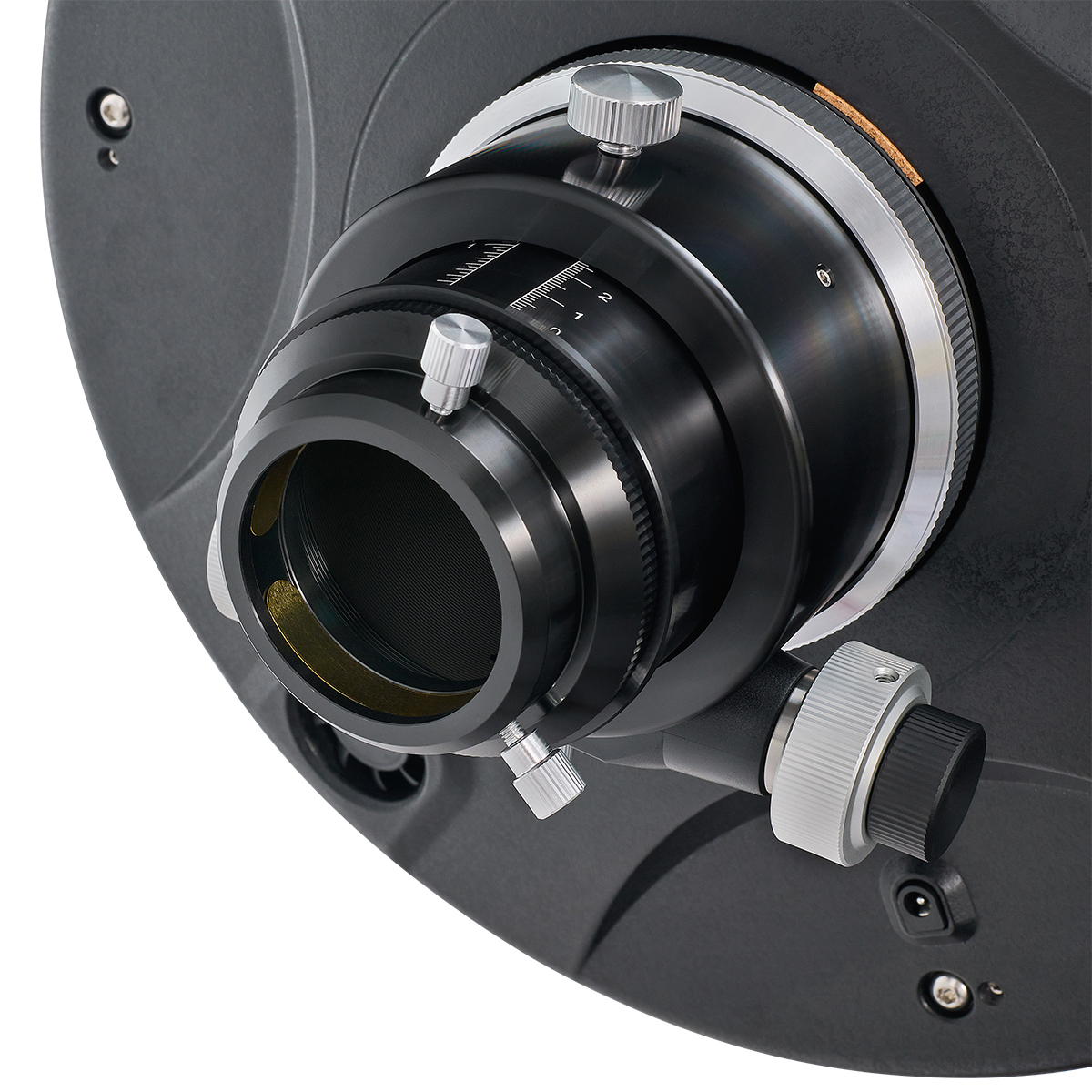

  • Dual speed 3.25" linear bearing Crayford-style focuser with 1.25" eyepiece adapter
  • Synta-style Finder scope base
  • Losmandy style mounting dovetail top and bottom
  • Integrated cooling fan system

Extensions

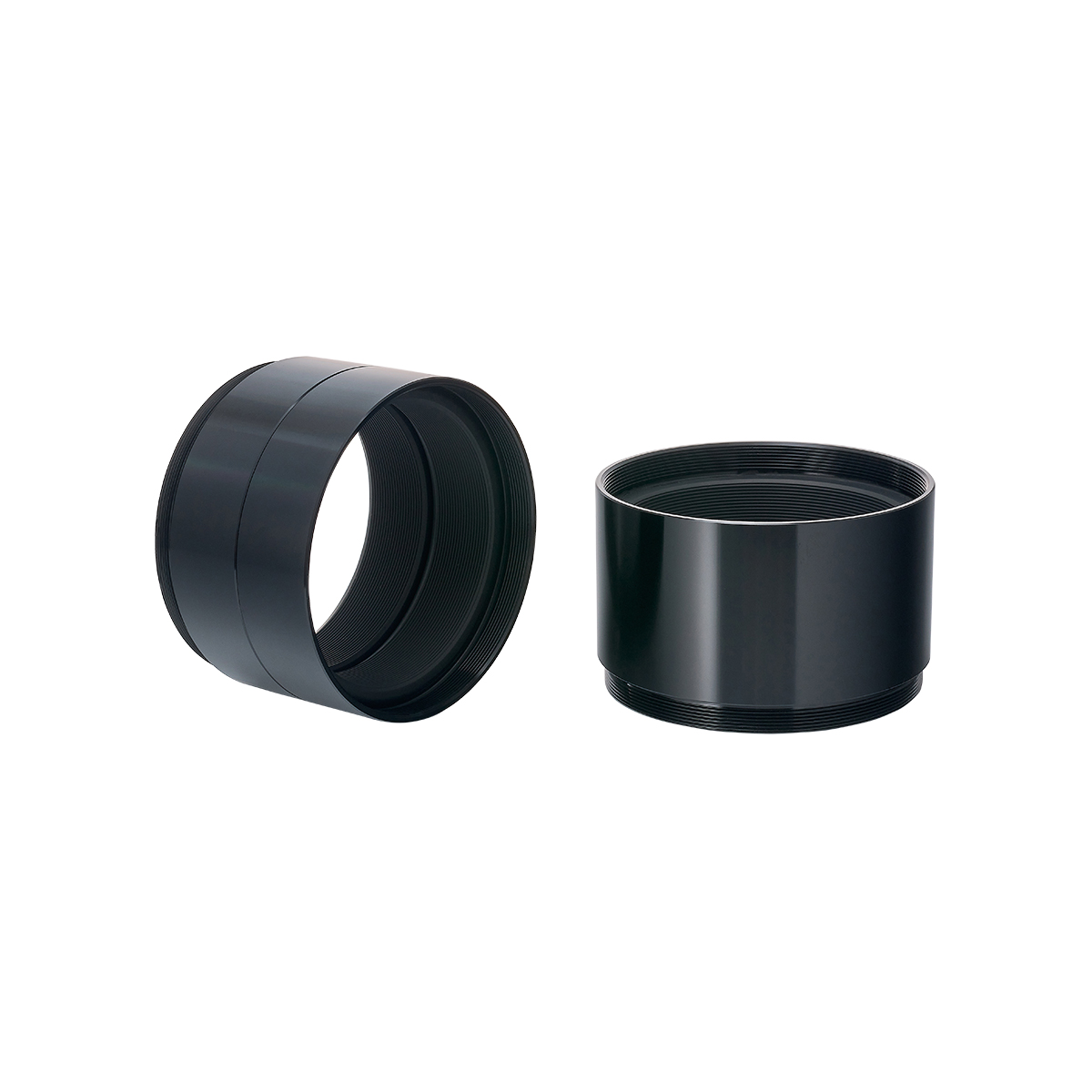

The telescope is supplied with 2x 25mm and 1x 50mm CNC-machined focuser extension rings with matt-black interiors.

Telescope Field of View Simulator


What's in the box

  • Telescope OTA
  • 2" to 1.25" Adapter
  • 2x 25mm Focuser Extension Adapters
  • 1x 50mm Focuser Extension Adapters

Specifications

  • 12" F/8 M-LRC Ritchey-Chrétien OTA (black)
  • Ritchey-Chretien optical assembly with 300mm f/8 primary mirror
  • Dual speed rotatable 3.25" Crayford-style linear bearing focuser with 2" eyepiece holder and 1.25" eyepiece adapter
  • Losmandy D-plates for mounting (2x)
  • 1x 50mm / 2" and 2x 25mm / 1" extension rings
  • Synta-style finder base (finder not included)
  • Primary and secondary dust covers
  • Optical design: Ritchey-Chretien reflector
  • Aperture: 300mm (11.81")
  • Focal ratio: f/8
  • Focal length: 2400mm
  • Primary mirror: Hyperbolic primary mirror with enhanced Al coating to 95% reflectivity
  • Secondary mirror: Hyperbolic with enhanced Al coating to 95% reflectivity

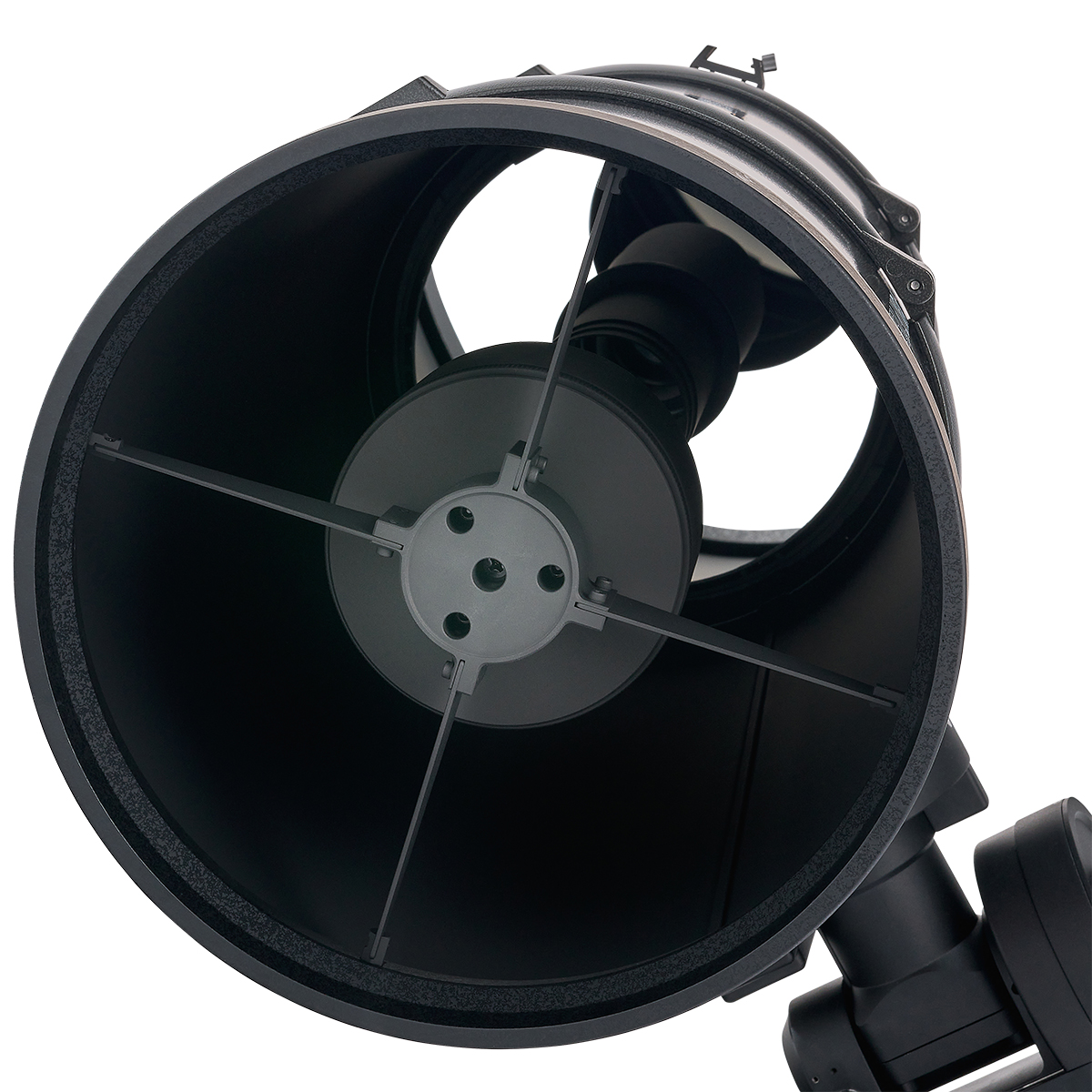

  • Secondary mirror holder: 4-vane all metal spider
  • Tube outside diameter = 361mm / 14.2"
  • Tube length = 864mm / 34"
  • Tube weight: 24kg / 53lb
  • Shipped size: 114cm x 53cm x 53cm / 45" x 21" x 21"
  • Shipped weight: 32kg / 72bs
