Askar FMA230 ED APO Telescope / Camera Lens
  Zoom
Askar FMA230 ED APO Telescope / Camera LensAskar FMA230 ED APO Telescope / Camera LensAskar FMA230 ED APO Telescope / Camera Lens
Askar FMA230 ED APO Telescope / Camera LensAskar FMA230 ED APO Telescope / Camera Lens

Askar FMA230 ED APO Telescope / Camera Lens

£669.00
  (1 Review)
✓ 2 year warranty

:

1x in stock shipped 1-2 working days

About this product

Model:  askar_fma230

Optical Bench Test

At FLO, we check all our Askar telescopes on an optical bench before dispatch.

So you can be confident your telescope will have well-figured optics, negligible false colour and spherical aberration, and no astigmatism (the bane of any optical system!). Star shapes will be round, not triangular, oval or egg-shaped!

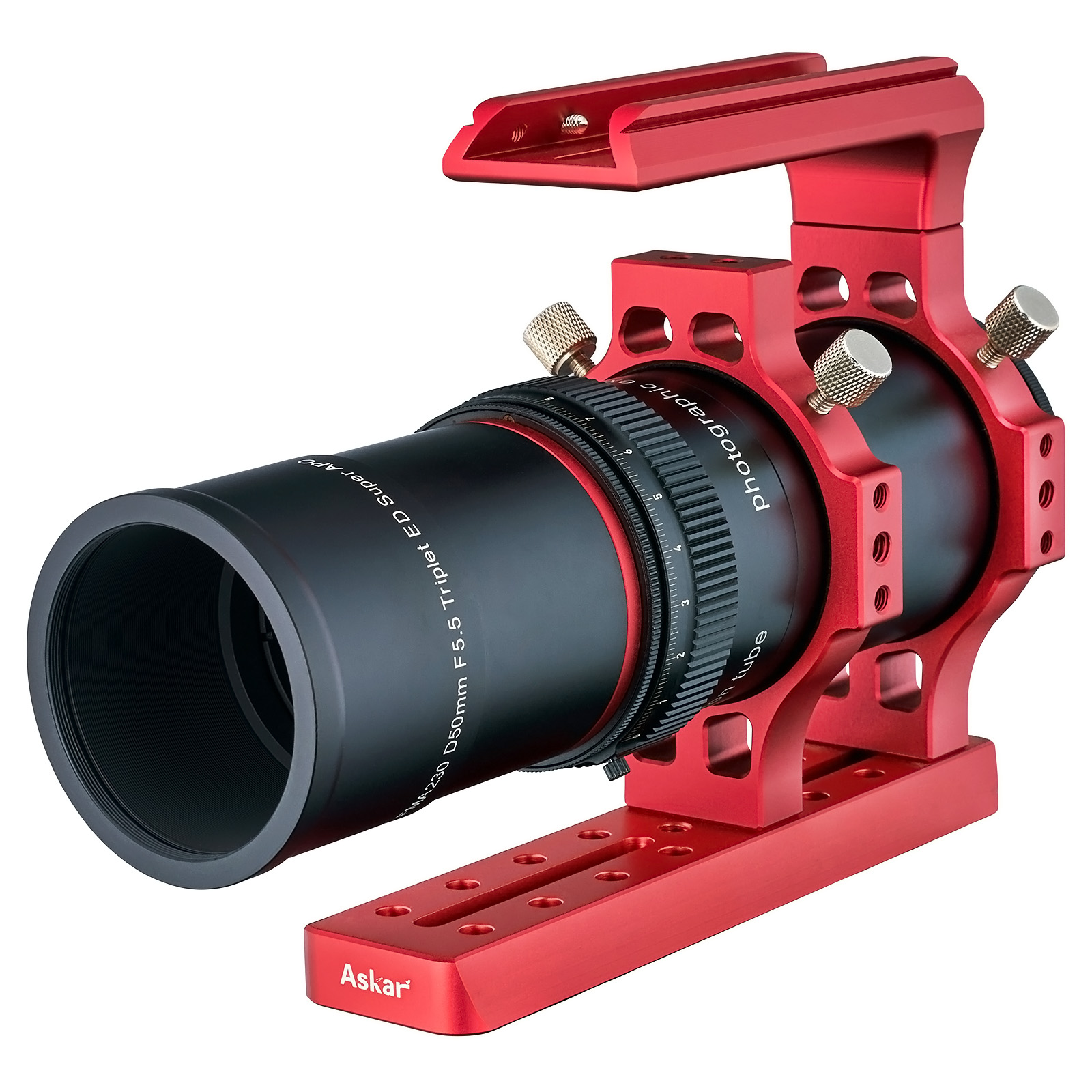

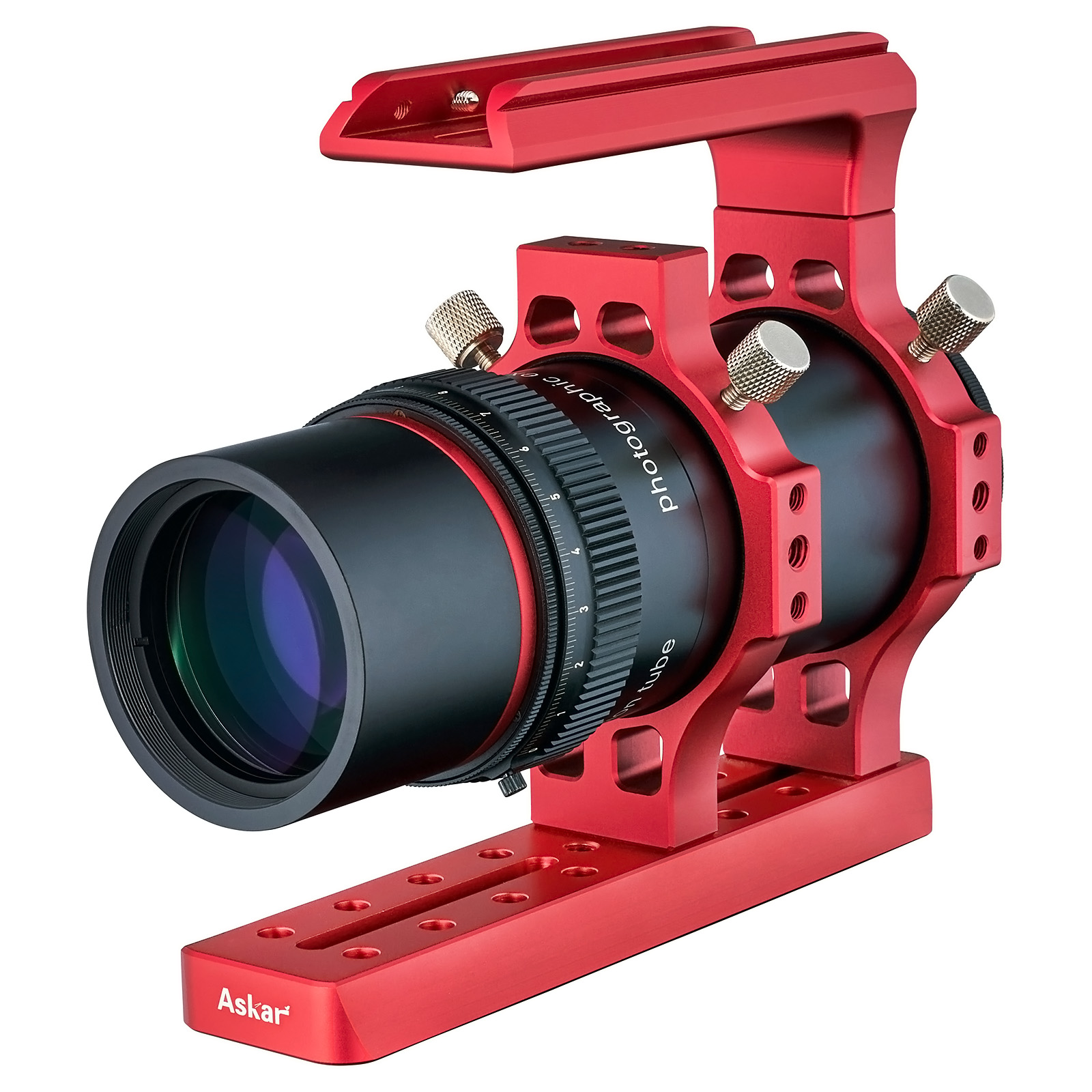

The Askar FMA230 is a highly versatile ED triplet telescope and camera lens.

The three-element, fully multicoated triplet design includes two ED lenses to enhance contrast and minimise chromatic aberration.

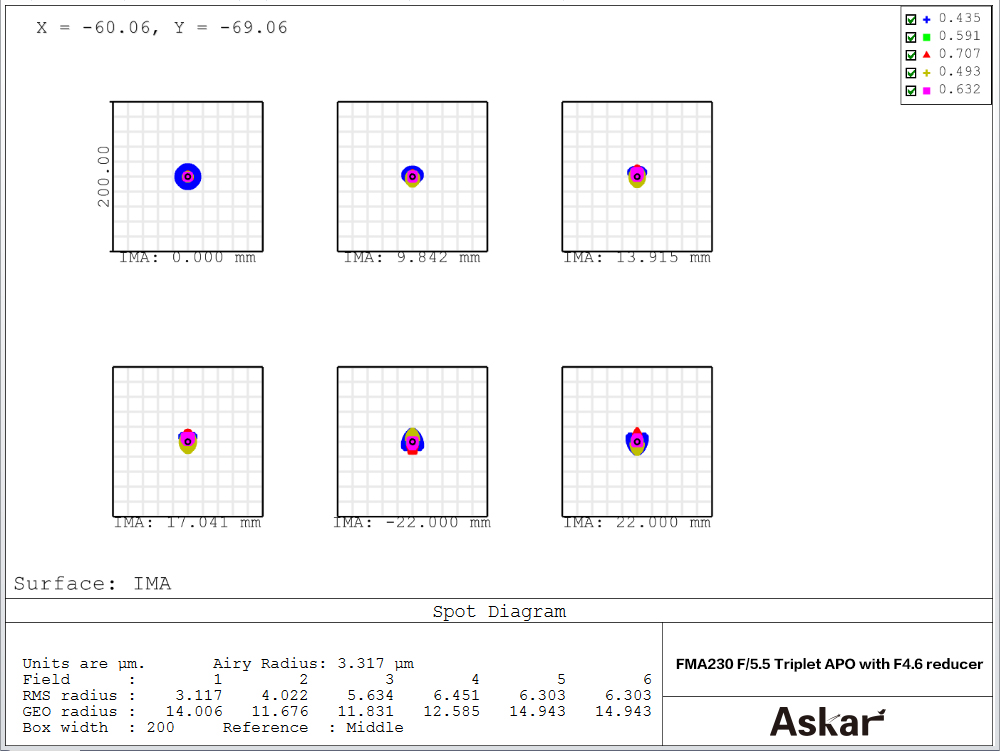

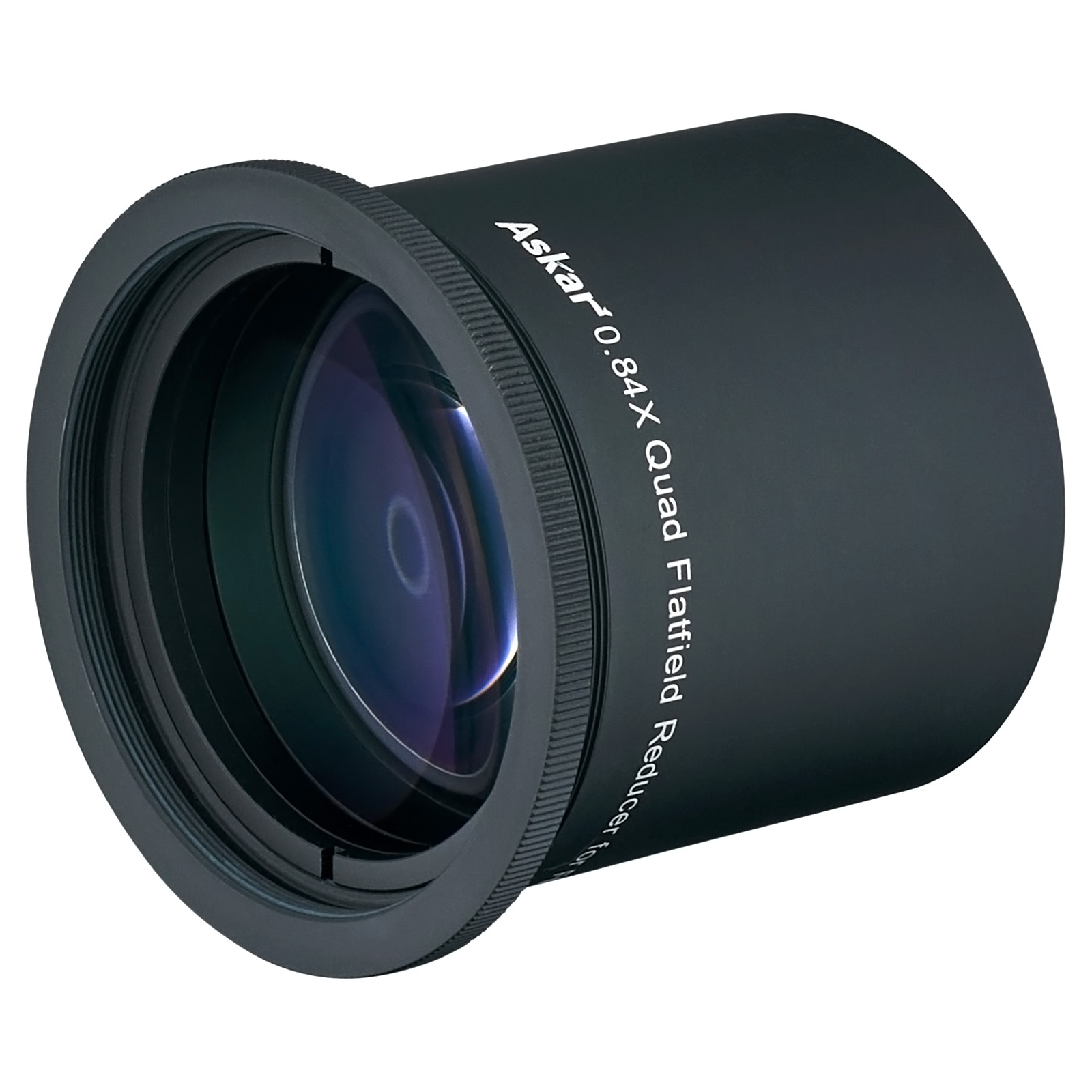

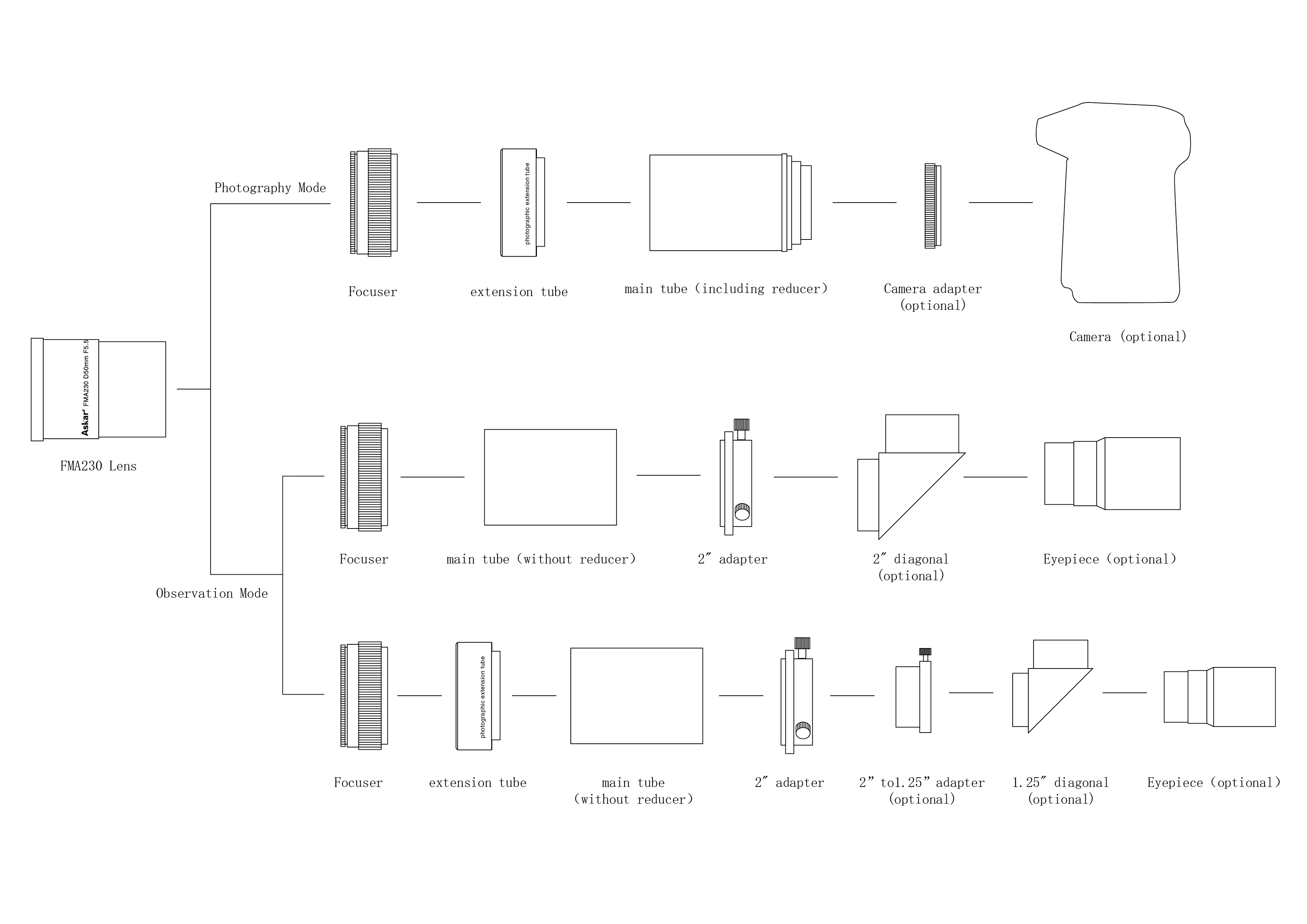

When used with the supplied 4-element 0.84x reducer/corrector, the FMA230 is a fast, 7-element, highly corrected, F4.6 wide-field astrograph.

Delivers sharp, high-contrast images when used with a DSLR, mirrorless camera, or astronomy-optimised imaging camera.

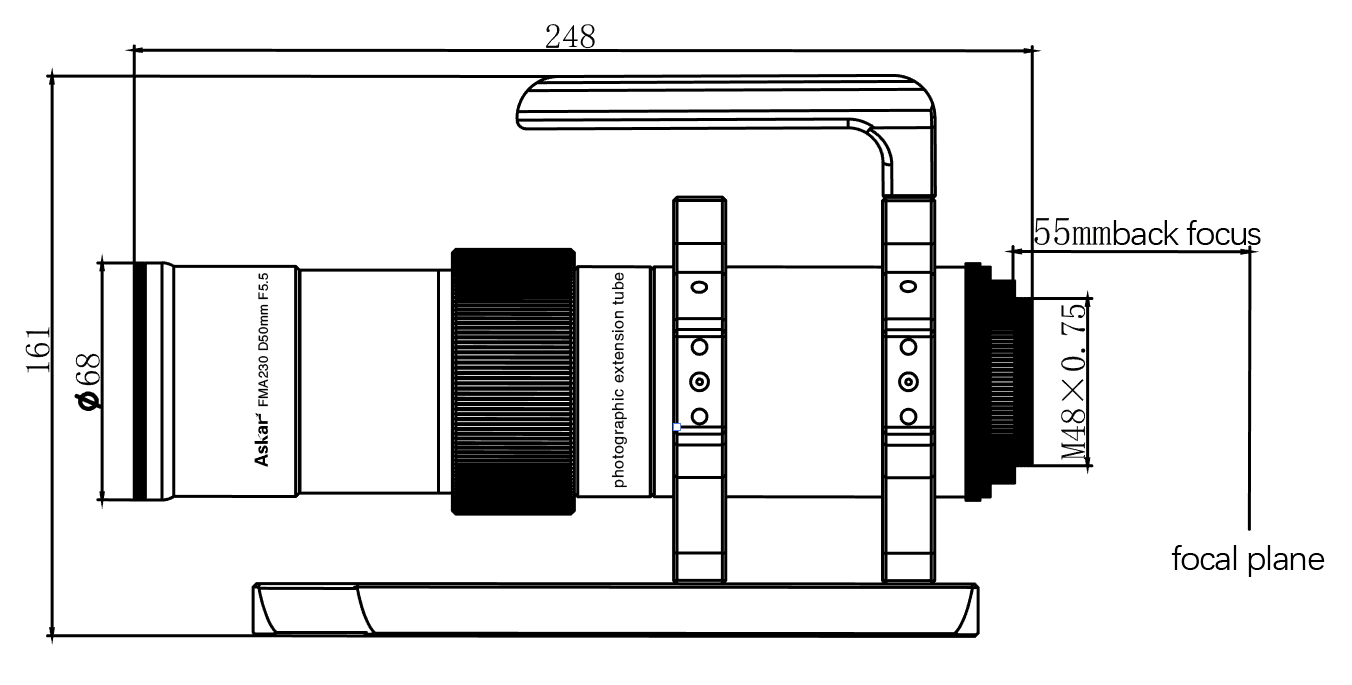

The smooth helical focuser, with M48x.75 thread, has the usual 55mm back-focus distance.

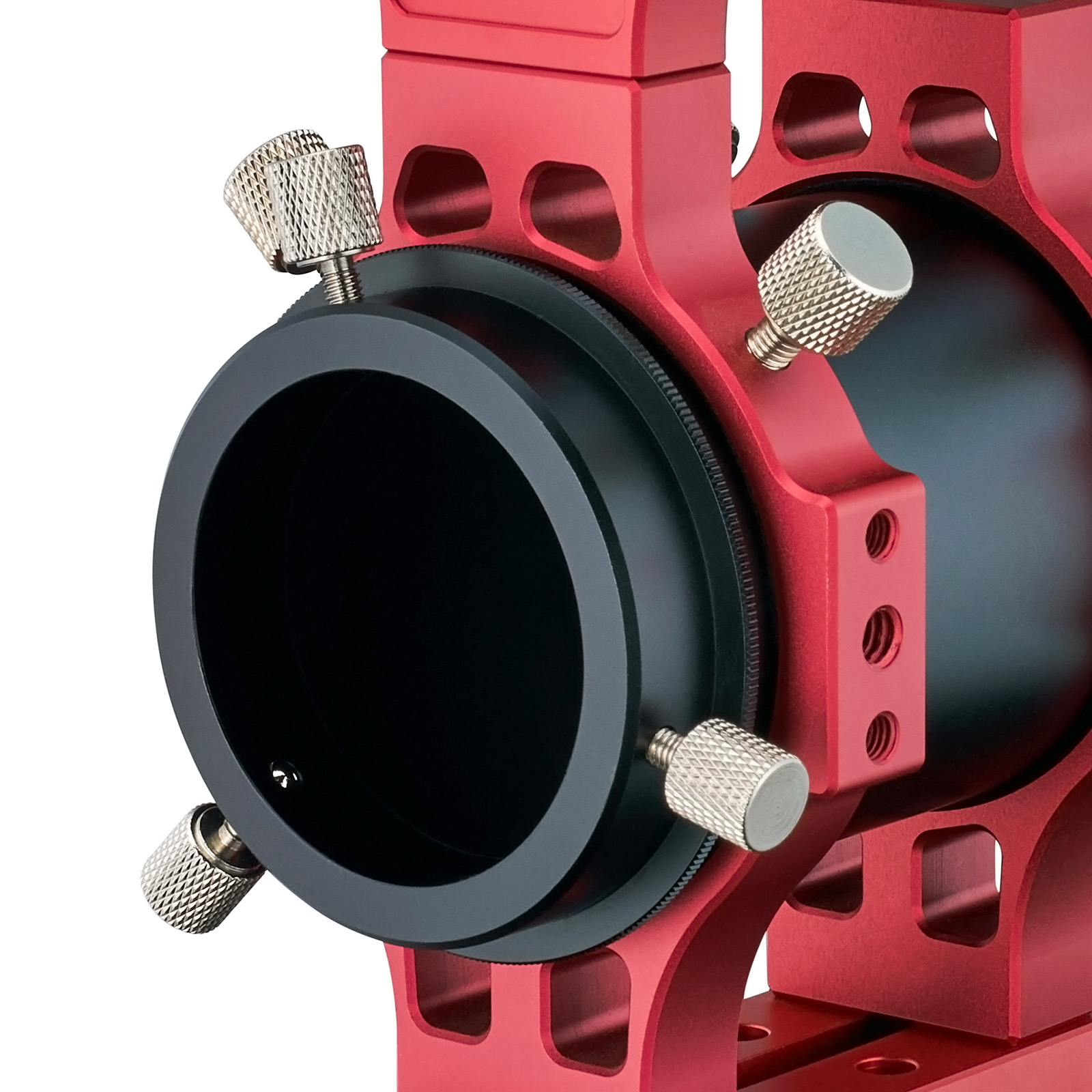

It is supplied with red anodised aluminium tube rings and a Vixen dovetail mounting plate.

The mounting rings, Vixen plate, and handle can be removed for use with a DSLR or mirrorless camera for handheld shooting, or when the camera is mounted to a tripod.

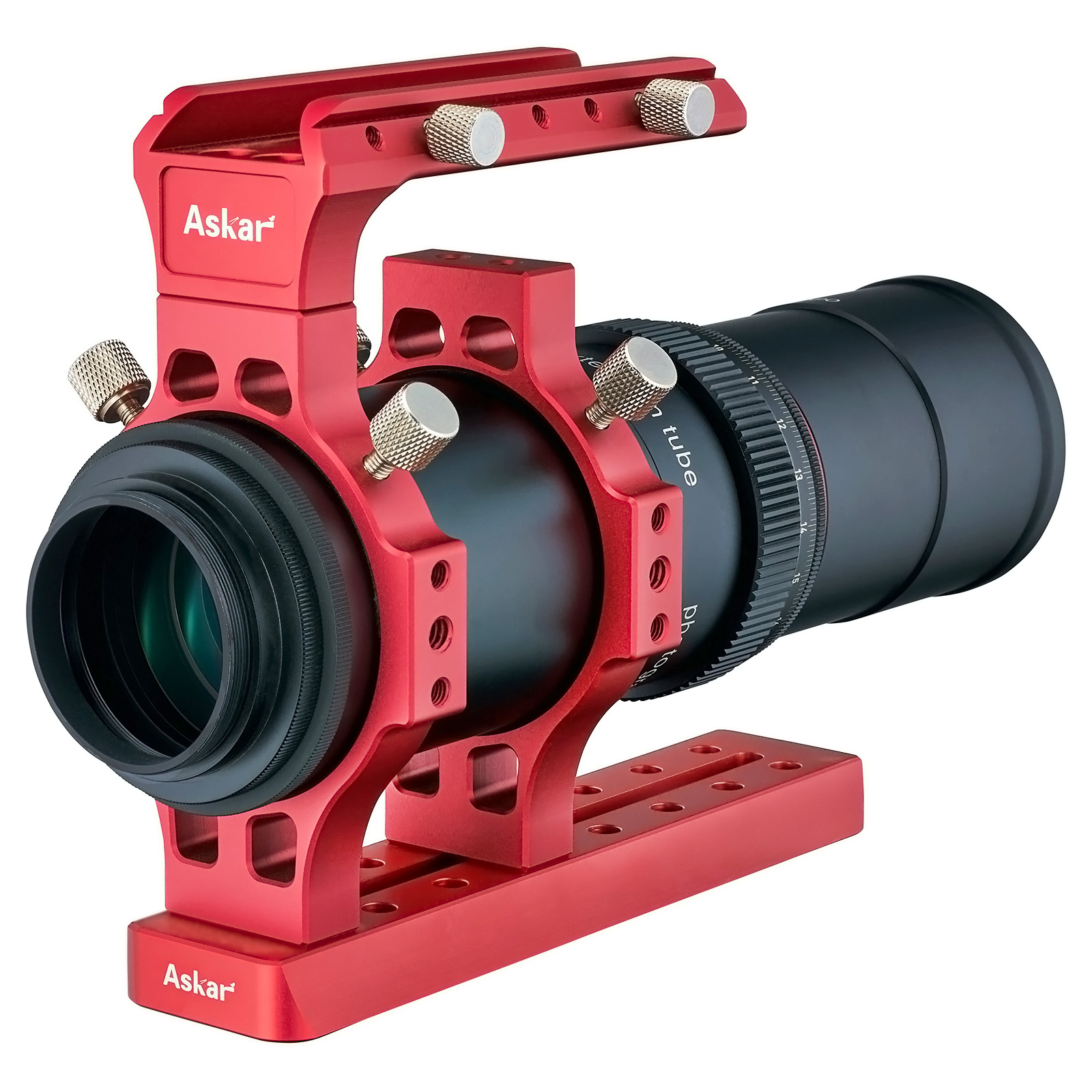

It also includes a convenient carrying handle that doubles as a mount for finders, guide scopes and a ZWO ASiair (all available separately).

The top of the handle is machined as an Arca-Swiss tripod plate, enabling you to ‘invert’ the scope and mount it easily on a photo tripod.

When used for visual astronomy at F5.5, the FMA230 also provides wonderful wide-field views. (It includes a 2" eyepiece adaptor plus extensions so can be used with both 2" and 1.25" diagonals).



Specifications
  • Aperture: 50mm
  • Focal Length: 275mm at F5.5
  • Focal Length 230mm with Reducer/Corrector
  • Focal Ratio: F5.5
  • Focal Ratio with Reducer/Corrector: F4.6
  • Objective Type: Triplet Dual ED Air Spaced APO
  • Reducer/Corrector: 4 Elements for full-frame astrophotography
  • Helical Focuser Travel: 30mm
  • Weight: 1095g
  • Back End Adaptor: M48x.75 for photographic use. 2" adaptor for visual use









What's in the box

  • FMA230 Body
  • Pair of tube rings
  • Vixen dovetail plate
  • Carrying handle/Guidescope Mount
  • 2" Eyepiece Adapter
  • Manual

Customer reviews

Average Rating (1 Review):
Write a Review and share your opinions!

Rating (max 5):
Perfect
22 December 2022  |

I tried it for few days now and it was more than what I excepted, good quality, comes with tube rings for easy camera rotation, 2 filter thread with the reducer tube and more. Highly recommended for wide field astrophotography.
