About this product

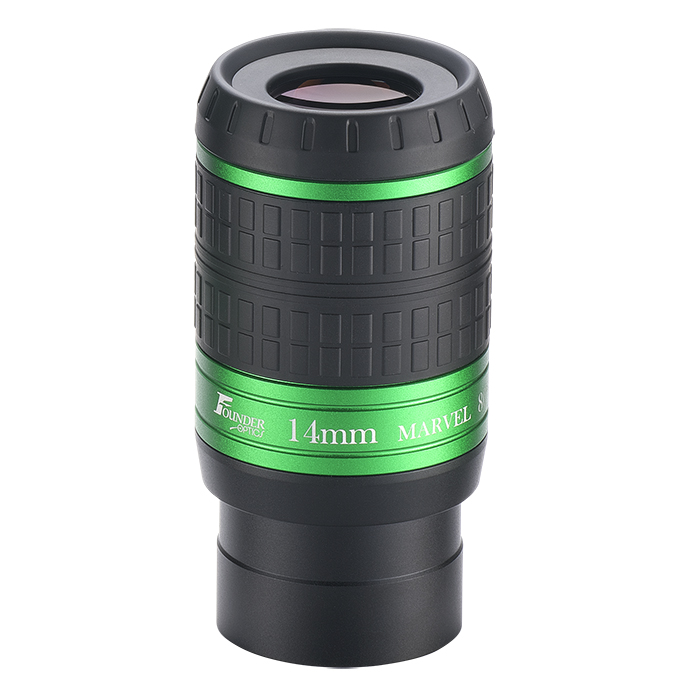

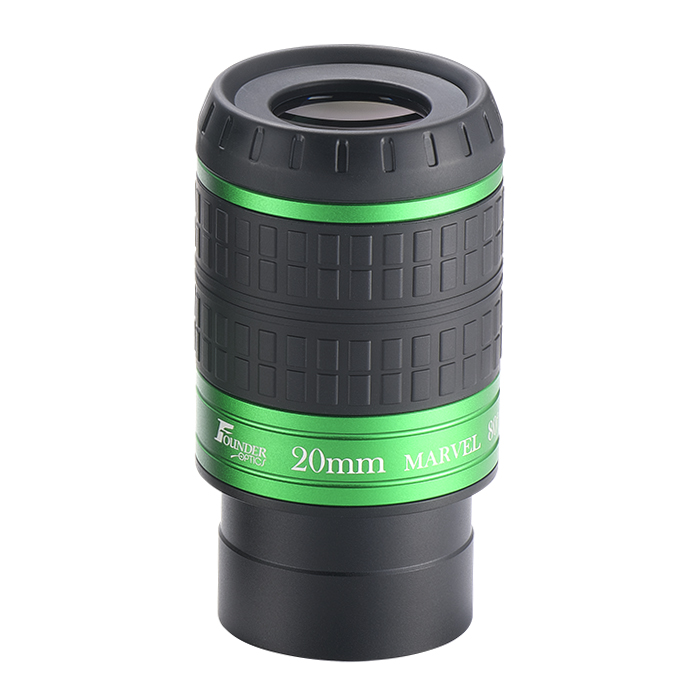

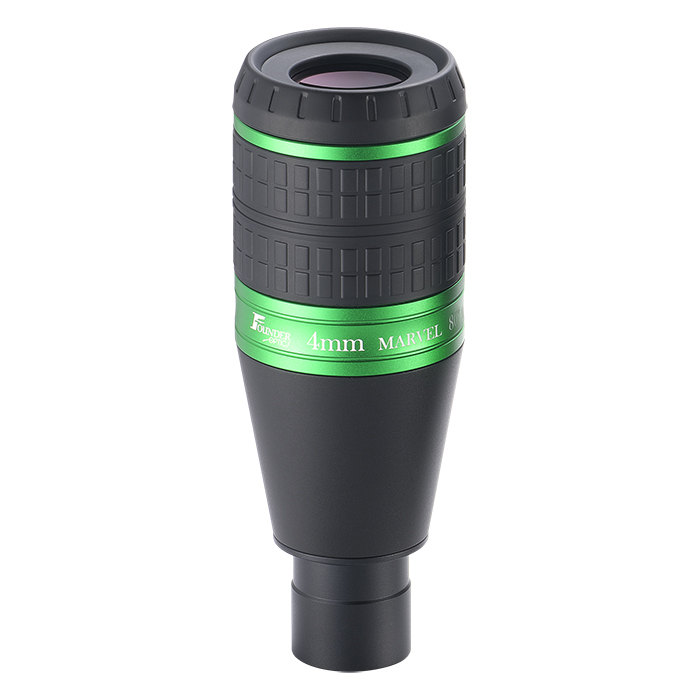

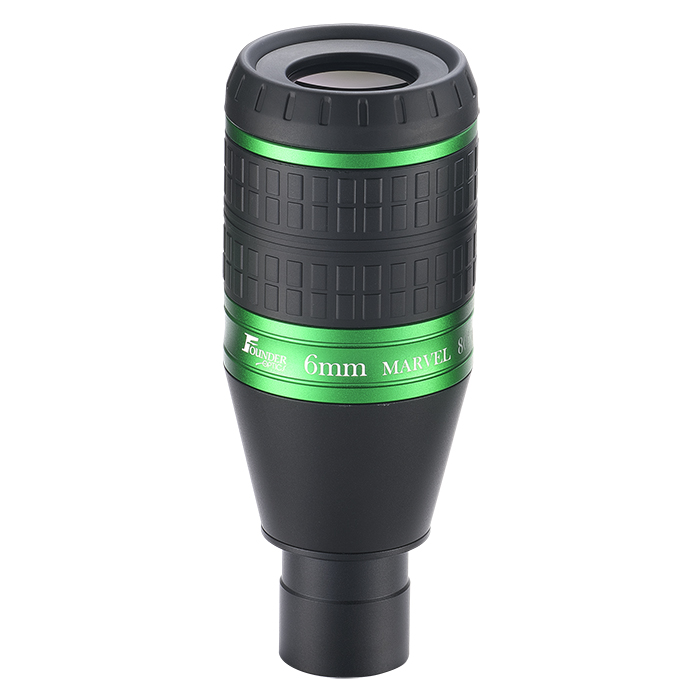

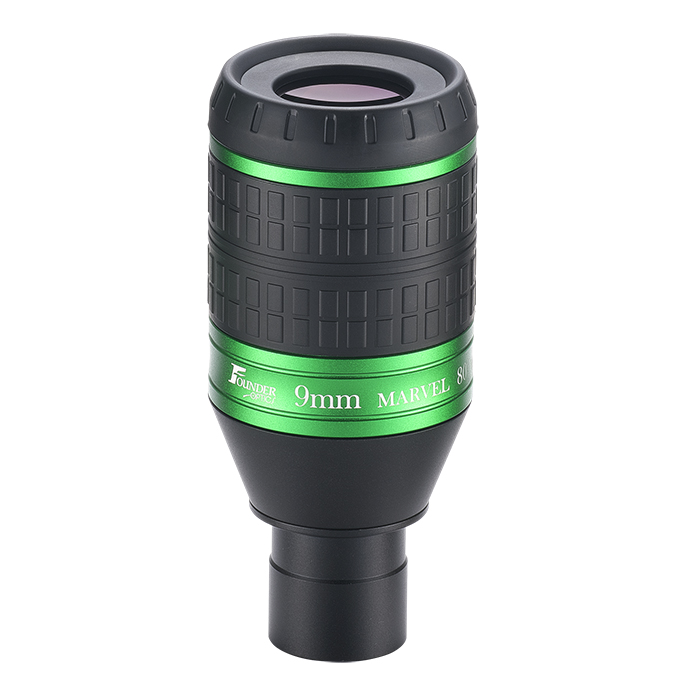

Founder Marvel Ultra Wide Eyepieces.
Founder introduced their Marvel Ultra Wide Eyepiece series for those who appreciate premium design and implementation.
Ultra Wide Field of View
The Marvel range provides a huge 80-degree apparent field of view with a generous 20mm eye relief and a 30mm diameter eye lens.
Premium Lanthanum Lenses
The fully multi-coated Lanthanum lenses provide a wonderful bright image with very low aberrations and superb image sharpness.
High Magnification

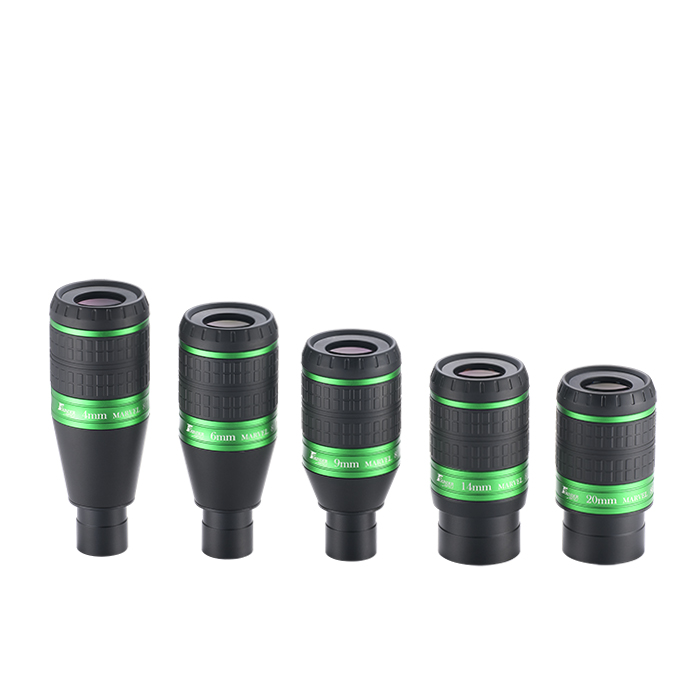

The Marvel range is available in 4mm, 6mm and 9mm focal lengths (all 1.25") plus 14mm and 20mm (all 2") focal lengths.
Milled Safety Undercut
A milled safety undercut in the nosepiece prevents the eyepiece from falling out if the focuser eyepiece holder loosens.
High-Quality Surface Finish
Strong machined aluminium construction with a matt finish.
Durable Rubber Grip
Soft Rubber Grips are comfortable to use and enhance grip.
Specifications
Model No. | M-LERW-4 | M-LERW-6 | M-LERW-9 | M-LERW-14 | M-LERW-20 |
Focal Length (mm) | 4 | 6 | 9 | 14 | 20 |
Eye Relief (mm) | 20 |
Field of View | 80 degree |
Barrel Size | 1.25’’ | 2’’ |
Lens Construction | 8 elements in 5 group | 8 elements in 6 group |
Lens Coating | Fully Multi-coated |
Material | Aluminum with rubber armour |
Eye Cup | Founder Optics Logo Rubber Eye Cup |
Weight(g) | 553 | 575 | 563 | 586 | 554 |
Customer reviews
Average Rating (1 Review): | |
08 April 2023 | Jesse
These are the same EPs as the Orion LHD & StellaLyra LER 80°, all made by Long Perng. The eyecups are a little janky, but with a little engineering you can get them adjusted to a comfortable, individualized viewing height. Once they are adjusted - *wow* - comfortable and sharp to the edge of the field. Transmission may be slightly behind other premium EP lines, but not by much. Nothing close to this price approaches their performance. I like the 20 & 14 best; the 9 is a little more finicky on bright targets, but remains a deep sky weapon-of-choice. Strongly considering rounding out the entire line by picking up the 6 & 4, even though I don't need them.
