StellaLyra 8" f/5 M-LRN Newtonian Reflector with 2" Dual-Speed Focuser

£469.00✓ 2 year warranty



8x in stock shipped 1-2 working days

About this product

Model:  stellalyra_8_f5_newt
Part Number:  GS 630

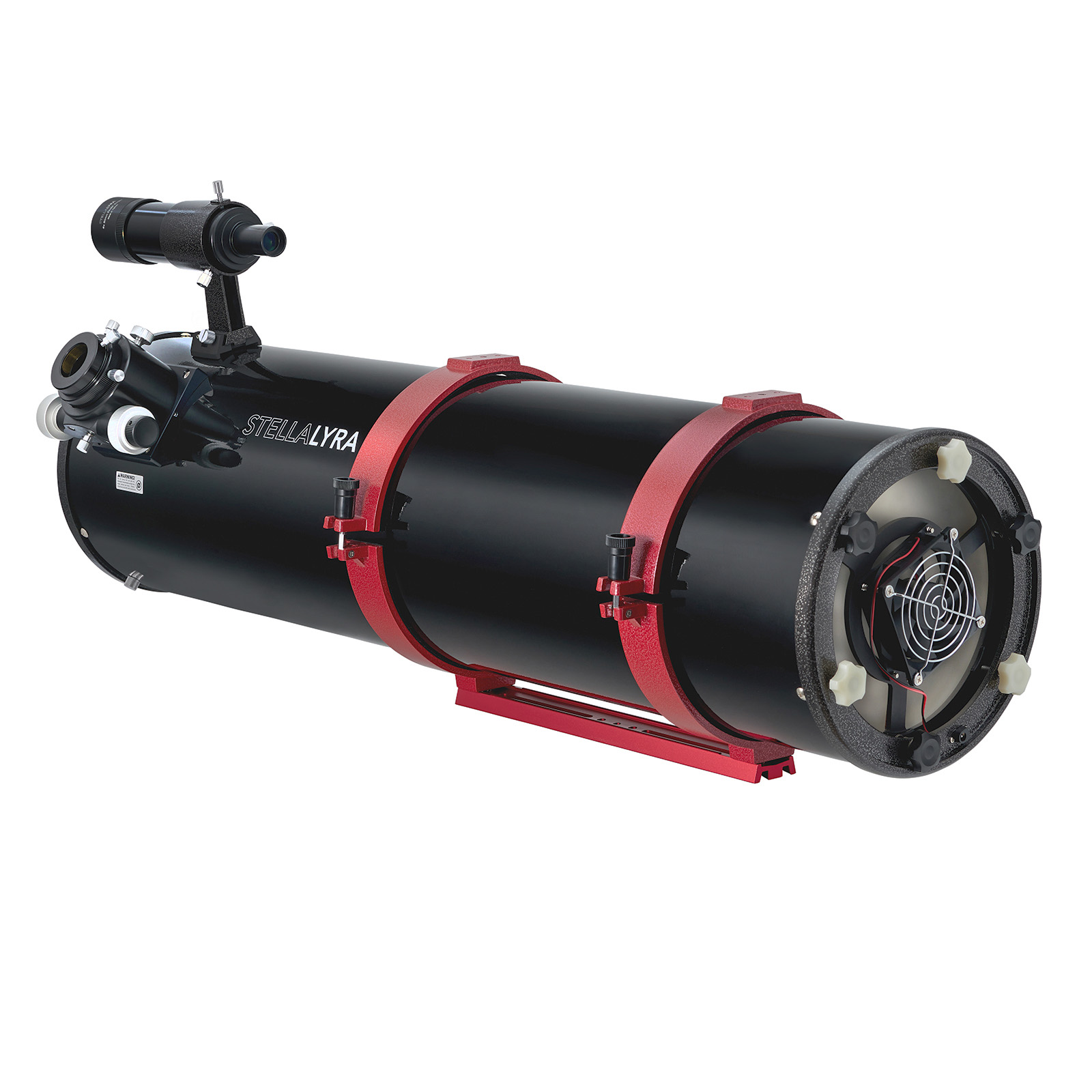

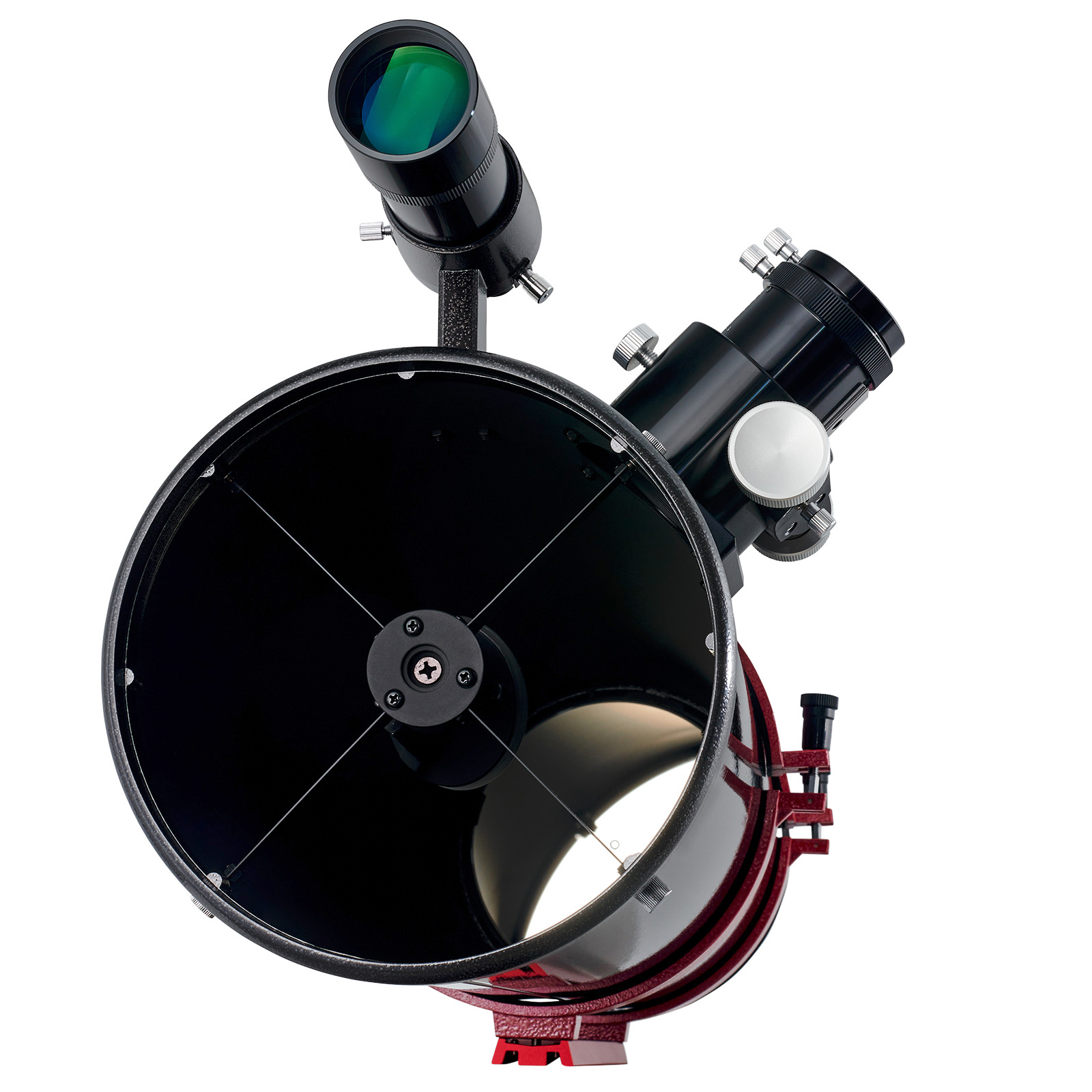

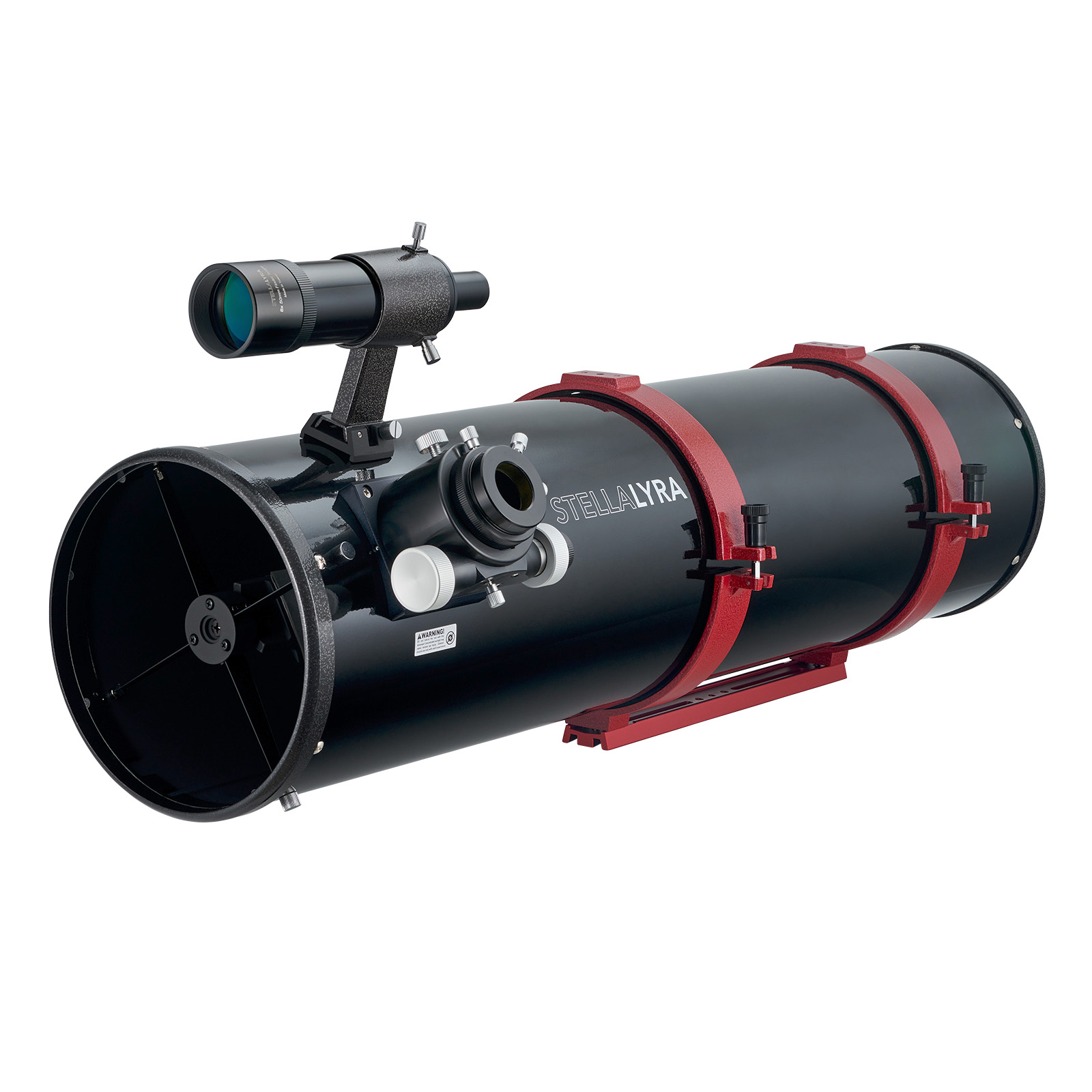

Stella Lyra 8" f/5 Newtonian Reflector Optical Tube

Designed and manufactured to a very high standard by Guan Sheng Optical (GSO) in Taiwan.

The Stella Lyra 8" F5 Newtonian offers high-quality optics in a compact optical tube.

With its f/5 focal ratio, this telescope has excellent astrophotography potential whilst being a little easier to collimate than its F4 brother.

All StellaLyra imaging Newtonian telescopes feature GSO aluminised parabolic primary mirrors with minimum 93% reflectivity and a silicon-dioxide protective overcoat to ensure the surface remains bright for years.

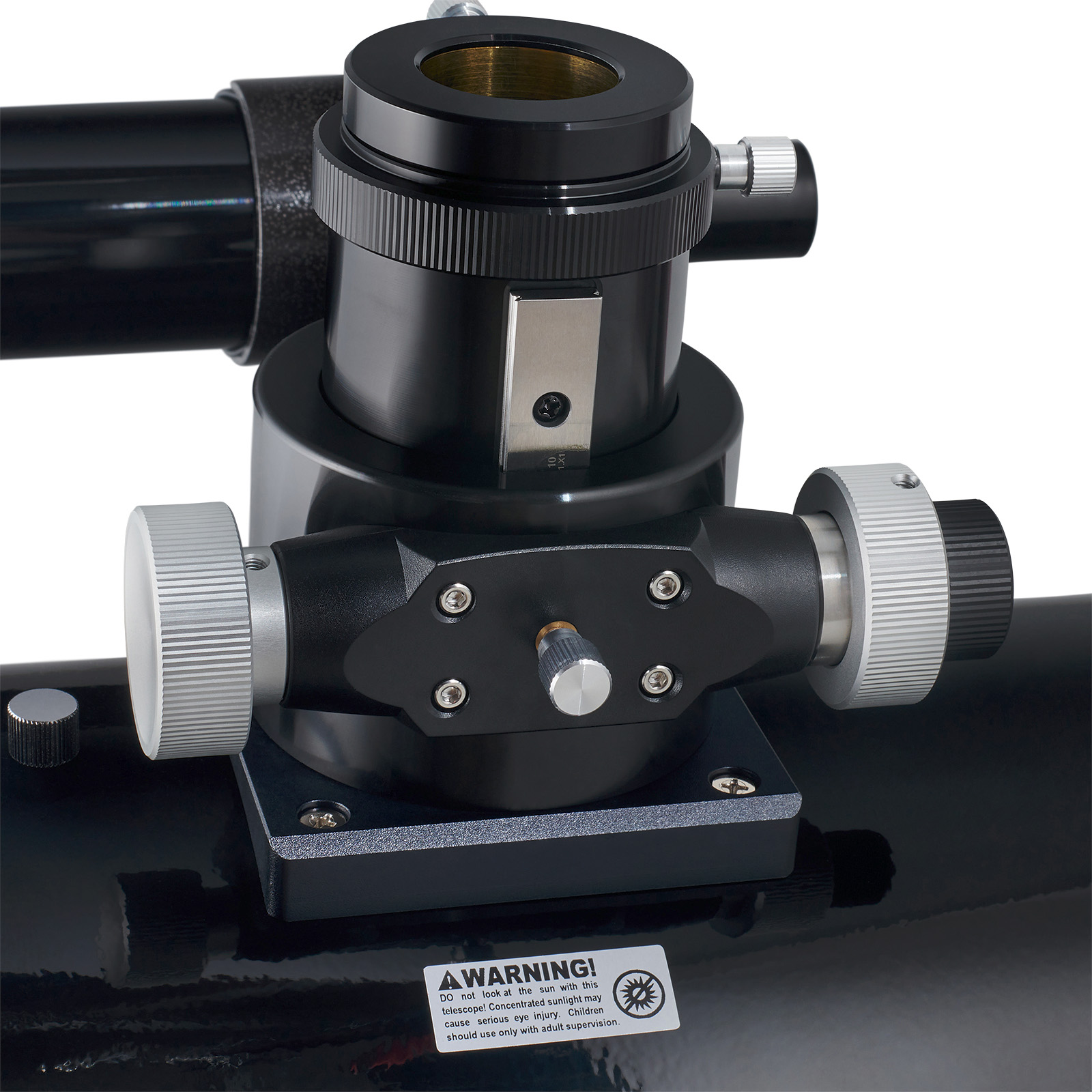

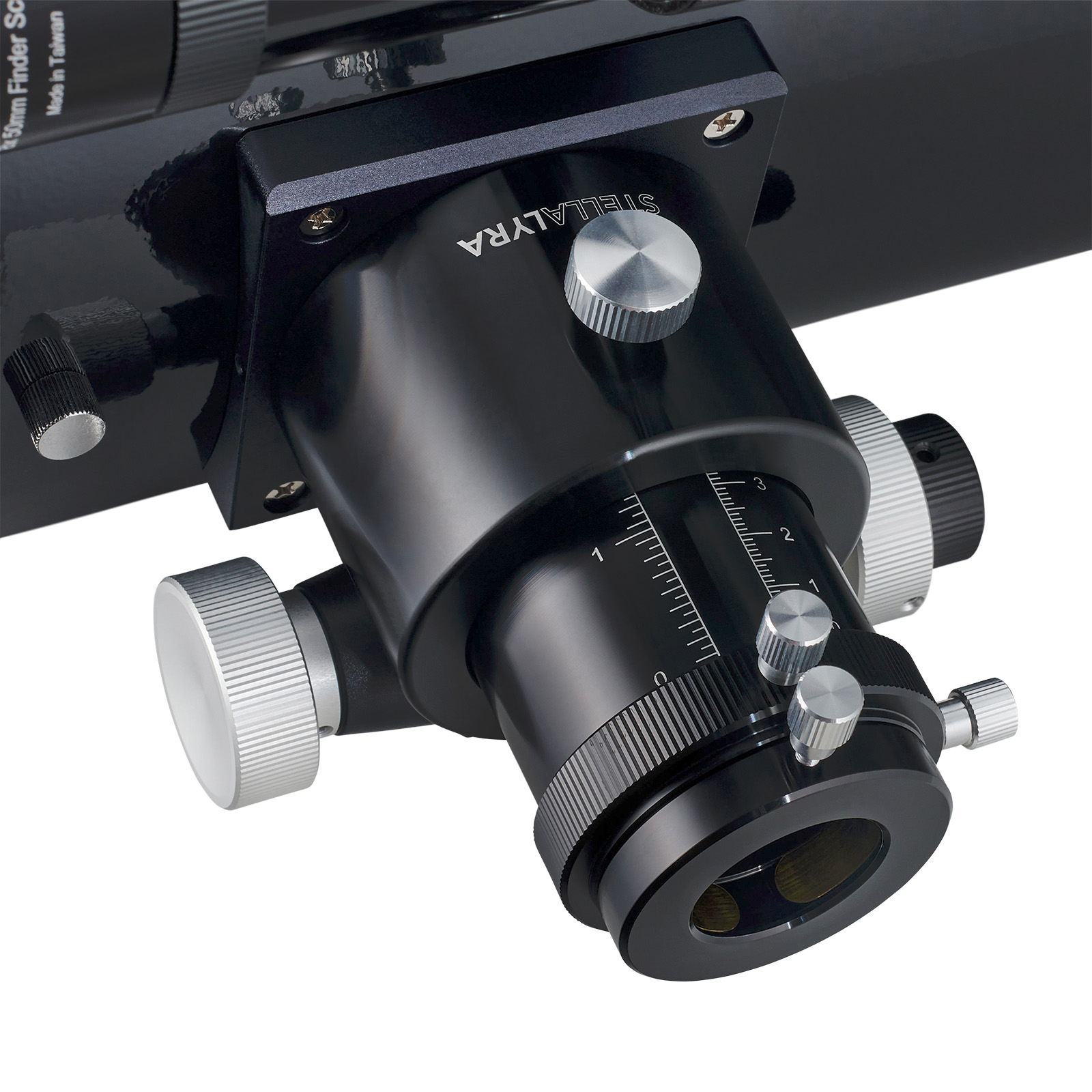

The sturdy dual-speed 2" Linear Bearing (aka Monorail) Crayford focuser has enough tension for most small/medium size imaging payloads and provides precise, smooth focus adjustments.

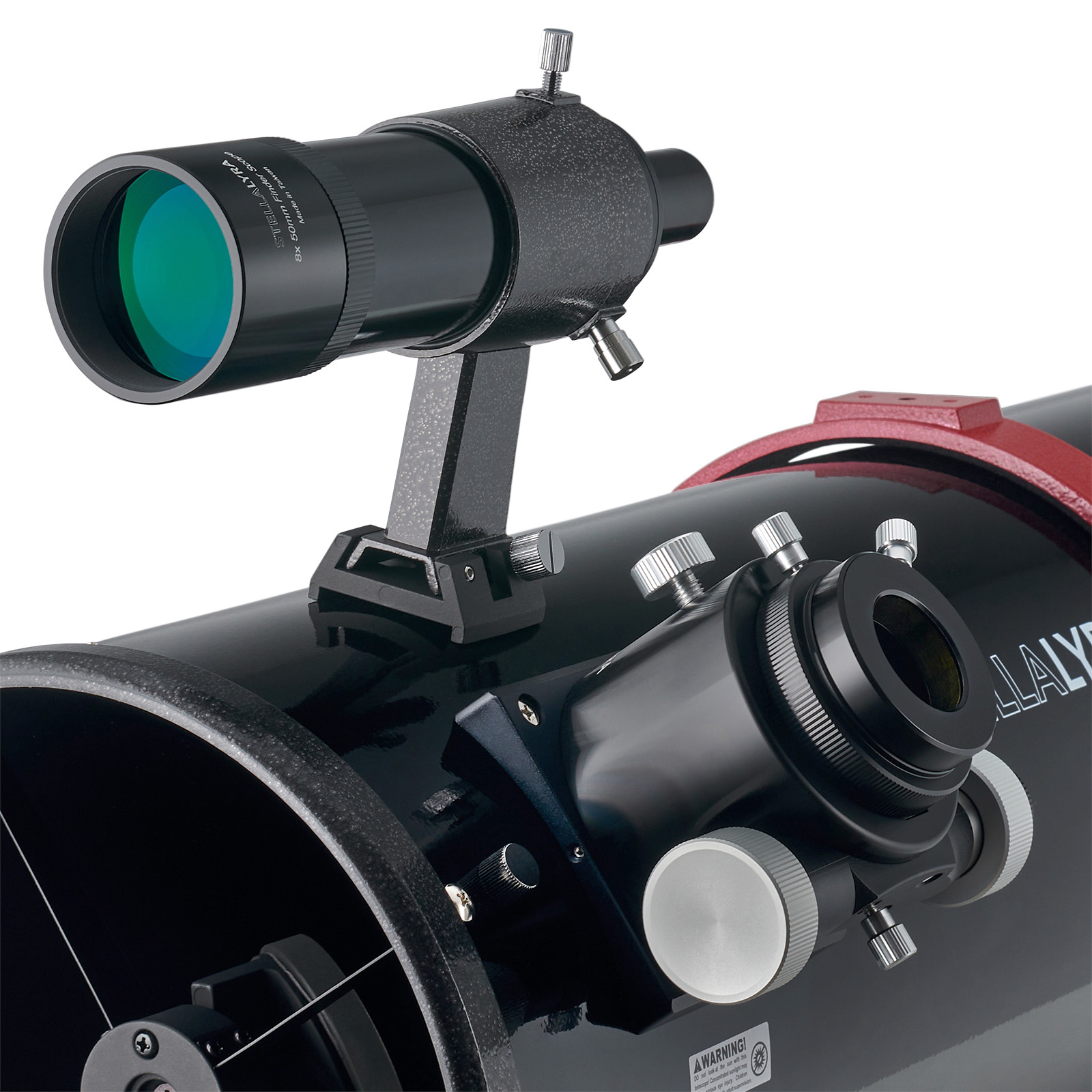

A nicely made 8x50 straight finderscope with fully multicoated optics is included.

It is supplied with metal tube-rings and a Vixen-style dovetail mounting plate.

Note: For astrophotography, a coma corrector is required for optimum results.



FEATURES

  • 200mm (8") optical aperture
  • 1000mm focal length
  • f/5 focal ratio
  • BK7 primary and secondary mirrors
  • Primary mirror: Parabolic with enhanced Al coating for 93%+ reflectivity
  • Secondary mirror: With enhanced Al coating for 93%+ reflectivity
  • Adjustable primary and secondary collimation
  • 2" dual-speed Linear Bearing (aka Monorail) focuser
  • Vixen/Synta Style Finder scope base
  • 8x50 Straight through finder and bracket
  • Vixen-Style 44mm Dovetail
  • Weighs 9kg, including tube rings and finder.
  • 900mm long with a 230mm diameter.



What's in the box

  • 200 mm f/5 Newtonian
  • Tube Rings
  • Vixen-Style Dovetail
  • 8x50 Optical Finder Scope
  • Dust Cap

Specifications

Aperture: 200 mm (8")
Focal length: 1000 mm
F-ratio: f/5
Primary mirror: Parabolic primary mirror with 94 % reflection and Quartz protection coating
Secondary mirror: 63 mm - ideal for APS-C format sensors with suitable coma correctors
Field of view: roughly 28 mm illumination (90 %) - suitable for APS-C format cameras and large 2" eyepieces
Focuser: 2" Dual Speed Linear Bearing Dual Speed focuser with adapter to 1,25" and ring clamping
Backfocus: roughly 78 mm
Tube weight:  12.2 kg
Tube diameter:  230 mm
Tube length: 900 mm
